BFR540
BFR540

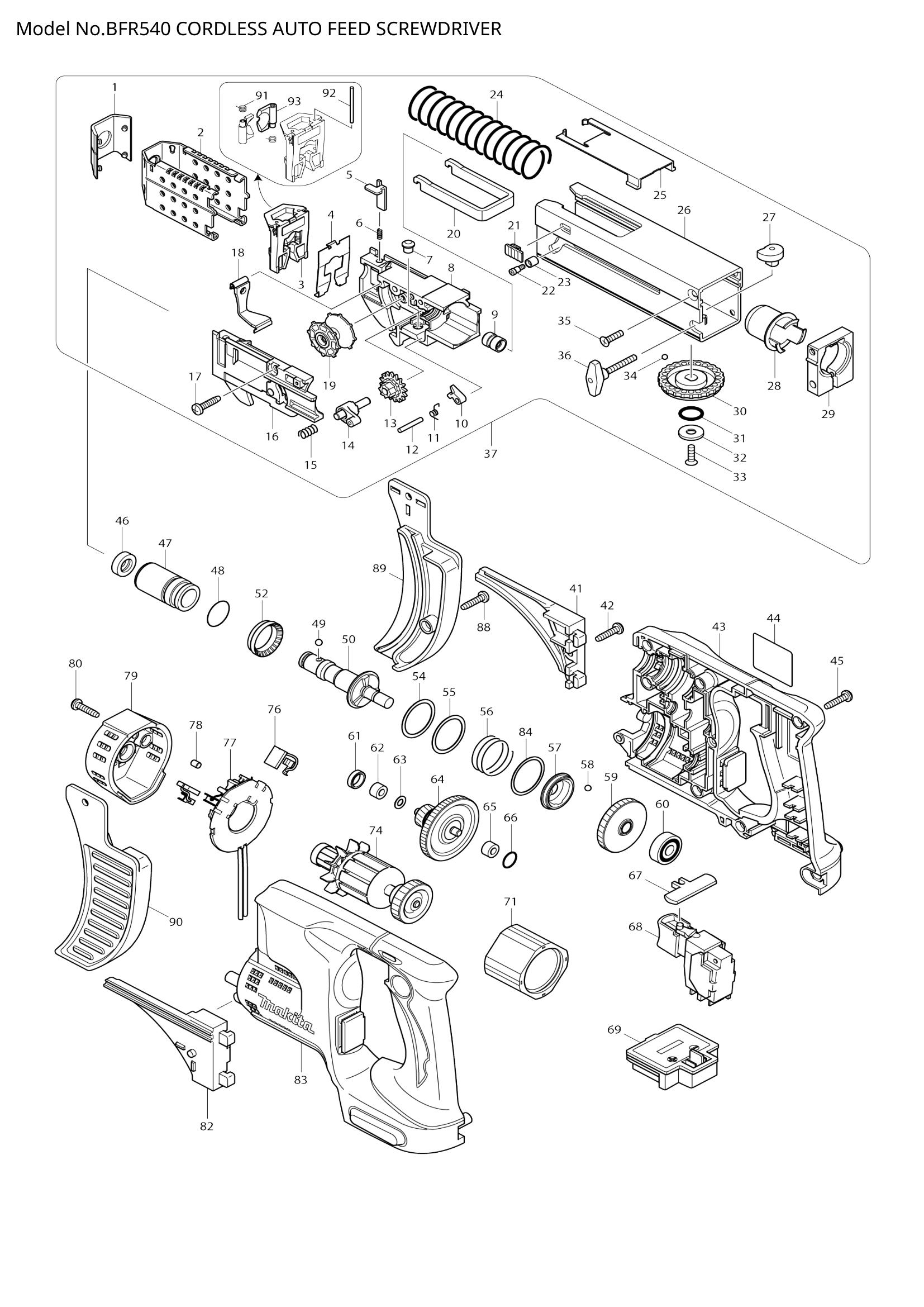

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 424043-2 | CAP | 1 | €2.78 | 1-4 weeks to ship | |
| 002 | 345839-7 | STOPPER BASE 55 | 1 | €11.13 | 1-4 weeks to ship | |
| 005 | 345837-1 | LEVER | 2 | €0.83 | 1-4 weeks to ship | |
| 006 | 233211-4 | COMPRESSION SPRING 2 | 2 | €0.56 | 1-4 weeks to ship | |
| 007 | 256451-7 | PIN 6 | 1 | €1.39 | 1-4 weeks to ship | |
| 009 | 257685-5 | SLEEVE 5 | 1 | €2.78 | 1-4 weeks to ship | |
| 010 | 310062-3 | STOPPER | 1 | €5.57 | 1-4 weeks to ship | |
| 011 | 231636-6 | TORSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 256158-5 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 226344-2 | SPUR GEAR 16 | 1 | €1.67 | 1-4 weeks to ship | |
| 014 | 158374-4 | RATCHET ARM COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 015 | 233212-2 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 158375-2 | BOXCOVER COMPLETE | 1 | €13.92 | 1-4 weeks to ship | |
| 017 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 416518-5 | WHEEL | 1 | €4.17 | 1-4 weeks to ship | |
| 020 | 345838-9 | PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 021 | 450111-5 | STOPPER | 2 | €1.39 | 1-4 weeks to ship | |
| 022 | 265177-0 | +SHOULDER FLAT HEAD SCREW | 1 | €2.78 | 1-4 weeks to ship | |
| 023 | 257764-9 | SLEEVE 4 | 1 | €1.67 | 1-4 weeks to ship | |
| 024 | 234031-9 | COMPRESSION SPRING 23 | 1 | €2.78 | 1-4 weeks to ship | |
| 025 | 450114-9 | CASING COVER | 1 | €1.39 | 1-4 weeks to ship | |
| 026 | 158377-8 | CASING 55 COMPLETE | 1 | €44.53 | 1-4 weeks to ship | |
| 027 | 310237-4 | SHIFTER PIN | 1 | €5.57 | 1-4 weeks to ship | |
| 028 | 450110-7 | INSULATION SLEEVE | 1 | €1.67 | 1-4 weeks to ship | |
| 029 | 318181-9 | CLAMPER | 1 | €8.35 | 1-4 weeks to ship | |
| 030 | 417056-0 | DIAL 42 | 1 | €1.39 | 1-4 weeks to ship | |
| 031 | 213107-5 | O RING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 267201-5 | FLAT WASHER 6 | 1 | €1.11 | 1-4 weeks to ship | |
| 033 | 912117-6 | COUNTERSUNK HEAD SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 912117-6 | COUNTERSUNK HEAD SCREW M4 | 3 | €0.56 | 1-4 weeks to ship | |
| 041 | 188309-1 | SCREW GUIDE SET | 1 | €8.35 | 1-4 weeks to ship | |
| 042 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 863788-1 | BFR540 NAME PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 265995-6 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 046 | 421467-3 | DUST COVER | 1 | €0.83 | 1-4 weeks to ship | |
| 047 | 214173-5 | PLANE BEARING 14 | 1 | €5.57 | 1-4 weeks to ship | |
| 048 | 213262-3 | O RING 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 324808-1 | SPINDLE B | 1 | €30.61 | 1-4 weeks to ship | |
| 052 | 421927-5 | SLEEVE 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 267331-2 | FLAT WASHER 25 | 1 | €0.83 | 1-4 weeks to ship | |
| 055 | 267331-2 | FLAT WASHER 25 | 1 | €0.83 | 1-4 weeks to ship | |
| 056 | 234017-3 | COMPRESSION SPRING 25 | 1 | €2.78 | 1-4 weeks to ship | |
| 057 | 223169-5 | CLUTCH CAM C | 1 | €22.26 | 1-4 weeks to ship | |
| 058 | 216008-6 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 059 | 226670-9 | HELICAL GEAR 48 | 1 | €30.61 | 1-4 weeks to ship | |
| 060 | 211034-0 | BALL BEARING 608 | 1 | €4.17 | 1-4 weeks to ship | |
| 061 | 165115-1 | RUBBER SLEEVE 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 062 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | 253811-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 154937-4 | GEAR COMPLETE 18-44 | 1 | €30.61 | 1-4 weeks to ship | |
| 065 | 214017-9 | PLANE BEARING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 213055-8 | O RING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 419304-3 | F/R CHANGE LEVER | 1 | €1.39 | 1-4 weeks to ship | |
| 071 | 638426-2 | YOKE UNIT | 1 | €27.83 | 1-4 weeks to ship | |
| 074 | 619180-7 | ARMATURE | 1 | €41.75 | 1-4 weeks to ship | |
| 077 | 638433-5 | BRUSH HOLDER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 638433-5 | BRUSH HOLDER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | ||
| 078 | 263032-0 | RUBBER PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 079 | 419307-7 | FRONT COVER | 1 | €5.57 | 1-4 weeks to ship | |
| 080 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 082 | 188309-1 | SCREW GUIDE SET | 1 | €8.35 | 1-4 weeks to ship | |
| 084 | 267332-0 | FLAT WASHER 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 092 | 268188-4 | PIN 2 | 2 | €0.83 | 1-4 weeks to ship | |
| 094 | 125809-0 | FEEDER BOX ASS'Y | 1 | €89.06 | 1-4 weeks to ship |
