BDA350
BDA350

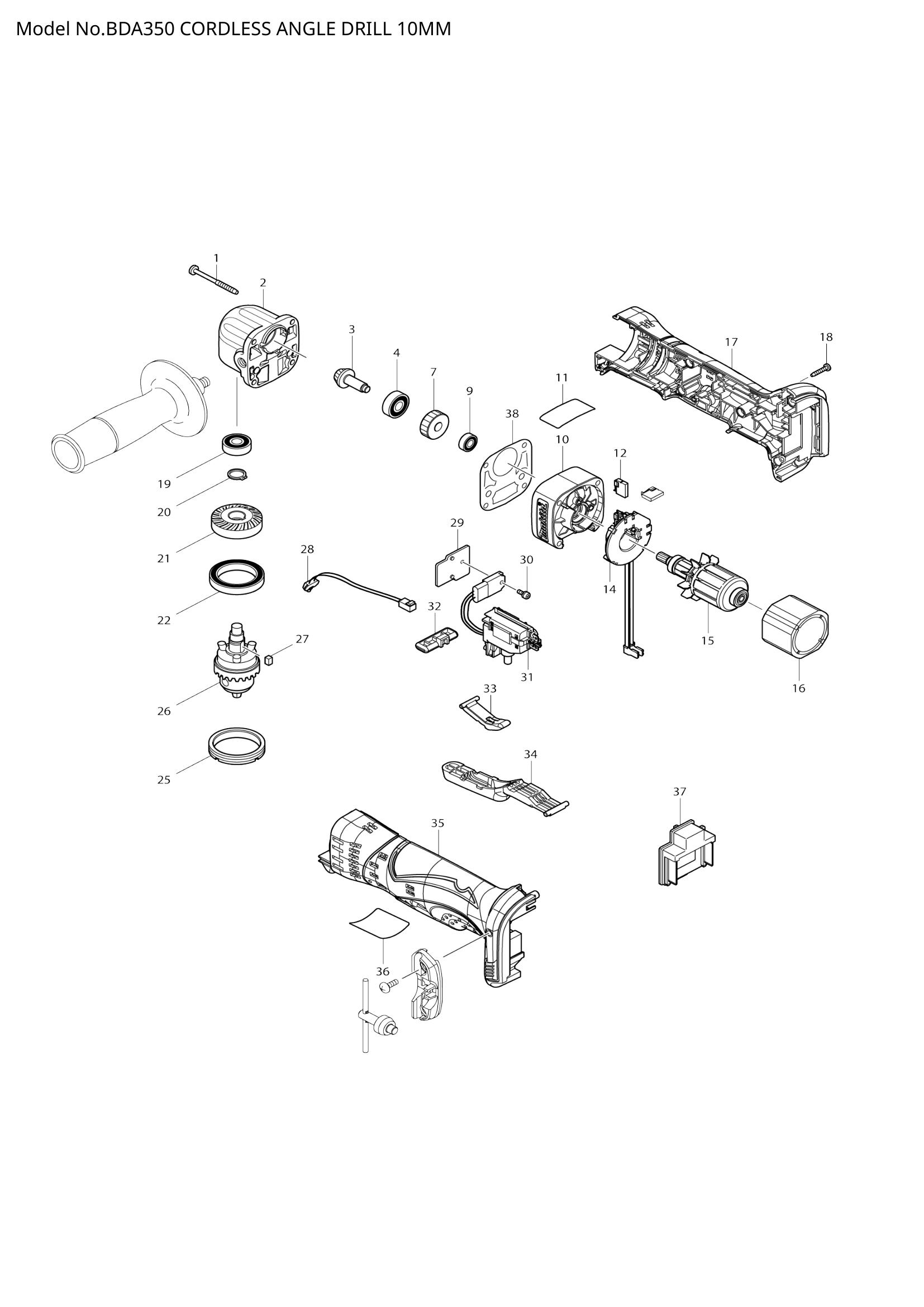

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266069-6 | TAPPING SCREW 4X45 | 4 | €0.56 | 1-4 weeks to ship | |
| 002 | 317635-3 | GEAR HOUSING | 1 | €33.40 | 1-4 weeks to ship | |
| 003 | 227436-0 | SPIRAL BEVEL GEAR 9 | 1 | €13.92 | 1-4 weeks to ship | |
| 004 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 007 | 227230-0 | SPUR GEAR 29 | 1 | €11.13 | 1-4 weeks to ship | |
| 009 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 010 | 450607-6 | GEAR HOUSING COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 016 | 638613-3 | YOKE UNIT | 1 | €16.70 | 1-4 weeks to ship | |
| 018 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 5 | €0.56 | 1-4 weeks to ship | |
| 019 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 020 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 227536-6 | SPIRAL BEVEL GEAR 26 | 1 | €16.70 | 1-4 weeks to ship | |
| 022 | 211423-9 | BALL BEARING 6806DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 025 | 285842-5 | BEARING RETAINER 36-43 | 1 | €4.17 | 1-4 weeks to ship | |
| 026 | DRILL CHUCK S10 | 1 | Not available in store | |||
| 027 | 254201-4 | KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 631814-2 | LED CIRCUIT | 1 | €11.13 | 1-4 weeks to ship | |
| 029 | 689098-6 | HEAT SINK | 1 | €1.67 | 1-4 weeks to ship | |
| 030 | 911006-2 | PAN HEAD SCREW M3X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 450610-7 | F/R CHANGE LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 033 | 450609-2 | LINK | 1 | €1.39 | 1-4 weeks to ship | |
| 034 | 450608-4 | SWITCH LAVER | 1 | €2.78 | 1-4 weeks to ship | |
| 036 | 865494-4 | BDA350 NAME PLATE | 1 | €2.09 | 1-4 weeks to ship | |
| 038 | 418036-9 | GASKET | 1 | €2.78 | 1-4 weeks to ship | |
