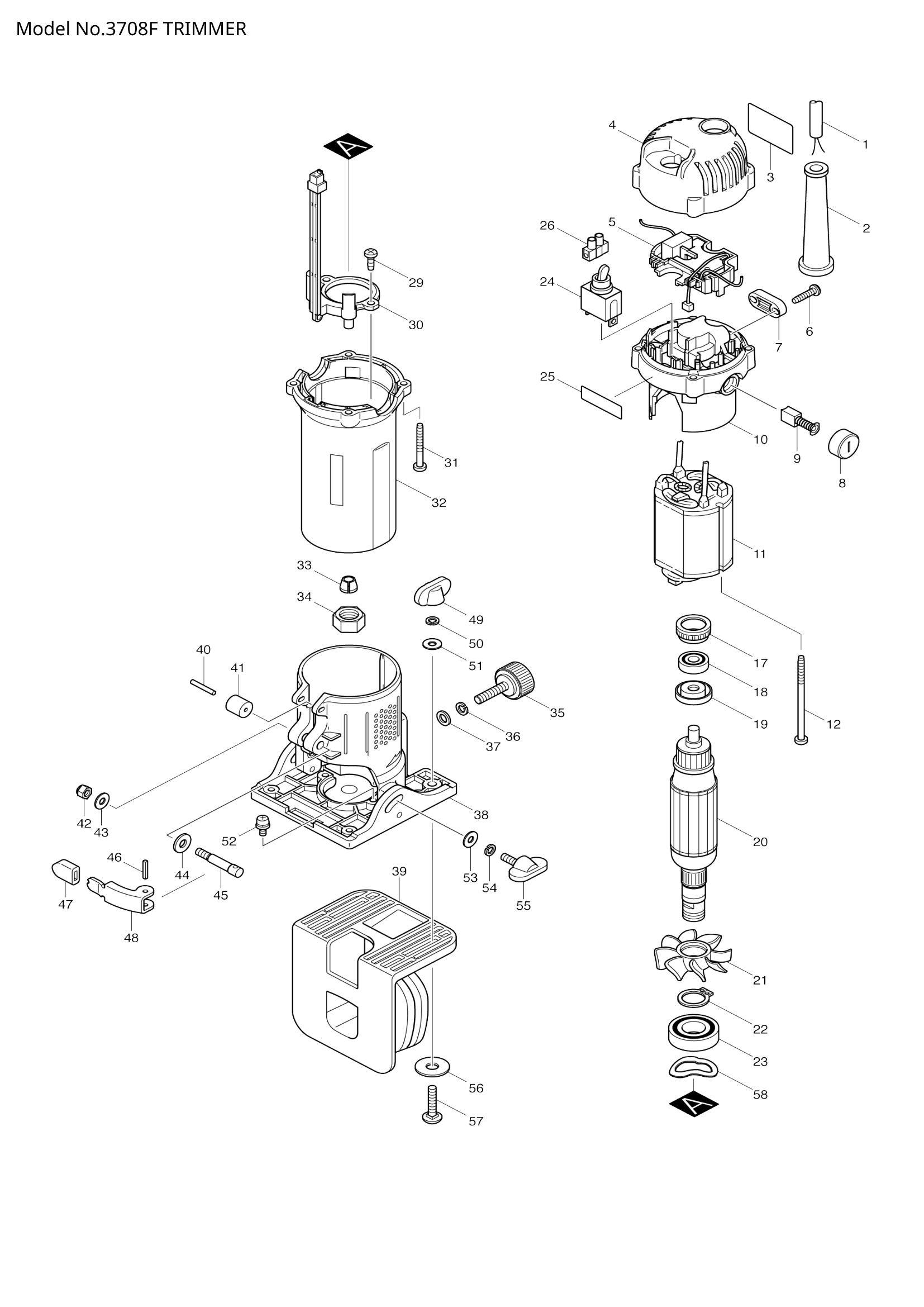

3708F
3708F
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | |
| 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | ||
| 002 | 682502-4 | CORD GUARD 8-85 | 1 | €0.56 | 1-4 weeks to ship | |
| 682502-4 | CORD GUARD 8-85 | 1 | €0.56 | 1-4 weeks to ship | ||
| 003 | NAME PLATE 3708F | 1 | Not available in store | |||
| NAME PLATE 3708F | 1 | Not available in store | ||||
| 004 | REAR COVER | 1 | Not available in store | |||
| REAR COVER | 1 | Not available in store | ||||
| 005 | LED POWER SUPPLY CIRCUIT | 1 | Not available in store | |||
| LED POWER SUPPLY CIRCUIT | 1 | Not available in store | ||||
| 006 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 007 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | 643928-5 | BRUSH HOLDER CAP | 2 | €0.83 | 1-4 weeks to ship | |
| 643928-5 | BRUSH HOLDER CAP | 2 | €0.83 | 1-4 weeks to ship | ||
| 010 | 183417-3 | MOTOR REAR HOUSING | 1 | €22.26 | 1-4 weeks to ship | |
| 183417-3 | MOTOR REAR HOUSING | 1 | €22.26 | 1-4 weeks to ship | ||
| 011 | 595069-2 | FIELD ASSY 240V | 1 | €33.40 | 1-4 weeks to ship | |
| 595069-2 | FIELD ASSY 240V | 1 | €33.40 | 1-4 weeks to ship | ||
| 012 | 266004-4 | TAPPING SCREW 4X70 | 2 | €1.11 | 1-4 weeks to ship | |
| 266004-4 | TAPPING SCREW 4X70 | 2 | €1.11 | 1-4 weeks to ship | ||
| 017 | 421494-0 | RUBBER RING 19 | 1 | €4.17 | 1-4 weeks to ship | |
| 421494-0 | RUBBER RING 19 | 1 | €4.17 | 1-4 weeks to ship | ||
| 018 | 210017-7 | BALL BEARING 607DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 210017-7 | BALL BEARING 607DDW | 1 | €2.78 | 1-4 weeks to ship | ||
| 019 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 020 | 517574-9 | ARMATURE ASSY 240V | 1 | €86.27 | 1-4 weeks to ship | |
| 517574-9 | ARMATURE ASSY 240V | 1 | €86.27 | 1-4 weeks to ship | ||
| 021 | FAN 48 | 1 | Not available in store | |||
| FAN 48 | 1 | Not available in store | ||||
| 022 | 961055-9 | RETAINING RING S-15 | 1 | €0.56 | 1-4 weeks to ship | |
| 961055-9 | RETAINING RING S-15 | 1 | €0.56 | 1-4 weeks to ship | ||
| 023 | 211236-8 | BALL BEARING 6002DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 211236-8 | BALL BEARING 6002DDW | 1 | €8.35 | 1-4 weeks to ship | ||
| 025 | 819720-3 | MAKITA LABEL | 1 | €4.45 | 1-4 weeks to ship | |
| 819720-3 | MAKITA LABEL | 1 | €4.45 | 1-4 weeks to ship | ||
| 026 | TERMINAL BLOCK | 1 | Not available in store | |||
| TERMINAL BLOCK | 1 | Not available in store | ||||
| 029 | 251991-0 | + TAPPING SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 251991-0 | + TAPPING SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | ||
| 030 | LED CIRCUIT | 1 | Not available in store | |||
| LED CIRCUIT | 1 | Not available in store | ||||
| 031 | 266053-1 | TAPPING SCREW 4X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 266053-1 | TAPPING SCREW 4X35 | 4 | €0.56 | 1-4 weeks to ship | ||
| 032 | 153347-2 | MOTOR HOUSING COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
| 153347-2 | MOTOR HOUSING COMPLETE | 1 | €16.70 | 1-4 weeks to ship | ||
| 034 | COLLET NUT 6 | 1 | Not available in store | |||
| COLLET NUT 6 | 1 | Not available in store | ||||
| 035 | 251814-2 | SCREW M6X18 | 1 | €0.83 | 1-4 weeks to ship | |
| 251814-2 | SCREW M6X18 | 1 | €0.83 | 1-4 weeks to ship | ||
| 036 | 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 037 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 039 | 414304-8 | TRIMMER SHOE | 1 | €13.92 | 1-4 weeks to ship | |
| 414304-8 | TRIMMER SHOE | 1 | €13.92 | 1-4 weeks to ship | ||
| 041 | 421566-1 | ROLLER W/O PIN | 1 | €1.11 | 1-4 weeks to ship | |
| 421566-1 | ROLLER W/O PIN | 1 | €1.11 | 1-4 weeks to ship | ||
| 042 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 043 | 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 044 | 267214-6 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 267214-6 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 045 | 324243-3 | SUPPORT PIN | 1 | €4.17 | 1-4 weeks to ship | |
| 324243-3 | SUPPORT PIN | 1 | €4.17 | 1-4 weeks to ship | ||
| 046 | 951060-4 | SPRING PIN 3-14 | 1 | €0.56 | 1-4 weeks to ship | |
| 951060-4 | SPRING PIN 3-14 | 1 | €0.56 | 1-4 weeks to ship | ||
| 047 | 421818-0 | RUBBER CAP | 1 | €1.11 | 1-4 weeks to ship | |
| 421818-0 | RUBBER CAP | 1 | €1.11 | 1-4 weeks to ship | ||
| 048 | 345229-4 | LOCK LEVER | 1 | €4.17 | 1-4 weeks to ship | |
| 345229-4 | LOCK LEVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 049 | 252646-0 | WING NUT M5 | 2 | €4.04 | 1-4 weeks to ship | |
| 252646-0 | WING NUT M5 | 2 | €4.04 | 1-4 weeks to ship | ||
| 050 | 942101-7 | SPRING WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 942101-7 | SPRING WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 942101-7 | SPRING WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 942101-7 | SPRING WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 051 | 941101-4 | FLAT WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 941101-4 | FLAT WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 052 | 911114-9 | PAN HEAD SCREW M4X10 | 2 | €0.56 | 1-4 weeks to ship | |
| 911114-9 | PAN HEAD SCREW M4X10 | 2 | €0.56 | 1-4 weeks to ship | ||
| 053 | 941101-4 | FLAT WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 941101-4 | FLAT WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 054 | 942101-7 | SPRING WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 942101-7 | SPRING WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 942101-7 | SPRING WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 942101-7 | SPRING WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 055 | 265740-9 | SCREW M5X15 | 2 | €4.17 | 1-4 weeks to ship | |
| 265740-9 | SCREW M5X15 | 2 | €4.17 | 1-4 weeks to ship | ||
| 057 | 923241-0 | CAP SQUARE NECK BOLT M5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 923241-0 | CAP SQUARE NECK BOLT M5X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 058 | 253905-5 | WAVE WASHER 23 | 1 | €0.42 | 1-4 weeks to ship | |
| 253905-5 | WAVE WASHER 23 | 1 | €0.42 | 1-4 weeks to ship | ||
