BCV01
BCV01

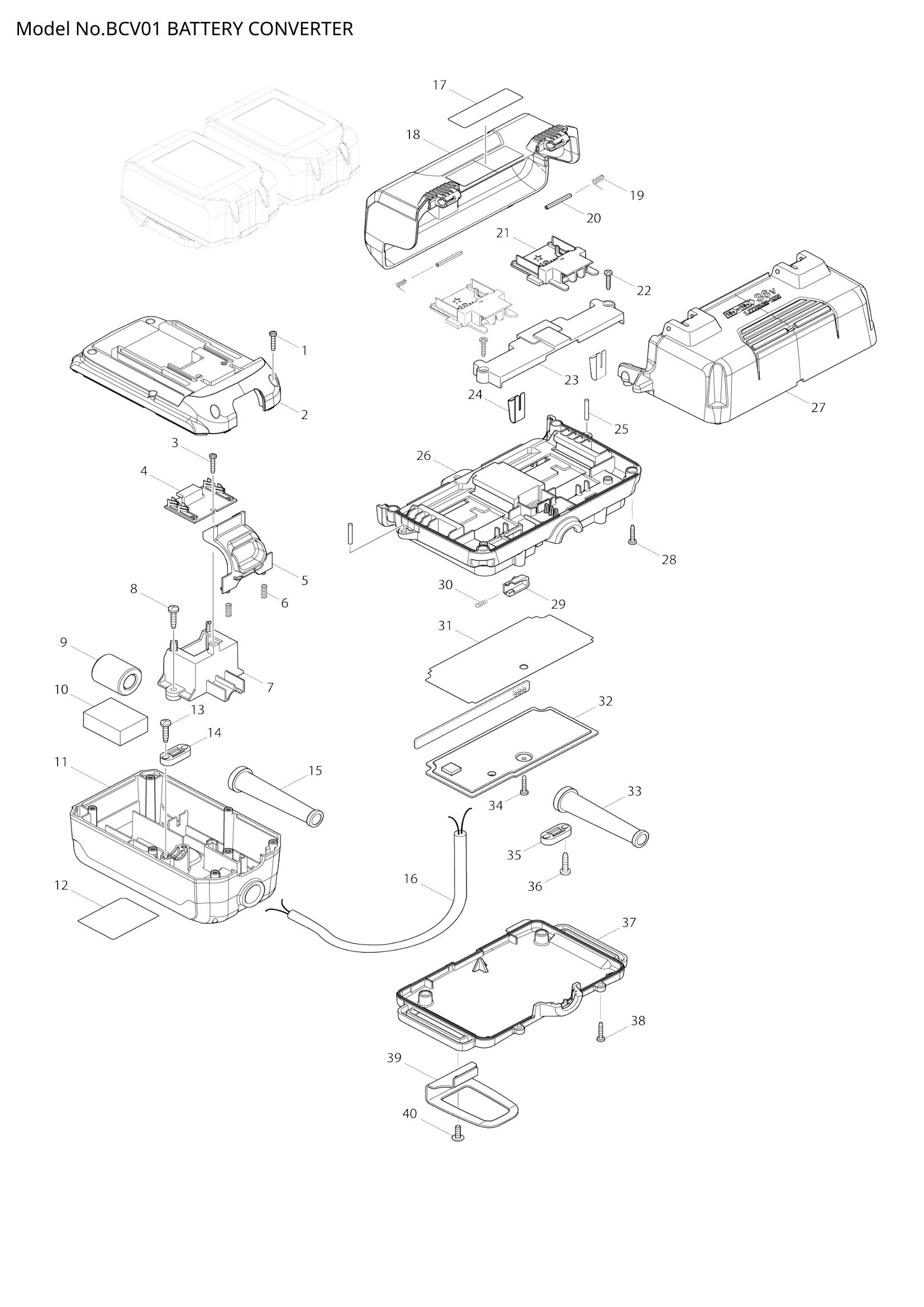

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | Hexalobular socket tapping scre | 6 | Not available in store | |||
| 002 | Outer case (upper) (black) | 1 | Not available in store | |||
| 003 | Hexalobular socket tapping scre | 1 | Not available in store | |||
| 004 | Terminal board complete | 1 | Not available in store | |||
| 005 | Hook complete | 1 | Not available in store | |||
| 006 | Compression spring 4 | 2 | Not available in store | |||
| 007 | INNER SUPPORT | 1 | Not available in store | |||
| 008 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 009 | LINE FILTER | 1 | Not available in store | |||
| 010 | 685718-0 | SPONGE SHEET | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | Outer case (under) (black) | 1 | Not available in store | |||
| 013 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 014 | STRAIN RELIEF | 1 | Not available in store | |||
| 015 | 682504-0 | CORD GUARD 10-85 | 1 | €1.67 | 1-4 weeks to ship | |
| 682504-0 | CORD GUARD 10-85 | 1 | €1.67 | 1-4 weeks to ship | ||
| 016 | Power supply cord 14-3-1.6 | 1 | Not available in store | |||
| 017 | MAKITA LOGO LABEL | 1 | Not available in store | |||
| 018 | Battery cover set (blue) | 1 | Not available in store | |||
| 019 | Torsion spring 4 | 2 | Not available in store | |||
| 020 | 951075-1 | SPRING PIN 3-28 | 2 | €0.56 | 1-4 weeks to ship | |
| 022 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 023 | TERMINAL HOLDER | 1 | Not available in store | |||
| 024 | LEAF SPRING | 2 | Not available in store | |||
| 025 | 256158-5 | PIN 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 027 | Under cover (black) | 1 | Not available in store | |||
| 028 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 029 | Slide latch | 1 | Not available in store | |||
| 030 | 231293-0 | COMPRESSION SPRING 3 | 1 | €0.83 | 1-4 weeks to ship | |
| 031 | Protection plate | 1 | Not available in store | |||
| 033 | 682504-0 | CORD GUARD 10-85 | 1 | €1.67 | 1-4 weeks to ship | |
| 682504-0 | CORD GUARD 10-85 | 1 | €1.67 | 1-4 weeks to ship | ||
| 034 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | STRAIN RELIEF | 1 | Not available in store | |||
| 036 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 037 | Top cover (black) | 1 | Not available in store | |||
| 038 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 039 | Hook | 1 | Not available in store | |||
| 040 | 266622-8 | + TRUSS HEAD SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
