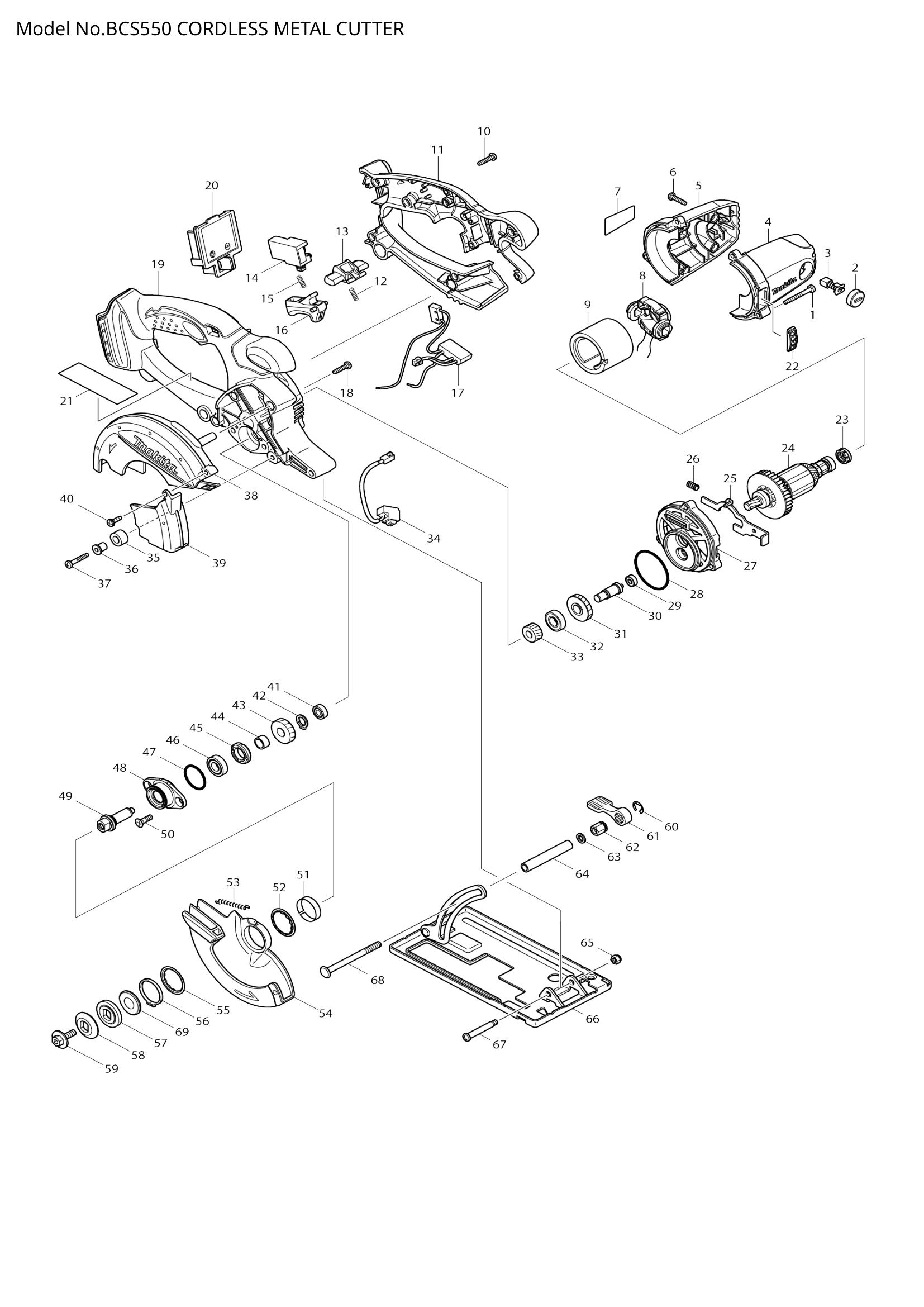

BCS550
BCS550
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266053-1 | TAPPING SCREW 4X35 | 3 | €0.56 | 1-4 weeks to ship | |
| 002 | 643807-7 | BRUSH HOLDER CAP | 2 | €0.83 | 1-4 weeks to ship | |
| 003 | 191971-3 | CARBON BRUSH CB-430 | 1 | €2.78 | 1-4 weeks to ship | |
| 006 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 007 | 862979-1 | BCS550 NAME PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 265995-6 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 012 | 231469-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 419664-3 | LOCK OFF LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 014 | 651956-6 | SWITCH TG72BD | 1 | €13.92 | 1-4 weeks to ship | |
| 015 | 231469-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 419665-1 | SWITCH LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 018 | 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 022 | 419609-1 | FAN GUARD | 1 | €0.83 | 1-4 weeks to ship | |
| 023 | 421977-0 | RUBBER RING 13 | 1 | €0.83 | 1-4 weeks to ship | |
| 025 | 345643-4 | SHAFT LOCK | 1 | €0.83 | 1-4 weeks to ship | |
| 026 | 233117-6 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 419656-2 | GEAR HOUSING | 1 | €4.17 | 1-4 weeks to ship | |
| 028 | 213560-5 | O RING 44 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 324729-7 | GEAR SHAFT | 1 | €1.67 | 1-4 weeks to ship | |
| 032 | 210080-0 | BALL BEARING 6900ZZ | 1 | €8.35 | 1-4 weeks to ship | |
| 033 | 226635-1 | HELICAL GEAR 15 | 1 | €5.57 | 1-4 weeks to ship | |
| 034 | 631550-0 | LED CIRCUIT | 1 | €11.13 | 1-4 weeks to ship | |
| 036 | 262563-6 | SLEEVE 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 265999-8 | TAPPING SCREW 4X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 419662-7 | BLADE CASE | 1 | €8.35 | 1-4 weeks to ship | |
| 039 | 419663-5 | BLADE COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 040 | 266020-6 | TAPPING SCREW 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 210006-2 | BALL BEARING 696ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 042 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 226640-8 | HELICAL GEAR 23 | 1 | €5.57 | 1-4 weeks to ship | |
| 044 | 257760-7 | SLEEVE 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 285847-5 | BEARING RETAINER 14-23 | 1 | €2.78 | 1-4 weeks to ship | |
| 046 | 210069-8 | BALL BEARING 6900DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 047 | 213435-8 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 318087-1 | BEARING BOX | 1 | €4.17 | 1-4 weeks to ship | |
| 049 | 324730-2 | SPINDLE | 1 | €2.78 | 1-4 weeks to ship | |
| 050 | 265034-2 | + COUNTERSUNK HEAD SCREW | 2 | €0.56 | 1-4 weeks to ship | |
| 051 | 345470-9 | THICKNESS RING | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 345739-1 | SPACER | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 231792-2 | TENSION SPRING 3 | 1 | €2.78 | 1-4 weeks to ship | |
| 054 | 158116-6 | SAFETY COVER COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 055 | 345739-1 | SPACER | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 257938-2 | RETAINING RING(EXT) WR-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | 224391-7 | INNER FLANGE 30 | 1 | €1.39 | 1-4 weeks to ship | |
| 058 | 224404-4 | OUTER FLANGE 30 | 1 | €2.78 | 1-4 weeks to ship | |
| 060 | 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 272229-0 | LEVER 40 | 1 | €2.78 | 1-4 weeks to ship | |
| 062 | 252159-1 | HEX. NUT M6 | 1 | €2.78 | 1-4 weeks to ship | |
| 063 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 064 | 331733-9 | PIPE 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 065 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 163471-3 | BASE | 1 | €11.13 | 1-4 weeks to ship | |
| 067 | 265056-2 | + PAN HEAD SCREW M5 | 1 | €1.67 | 1-4 weeks to ship | |
| 068 | 266405-6 | FLAT H.SQUARE NECK BOLT M6X | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 267802-9 | CUP WASHER 13 | 1 | €1.39 | 1-4 weeks to ship |
