AX1820
AX1820

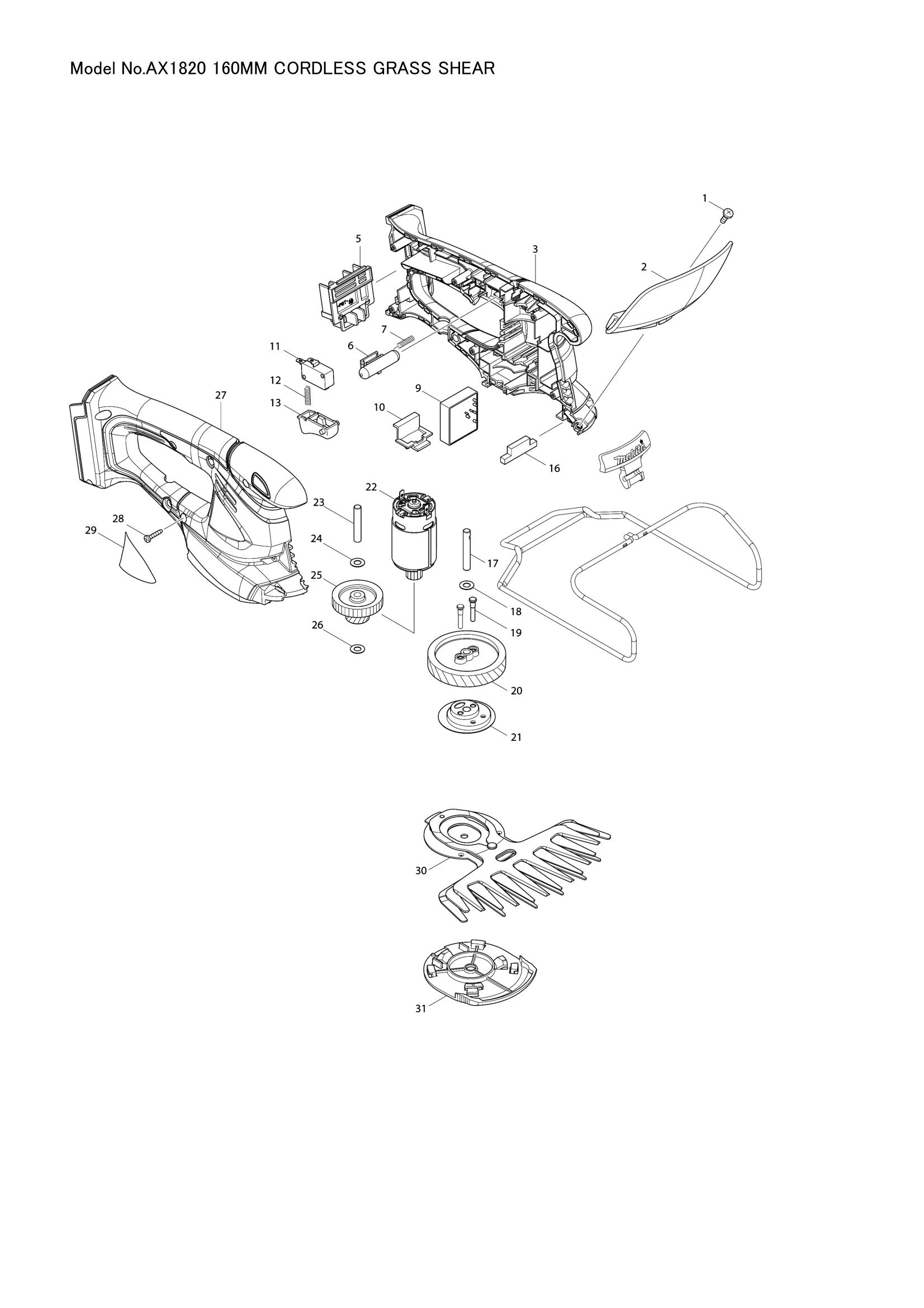

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 915116-7 | BINDING HEAD SCREW M4X12 | 1 | €0.83 | 1-4 weeks to ship | |
| 002 | 140599-4 | PROTECTOR COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 003 | HOUSING SET | 1 | Not available in store | |||
| 005 | TERMINAL | 1 | Not available in store | |||
| 006 | 452438-9 | LOCK OFF BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 231473-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | CONTROLLER | 1 | Not available in store | |||
| 010 | 451812-8 | LOCK LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 651891-8 | SWITCH V-15-3A6 | 1 | €5.57 | 1-4 weeks to ship | |
| 012 | 231473-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 417564-1 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 016 | 451814-4 | DUST GUARD | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 268254-7 | PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 261122-3 | WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 268256-3 | PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 020 | 227728-7 | HELICAL GEAR 47 | 1 | €1.67 | 1-4 weeks to ship | |
| 021 | 165609-6 | CRANK COMPLETE | 1 | €8.35 | 1-4 weeks to ship | |
| 022 | 629945-9 | DC MOTOR | 1 | €13.92 | 1-4 weeks to ship | |
| 629945-9 | DC MOTOR | 1 | €13.92 | 1-4 weeks to ship | ||
| 023 | 268076-5 | PIN 6 | 1 | €0.42 | 1-4 weeks to ship | |
| 024 | 261122-3 | WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 226831-1 | GEAR 12-31 | 1 | €1.39 | 1-4 weeks to ship | |
| 026 | 261122-3 | WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | HOUSING SET | 1 | Not available in store | |||
| 028 | 266429-2 | TAPPING SCREW 3X16 | 6 | €0.56 | 1-4 weeks to ship | |
| 029 | AX-1820 NAME PLATE | 1 | Not available in store | |||
| 031 | 140451-6 | UNDER COVER COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
