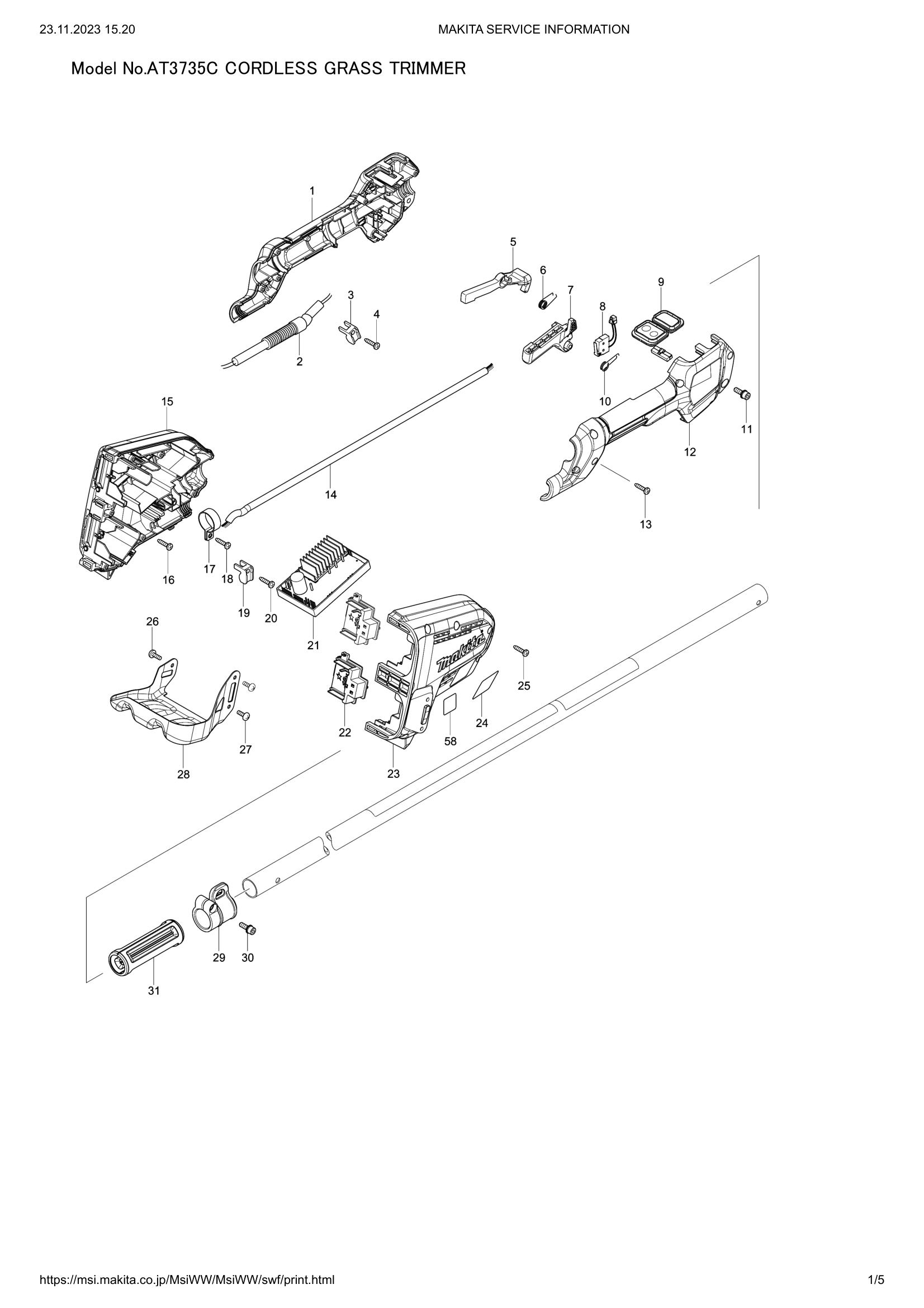

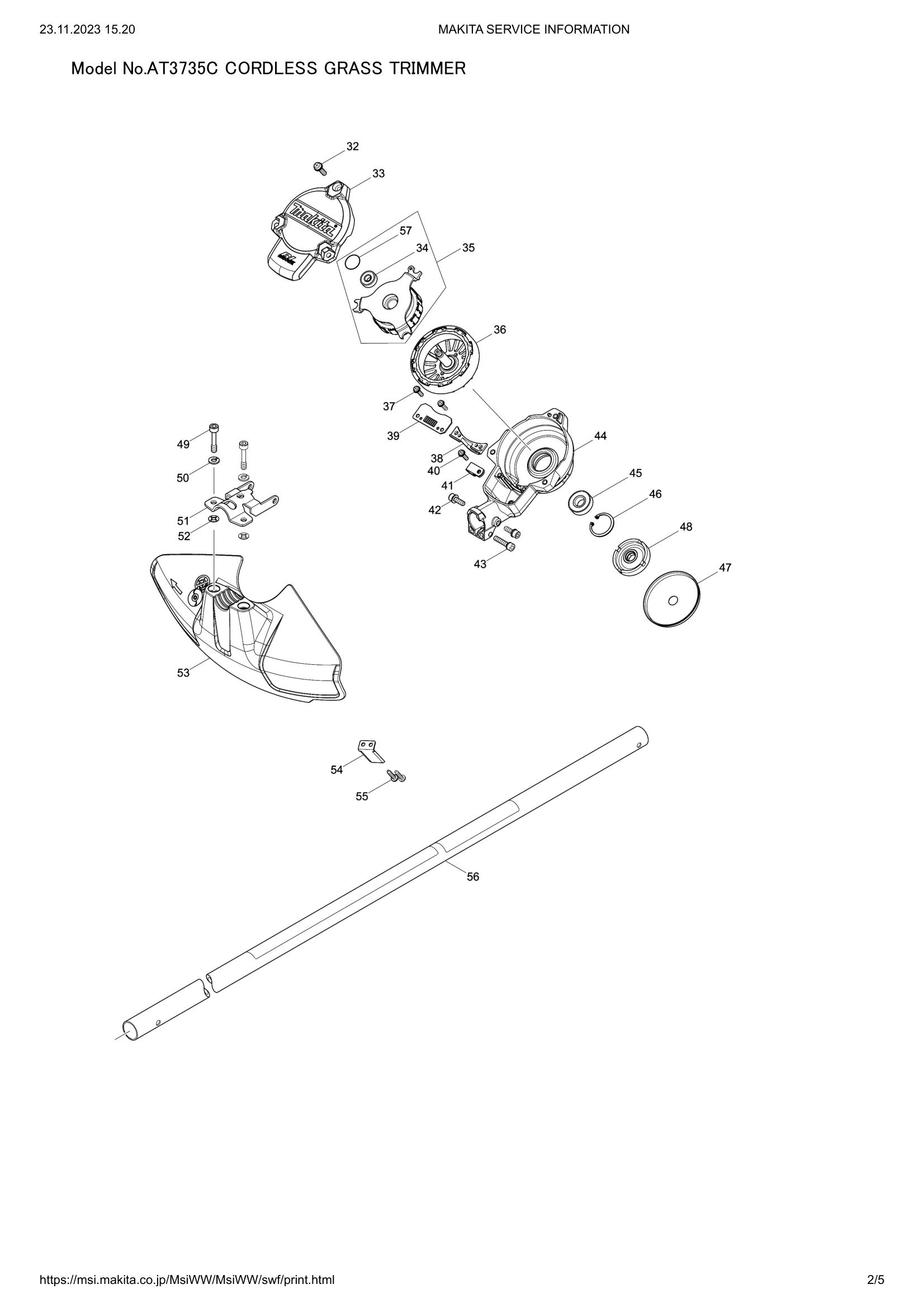

AT3735C
AT3735C
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 183A19-1 | GRIP SET | 1 | €16.14 | 1-4 weeks to ship | |
| 183A19-1 | GRIP SET | 1 | €16.14 | 1-4 weeks to ship | ||
| 002 | 699068-7 | POWER SUPPLY CORD UNIT | 1 | €35.07 | 1-4 weeks to ship | |
| 699068-7 | POWER SUPPLY CORD UNIT | 1 | €35.07 | 1-4 weeks to ship | ||
| 003 | 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | |
| 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | ||
| 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | ||
| 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | ||
| 004 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | 233621-5 | TORSION SPRING 9 | 1 | €0.14 | 1-4 weeks to ship | |
| 233621-5 | TORSION SPRING 9 | 1 | €0.14 | 1-4 weeks to ship | ||
| 007 | 455625-9 | SWITCH LEVER | 1 | €3.62 | 1-4 weeks to ship | |
| 455625-9 | SWITCH LEVER | 1 | €3.62 | 1-4 weeks to ship | ||
| 455625-9 | SWITCH LEVER | 1 | €3.62 | 1-4 weeks to ship | ||
| 455625-9 | SWITCH LEVER | 1 | €3.62 | 1-4 weeks to ship | ||
| 008 | 632E26-0 | SWITCH UNIT | 1 | €16.70 | 1-4 weeks to ship | |
| 632E26-0 | SWITCH UNIT | 1 | €16.70 | 1-4 weeks to ship | ||
| 632E26-0 | SWITCH UNIT | 1 | €16.70 | 1-4 weeks to ship | ||
| 632E26-0 | SWITCH UNIT | 1 | €16.70 | 1-4 weeks to ship | ||
| 010 | 233612-6 | TORSION SPRING 10 | 1 | €1.39 | 1-4 weeks to ship | |
| 233612-6 | TORSION SPRING 10 | 1 | €1.39 | 1-4 weeks to ship | ||
| 011 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 012 | 183A19-1 | GRIP SET | 1 | €16.14 | 1-4 weeks to ship | |
| 183A19-1 | GRIP SET | 1 | €16.14 | 1-4 weeks to ship | ||
| 013 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 014 | 699067-9 | POWER SUPPLY CORD UNIT | 1 | €33.95 | 1-4 weeks to ship | |
| 699067-9 | POWER SUPPLY CORD UNIT | 1 | €33.95 | 1-4 weeks to ship | ||
| 016 | 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | ||
| 017 | 346248-3 | CLAMP 24 | 1 | €0.83 | 1-4 weeks to ship | |
| 346248-3 | CLAMP 24 | 1 | €0.83 | 1-4 weeks to ship | ||
| 018 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 019 | 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | |
| 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | ||
| 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | ||
| 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | ||
| 020 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 644808-8 | TERMINAL | 2 | €4.17 | 1-4 weeks to ship | |
| 644808-8 | TERMINAL | 2 | €4.17 | 1-4 weeks to ship | ||
| 024 | AT-3735 C NAME PLATE | 1 | Not available in store | |||
| AT-3735 C NAME PLATE | 1 | Not available in store | ||||
| 025 | 266326-2 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | ||
| 026 | 251314-2 | + SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 251314-2 | + SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 027 | 251314-2 | + SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 251314-2 | + SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | ||
| 028 | 346858-6 | BATTERY GUARD | 1 | €11.69 | 1-4 weeks to ship | |
| 346858-6 | BATTERY GUARD | 1 | €11.69 | 1-4 weeks to ship | ||
| 029 | 168478-4 | HANGER | 1 | €4.17 | 1-4 weeks to ship | |
| 168478-4 | HANGER | 1 | €4.17 | 1-4 weeks to ship | ||
| 030 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 031 | 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | |
| 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | ||
| 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | ||
| 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | ||
| 032 | 911233-1 | PAN HEAD SCREW M5X20 | 3 | €0.56 | 1-4 weeks to ship | |
| 911233-1 | PAN HEAD SCREW M5X20 | 3 | €0.56 | 1-4 weeks to ship | ||
| 033 | TOP COVER | 1 | Not available in store | |||
| TOP COVER | 1 | Not available in store | ||||
| 037 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 038 | 455628-3 | INNER COVER | 1 | €1.25 | 1-4 weeks to ship | |
| 455628-3 | INNER COVER | 1 | €1.25 | 1-4 weeks to ship | ||
| 455628-3 | INNER COVER | 1 | €1.25 | 1-4 weeks to ship | ||
| 455628-3 | INNER COVER | 1 | €1.25 | 1-4 weeks to ship | ||
| 040 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 041 | 687042-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687042-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 042 | 922223-9 | H.S.H.BOLT M5X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 922223-9 | H.S.H.BOLT M5X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 044 | 143039-1 | MOTOR HOUSING COMPLETE | 1 | €37.99 | 1-4 weeks to ship | |
| 143039-1 | MOTOR HOUSING COMPLETE | 1 | €37.99 | 1-4 weeks to ship | ||
| 045 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | ||
| 046 | 962106-1 | RETAINING RING R-28 | 1 | €0.56 | 1-4 weeks to ship | |
| 962106-1 | RETAINING RING R-28 | 1 | €0.56 | 1-4 weeks to ship | ||
| 047 | 346857-8 | GUARD | 1 | €1.95 | 1-4 weeks to ship | |
| 346857-8 | GUARD | 1 | €1.95 | 1-4 weeks to ship | ||
| 048 | 319245-2 | RECEIVE WASHER | 1 | €11.69 | 1-4 weeks to ship | |
| 319245-2 | RECEIVE WASHER | 1 | €11.69 | 1-4 weeks to ship | ||
| 051 | 346073-2 | PROTECTOR CLAMP | 1 | €1.39 | 1-4 weeks to ship | |
| 346073-2 | PROTECTOR CLAMP | 1 | €1.39 | 1-4 weeks to ship | ||
| 052 | 413143-3 | WASHER | 2 | €0.14 | 1-4 weeks to ship | |
| 413143-3 | WASHER | 2 | €0.14 | 1-4 weeks to ship | ||
| 053 | 455622-5 | PROTECTOR | 1 | €15.31 | 1-4 weeks to ship | |
| 455622-5 | PROTECTOR | 1 | €15.31 | 1-4 weeks to ship | ||
| 455622-5 | PROTECTOR | 1 | €15.31 | 1-4 weeks to ship | ||
| 455622-5 | PROTECTOR | 1 | €15.31 | 1-4 weeks to ship | ||
| 054 | 346855-2 | CUTTER | 1 | €3.34 | 1-4 weeks to ship | |
| 346855-2 | CUTTER | 1 | €3.34 | 1-4 weeks to ship | ||
| 055 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 056 | PIPE COMPLETE D | 1 | Not available in store | |||
| PIPE COMPLETE D | 1 | Not available in store | ||||
| 057 | 213325-5 | O RING 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 213325-5 | O RING 19 | 1 | €0.56 | 1-4 weeks to ship | ||
