AT3725A
AT3725A

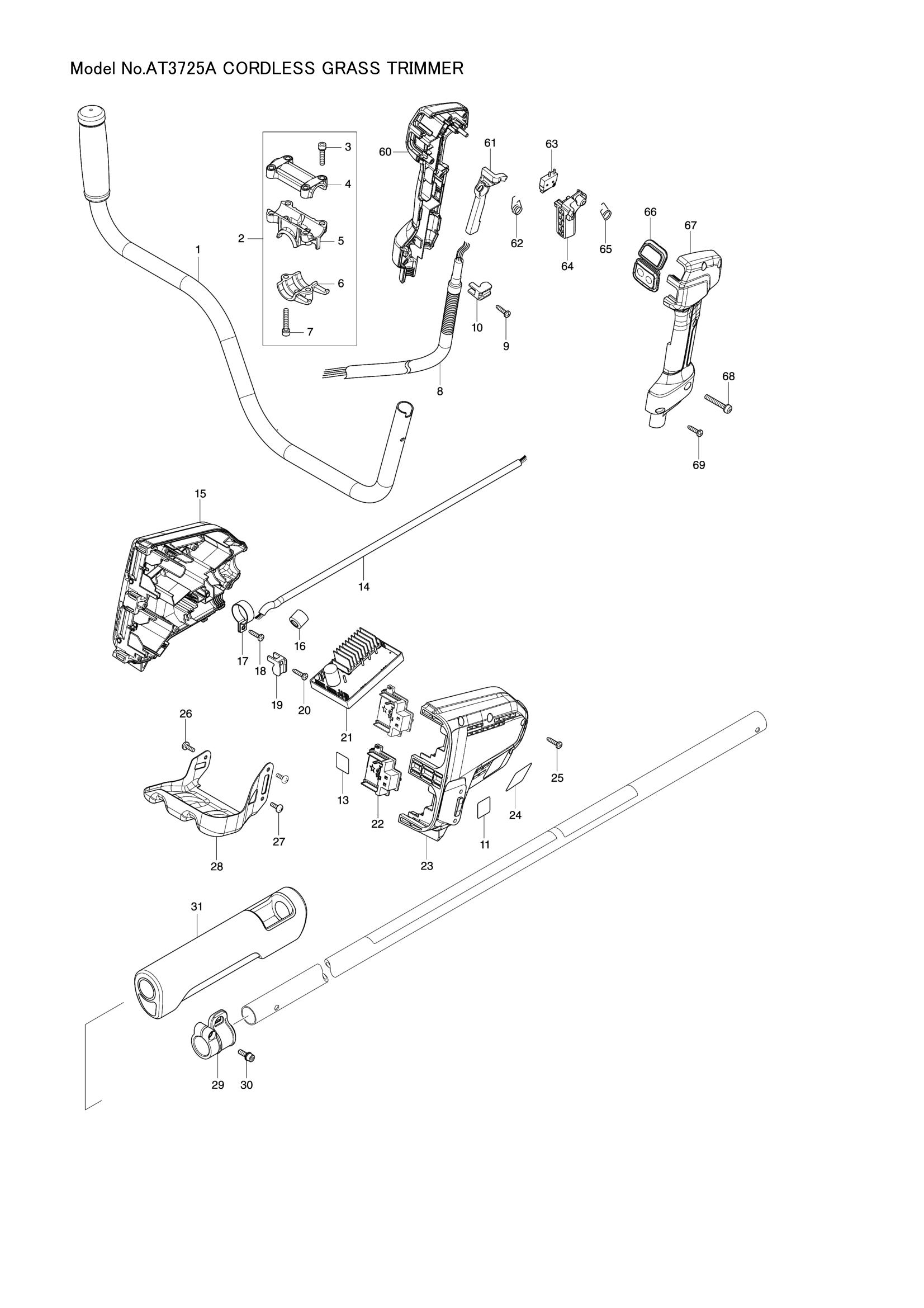

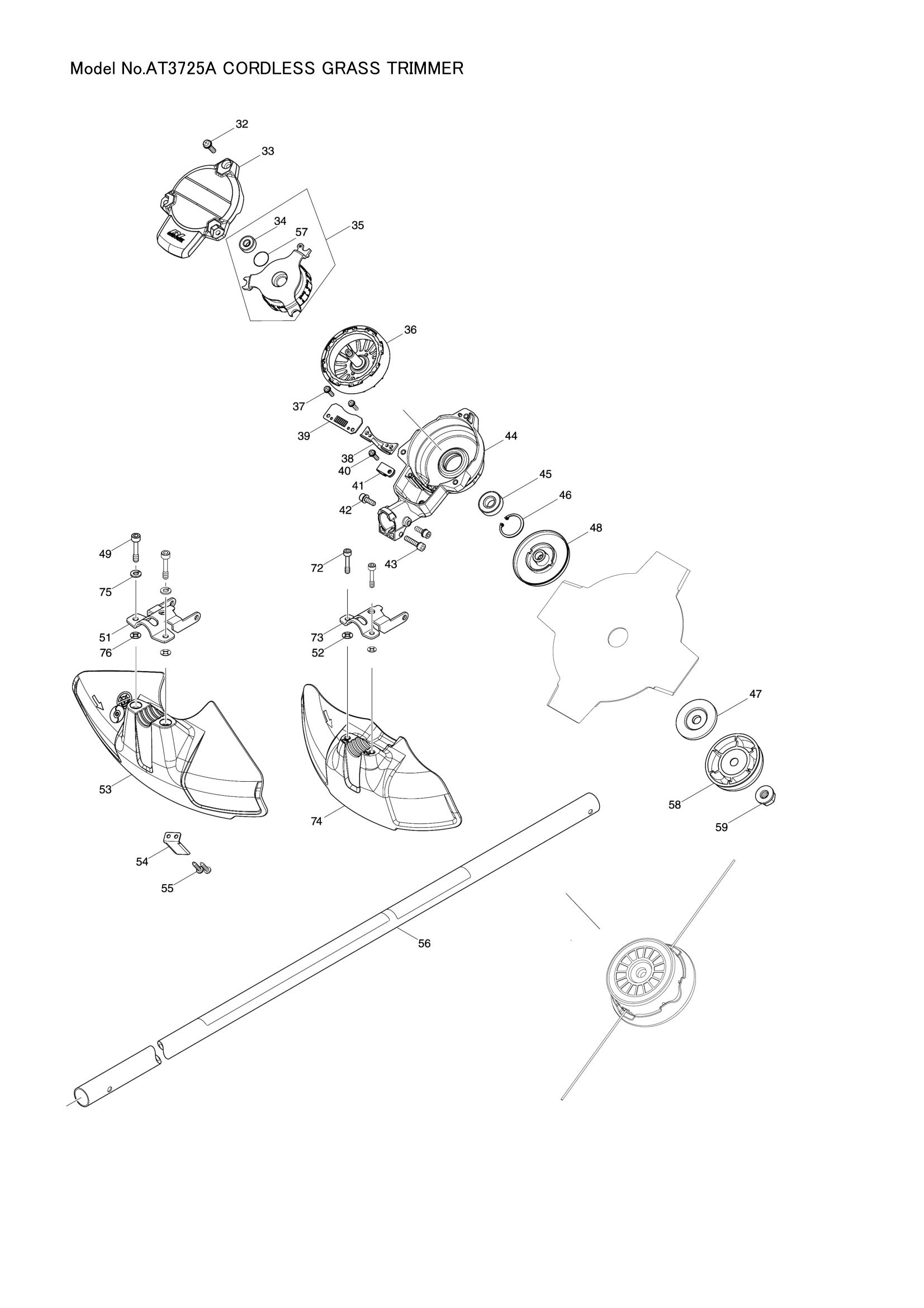

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 140L83-1 | HANDLE 19 COMPLETE | 1 | €21.57 | 1-4 weeks to ship | |
| 140L83-1 | HANDLE 19 COMPLETE | 1 | €21.57 | 1-4 weeks to ship | ||
| 004 | 318272-6 | HANDLE HOLDER 1 | 1 | €1.95 | 1-4 weeks to ship | |
| 318272-6 | HANDLE HOLDER 1 | 1 | €1.95 | 1-4 weeks to ship | ||
| 005 | 318273-4 | HANDLE HOLDER 2 | 1 | €3.20 | 1-4 weeks to ship | |
| 318273-4 | HANDLE HOLDER 2 | 1 | €3.20 | 1-4 weeks to ship | ||
| 006 | 318274-2 | HANDLE HOLDER 3 | 1 | €2.09 | 1-4 weeks to ship | |
| 318274-2 | HANDLE HOLDER 3 | 1 | €2.09 | 1-4 weeks to ship | ||
| 008 | POWER SUPPLY CORD UNIT | 1 | Not available in store | |||
| POWER SUPPLY CORD UNIT | 1 | Not available in store | ||||
| 009 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 010 | 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 013 | AT3725A SERIAL NO. LABEL | 1 | Not available in store | |||
| AT3725A SERIAL NO. LABEL | 1 | Not available in store | ||||
| 014 | 699067-9 | POWER SUPPLY CORD UNIT | 1 | €33.95 | 1-4 weeks to ship | |
| 699067-9 | POWER SUPPLY CORD UNIT | 1 | €33.95 | 1-4 weeks to ship | ||
| 016 | 688163-8 | LINE FILTER | 1 | €0.83 | 1-4 weeks to ship | |
| 688163-8 | LINE FILTER | 1 | €0.83 | 1-4 weeks to ship | ||
| 017 | 346248-3 | CLAMP 24 | 1 | €0.83 | 1-4 weeks to ship | |
| 346248-3 | CLAMP 24 | 1 | €0.83 | 1-4 weeks to ship | ||
| 018 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 019 | 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 020 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 644808-8 | TERMINAL | 2 | €4.17 | 1-4 weeks to ship | |
| 644808-8 | TERMINAL | 2 | €4.17 | 1-4 weeks to ship | ||
| 024 | AT3725A NAME PLATE | 1 | Not available in store | |||
| AT3725A NAME PLATE | 1 | Not available in store | ||||
| 025 | 266326-2 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | ||
| 026 | 251314-2 | + SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 251314-2 | + SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 027 | 251314-2 | + SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 251314-2 | + SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | ||
| 028 | 346858-6 | BATTERY GUARD | 1 | €11.69 | 1-4 weeks to ship | |
| 346858-6 | BATTERY GUARD | 1 | €11.69 | 1-4 weeks to ship | ||
| 029 | 168478-4 | HANGER | 1 | €4.17 | 1-4 weeks to ship | |
| 168478-4 | HANGER | 1 | €4.17 | 1-4 weeks to ship | ||
| 030 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 031 | 424463-0 | CUSHION | 1 | €16.14 | 1-4 weeks to ship | |
| 424463-0 | CUSHION | 1 | €16.14 | 1-4 weeks to ship | ||
| 032 | 911233-1 | PAN HEAD SCREW M5X20 | 3 | €0.56 | 1-4 weeks to ship | |
| 911233-1 | PAN HEAD SCREW M5X20 | 3 | €0.56 | 1-4 weeks to ship | ||
| 033 | TOP COVER | 1 | Not available in store | |||
| TOP COVER | 1 | Not available in store | ||||
| 036 | 619462-7 | ROTOR | 1 | €82.10 | 1-4 weeks to ship | |
| 619462-7 | ROTOR | 1 | €82.10 | 1-4 weeks to ship | ||
| 037 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 038 | 455628-3 | INNER COVER | 1 | €1.25 | 1-4 weeks to ship | |
| 455628-3 | INNER COVER | 1 | €1.25 | 1-4 weeks to ship | ||
| 455628-3 | INNER COVER | 1 | €1.25 | 1-4 weeks to ship | ||
| 455628-3 | INNER COVER | 1 | €1.25 | 1-4 weeks to ship | ||
| 040 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 041 | 687042-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687042-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 042 | 922223-9 | H.S.H.BOLT M5X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 922223-9 | H.S.H.BOLT M5X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 044 | 143039-1 | MOTOR HOUSING COMPLETE | 1 | €37.99 | 1-4 weeks to ship | |
| 143039-1 | MOTOR HOUSING COMPLETE | 1 | €37.99 | 1-4 weeks to ship | ||
| 045 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | ||
| 046 | 962106-1 | RETAINING RING R-28 | 1 | €0.56 | 1-4 weeks to ship | |
| 962106-1 | RETAINING RING R-28 | 1 | €0.56 | 1-4 weeks to ship | ||
| 047 | 346084-7 | CLAMP WASHER | 1 | €1.39 | 1-4 weeks to ship | |
| 346084-7 | CLAMP WASHER | 1 | €1.39 | 1-4 weeks to ship | ||
| 051 | 346073-2 | PROTECTOR CLAMP | 1 | €1.39 | 1-4 weeks to ship | |
| 346073-2 | PROTECTOR CLAMP | 1 | €1.39 | 1-4 weeks to ship | ||
| 052 | 261156-6 | POLYPROPYLENE WASHER 4 | 2 | €0.97 | 1-4 weeks to ship | |
| 261156-6 | POLYPROPYLENE WASHER 4 | 2 | €0.97 | 1-4 weeks to ship | ||
| 053 | 455926-5 | PROTECTOR | 1 | €15.17 | 1-4 weeks to ship | |
| 455926-5 | PROTECTOR | 1 | €15.17 | 1-4 weeks to ship | ||
| 455926-5 | PROTECTOR | 1 | €15.17 | 1-4 weeks to ship | ||
| 455926-5 | PROTECTOR | 1 | €15.17 | 1-4 weeks to ship | ||
| 054 | 346855-2 | CUTTER | 1 | €3.34 | 1-4 weeks to ship | |
| 346855-2 | CUTTER | 1 | €3.34 | 1-4 weeks to ship | ||
| 055 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 056 | PIPE COMPLETE P | 1 | Not available in store | |||
| PIPE COMPLETE P | 1 | Not available in store | ||||
| 057 | 213325-5 | O RING 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 213325-5 | O RING 19 | 1 | €0.56 | 1-4 weeks to ship | ||
| 058 | 168526-9 | CUP | 1 | €4.17 | 1-4 weeks to ship | |
| 168526-9 | CUP | 1 | €4.17 | 1-4 weeks to ship | ||
| 059 | 264025-0 | HEX. NUT M10-17 | 1 | €2.78 | 1-4 weeks to ship | |
| 264025-0 | HEX. NUT M10-17 | 1 | €2.78 | 1-4 weeks to ship | ||
| 060 | 183A77-7 | GRIP SET | 1 | €23.66 | 1-4 weeks to ship | |
| 183A77-7 | GRIP SET | 1 | €23.66 | 1-4 weeks to ship | ||
| 062 | 233621-5 | TORSION SPRING 9 | 1 | €0.14 | 1-4 weeks to ship | |
| 233621-5 | TORSION SPRING 9 | 1 | €0.14 | 1-4 weeks to ship | ||
| 063 | 632E40-6 | SWITCH UNIT | 1 | €13.64 | 1-4 weeks to ship | |
| 632E40-6 | SWITCH UNIT | 1 | €13.64 | 1-4 weeks to ship | ||
| 064 | 455816-2 | SWITCH LEVER | 1 | €3.90 | 1-4 weeks to ship | |
| 455816-2 | SWITCH LEVER | 1 | €3.90 | 1-4 weeks to ship | ||
| 455816-2 | SWITCH LEVER | 1 | €3.90 | 1-4 weeks to ship | ||
| 455816-2 | SWITCH LEVER | 1 | €3.90 | 1-4 weeks to ship | ||
| 065 | 233612-6 | TORSION SPRING 10 | 1 | €1.39 | 1-4 weeks to ship | |
| 233612-6 | TORSION SPRING 10 | 1 | €1.39 | 1-4 weeks to ship | ||
| 067 | 183A77-7 | GRIP SET | 1 | €23.66 | 1-4 weeks to ship | |
| 183A77-7 | GRIP SET | 1 | €23.66 | 1-4 weeks to ship | ||
| 068 | 911258-5 | PAN HEAD SCREW M5X35 | 1 | €0.56 | 1-4 weeks to ship | |
| 911258-5 | PAN HEAD SCREW M5X35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 911258-5 | PAN HEAD SCREW M5X35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 911258-5 | PAN HEAD SCREW M5X35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 069 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | ||
| 073 | 346785-7 | PROTECTOR CLAMP | 1 | €2.78 | 1-4 weeks to ship | |
| 346785-7 | PROTECTOR CLAMP | 1 | €2.78 | 1-4 weeks to ship | ||
| 075 | 253428-3 | SPRING WASHER 6 | 2 | €0.07 | 1-4 weeks to ship | |
| 253428-3 | SPRING WASHER 6 | 2 | €0.07 | 1-4 weeks to ship | ||
| 076 | 413143-3 | WASHER | 2 | €0.14 | 1-4 weeks to ship | |
| 413143-3 | WASHER | 2 | €0.14 | 1-4 weeks to ship | ||
