AT2550A
AT2550A

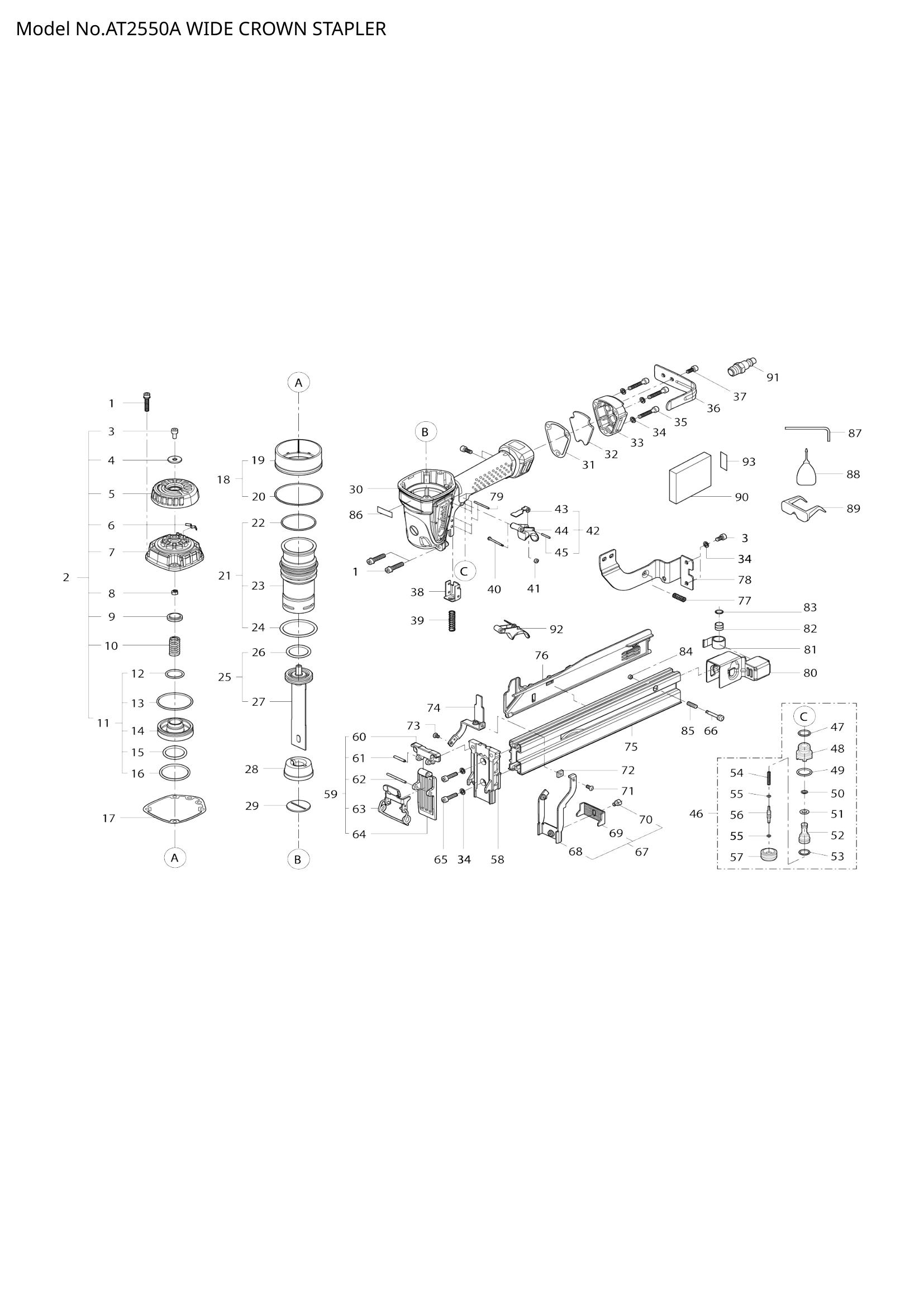

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | B0000-0301 | SCREW SET M5X25 | 6 | €0.56 | 1-4 weeks to ship | |
| 002 | B0300-3471 | TOP CAP SET | 1 | €55.66 | 1-4 weeks to ship | |
| 003 | A0000-1131 | HEX SOCKET HEAD BOLT 5X10 | 3 | €0.56 | 1-4 weeks to ship | |
| 004 | A0005-1271 | FLAT WASHER | 1 | €0.83 | 1-4 weeks to ship | |
| 005 | A0304-0611 | EXHAUST COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 006 | A0105-0081 | SPRING PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 007 | A0301-1231 | CAP | 1 | €27.83 | 1-4 weeks to ship | |
| 008 | A0004-0001 | HEX. NUT M5 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | A0100-2391 | COMPRESSION SPRING | 1 | €0.83 | 1-4 weeks to ship | |
| 011 | B0300-3441 | DISC VALVE SET | 1 | €22.26 | 1-4 weeks to ship | |
| 012 | A0200-2121 | O-RING 20.8X2.4 | 1 | €0.83 | 1-4 weeks to ship | |
| 013 | A0200-1701 | O-RING 47.3X2.62 | 1 | €1.11 | 1-4 weeks to ship | |
| 014 | A0308-0591 | DISC VALVE | 1 | €19.48 | 1-4 weeks to ship | |
| 015 | A0200-4131 | O-RING 30X4 | 1 | €0.83 | 1-4 weeks to ship | |
| 016 | A0200-4121 | O-RING 41.7X3.5 | 1 | €0.83 | 1-4 weeks to ship | |
| 017 | A0205-0581 | TOP CAP GASKET | 1 | €11.13 | 1-4 weeks to ship | |
| 018 | B0300-3481 | SPACER SET | 1 | €5.57 | 1-4 weeks to ship | |
| 019 | A0800-0871 | SPACER | 1 | €2.78 | 1-4 weeks to ship | |
| 020 | A0200-3941 | O-RING 60.8*2 | 1 | €2.78 | 1-4 weeks to ship | |
| 021 | B0300-3491 | CYLINDER SET | 1 | €36.18 | 1-4 weeks to ship | |
| 022 | A0200-2231 | O-RING 45X2 | 1 | €1.11 | 1-4 weeks to ship | |
| 023 | A0303-0841 | CYLINDER | 1 | €33.40 | 1-4 weeks to ship | |
| 024 | A0200-3821 | O-RING 44.7X3.5 | 1 | €1.11 | 1-4 weeks to ship | |
| 025 | B0600-1841 | PISTON UNIT | 1 | €58.44 | 1-4 weeks to ship | |
| 026 | A0200-3981 | O-RING 30.7*3.5 | 1 | €2.78 | 1-4 weeks to ship | |
| 027 | B0600-4251 | DRIVER COMPLETE | 1 | €58.44 | 1-4 weeks to ship | |
| 028 | A0309-0701 | BUMPER | 1 | €19.48 | 1-4 weeks to ship | |
| 029 | A0310-0681 | NOZZLE | 1 | €0.83 | 1-4 weeks to ship | |
| 030 | HOUSING COMPLETE | 1 | Not available in store | |||
| 031 | A0205-0551 | INLET CAP GASKET | 1 | €4.17 | 1-4 weeks to ship | |
| 032 | A0203-0151 | INLET FILTER | 1 | €5.57 | 1-4 weeks to ship | |
| 033 | A0306-1111 | INLET CAP | 1 | €13.92 | 1-4 weeks to ship | |
| 034 | A0005-0031 | WASHER #5-1.1T | 7 | €0.56 | 1-4 weeks to ship | |
| 035 | A0000-0161 | SCREW 5X30 | 3 | €0.56 | 1-4 weeks to ship | |
| 036 | A0316-0311 | HOOK | 1 | €4.17 | 1-4 weeks to ship | |
| 037 | A0000-0061 | HEX SOCKET HEAD BOLT M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | A0712-1421 | HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 039 | A0100-2371 | SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | A0006-0732 | TRIGGER PIN | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | A0005-0311 | PIN RETAINER 5.5X2 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | TRIGGER ASS'Y(DUAL-ACTION) | 1 | Not available in store | |||
| 043 | A0501-0551 | TRIGGER, INNER | 1 | €1.39 | 1-4 weeks to ship | |
| 044 | A0500-0831 | TRIGGER | 1 | €1.11 | 1-4 weeks to ship | |
| 045 | A0011-0251 | SPRING PIN 2.5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | TRIGGER VALVE SET | 1 | Not available in store | |||
| 047 | A0200-2111 | O-RING 13.8X1.9 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | A0503-0391 | TRIGGER VALVE GUIDE | 1 | €1.11 | 1-4 weeks to ship | |
| 049 | A0200-2071 | O-RING 17.8X1.9 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | A0200-4061 | O-RING 5.5X1.8 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | A0200-2471 | O-RING 7.59X2.62 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | A0504-0641 | PILOT VALVE | 1 | €5.57 | 1-4 weeks to ship | |
| 053 | A0200-4071 | O-RING 12.1X1.7 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | A0100-1301 | SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | A0200-3891 | ORING 2.5X1.5 | 2 | €0.56 | 1-4 weeks to ship | |
| 056 | A0504-0621 | TRIGGER VALVE STEM | 1 | €1.39 | 1-4 weeks to ship | |
| 057 | A0503-0671 | TRIGGER VALVE CASE | 1 | €11.13 | 1-4 weeks to ship | |
| 058 | A0713-0811 | DRIVER GUIDE | 1 | €52.88 | 1-4 weeks to ship | |
| 059 | DRIVER GUIDE COVER SET | 1 | Not available in store | |||
| 060 | A0719-0981 | STOPPER | 1 | €13.92 | 1-4 weeks to ship | |
| 061 | A0006-0671 | PIN 4X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | A0011-0641 | SPRING PIN 4*35 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | B0800-0351 | CLICK LEVER SET | 1 | €5.57 | 1-4 weeks to ship | |
| 064 | A0713-0821 | DOOR | 1 | €36.18 | 1-4 weeks to ship | |
| 065 | A0000-0091 | SCREW 5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 066 | A0007-0631 | RETAINER | 1 | €2.78 | 1-4 weeks to ship | |
| 067 | CONTACT ARM SET | 1 | Not available in store | |||
| 068 | A0711-2411 | CONTACT ARM | 1 | €13.92 | 1-4 weeks to ship | |
| 069 | A0714-0501 | SAFETY ELEMENT | 1 | €2.78 | 1-4 weeks to ship | |
| 070 | A0000-0331 | HEX.BOLT 5X6 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | A0000-0591 | BHSC SCREW M4*8 | 1 | €0.56 | 1-4 weeks to ship | |
| 072 | A0004-0381 | SQUARE NUTS | 1 | €0.56 | 1-4 weeks to ship | |
| 073 | A0000-0581 | SCREW M4*6 | 1 | €0.56 | 1-4 weeks to ship | |
| 074 | A0711-2421 | ARM | 1 | €4.17 | 1-4 weeks to ship | |
| 075 | K0700-5611 | MAGAZINE COMPLETE | 1 | €64.01 | 1-4 weeks to ship | |
| 076 | A0700-2011 | MAGAZINE COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 077 | A0100-0241 | COMPRESSION SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | A0706-1531 | SUPPORT | 1 | €11.13 | 1-4 weeks to ship | |
| 079 | A0011-0151 | SPRING PIN 3X28 | 4 | €0.56 | 1-4 weeks to ship | |
| 080 | A0707-1931 | PUSHER | 1 | €13.92 | 1-4 weeks to ship | |
| 081 | A0102-0151 | SPRING | 1 | €11.13 | 1-4 weeks to ship | |
| 082 | A0703-0271 | SPRING GUIDE | 1 | €2.78 | 1-4 weeks to ship | |
| 083 | A0200-0811 | O-RING 11.8*1.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 084 | A0005-0291 | PIN RETAINER 6X2.9 | 1 | €0.56 | 1-4 weeks to ship | |
| 085 | A0100-2461 | SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 086 | NAME PLATE | 1 | Not available in store | |||
| 087 | A0913-0011 | HEX. WRENCH | 1 | €0.56 | 1-4 weeks to ship | |
| 088 | A0907-0001 | OIL POT | 1 | €1.11 | 1-4 weeks to ship | |
| 089 | A0908-0171 | SAFETY GOGGLE | 1 | €4.17 | 1-4 weeks to ship | |
| 090 | A0902-1271 | COLOR BOX | 1 | €13.92 | 1-4 weeks to ship | |
| 091 | A0307-0581 | AIR PLUG | 1 | €4.17 | 1-4 weeks to ship | |
| 092 | K0500-1441 | SEQUENTIAL TRIGGER SET | 1 | €5.29 | 1-4 weeks to ship | |
| 093 | SEALING LABEL | 1 | Not available in store | |||
