AT-3630
AT-3630

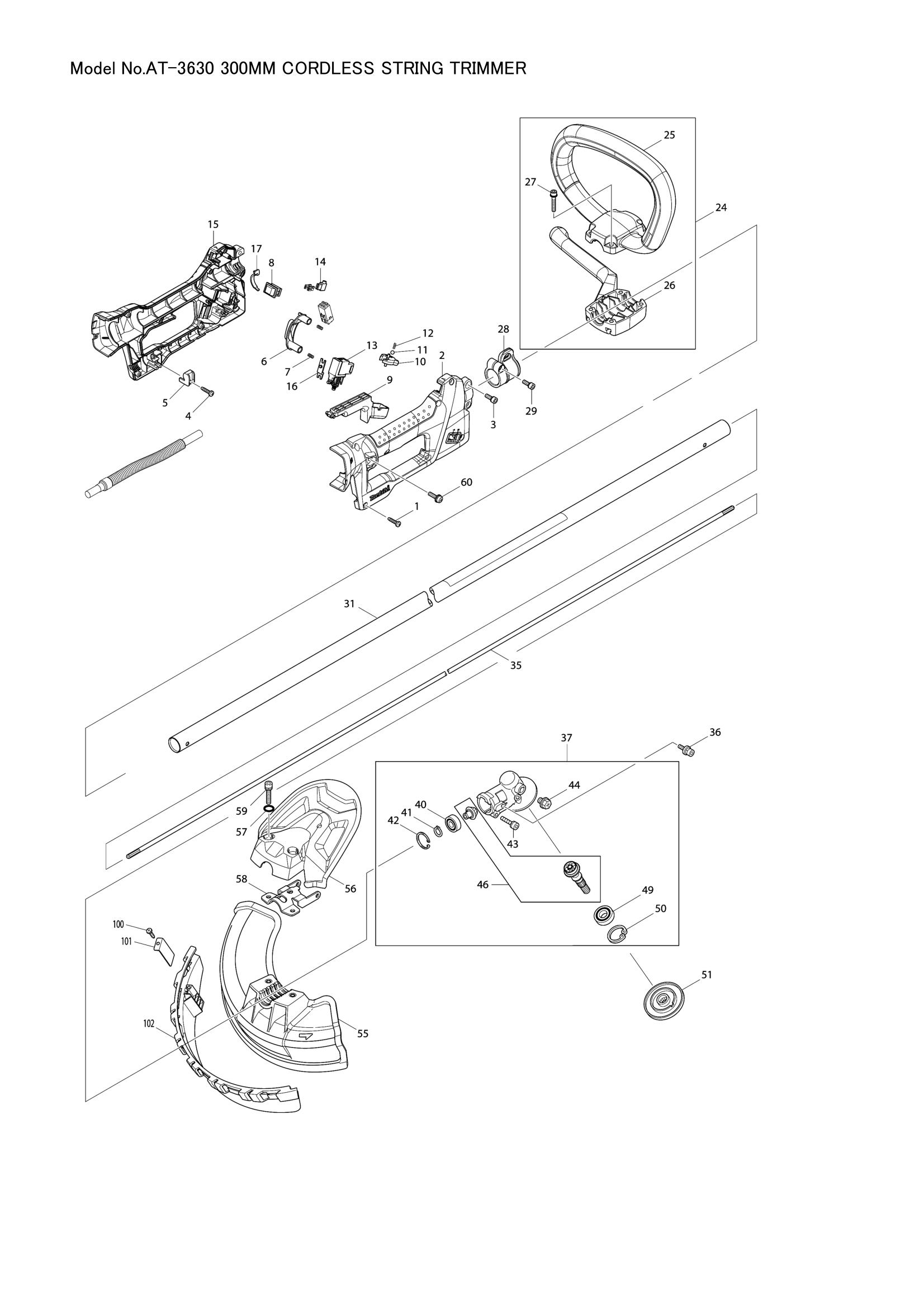

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 265995-6 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | ||
| 002 | GRIP SET | 1 | Not available in store | |||
| GRIP SET | 1 | Not available in store | ||||
| 003 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 004 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 005 | 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | |
| 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | ||
| 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | ||
| 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | ||
| 006 | 451983-1 | LOCK OFF BUTTON | 1 | €9.88 | 1-4 weeks to ship | |
| 451983-1 | LOCK OFF BUTTON | 1 | €9.88 | 1-4 weeks to ship | ||
| 007 | 233054-4 | COMPRESSION SPRING 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 233054-4 | COMPRESSION SPRING 4 | 2 | €0.56 | 1-4 weeks to ship | ||
| 008 | 651533-4 | SWITCH SLE6A2-33 | 1 | €4.17 | 1-4 weeks to ship | |
| 651533-4 | SWITCH SLE6A2-33 | 1 | €4.17 | 1-4 weeks to ship | ||
| 009 | 451984-9 | SWITCH LEVER | 1 | €16.70 | 1-4 weeks to ship | |
| 451984-9 | SWITCH LEVER | 1 | €16.70 | 1-4 weeks to ship | ||
| 010 | 451986-5 | INDICATOR | 1 | €7.10 | 1-4 weeks to ship | |
| 451986-5 | INDICATOR | 1 | €7.10 | 1-4 weeks to ship | ||
| 011 | 216018-3 | STEEL BALL 5.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 216018-3 | STEEL BALL 5.0 | 1 | €0.56 | 1-4 weeks to ship | ||
| 012 | 233211-4 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 233211-4 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | ||
| 013 | 650630-3 | SWITCH TGR3-3 | 1 | €18.65 | 1-4 weeks to ship | |
| 650630-3 | SWITCH TGR3-3 | 1 | €18.65 | 1-4 weeks to ship | ||
| 014 | 686015-7 | RECEPTACLE SLEEVE | 1 | €0.83 | 1-4 weeks to ship | |
| 686015-7 | RECEPTACLE SLEEVE | 1 | €0.83 | 1-4 weeks to ship | ||
| 015 | GRIP SET | 1 | Not available in store | |||
| GRIP SET | 1 | Not available in store | ||||
| 016 | 451982-3 | LINK PLATE | 1 | €5.15 | 1-4 weeks to ship | |
| 451982-3 | LINK PLATE | 1 | €5.15 | 1-4 weeks to ship | ||
| 017 | 451985-7 | LEAD COVER | 1 | €6.96 | 1-4 weeks to ship | |
| 451985-7 | LEAD COVER | 1 | €6.96 | 1-4 weeks to ship | ||
| 024 | 195215-3 | LOOP HANDLE SET | 1 | €24.35 | 1-4 weeks to ship | |
| 195215-3 | LOOP HANDLE SET | 1 | €24.35 | 1-4 weeks to ship | ||
| 025 | LOOP HANDLE 24 | 1 | Not available in store | |||
| LOOP HANDLE 24 | 1 | Not available in store | ||||
| 026 | HANDLE CLAMP 24 | 1 | Not available in store | |||
| HANDLE CLAMP 24 | 1 | Not available in store | ||||
| 027 | 911253-5 | PAN HEAD SCREW M5X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 911253-5 | PAN HEAD SCREW M5X30 | 4 | €0.56 | 1-4 weeks to ship | ||
| 028 | 168478-4 | HANGER | 1 | €4.17 | 1-4 weeks to ship | |
| 168478-4 | HANGER | 1 | €4.17 | 1-4 weeks to ship | ||
| 029 | 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 922228-9 | H.S.H.BOLT M5X18 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 035 | 325812-3 | SHAFT | 1 | €36.18 | 1-4 weeks to ship | |
| 325812-3 | SHAFT | 1 | €36.18 | 1-4 weeks to ship | ||
| 036 | 922218-2 | H.S.H.BOLT M5X14 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 922218-2 | H.S.H.BOLT M5X14 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 044 | 265590-2 | +HEX.BOLT M8X10 WITH R | 1 | €0.56 | 1-4 weeks to ship | |
| 265590-2 | +HEX.BOLT M8X10 WITH R | 1 | €0.56 | 1-4 weeks to ship | ||
| 049 | 210115-7 | BALL BEARING 6001LLU | 1 | €8.35 | 1-4 weeks to ship | |
| 210115-7 | BALL BEARING 6001LLU | 1 | €8.35 | 1-4 weeks to ship | ||
| 055 | 451566-7 | PROTECTOR | 1 | €27.83 | 1-4 weeks to ship | |
| 451566-7 | PROTECTOR | 1 | €27.83 | 1-4 weeks to ship | ||
| 056 | 451565-9 | PROTECTOR COVER | 1 | €19.48 | 1-4 weeks to ship | |
| 451565-9 | PROTECTOR COVER | 1 | €19.48 | 1-4 weeks to ship | ||
| 057 | 213105-9 | O RING 11 | 2 | €0.56 | 1-4 weeks to ship | |
| 213105-9 | O RING 11 | 2 | €0.56 | 1-4 weeks to ship | ||
| 058 | 346073-2 | PROTECTOR CLAMP | 1 | €1.39 | 1-4 weeks to ship | |
| 346073-2 | PROTECTOR CLAMP | 1 | €1.39 | 1-4 weeks to ship | ||
| 060 | 911233-1 | PAN HEAD SCREW M5X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 911233-1 | PAN HEAD SCREW M5X20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 061 | GEAR BOX COVER | 1 | Not available in store | |||
| GEAR BOX COVER | 1 | Not available in store | ||||
| 062 | 424307-4 | PIPE RUBBER | 1 | €1.67 | 1-4 weeks to ship | |
| 424307-4 | PIPE RUBBER | 1 | €1.67 | 1-4 weeks to ship | ||
| 064 | 318560-1 | PIPE BRACKET | 1 | €33.40 | 1-4 weeks to ship | |
| 318560-1 | PIPE BRACKET | 1 | €33.40 | 1-4 weeks to ship | ||
| 065 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | ||
| 066 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 067 | 213045-1 | O-RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 213045-1 | O-RING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 068 | 325811-5 | SPINDLE HUB | 1 | €16.70 | 1-4 weeks to ship | |
| 325811-5 | SPINDLE HUB | 1 | €16.70 | 1-4 weeks to ship | ||
| 069 | 211148-5 | BALL BEARING 6001ZZ | 1 | €8.35 | 1-4 weeks to ship | |
| 211148-5 | BALL BEARING 6001ZZ | 1 | €8.35 | 1-4 weeks to ship | ||
| 070 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 071 | 227720-3 | HELICAL GEAR 33 | 1 | €19.48 | 1-4 weeks to ship | |
| 227720-3 | HELICAL GEAR 33 | 1 | €19.48 | 1-4 weeks to ship | ||
| 072 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 073 | 211150-8 | BALL BEARING 6901ZZ | 1 | €5.57 | 1-4 weeks to ship | |
| 211150-8 | BALL BEARING 6901ZZ | 1 | €5.57 | 1-4 weeks to ship | ||
| 074 | 318559-6 | GEAR BOX | 1 | €47.31 | 1-4 weeks to ship | |
| 318559-6 | GEAR BOX | 1 | €47.31 | 1-4 weeks to ship | ||
| 075 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 076 | 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | ||
| 077 | 451572-2 | STAND | 1 | €11.13 | 1-4 weeks to ship | |
| 451572-2 | STAND | 1 | €11.13 | 1-4 weeks to ship | ||
| 078 | 911233-1 | PAN HEAD SCREW M5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 911233-1 | PAN HEAD SCREW M5X20 | 2 | €0.56 | 1-4 weeks to ship | ||
| 079 | 699047-5 | POWER SUPPLY CORD UNIT | 1 | €15.03 | 1-4 weeks to ship | |
| 699047-5 | POWER SUPPLY CORD UNIT | 1 | €15.03 | 1-4 weeks to ship | ||
| 080 | 265995-6 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | ||
| 081 | AT-3630 NAME PLATE | 1 | Not available in store | |||
| AT-3630 NAME PLATE | 1 | Not available in store | ||||
| 082 | 251314-2 | + SCREW M4X12 | 4 | €0.56 | 1-4 weeks to ship | |
| 251314-2 | + SCREW M4X12 | 4 | €0.56 | 1-4 weeks to ship | ||
| 083 | 346194-0 | BATTERY GUARD | 1 | €30.61 | 1-4 weeks to ship | |
| 346194-0 | BATTERY GUARD | 1 | €30.61 | 1-4 weeks to ship | ||
| 085 | 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | ||
| 086 | 188838-4 | MOTOR HOUSING SET | 1 | €16.70 | 1-4 weeks to ship | |
| 188838-4 | MOTOR HOUSING SET | 1 | €16.70 | 1-4 weeks to ship | ||
| 087 | 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | ||
| 088 | 619254-4 | ROTOR | 1 | €111.32 | 1-4 weeks to ship | |
| 619254-4 | ROTOR | 1 | €111.32 | 1-4 weeks to ship | ||
| 089 | 629880-1 | STATOR | 1 | €64.01 | 1-4 weeks to ship | |
| 629880-1 | STATOR | 1 | €64.01 | 1-4 weeks to ship | ||
| 090 | 188838-4 | MOTOR HOUSING SET | 1 | €16.70 | 1-4 weeks to ship | |
| 188838-4 | MOTOR HOUSING SET | 1 | €16.70 | 1-4 weeks to ship | ||
| 091 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 092 | 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | |
| 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | ||
| 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | ||
| 687261-5 | STRAIN RELIEF | 1 | €0.33 | 1-4 weeks to ship | ||
| 093 | 346039-2 | SUPPORT PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 346039-2 | SUPPORT PLATE | 1 | €0.83 | 1-4 weeks to ship | ||
| 095 | 643849-1 | TERMINAL | 1 | €5.57 | 1-4 weeks to ship | |
| 643849-1 | TERMINAL | 1 | €5.57 | 1-4 weeks to ship | ||
| 100 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 101 | 346280-7 | CUTTER | 1 | €8.77 | 1-4 weeks to ship | |
| 346280-7 | CUTTER | 1 | €8.77 | 1-4 weeks to ship | ||
