AS4030
AS4030

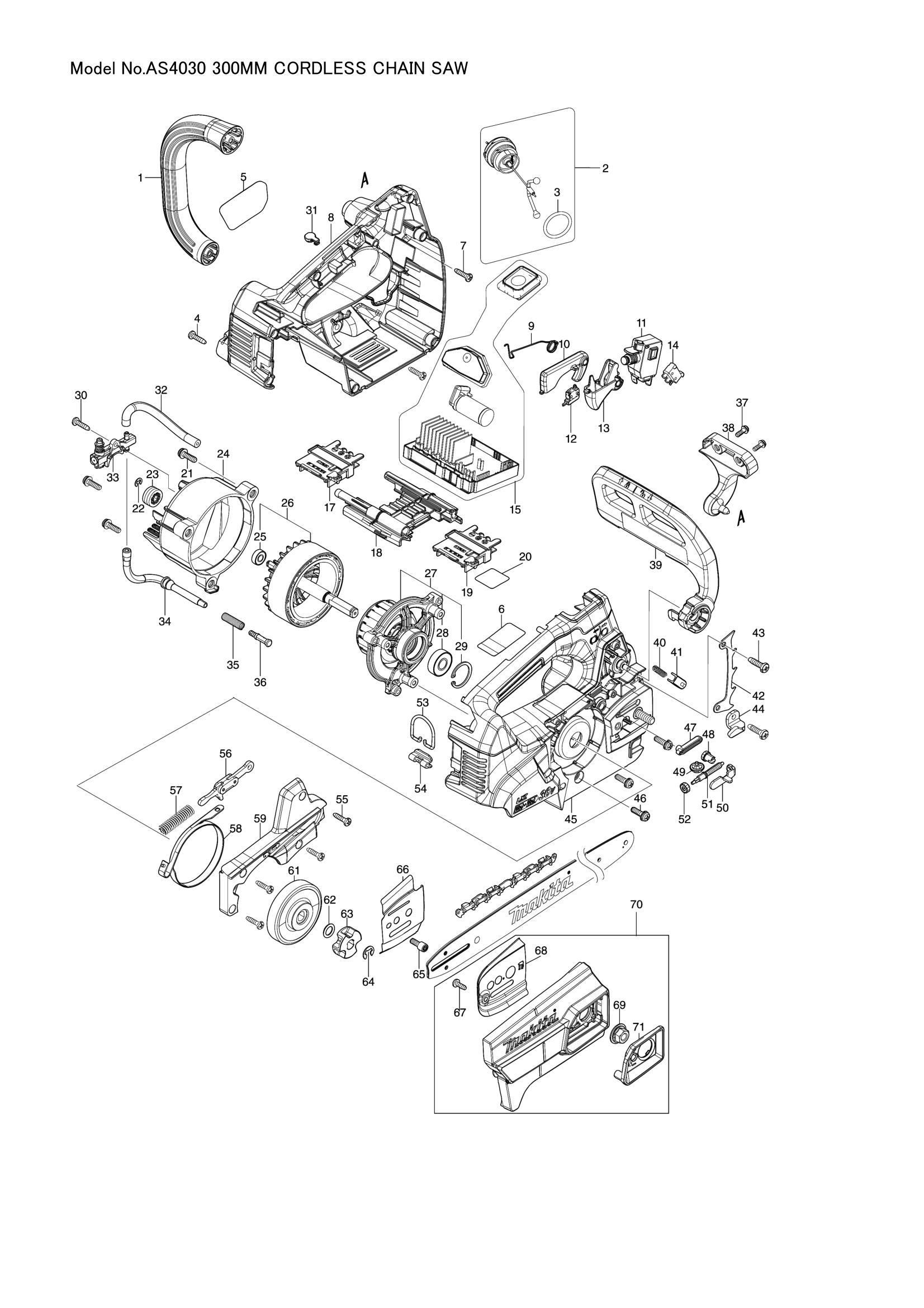

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | FRONT HANDLE | 1 | Not available in store | |||
| 002 | TANK CAP ASSEMBLY | 1 | Not available in store | |||
| 004 | 266326-2 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 005 | AS4030 MODEL NO. LABEL | 1 | Not available in store | |||
| 006 | AS4030 NAME PLATE | 1 | Not available in store | |||
| 007 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 008 | HOUSING SET | 1 | Not available in store | |||
| 009 | TORSION SPRING 10 | 1 | Not available in store | |||
| 010 | CATCH LEVER | 1 | Not available in store | |||
| 011 | SWITCH C3JW-6BM-P | 1 | Not available in store | |||
| 012 | 632L49-0 | SWITCH UNIT | 1 | €9.44 | 1-4 weeks to ship | |
| 013 | SWITCH LEVER | 1 | Not available in store | |||
| 014 | 632L48-2 | SWITCH UNIT | 1 | €13.64 | 1-4 weeks to ship | |
| 017 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 019 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 020 | AS4030 SERIAL NO. LABEL | 1 | Not available in store | |||
| 021 | 911228-4 | PAN HEAD SCREW M5X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 022 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 226884-0 | WORM GEAR | 1 | €0.70 | 1-4 weeks to ship | |
| 024 | MOTOR HOUSING | 1 | Not available in store | |||
| 025 | 210026-6 | BALL BEARING 696ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 026 | ROTOR ASS'Y | 1 | Not available in store | |||
| 029 | 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | CAP | 1 | Not available in store | |||
| 032 | OIL TUBE 3-100 | 1 | Not available in store | |||
| 034 | OIL TUBE 3-130 | 1 | Not available in store | |||
| 035 | 231975-4 | SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 040 | 234210-9 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 313212-9 | HAND GUARD GUIDE | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 346809-9 | SPIKE BUMPER | 1 | €0.97 | 1-4 weeks to ship | |
| 043 | 266420-0 | TAPPING SCREW 5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 044 | 347516-7 | CHAIN CATCHER | 1 | €0.54 | 1-4 weeks to ship | |
| 045 | HOUSING SET | 1 | Not available in store | |||
| 046 | 911228-4 | PAN HEAD SCREW M5X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 047 | 422466-8 | GROMET | 1 | €0.36 | 1-4 weeks to ship | |
| 048 | 227620-7 | DRIVE GEAR 14 | 1 | €1.25 | 1-4 weeks to ship | |
| 049 | 227634-6 | STRAIGHT BEVEL GEAR 14 | 1 | €3.62 | 1-4 weeks to ship | |
| 050 | 347517-5 | TENSION SLIDE | 1 | €1.25 | 1-4 weeks to ship | |
| 051 | 327317-9 | ADJUST SCREW | 1 | €1.65 | 1-4 weeks to ship | |
| 052 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | €1.11 | 1-4 weeks to ship | |
| 053 | 281222-3 | HOOK | 1 | €0.42 | 1-4 weeks to ship | |
| 054 | HOOK SUPPORT | 1 | Not available in store | |||
| 055 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 056 | LINK PLATE COMPLETE | 1 | Not available in store | |||
| 057 | COMPRESSION SPRING 7 | 1 | Not available in store | |||
| 058 | BRAKE BAND COMPLETE | 1 | Not available in store | |||
| 059 | HOUSING R COVER | 1 | Not available in store | |||
| 061 | BRAKE DRUM COMPLETE | 1 | Not available in store | |||
| 062 | 213060-5 | O RING 10 | 1 | €0.14 | 1-4 weeks to ship | |
| 063 | 221464-7 | SPROCKET 6 | 1 | €1.67 | 1-4 weeks to ship | |
| 064 | 961013-5 | STOP RING E-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 347533-7 | GUIDE PLATE L | 1 | €0.70 | 1-4 weeks to ship | |
| 067 | 266427-6 | TAPPING SCREW 4X12 | 1 | €0.14 | 1-4 weeks to ship | |
| 068 | GUIDE PLATE R | 1 | Not available in store | |||
| 069 | FLANGE NUT COMPLETE | 1 | Not available in store | |||
| 070 | SPROCKET COVER ASS'Y | 1 | Not available in store | |||
| 071 | NUT COVER | 1 | Not available in store | |||
