AN923
AN923

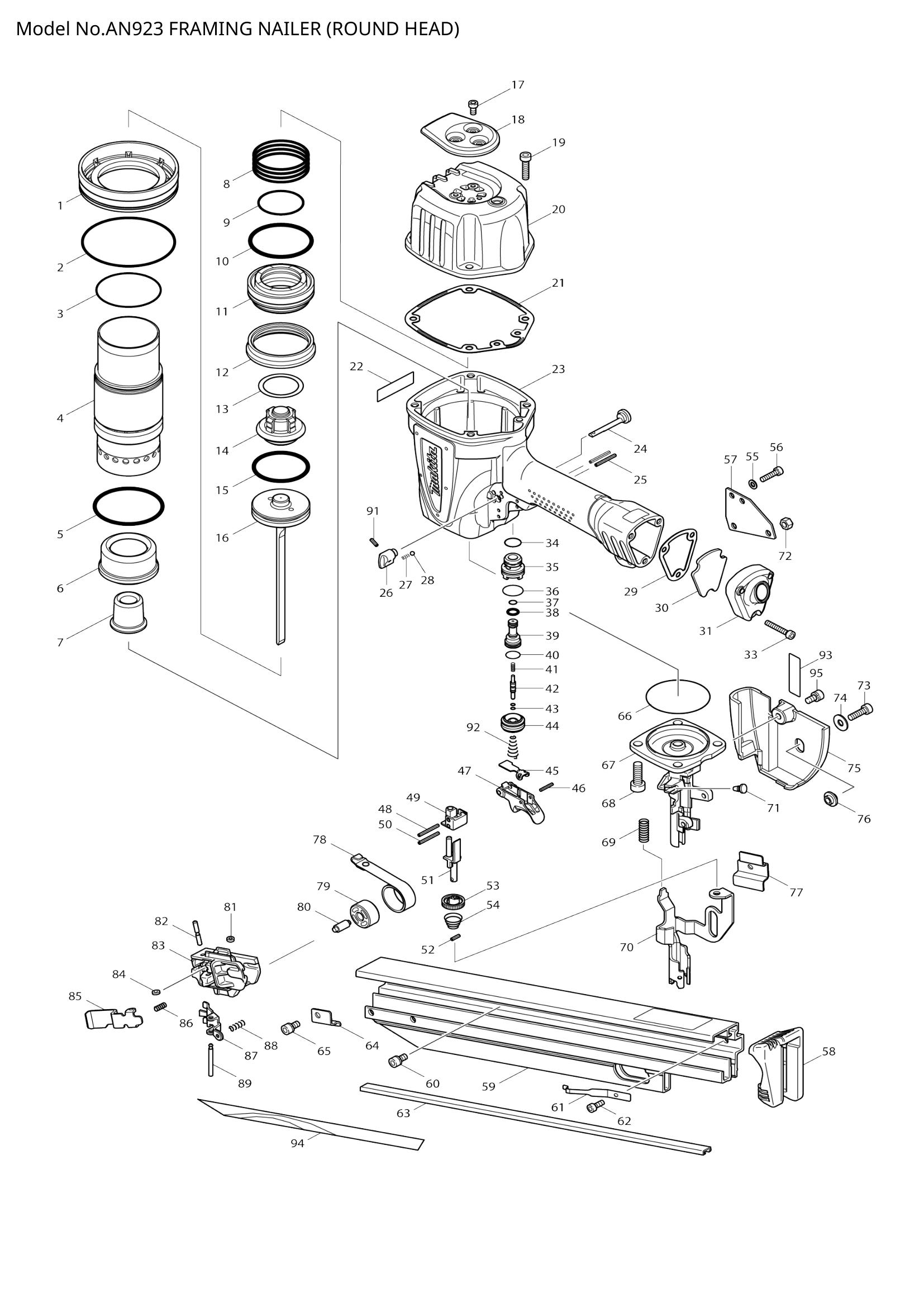

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 419115-6 | CYLINDER SEPARATOR | 1 | €8.35 | 1-4 weeks to ship | |
| 002 | 213809-3 | O RING 87 | 1 | €4.17 | 1-4 weeks to ship | |
| 003 | 213668-5 | O RING 60 | 1 | €2.78 | 1-4 weeks to ship | |
| 004 | 331700-4 | CYLINDER | 1 | €44.53 | 1-4 weeks to ship | |
| 005 | 213667-7 | O RING 60 | 1 | €4.17 | 1-4 weeks to ship | |
| 006 | 421680-3 | CUSHION F | 1 | €22.26 | 1-4 weeks to ship | |
| 007 | 421687-9 | CUSHION GUIDE | 1 | €11.13 | 1-4 weeks to ship | |
| 008 | 233243-1 | COMPRESSION SPRING 50 | 1 | €2.78 | 1-4 weeks to ship | |
| 009 | 213504-5 | O RING 40 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 213669-3 | O RING 56 | 1 | €0.83 | 1-4 weeks to ship | |
| 011 | 419114-8 | HEAD VALVE | 1 | €11.13 | 1-4 weeks to ship | |
| 012 | 421925-9 | VALVE SEAT | 1 | €2.78 | 1-4 weeks to ship | |
| 013 | 267742-1 | WASHER 34 | 1 | €1.11 | 1-4 weeks to ship | |
| 014 | 421924-1 | CUSHION REAR | 1 | €8.35 | 1-4 weeks to ship | |
| 015 | 213619-8 | O RING 49 | 1 | €2.78 | 1-4 weeks to ship | |
| 016 | 154655-4 | DRIVER COMPLETE | 1 | €94.62 | 1-4 weeks to ship | |
| 017 | 265499-8 | HEX.SOCKET HEAD BOLT M5X10 | 3 | €0.56 | 1-4 weeks to ship | |
| 018 | 345618-3 | EXHAUST COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 019 | 922342-1 | HEX. SOCKET HEAD BOLT M6X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 020 | 317950-5 | TOP CAP | 1 | €44.53 | 1-4 weeks to ship | |
| 021 | 162238-6 | TOPCAP GASKET | 1 | €11.13 | 1-4 weeks to ship | |
| 023 | HOUSING COMPLETE | 1 | Not available in store | |||
| 024 | 324117-8 | LOCK PIN 8 | 1 | €16.70 | 1-4 weeks to ship | |
| 025 | 951075-1 | SPRING PIN 3-28 | 2 | €0.56 | 1-4 weeks to ship | |
| 026 | 417824-1 | LEVER 8 | 1 | €1.67 | 1-4 weeks to ship | |
| 027 | 233368-1 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 162239-4 | INLETCAP GASKET | 1 | €4.17 | 1-4 weeks to ship | |
| 030 | 419356-4 | INLET FILTER | 1 | €5.57 | 1-4 weeks to ship | |
| 031 | 318005-9 | INLET CAP | 1 | €19.48 | 1-4 weeks to ship | |
| 033 | 922252-2 | HEX. SOCKET HEAD BOLT M5X30 | 3 | €0.56 | 1-4 weeks to ship | |
| 034 | 213176-6 | O RING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 417695-6 | TRIGGER VALVE GUIDE | 1 | €1.39 | 1-4 weeks to ship | |
| 036 | 213262-3 | O RING 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 213039-6 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 213040-1 | O RING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 317959-7 | PILOT VALVE | 1 | €8.35 | 1-4 weeks to ship | |
| 040 | 213122-9 | O RING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 233239-2 | COMPRESSION SPRING 3 | 1 | €1.11 | 1-4 weeks to ship | |
| 042 | 324591-0 | TRIGGER VALVE STEM | 1 | €1.67 | 1-4 weeks to ship | |
| 043 | 213044-3 | O RING 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 044 | 318010-6 | TRIGGER VALVE CASE | 1 | €11.13 | 1-4 weeks to ship | |
| 045 | 345687-4 | IDLER | 1 | €1.67 | 1-4 weeks to ship | |
| 046 | 258004-8 | SPRING PIN 2.5-16 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 419418-8 | TRIGGER | 1 | €1.67 | 1-4 weeks to ship | |
| 048 | 951075-1 | SPRING PIN 3-28 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 310165-3 | HOLDER | 1 | €16.70 | 1-4 weeks to ship | |
| 050 | 951075-1 | SPRING PIN 3-28 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 310166-1 | STOPPER | 1 | €16.70 | 1-4 weeks to ship | |
| 052 | 951054-9 | SPRING PIN 3-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 310163-7 | ADJUSTER | 1 | €8.35 | 1-4 weeks to ship | |
| 054 | 231978-8 | CONICAL COMP. SPRING 9-16 | 1 | €1.11 | 1-4 weeks to ship | |
| 055 | 267300-3 | FLAT WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 056 | 266369-4 | HEX SOCKET HEAD BOLT M5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 057 | 345627-2 | JOINT | 1 | €4.17 | 1-4 weeks to ship | |
| 058 | 419120-3 | MAGAZINE CAP | 1 | €5.57 | 1-4 weeks to ship | |
| 059 | 158058-4 | MAGAZINE COMPLETE | 1 | €75.14 | 1-4 weeks to ship | |
| 060 | 266370-9 | HEX SOCKET HEAD BOLT M6X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 061 | 345619-1 | NAIL STOPPER | 1 | €2.78 | 1-4 weeks to ship | |
| 062 | 922217-4 | HEX. SOCKET HEAD BOLT M5X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | 345623-0 | MAGAZINE RAIL | 1 | €8.35 | 1-4 weeks to ship | |
| 064 | 344765-7 | HOLDER | 1 | €1.11 | 1-4 weeks to ship | |
| 065 | 266370-9 | HEX SOCKET HEAD BOLT M6X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 213654-6 | O RING 60 | 1 | €0.83 | 1-4 weeks to ship | |
| 067 | 310167-9 | DRIVER GUIDE | 1 | €97.41 | 1-4 weeks to ship | |
| 068 | 266368-6 | HEX SOCKET HEAD BOLT M8X25 | 4 | €1.67 | 1-4 weeks to ship | |
| 069 | 233463-7 | COMPRESSION SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 345625-6 | CONTACT ARM | 1 | €13.92 | 1-4 weeks to ship | |
| 071 | 421418-6 | RUBBER PIN 9.5 | 1 | €1.11 | 1-4 weeks to ship | |
| 072 | 931302-2 | HEX. NUT M6 | 2 | €0.56 | 1-4 weeks to ship | |
| 073 | 265498-0 | HEX.SOCKET HEAD BOLT M6X20 | 1 | €2.78 | 1-4 weeks to ship | |
| 074 | 267314-2 | FLAT WASHER 7 | 1 | €0.83 | 1-4 weeks to ship | |
| 075 | 419118-0 | COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 076 | 267743-9 | SHOLDER WASHER 6 | 1 | €1.39 | 1-4 weeks to ship | |
| 077 | 344766-5 | HOLDER | 1 | €2.78 | 1-4 weeks to ship | |
| 078 | 163456-9 | SPIRAL SPRING COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 079 | 419112-2 | SPRING GUIDE | 1 | €0.83 | 1-4 weeks to ship | |
| 080 | 256428-2 | PIN 5-8 | 1 | €0.83 | 1-4 weeks to ship | |
| 081 | 262054-7 | URETHANE RING 3 | 1 | €0.97 | 1-4 weeks to ship | |
| 082 | 256770-1 | PIN 4 | 1 | €1.67 | 1-4 weeks to ship | |
| 083 | 419119-8 | PUSHER LEVER | 1 | €8.35 | 1-4 weeks to ship | |
| 084 | 262054-7 | URETHANE RING 3 | 1 | €0.97 | 1-4 weeks to ship | |
| 085 | 345673-5 | LOCK PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 086 | 231309-1 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 087 | 345624-8 | PUSHER | 1 | €11.13 | 1-4 weeks to ship | |
| 088 | 233038-2 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 089 | 256489-2 | PIN 4 | 1 | €0.83 | 1-4 weeks to ship | |
| 091 | 951054-9 | SPRING PIN 3-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 092 | 233908-5 | CONICAL COMPRESSION SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 093 | 810097-9 | INDICATION LABEL | 1 | €0.83 | 1-4 weeks to ship | |
| 094 | INDICATION LABEL | 1 | Not available in store | |||
| 095 | 266370-9 | HEX SOCKET HEAD BOLT M6X12 | 1 | €0.56 | 1-4 weeks to ship | |
