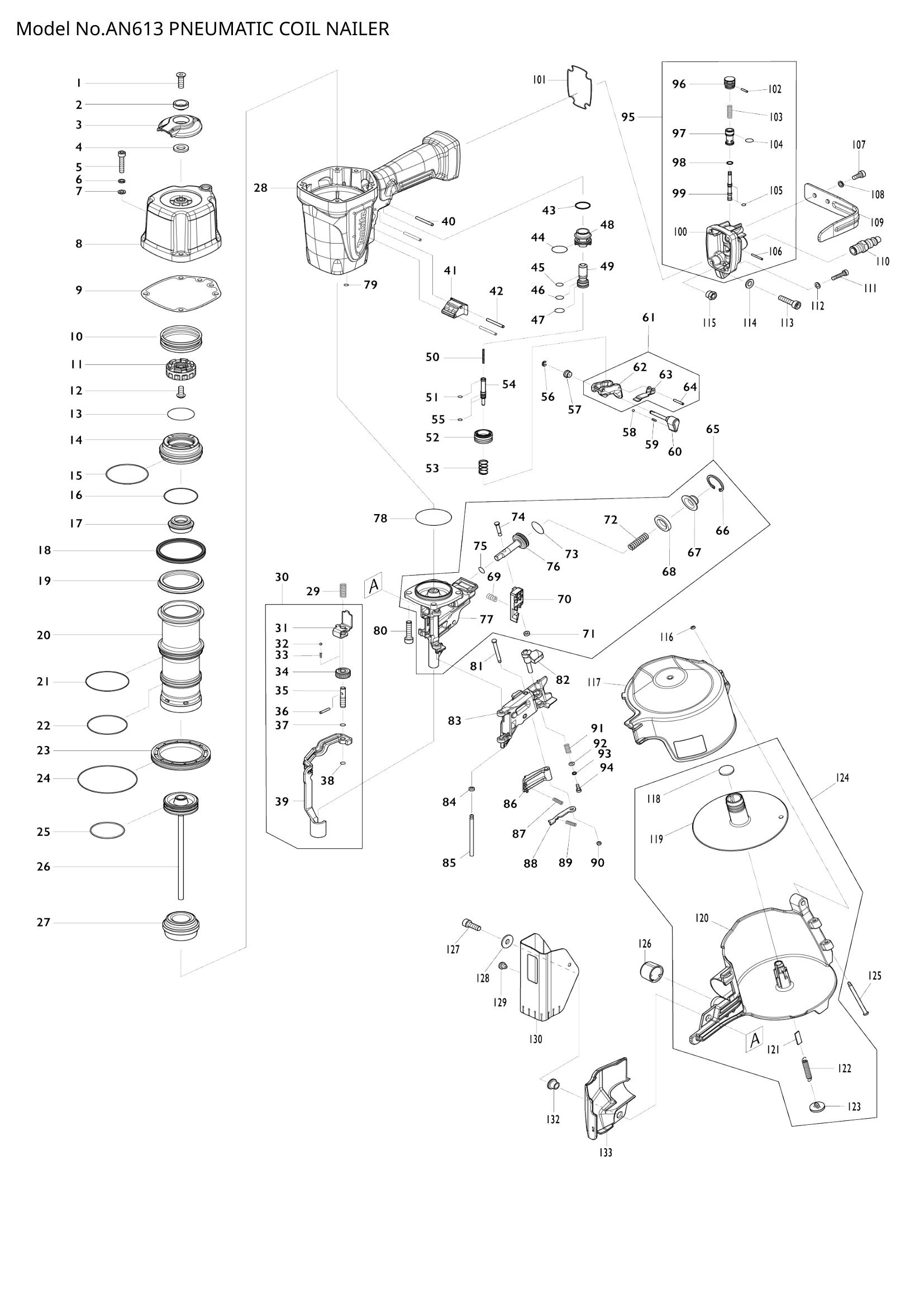

AN613
AN613
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HEX.SOCKETC.S.HEADSCREWM6 | 1 | Not available in store | |||
| 002 | SLEEVE6 | 1 | Not available in store | |||
| 003 | EXHAUSTCOVER | 1 | Not available in store | |||
| 004 | RUBBERRING10 | 1 | Not available in store | |||
| 005 | HEX.SOCKET HEAD BOLT M5X25 | 4 | Not available in store | |||
| 006 | HY00000162 | SPRING WASHER 5 | 4 | €0.28 | 1-4 weeks to ship | |
| 007 | FLAT WASHER 5 | 4 | Not available in store | |||
| 008 | TOP CAP COMPLETE | 1 | Not available in store | |||
| 009 | TOPCAP GASCKET | 1 | Not available in store | |||
| 010 | COMPRESSION SPRING 45 | 1 | Not available in store | |||
| 011 | HEADVALVEGUIDE | 1 | Not available in store | |||
| 012 | HEX.SOCKETBUTTONHEADSCRE | 1 | Not available in store | |||
| 013 | ORING30.5 | 1 | Not available in store | |||
| 014 | HEAD VALVE | 1 | Not available in store | |||
| 015 | HY00000141 | O-RING 45 | 1 | €0.83 | 1-4 weeks to ship | |
| 016 | HY00000020 | O-RING 36 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | REARCUSHION | 1 | Not available in store | |||
| 018 | VALVE SHEET GUIDE | 1 | Not available in store | |||
| 019 | VALVESHEET | 1 | Not available in store | |||
| 020 | CYLINDER | 1 | Not available in store | |||
| 021 | HY00000405 | ORING47 | 1 | €0.61 | 1-4 weeks to ship | |
| 022 | HY00000402 | ORING44 | 1 | €0.61 | 1-4 weeks to ship | |
| 023 | CYLINDER SEPARATER | 1 | Not available in store | |||
| 024 | HY00000143 | O-RING 67 | 1 | €1.11 | 1-4 weeks to ship | |
| 025 | HY00000139 | O-RING 35 | 1 | €1.11 | 1-4 weeks to ship | |
| 026 | HY00001068 | DRIVER COMPLETE | 1 | €60.50 | 1-4 weeks to ship | |
| 027 | HY00001087 | FRONT CUSHION | 1 | €8.47 | 1-4 weeks to ship | |
| 028 | HOUSINGCOMPLETE | 1 | Not available in store | |||
| 029 | COMPRESSION SPRING 6 | 1 | Not available in store | |||
| 030 | CONTACT ARM ASSEMBLY | 1 | Not available in store | |||
| 031 | UPPER YOKE | 1 | Not available in store | |||
| 032 | STEELBALL3 | 1 | Not available in store | |||
| 033 | COMPRESSIONSPRING2 | 1 | Not available in store | |||
| 034 | ADJUSTER DIAL | 1 | Not available in store | |||
| 035 | ADJUSTER SHAFT | 1 | Not available in store | |||
| 036 | HY00000114 | SPRING PIN 2.5-16 | 1 | €1.39 | 1-4 weeks to ship | |
| 037 | ORING5 | 1 | Not available in store | |||
| 038 | RING SPRING 5 | 1 | Not available in store | |||
| 039 | CONTACT ARM | 1 | Not available in store | |||
| 040 | SPRING PIN 3-28 | 2 | Not available in store | |||
| 041 | TRIGGER BASE | 1 | Not available in store | |||
| 042 | SPRING PIN 3-28 | 2 | Not available in store | |||
| 043 | HY00000135 | O-RING 15 | 1 | €0.42 | 1-4 weeks to ship | |
| 044 | HY00000137 | O-RING 17 | 1 | €0.42 | 1-4 weeks to ship | |
| 045 | O-RING 7 | 1 | Not available in store | |||
| 046 | HY00000132 | O-RING 7 | 1 | €0.28 | 1-4 weeks to ship | |
| 047 | O-RING 10 | 1 | Not available in store | |||
| 048 | TRIGGER VALVE GUIDE | 1 | Not available in store | |||
| 049 | PILOT VALVE | 1 | Not available in store | |||
| 050 | COMPRESSION SPRING 2 | 1 | Not available in store | |||
| 051 | O-RING 4 | 1 | Not available in store | |||
| 052 | TRIGGER VALVE CASE | 1 | Not available in store | |||
| 053 | COMPRESSION SPRING 10 | 1 | Not available in store | |||
| 054 | TRIGGER VALVE STEM | 1 | Not available in store | |||
| 055 | O-RING 3 | 2 | Not available in store | |||
| 056 | STOP RING E-3 | 1 | Not available in store | |||
| 057 | SLEEVE4 | 1 | Not available in store | |||
| 058 | STEELBALL3 | 1 | Not available in store | |||
| 059 | COMPRESSIONSPRING2 | 1 | Not available in store | |||
| 060 | LEVER4 | 1 | Not available in store | |||
| 061 | TRIGGER COMPLETE | 1 | Not available in store | |||
| 062 | TRIGGER | 1 | Not available in store | |||
| 063 | IDLER | 1 | Not available in store | |||
| 064 | HY00000114 | SPRING PIN 2.5-16 | 1 | €1.39 | 1-4 weeks to ship | |
| 065 | DRIVER GUIDE ASSEMBLY | 1 | Not available in store | |||
| 066 | HY00000164 | RETAINING RING R-24 | 1 | €1.53 | 1-4 weeks to ship | |
| 067 | HY00000187 | CUP WASHER 5 | 1 | €0.97 | 1-4 weeks to ship | |
| 068 | HY00000207 | RUBBER RING 16 | 1 | €0.83 | 1-4 weeks to ship | |
| 069 | HY00000148 | COMPRESSION SPRING 6 | 1 | €0.28 | 1-4 weeks to ship | |
| 070 | FEEDING CLAW | 1 | Not available in store | |||
| 071 | HY00000206 | URETHAN RING 3 | 1 | €0.83 | 1-4 weeks to ship | |
| 072 | HY00000150 | COMPRESSION SPRING 7 | 1 | €0.70 | 1-4 weeks to ship | |
| 073 | HY00000136 | O-RING 17 | 1 | €0.42 | 1-4 weeks to ship | |
| 074 | HY00000168 | PIN 4 | 1 | €0.42 | 1-4 weeks to ship | |
| 075 | HY00000129 | O-RING 8 | 1 | €0.28 | 1-4 weeks to ship | |
| 076 | PISTON | 1 | Not available in store | |||
| 077 | DRIVER GUIDE COMPLETE | 1 | Not available in store | |||
| 078 | O-RING 41 | 1 | Not available in store | |||
| 079 | O-RING 4 | 1 | Not available in store | |||
| 080 | HEX.SOCKET HEAD BOLT M6X20 | 4 | Not available in store | |||
| 081 | PIN 4 | 1 | Not available in store | |||
| 082 | LOCK LEVER | 1 | Not available in store | |||
| 083 | DOOR | 1 | Not available in store | |||
| 084 | HY00000206 | URETHAN RING 3 | 1 | €0.83 | 1-4 weeks to ship | |
| 085 | PIN 4.5 | 1 | Not available in store | |||
| 086 | NAIL HOLDER | 1 | Not available in store | |||
| 087 | COMPRESSIONSPRING4 | 1 | Not available in store | |||
| 088 | CHECK CRAW | 1 | Not available in store | |||
| 089 | COMPRESSIONSPRING4 | 1 | Not available in store | |||
| 090 | HY00000206 | URETHAN RING 3 | 1 | €0.83 | 1-4 weeks to ship | |
| 091 | COMPRESSION SPRING 5 | 1 | Not available in store | |||
| 092 | FLAT WASHER 3 | 1 | Not available in store | |||
| 093 | SPRING WASHER 3 | 1 | Not available in store | |||
| 094 | HEX.SOCKET HEAD BOLT M3X8 | 1 | Not available in store | |||
| 095 | INLET CAP ASSENBLY B | 1 | Not available in store | |||
| 096 | DUSTERBUTTON | 1 | Not available in store | |||
| 097 | VALVEGUIDE | 1 | Not available in store | |||
| 098 | ORING5 | 1 | Not available in store | |||
| 099 | VALVESTEM | 1 | Not available in store | |||
| 100 | INLET CAP B | 1 | Not available in store | |||
| 101 | SEALRING | 1 | Not available in store | |||
| 102 | HY00000046 | PIN 2-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 103 | COMPRESSIONSPRING5 | 1 | Not available in store | |||
| 104 | ORING8.5 | 1 | Not available in store | |||
| 105 | HY00000037 | O-RING 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 106 | HY00000054 | SPRING PIN 2.5-18 | 1 | €0.56 | 1-4 weeks to ship | |
| 107 | HEX.SOCKET HEAD BOLT M5X12 | 1 | Not available in store | |||
| 108 | HY00000162 | SPRING WASHER 5 | 1 | €0.28 | 1-4 weeks to ship | |
| 109 | HOOK | 1 | Not available in store | |||
| 110 | HY00000081 | ONE TOUCH JOINT | 1 | €1.11 | 1-4 weeks to ship | |
| 111 | HEX.SOCKETHEADBOLT M4X25 | 4 | Not available in store | |||
| 112 | HY00000070 | FLAT WASHER4 | 4 | €0.56 | 1-4 weeks to ship | |
| 113 | HEX.SOCKET HEAD BOLT M6X25 | 1 | Not available in store | |||
| 114 | WASHER 6 | 1 | Not available in store | |||
| 115 | HEX. LOCK NUT M6 | 1 | Not available in store | |||
| 116 | HY00000206 | URETHAN RING 3 | 1 | €0.83 | 1-4 weeks to ship | |
| 117 | MAGAZINE CAP | 1 | Not available in store | |||
| 118 | HY00000198 | HOLDER CAP | 1 | €0.70 | 1-4 weeks to ship | |
| 119 | CHANGE PLATE | 1 | Not available in store | |||
| 120 | MAGAZINE COMPLETE | 1 | Not available in store | |||
| 121 | RUBBER PLATE 6-19 | 1 | Not available in store | |||
| 122 | TENSION SPRING 5 | 1 | Not available in store | |||
| 123 | HY00000198 | HOLDER CAP | 1 | €0.70 | 1-4 weeks to ship | |
| 124 | MAGAZINE ASSEMBLY | 1 | Not available in store | |||
| 125 | PIN 4 | 1 | Not available in store | |||
| 126 | NOSE ADAPTER | 1 | Not available in store | |||
| 127 | HEX.SOCKET HEAD BOLT M6X18 | 1 | Not available in store | |||
| 128 | FLAT WASHER 6 | 1 | Not available in store | |||
| 129 | RUBBER PIN 5 | 1 | Not available in store | |||
| 130 | COVER | 1 | Not available in store | |||
| 132 | SLEEVE 6 | 1 | Not available in store | |||
| 133 | CONTACT ARM COVER | 1 | Not available in store | |||
