AN454
AN454

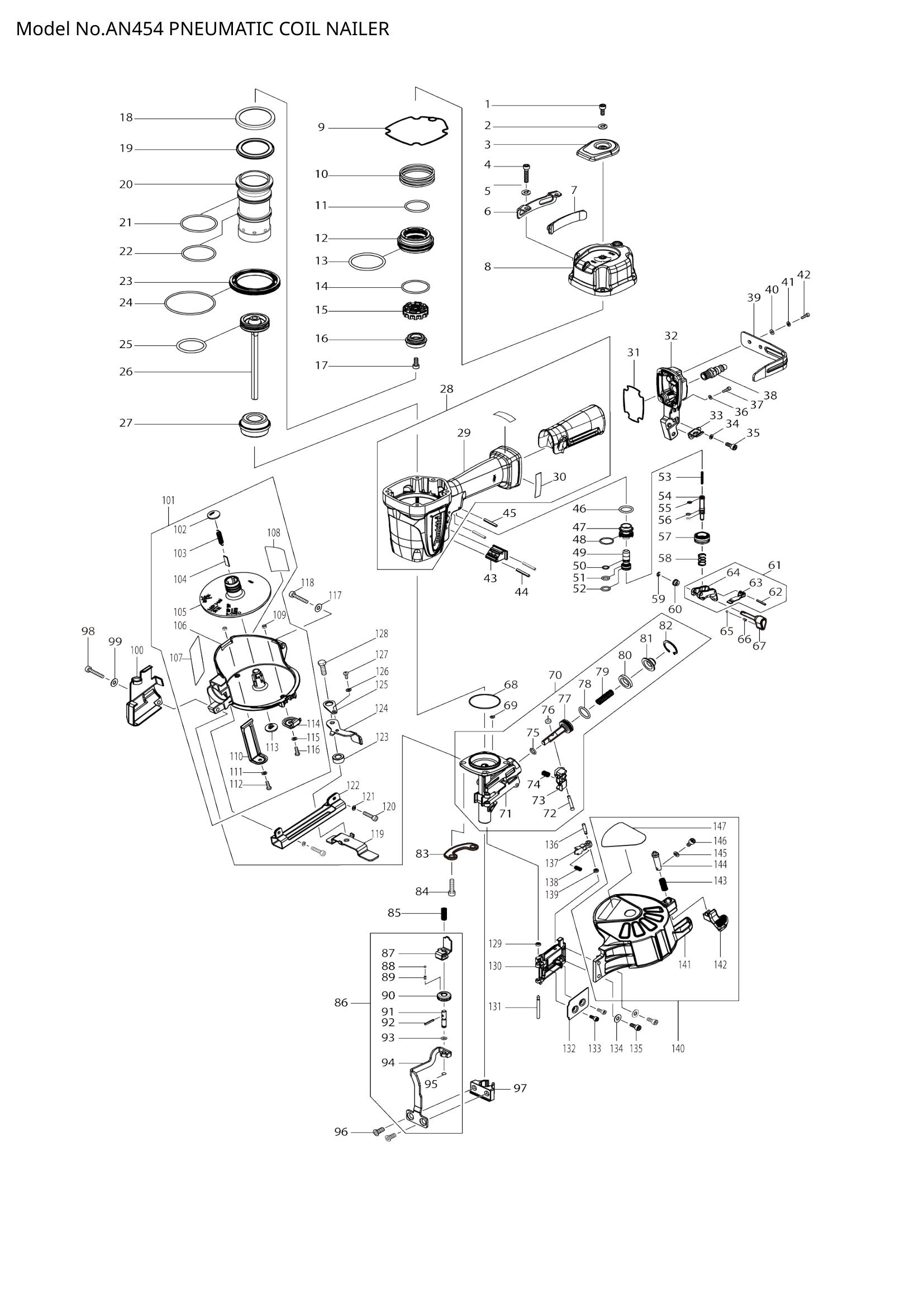

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HEX.SOCKET HEAD BOLT M5X12 | 1 | Not available in store | |||
| 002 | HY00000162 | SPRING WASHER 5 | 1 | €0.28 | 1-4 weeks to ship | |
| 003 | EXHAUST COVER | 1 | Not available in store | |||
| 004 | HEX.SOCKET HEAD BOLT M5X25 | 4 | Not available in store | |||
| 005 | HY00000162 | SPRING WASHER 5 | 4 | €0.28 | 1-4 weeks to ship | |
| 006 | REAR HOUSING GUARD | 2 | Not available in store | |||
| 007 | REAR BUMPER | 2 | Not available in store | |||
| 008 | TOP CAP | 1 | Not available in store | |||
| 009 | SEAL RING | 1 | Not available in store | |||
| 010 | COMPRESSIONSPRING44 | 1 | Not available in store | |||
| 011 | ORING30.5 | 1 | Not available in store | |||
| 012 | HEAD VALVE | 1 | Not available in store | |||
| 013 | HY00000141 | O-RING 45 | 1 | €0.83 | 1-4 weeks to ship | |
| 014 | HY00000020 | O-RING 36 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | HEADVALVEGUIDE | 1 | Not available in store | |||
| 016 | REARCUSHION | 1 | Not available in store | |||
| 017 | HEX.SOCKET HEAD BOLT M5X12 | 1 | Not available in store | |||
| 018 | VALVESHEETGUIDE | 1 | Not available in store | |||
| 019 | VALVESHEET | 1 | Not available in store | |||
| 020 | CYLINDER | 1 | Not available in store | |||
| 021 | HY00000405 | ORING47 | 1 | €0.61 | 1-4 weeks to ship | |
| 022 | HY00000402 | ORING44 | 1 | €0.61 | 1-4 weeks to ship | |
| 023 | CYLINDER SEPARATER | 1 | Not available in store | |||
| 024 | HY00000143 | O-RING 67 | 1 | €1.11 | 1-4 weeks to ship | |
| 025 | HY00000139 | O-RING 35 | 1 | €1.11 | 1-4 weeks to ship | |
| 026 | DRIVER COMPLETE | 1 | Not available in store | |||
| 027 | FRONTCUSHION | 1 | Not available in store | |||
| 028 | HOUSING COMPLETE | 1 | Not available in store | |||
| 029 | HOUSING | 1 | Not available in store | |||
| 030 | CAUTION LABEL | 1 | Not available in store | |||
| 031 | SEALRING | 1 | Not available in store | |||
| 032 | INLET CAP(DE) | 1 | Not available in store | |||
| 033 | MAGAZINE LOCK | 1 | Not available in store | |||
| 034 | HY00000162 | SPRING WASHER 5 | 1 | €0.28 | 1-4 weeks to ship | |
| 035 | HEX.SOCKET HEAD BOLT M5X12 | 1 | Not available in store | |||
| 036 | HY00000070 | FLAT WASHER4 | 4 | €0.56 | 1-4 weeks to ship | |
| 037 | HEX.SOCKETHEADBOLTM4X20 | 4 | Not available in store | |||
| 038 | HY00000080 | ONE TOUCH JOINT | 1 | €2.78 | 1-4 weeks to ship | |
| 039 | HOOK | 1 | Not available in store | |||
| 040 | FLAT WASHER 5 | 1 | Not available in store | |||
| 041 | HY00000162 | SPRING WASHER 5 | 1 | €0.28 | 1-4 weeks to ship | |
| 042 | HEX.SOCKET HEAD BOLT M5X16 | 1 | Not available in store | |||
| 043 | TRIGGER BASE | 1 | Not available in store | |||
| 044 | SPRING PIN 3-28 | 2 | Not available in store | |||
| 045 | SPRING PIN 3-28 | 2 | Not available in store | |||
| 046 | HY00000135 | O-RING 15 | 1 | €0.42 | 1-4 weeks to ship | |
| 047 | TRIGGER VALVE GUIDE | 1 | Not available in store | |||
| 048 | HY00000137 | O-RING 17 | 1 | €0.42 | 1-4 weeks to ship | |
| 049 | PILOT VALVE | 1 | Not available in store | |||
| 050 | O-RING 7 | 1 | Not available in store | |||
| 051 | HY00000132 | O-RING 7 | 1 | €0.28 | 1-4 weeks to ship | |
| 052 | O-RING 10 | 1 | Not available in store | |||
| 053 | COMPRESSION SPRING 2 | 1 | Not available in store | |||
| 054 | TRIGGER VALVE STEM | 1 | Not available in store | |||
| 055 | O-RING 4 | 1 | Not available in store | |||
| 056 | O-RING 3 | 2 | Not available in store | |||
| 057 | TRIGGER VALVE CASE | 1 | Not available in store | |||
| 058 | COMPRESSION SPRING 10 | 1 | Not available in store | |||
| 059 | STOP RING E-3 | 1 | Not available in store | |||
| 060 | SLEEVE4 | 1 | Not available in store | |||
| 061 | TRIGGER COMPLETE | 1 | Not available in store | |||
| 062 | HY00000114 | SPRING PIN 2.5-16 | 1 | €1.39 | 1-4 weeks to ship | |
| 063 | IDLER | 1 | Not available in store | |||
| 064 | TRIGGER | 1 | Not available in store | |||
| 065 | STEELBALL3 | 1 | Not available in store | |||
| 066 | COMPRESSIONSPRING2 | 1 | Not available in store | |||
| 067 | LEVER4 | 1 | Not available in store | |||
| 068 | O-RING 41 | 1 | Not available in store | |||
| 069 | O-RING 4 | 1 | Not available in store | |||
| 070 | DRIVER GUIDE ASSY | 1 | Not available in store | |||
| 071 | DRIVER GUIDE COMPLETE | 1 | Not available in store | |||
| 072 | HY00000168 | PIN 4 | 1 | €0.42 | 1-4 weeks to ship | |
| 073 | HY00000170 | FEEDING CLAW | 1 | €6.82 | 1-4 weeks to ship | |
| 074 | HY00000148 | COMPRESSION SPRING 6 | 1 | €0.28 | 1-4 weeks to ship | |
| 075 | HY00000129 | O-RING 8 | 1 | €0.28 | 1-4 weeks to ship | |
| 076 | HY00000206 | URETHAN RING 3 | 1 | €0.83 | 1-4 weeks to ship | |
| 077 | HY00000179 | PISTON | 1 | €7.79 | 1-4 weeks to ship | |
| 078 | HY00000136 | O-RING 17 | 1 | €0.42 | 1-4 weeks to ship | |
| 079 | HY00000150 | COMPRESSION SPRING 7 | 1 | €0.70 | 1-4 weeks to ship | |
| 080 | HY00000207 | RUBBER RING 16 | 1 | €0.83 | 1-4 weeks to ship | |
| 081 | HY00000187 | CUP WASHER 5 | 1 | €0.97 | 1-4 weeks to ship | |
| 082 | HY00000164 | RETAINING RING R-24 | 1 | €1.53 | 1-4 weeks to ship | |
| 083 | FRONT HOUSING GUARD | 1 | Not available in store | |||
| 084 | HEX.SOCKET HEAD BOLT M6X25 | 2 | Not available in store | |||
| 085 | COMPRESSION SPRING 6 | 1 | Not available in store | |||
| 086 | CONTACT ARM ASSY | 1 | Not available in store | |||
| 087 | UPPER YOKE | 1 | Not available in store | |||
| 088 | STEELBALL3 | 1 | Not available in store | |||
| 089 | COMPRESSIONSPRING2 | 1 | Not available in store | |||
| 090 | ADJUSTER DIAL | 1 | Not available in store | |||
| 091 | ADJUSTER SHAFT | 1 | Not available in store | |||
| 092 | HY00000114 | SPRING PIN 2.5-16 | 1 | €1.39 | 1-4 weeks to ship | |
| 093 | ORING5 | 1 | Not available in store | |||
| 094 | CONTACT ARM | 1 | Not available in store | |||
| 095 | RING SPRING 5 | 1 | Not available in store | |||
| 096 | HEX.SOCKET C.S.HEAD SCREW | 2 | Not available in store | |||
| 097 | CONTACT TOP | 1 | Not available in store | |||
| 098 | HY00000075 | HEX.SOCKET HEAD BOLT M5X30 | 1 | €0.56 | 1-4 weeks to ship | |
| 099 | CAUTIONLABEL | 1 | Not available in store | |||
| 100 | CONTACT ARM COVER | 1 | Not available in store | |||
| 101 | MAGAZINE ASSY | 1 | Not available in store | |||
| 102 | HY00000198 | HOLDER CAP | 1 | €0.70 | 1-4 weeks to ship | |
| 103 | HY00000145 | TENSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 104 | RUBBER PLATE 6-19 | 1 | Not available in store | |||
| 105 | HY00000200 | CHANGE PLATE | 1 | €4.04 | 1-4 weeks to ship | |
| 106 | MAGAZINE | 1 | Not available in store | |||
| 107 | CAUTION LABEL | 1 | Not available in store | |||
| 108 | CAUTION LABEL | 1 | Not available in store | |||
| 109 | HY00000159 | HEX. LOCK NUT M4 | 2 | €0.56 | 1-4 weeks to ship | |
| 110 | HY00000188 | MAGAZINE GUARD R | 1 | €1.53 | 1-4 weeks to ship | |
| 111 | SPRING WASHER 4 | 1 | Not available in store | |||
| 112 | HY00000153 | PAN HEAD SCREW M4X10 | 1 | €1.39 | 1-4 weeks to ship | |
| 113 | HY00000198 | HOLDER CAP | 1 | €0.70 | 1-4 weeks to ship | |
| 114 | HY00000189 | MAGAZINE GUARD L | 1 | €1.25 | 1-4 weeks to ship | |
| 115 | SPRING WASHER 4 | 1 | Not available in store | |||
| 116 | HY00000153 | PAN HEAD SCREW M4X10 | 1 | €1.39 | 1-4 weeks to ship | |
| 117 | FLAT WASHER 5 | 1 | Not available in store | |||
| 118 | HY00000075 | HEX.SOCKET HEAD BOLT M5X30 | 1 | €0.56 | 1-4 weeks to ship | |
| 119 | ADJUSTER PLATE | 1 | Not available in store | |||
| 120 | HEX.SOCKETHEADBOLTM4X20 | 2 | Not available in store | |||
| 121 | SPRING WASHER 4 | 2 | Not available in store | |||
| 122 | SINGLE GUIDE | 1 | Not available in store | |||
| 123 | HY00000181 | RING 9 | 1 | €0.97 | 1-4 weeks to ship | |
| 124 | HY00000185 | LEVER PLATE | 1 | €1.25 | 1-4 weeks to ship | |
| 125 | HY00000184 | LOCK PLATE | 1 | €0.70 | 1-4 weeks to ship | |
| 126 | SPRING WASHER 4 | 1 | Not available in store | |||
| 127 | HY00000153 | PAN HEAD SCREW M4X10 | 1 | €1.39 | 1-4 weeks to ship | |
| 128 | HY00000158 | HEX.BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 129 | HY00000206 | URETHAN RING 3 | 1 | €0.83 | 1-4 weeks to ship | |
| 130 | DOOR | 1 | Not available in store | |||
| 131 | HY00000167 | PIN 4 | 1 | €0.42 | 1-4 weeks to ship | |
| 132 | DOOR COVER | 1 | Not available in store | |||
| 133 | HY00000074 | HEX.SOCKET HEAD BOLT M4X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 134 | FLAT WASHER 5 | 2 | Not available in store | |||
| 135 | HEX.SOCKET HEAD BOLT M5X12 | 2 | Not available in store | |||
| 136 | HY00000166 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 137 | HY00000169 | CHECK CLAW | 1 | €5.29 | 1-4 weeks to ship | |
| 138 | HY00000147 | COMPRESSION SPRING 4 | 1 | €0.28 | 1-4 weeks to ship | |
| 139 | HY00000206 | URETHAN RING 3 | 1 | €0.83 | 1-4 weeks to ship | |
| 140 | MAGAZINE CAP ASSY | 1 | Not available in store | |||
| 141 | HY00000125 | MAGAZINE CAP | 1 | €10.44 | 1-4 weeks to ship | |
| 142 | HY00000199 | LOCK LEVER | 1 | €0.97 | 1-4 weeks to ship | |
| 143 | HY00000152 | COMPRESSION SPRING 8 | 1 | €0.28 | 1-4 weeks to ship | |
| 144 | HY00000180 | LOCK PIN | 1 | €4.59 | 1-4 weeks to ship | |
| 145 | HY00000162 | SPRING WASHER 5 | 1 | €0.28 | 1-4 weeks to ship | |
| 146 | HY00000154 | HEX.SOCKET HEAD BOLT M5X8 | 1 | €0.83 | 1-4 weeks to ship | |
| 147 | CAUTION LABEL | 1 | Not available in store | |||
