AH1852
AH1852

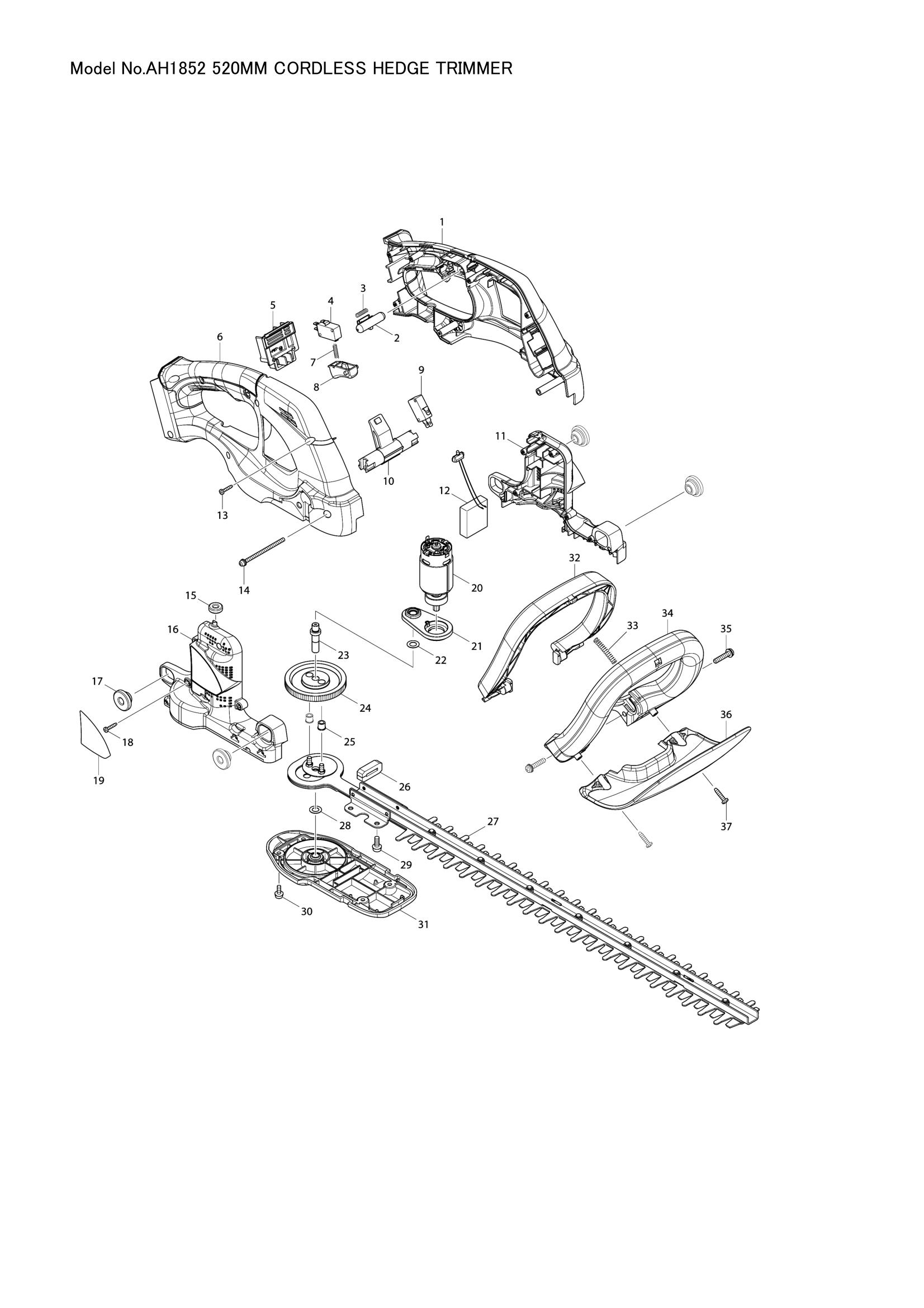

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HANDLE SET | 1 | Not available in store | |||
| 002 | 452438-9 | LOCK OFF BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 231473-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 651852-8 | SWITCH V-15-1A5 | 1 | €5.57 | 1-4 weeks to ship | |
| 005 | TERMINAL | 1 | Not available in store | |||
| 006 | HANDLE SET | 1 | Not available in store | |||
| 007 | 231473-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 417564-1 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 009 | 651852-8 | SWITCH V-15-1A5 | 1 | €5.57 | 1-4 weeks to ship | |
| 010 | 452681-0 | SWITCH ARM | 1 | €0.83 | 1-4 weeks to ship | |
| 011 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 013 | 266429-2 | TAPPING SCREW 3X16 | 6 | €0.56 | 1-4 weeks to ship | |
| 014 | 911193-7 | PAN HEAD SCREW M4X65 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 424195-9 | RUBBER RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 017 | 424394-3 | RUBBER RING 8 | 4 | €0.70 | 1-4 weeks to ship | |
| 018 | 266429-2 | TAPPING SCREW 3X16 | 5 | €0.56 | 1-4 weeks to ship | |
| 019 | AH-1852 NAME PLATE | 1 | Not available in store | |||
| 020 | 629930-2 | DC MOTOR | 1 | €22.26 | 1-4 weeks to ship | |
| 021 | 141211-9 | BEARING BOX COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 022 | 253215-0 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 023 | 326034-8 | SPINDLE | 1 | €1.81 | 1-4 weeks to ship | |
| 024 | 227281-3 | SPUR GEAR 93 | 1 | €13.92 | 1-4 weeks to ship | |
| 025 | 262570-9 | NYLON SLEEVE 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 026 | 423417-4 | DUST GUARD | 1 | €0.83 | 1-4 weeks to ship | |
| 028 | 253215-0 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 029 | 911218-7 | PAN HEAD SCREW M5X14 | 4 | €0.56 | 1-4 weeks to ship | |
| 031 | 453317-4 | UNDER COVER | 1 | €4.45 | 1-4 weeks to ship | |
| 032 | SWITCH LEVER B | 1 | Not available in store | |||
| 033 | 234261-2 | COMPRESSION SPRING 5 | 1 | €0.14 | 1-4 weeks to ship | |
| 034 | 452682-8 | FRONT GRIP | 1 | €4.17 | 1-4 weeks to ship | |
| 035 | 911243-8 | PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 036 | 453316-6 | PROTECTOR | 1 | €5.71 | 1-4 weeks to ship | |
| 037 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
