AF506
AF506

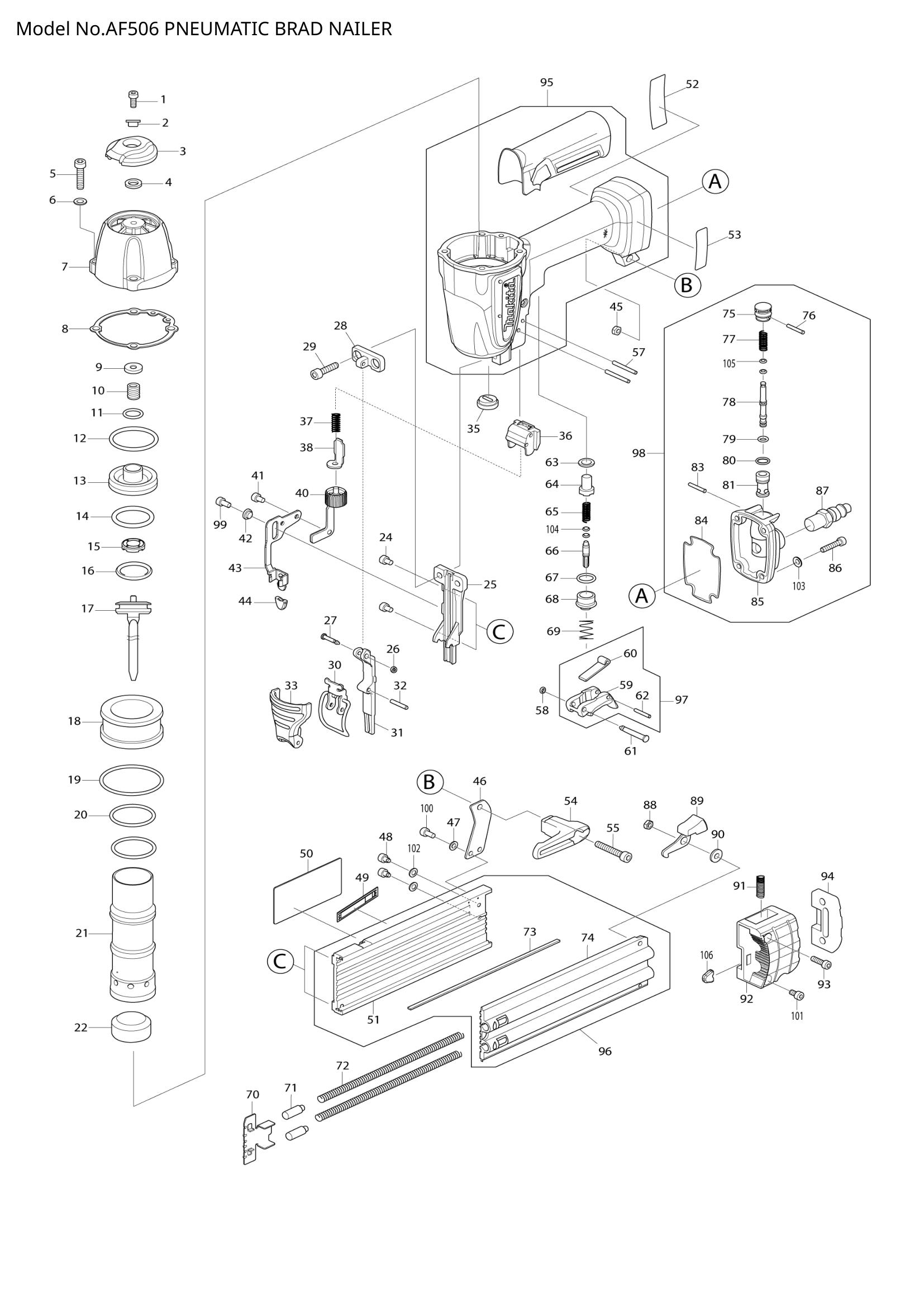

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HY00000001 | HEX.SOCKET HEAD BOLT M4X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | HY00000002 | SLEEVE4 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | EXHAUSTCOVER | 1 | Not available in store | |||
| 004 | HY00000004 | RUBBER WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | HY00000049 | HEX.SOCKET HEAD BOLT M5X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 006 | FLAT WASHER 5 | 4 | Not available in store | |||
| 007 | TOPCAP | 1 | Not available in store | |||
| 008 | TOPCAPGASCKET | 1 | Not available in store | |||
| 009 | HY00000008 | CUSHION V | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | COMPRESSIONSPRING7 | 1 | Not available in store | |||
| 011 | HY00000010 | O-RING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | HY00000011 | O-RING 33 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | HEADVALVE | 1 | Not available in store | |||
| 014 | ORING26.5 | 1 | Not available in store | |||
| 015 | HY00000014 | CUSHION P | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | ORING22.5 | 1 | Not available in store | |||
| 017 | DRIVER COMPLETE | 1 | Not available in store | |||
| 018 | CYLINDER SEPARATER | 1 | Not available in store | |||
| 019 | HY00000016 | O-RING 46 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | ORING30.5 | 2 | Not available in store | |||
| 021 | CYLINDER | 1 | Not available in store | |||
| 022 | FRONTCUSHION | 1 | Not available in store | |||
| 024 | HY00000074 | HEX.SOCKET HEAD BOLT M4X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 025 | DRIVER GUIDE | 1 | Not available in store | |||
| 026 | HY00000043 | RUBBER RING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | COVER PLATE PIN | 1 | Not available in store | |||
| 028 | PLATE | 1 | Not available in store | |||
| 029 | HY00000005 | HEX.SOCKET HEAD BOLT M5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 030 | LATCH | 1 | Not available in store | |||
| 031 | DOOR | 1 | Not available in store | |||
| 032 | SPRINGPIN3-22 | 1 | Not available in store | |||
| 033 | LATCH COVER | 1 | Not available in store | |||
| 035 | HY00000023 | FRONT SEAL | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | HOLDER | 1 | Not available in store | |||
| 037 | COMPRESSIONSPRING5 | 1 | Not available in store | |||
| 038 | UPPERYOKE | 1 | Not available in store | |||
| 040 | CONTACT ARM COMPLETE | 1 | Not available in store | |||
| 041 | HEX.SOCKETHEADBOLTM4X4 | 1 | Not available in store | |||
| 042 | BUSH | 1 | Not available in store | |||
| 043 | CONTACT TOP | 1 | Not available in store | |||
| 044 | HY00000378 | NOSE ADAPTER (2PCS) | 1 | €0.70 | 1-4 weeks to ship | |
| 045 | HEX. LOCK NUT M5 | 1 | Not available in store | |||
| 046 | JOINT | 1 | Not available in store | |||
| 048 | HEX. SOCKET HEAD BOLT M4X6 | 2 | Not available in store | |||
| 049 | SENSORMATIC CHIP | 1 | Not available in store | |||
| 050 | CAUTION LABEL1 | 1 | Not available in store | |||
| 051 | MAGAZINE | 1 | Not available in store | |||
| 052 | AF506 NAME PLATE | 1 | Not available in store | |||
| 053 | CAUTION LABEL2 | 1 | Not available in store | |||
| 054 | HY00000062 | HOOK | 1 | €0.83 | 1-4 weeks to ship | |
| 055 | HEX.SOCKET HEAD BOLT M5X25 | 1 | Not available in store | |||
| 057 | HY00000024 | SPRING PIN 3-26 | 2 | €0.56 | 1-4 weeks to ship | |
| 058 | HY00000037 | O-RING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | TRIGGER | 1 | Not available in store | |||
| 060 | IDLER | 1 | Not available in store | |||
| 061 | PIN4 | 1 | Not available in store | |||
| 062 | HY00000114 | SPRING PIN 2.5-16 | 1 | €1.39 | 1-4 weeks to ship | |
| 063 | HY00000033 | RUBBER RING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | HY00000034 | TRIGGER VALVE GUIDE | 1 | €1.11 | 1-4 weeks to ship | |
| 065 | HY00000035 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | TRIGGER VALVE STEM | 1 | Not available in store | |||
| 067 | HY00000039 | O-RING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | HY00000038 | TRIGGER VALVE CASE | 1 | €1.11 | 1-4 weeks to ship | |
| 069 | HY00000040 | COMPRESSION SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | PUSHER | 1 | Not available in store | |||
| 071 | PIN7 | 2 | Not available in store | |||
| 072 | HY00000059 | COMPRESSION SPRING 6 | 2 | €0.83 | 1-4 weeks to ship | |
| 073 | MAGAZINE RAIL | 1 | Not available in store | |||
| 074 | SLIDE DOOR | 1 | Not available in store | |||
| 075 | DUSTERBUTTON | 1 | Not available in store | |||
| 076 | HY00000046 | PIN 2-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | COMPRESSIONSPRING5 | 1 | Not available in store | |||
| 078 | VALVESTEM | 1 | Not available in store | |||
| 079 | ORING5 | 1 | Not available in store | |||
| 080 | ORING8.5 | 1 | Not available in store | |||
| 081 | VALVEGUIDE | 1 | Not available in store | |||
| 083 | HY00000054 | SPRING PIN 2.5-18 | 1 | €0.56 | 1-4 weeks to ship | |
| 084 | SEALRING | 1 | Not available in store | |||
| 085 | INLETCAP | 1 | Not available in store | |||
| 086 | HEX.SOCKETHEADBOLTM4X20 | 4 | Not available in store | |||
| 087 | HY00000080 | ONE TOUCH JOINT | 1 | €2.78 | 1-4 weeks to ship | |
| 088 | HY00000159 | HEX. LOCK NUT M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 089 | LOCK LEVER | 1 | Not available in store | |||
| 090 | SLEEVE4 | 1 | Not available in store | |||
| 091 | COMPRESSION SPRING 5 | 1 | Not available in store | |||
| 092 | SLIDE DOOR CAP | 1 | Not available in store | |||
| 093 | HEX.SOCKETHEADBOLTM4X12 | 1 | Not available in store | |||
| 094 | CAP BUMPER | 1 | Not available in store | |||
| 095 | HOUSING COMPLETE | 1 | Not available in store | |||
| 096 | MAGAZINE ASSEMBLY | 1 | Not available in store | |||
| 097 | TRIGGER ASSEMBLY | 1 | Not available in store | |||
| 098 | AIRDUSTERCOMPLETE | 1 | Not available in store | |||
| 099 | HY00000074 | HEX.SOCKET HEAD BOLT M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 100 | HY00000074 | HEX.SOCKET HEAD BOLT M4X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 101 | HY00000074 | HEX.SOCKET HEAD BOLT M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 102 | HY00000070 | FLAT WASHER4 | 2 | €0.56 | 1-4 weeks to ship | |
| 103 | HY00000070 | FLAT WASHER4 | 4 | €0.56 | 1-4 weeks to ship | |
| 104 | HY00000037 | O-RING 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 105 | HY00000037 | O-RING 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 106 | HY00000378 | NOSE ADAPTER (2PCS) | 1 | €0.70 | 1-4 weeks to ship | |
