9924DB
9924DB

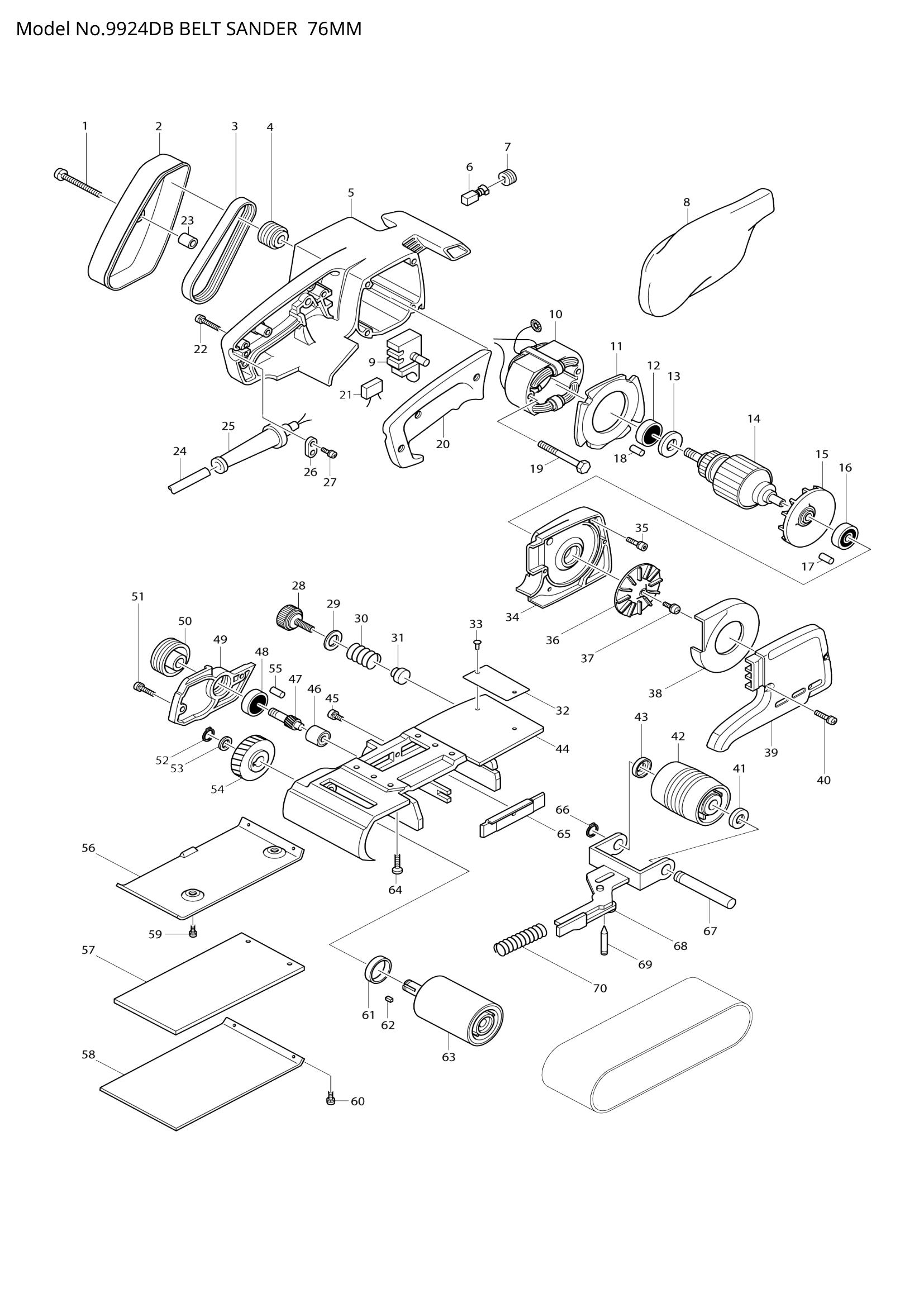

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 911261-6 | PAN HEAD SCREW M5X40 | 1 | €2.09 | 1-4 weeks to ship | |
| 003 | 225008-5 | POLY V-BELT 5-304 | 1 | €16.70 | 1-4 weeks to ship | |
| 004 | 222010-9 | V-PULLEY 5-25L | 1 | €5.57 | 1-4 weeks to ship | |
| 005 | 156490-6 | MOTOR HOUSING COMPLETE | 1 | €52.88 | 1-4 weeks to ship | |
| 007 | 643600-9 | BRUSH HOLDER CAP 6-10 | 2 | €0.83 | 1-4 weeks to ship | |
| 011 | BAFFLE PLATE | 1 | Not available in store | |||
| 012 | 211066-7 | BALL BEARING 6200LLB | 1 | €6.12 | 1-4 weeks to ship | |
| 015 | 241809-3 | FAN 75 | 1 | €5.57 | 1-4 weeks to ship | |
| 018 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 411321-9 | HANDLE COVER | 1 | €9.74 | 1-4 weeks to ship | |
| 022 | 911158-9 | PAN HEAD SCREW M4X30 | 3 | €0.56 | 1-4 weeks to ship | |
| 023 | 257504-5 | SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 911241-2 | PAN HEAD SCREW M5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 036 | 241611-4 | FAN 74 | 1 | €8.35 | 1-4 weeks to ship | |
| 037 | 911211-1 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 343271-9 | SEPARATOR | 1 | €6.54 | 1-4 weeks to ship | |
| 040 | 911131-9 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 041 | 253922-5 | CUP WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 152104-5 | TENSION ROLLER COMPLETE | 1 | €30.61 | 1-4 weeks to ship | |
| 043 | 253922-5 | CUP WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 911211-1 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 212003-4 | NEEDLE BEARING 810 | 1 | €5.57 | 1-4 weeks to ship | |
| 047 | 221193-2 | HELICAL GEAR 10 | 1 | €19.48 | 1-4 weeks to ship | |
| 048 | 211066-7 | BALL BEARING 6200LLB | 1 | €6.12 | 1-4 weeks to ship | |
| 050 | 222011-7 | V-PULLEY 5-45 | 1 | €23.93 | 1-4 weeks to ship | |
| 051 | 911131-9 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 052 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 221070-8 | HELICAL GEAR 48 | 1 | €22.26 | 1-4 weeks to ship | |
| 056 | 341647-4 | BASE PLATE | 1 | €13.92 | 1-4 weeks to ship | |
| 057 | CORK RUBBER PLATE | 1 | Not available in store | |||
| 058 | CARBON PLATE 98MM | 1 | Not available in store | |||
| 059 | 911111-5 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | |
| 060 | 911114-9 | PAN HEAD SCREW M4X10 | 2 | €0.56 | 1-4 weeks to ship | |
| 061 | 253922-5 | CUP WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | 254202-2 | KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | COUNTERSUNK HEAD SCREW M5 | 6 | Not available in store | |||
| 066 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 325458-5 | TENSION ROLLER SHAFT | 1 | €8.91 | 1-4 weeks to ship | |
| 068 | 163104-0 | TENSION ROLLER ARM | 1 | €16.70 | 1-4 weeks to ship | |
| 069 | 323634-5 | SUPPORT PIN | 1 | €2.78 | 1-4 weeks to ship | |
| 070 | 231033-6 | COMPRESSION SPRING 11 | 1 | €0.83 | 1-4 weeks to ship | |
| 400 | CARBON PLATE 98MM | 1 | Not available in store | |||
