9920
9920

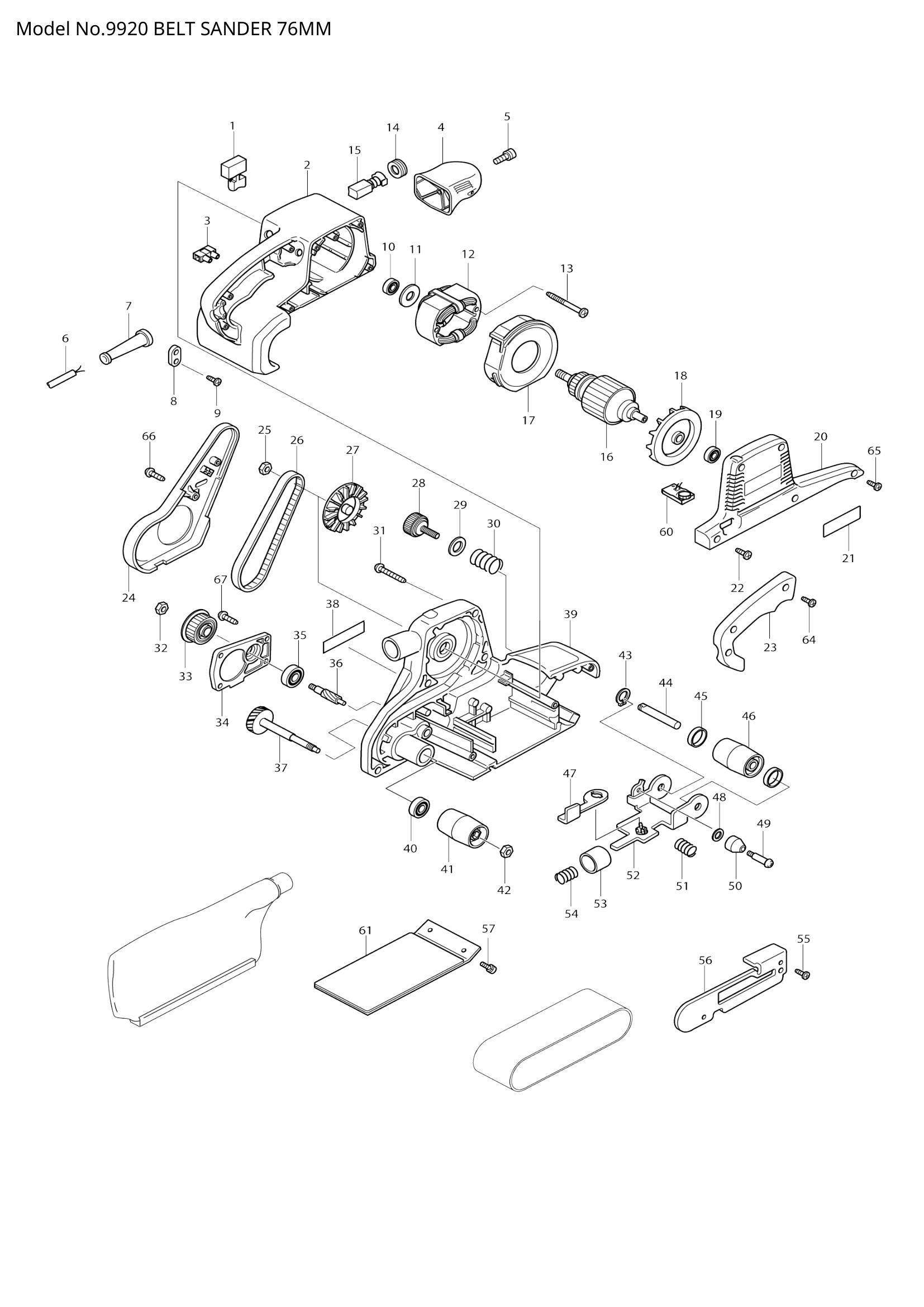

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 651284-9 | SWITCH SGEL115CDY-6 | 1 | €11.13 | 1-4 weeks to ship | |
| 002 | 151743-8 | MOTOR HOUSING COMPLETE | 1 | €52.88 | 1-4 weeks to ship | |
| 003 | 654532-5 | TERMINAL BLOCK 1P | 1 | €1.11 | 1-4 weeks to ship | |
| 004 | 417049-7 | FRONT GRIP | 1 | €5.57 | 1-4 weeks to ship | |
| 005 | 266173-1 | TAPPING SCREW 5X30 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 010 | 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 011 | 681649-1 | INSULATION WASHER | 1 | €0.83 | 1-4 weeks to ship | |
| 013 | 266056-5 | TAPPING SCREW 5X45 | 2 | €0.83 | 1-4 weeks to ship | |
| 017 | 417050-2 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 018 | 240026-2 | FAN 75 | 1 | €4.17 | 1-4 weeks to ship | |
| 019 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 020 | 417048-9 | MOTOR COVER | 1 | €16.70 | 1-4 weeks to ship | |
| 021 | MAKITA LABEL | 1 | Not available in store | |||
| 022 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 023 | 417051-0 | HANDLE COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 024 | 417052-8 | BELT COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 025 | 252153-3 | HEX. NUT M6-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 225084-9 | SYNCHRO BELT 6-330 | 1 | €5.57 | 1-4 weeks to ship | |
| 027 | 241663-5 | FAN 76 | 1 | €19.48 | 1-4 weeks to ship | |
| 028 | 251815-0 | SCREW M6X25 | 1 | €1.11 | 1-4 weeks to ship | |
| 031 | 266050-7 | TAPPING SCREW 4X30 | 5 | €0.56 | 1-4 weeks to ship | |
| 032 | 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 033 | 222156-1 | PULLEY 9.5-46.0 | 1 | €13.92 | 1-4 weeks to ship | |
| 034 | GEAR COVER | 1 | Not available in store | |||
| 036 | 226520-8 | HELICAL GEAR 10 | 1 | €13.92 | 1-4 weeks to ship | |
| 037 | 151755-1 | HELICAL GEAR 39 COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 038 | 852053-3 | NAME PLATE 9920 | 1 | €2.78 | 1-4 weeks to ship | |
| 039 | 151747-0 | FRAME COMPLETE | 1 | €146.11 | 1-4 weeks to ship | |
| 040 | 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 041 | 162217-4 | DRIVING ROLLER | 1 | €25.05 | 1-4 weeks to ship | |
| 042 | 252154-1 | HEX. NUT M8-13 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 323931-9 | TENSION ROLLER SHAFT | 1 | €4.17 | 1-4 weeks to ship | |
| 045 | 253922-5 | CUP WASHER 12 | 2 | €0.56 | 1-4 weeks to ship | |
| 046 | 151753-5 | TENSION ROLLER COMPLETE | 1 | €25.05 | 1-4 weeks to ship | |
| 047 | 344823-9 | LEVER | 1 | €4.17 | 1-4 weeks to ship | |
| 048 | 267731-6 | CUP WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 265059-6 | SHOULDER SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 416417-1 | ROLLER | 1 | €1.11 | 1-4 weeks to ship | |
| 051 | 233249-9 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 151744-6 | TENSION ROLLER ARM COMPLET | 1 | €22.26 | 1-4 weeks to ship | |
| 053 | 267746-3 | CUP WASHER 17 | 1 | €1.67 | 1-4 weeks to ship | |
| 054 | 233250-4 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 056 | 344822-1 | SAFETY COVER | 1 | €10.99 | 1-4 weeks to ship | |
| 057 | 911116-5 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 064 | 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 065 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | €0.56 | 1-4 weeks to ship | |
