9741
9741

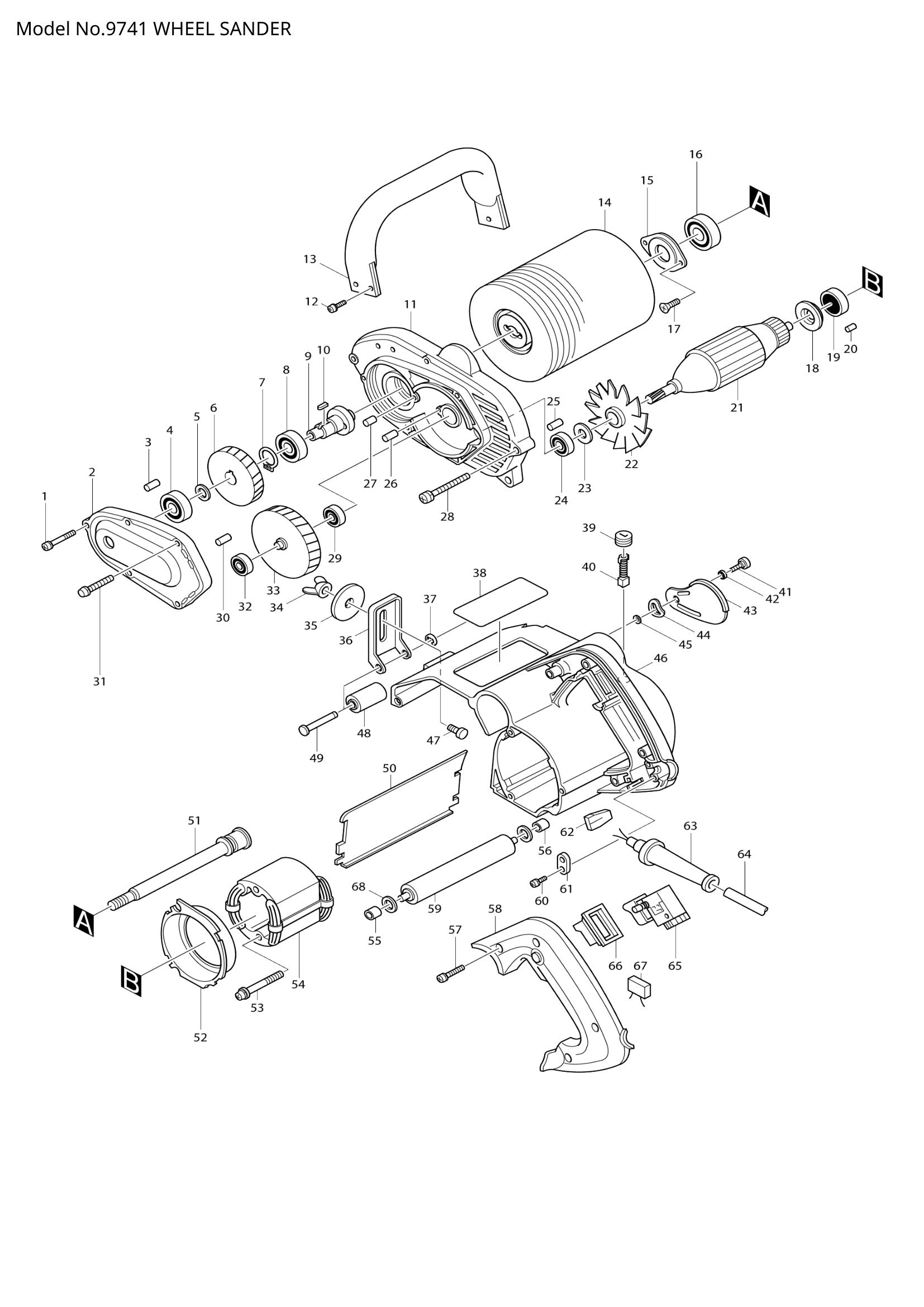

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 157777-9 | GEAR HOUSING COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 003 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 211101-1 | BALL BEARING 6001LLB | 1 | €11.13 | 1-4 weeks to ship | |
| 005 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 221756-4 | HELICAL GEAR 53 | 1 | €27.83 | 1-4 weeks to ship | |
| 007 | 961055-9 | RETAINING RING S-15 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 163269-8 | SPINDLE | 1 | €33.40 | 1-4 weeks to ship | |
| 010 | 254219-5 | KEY 4 | 1 | €0.83 | 1-4 weeks to ship | |
| 011 | 157776-1 | GEAR HOUSING | 1 | €19.48 | 1-4 weeks to ship | |
| 013 | 273623-9 | GRIP | 1 | €19.76 | 1-4 weeks to ship | |
| 015 | 285661-9 | BEARING RETAINER | 1 | €4.45 | 1-4 weeks to ship | |
| 016 | 211275-8 | BALL BEARING 6003DDW | 1 | €11.13 | 1-4 weeks to ship | |
| 017 | 912122-3 | COUNTERSUNK HEAD SCREW M4 | 2 | €0.56 | 1-4 weeks to ship | |
| 912122-3 | COUNTERSUNK HEAD SCREW M4 | 2 | €0.56 | 1-4 weeks to ship | ||
| 018 | 681625-5 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 020 | 263014-2 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 241113-0 | FAN 68 | 1 | €11.13 | 1-4 weeks to ship | |
| 025 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 263005-3 | RUBBER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 211019-6 | BALL BEARING 626 | 1 | €4.17 | 1-4 weeks to ship | |
| 030 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 211019-6 | BALL BEARING 626 | 1 | €4.17 | 1-4 weeks to ship | |
| 033 | 153168-2 | GEAR COMPLETE 64 | 1 | €44.53 | 1-4 weeks to ship | |
| 034 | 934301-3 | WING NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 934301-3 | WING NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 035 | 253196-8 | FLAT WASHER 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 036 | 343434-7 | DEPTH GUIDE | 1 | €4.17 | 1-4 weeks to ship | |
| 037 | 961018-5 | STOP RING E-5 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 855929-3 | NAME PLATE 9741 | 1 | €2.78 | 1-4 weeks to ship | |
| 039 | 643600-9 | BRUSH HOLDER CAP 6-10 | 2 | €0.83 | 1-4 weeks to ship | |
| 041 | 251323-1 | + PAN HEAD SCREW M4 | 1 | €2.78 | 1-4 weeks to ship | |
| 042 | 253308-3 | THIN WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 343436-3 | COVER PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 044 | 253980-1 | WAVE WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 253874-0 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 157798-1 | HOUSING | 1 | €69.58 | 1-4 weeks to ship | |
| 047 | 251919-8 | CAP SQUARE NECK BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 162134-8 | FRONT ROLLER | 1 | €8.35 | 1-4 weeks to ship | |
| 049 | 256655-1 | PIN 7 | 1 | €2.78 | 1-4 weeks to ship | |
| 050 | 343435-5 | PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 051 | 322071-0 | ARBOR | 1 | €30.61 | 1-4 weeks to ship | |
| 052 | 410957-1 | BAFFLE PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 055 | 262515-7 | SLEEVE 6 | 1 | €1.11 | 1-4 weeks to ship | |
| 056 | 262515-7 | SLEEVE 6 | 1 | €1.11 | 1-4 weeks to ship | |
| 057 | 911153-9 | PAN HEAD SCREW M4X28 | 4 | €0.56 | 1-4 weeks to ship | |
| 058 | 410954-7 | HANDLE COVER | 1 | €13.92 | 1-4 weeks to ship | |
| 059 | 162133-0 | ROLLER | 1 | €13.92 | 1-4 weeks to ship | |
| 060 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 062 | 423096-8 | SPONGE SEAL | 1 | €0.83 | 1-4 weeks to ship | |
| 066 | 421323-7 | SWITCH COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 068 | 941152-7 | FLAT WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 400 | JOINT | 1 | Not available in store | |||
| 401 | HEX. WRENCH 6 | 2 | Not available in store | |||
