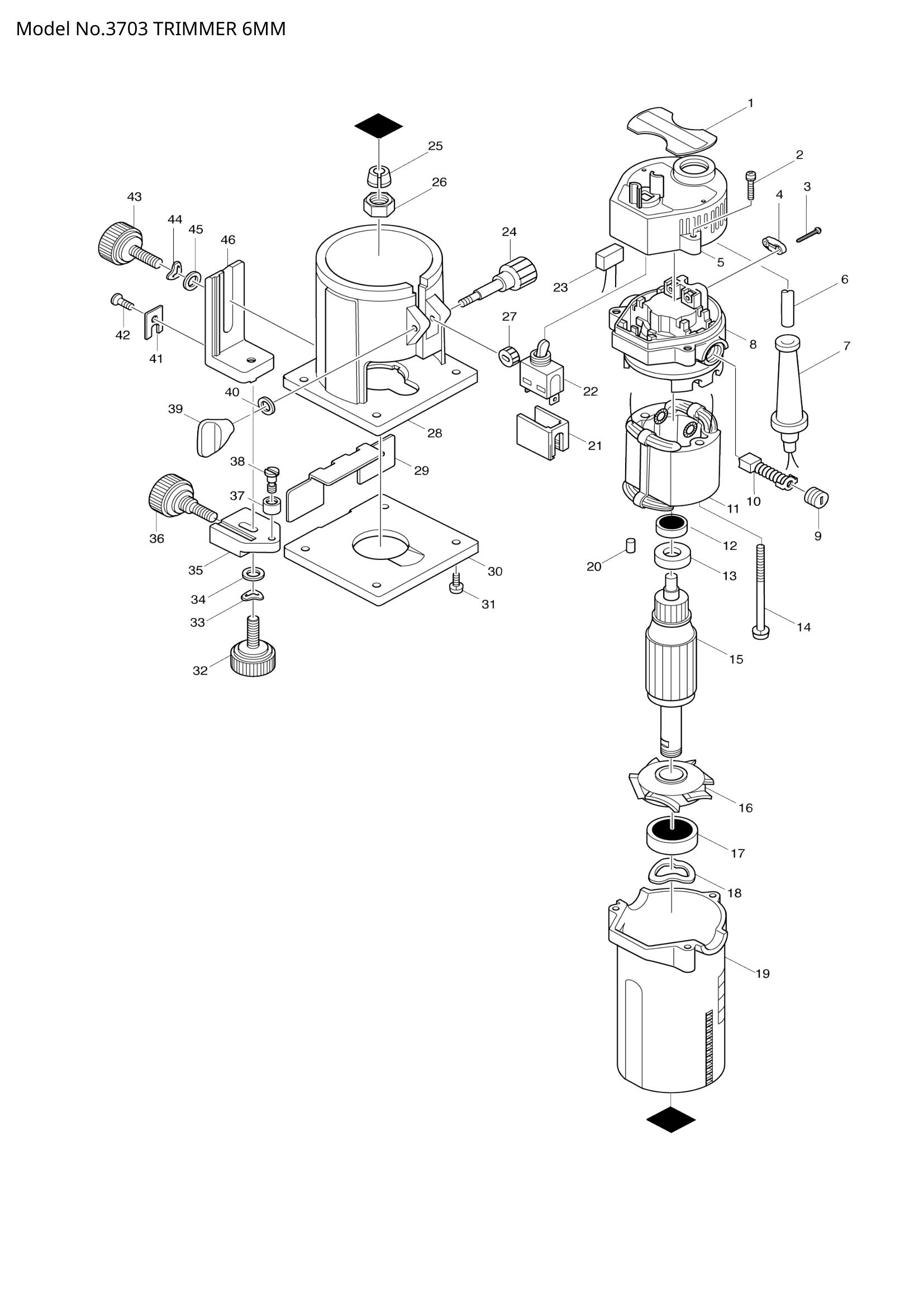

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | NAME PLATE 3703 | 1 | Not available in store | |||
| 002 | 911168-6 | PAN HEAD SCREW M4X40 | 3 | €0.56 | 1-4 weeks to ship | |
| 005 | 410062-4 | REAR COVER | 1 | €10.85 | 1-4 weeks to ship | |
| 009 | 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | €0.83 | 1-4 weeks to ship | |
| 012 | 211028-5 | BALL BEARING 627LB | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | 681614-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 253905-5 | WAVE WASHER 23 | 1 | €0.42 | 1-4 weeks to ship | |
| 019 | 414567-6 | MOTOR HOUSING | 1 | €23.93 | 1-4 weeks to ship | |
| 020 | 263014-2 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 410069-0 | SWITCH HOLDER | 1 | €4.45 | 1-4 weeks to ship | |
| 024 | 251890-6 | SCREW M5X33 | 1 | €5.57 | 1-4 weeks to ship | |
| 026 | COLLET NUT 6 | 1 | Not available in store | |||
| 027 | 226217-9 | SPUR GEAR 16 | 1 | €1.11 | 1-4 weeks to ship | |
| 028 | 411930-4 | BASE | 1 | €4.17 | 1-4 weeks to ship | |
| 030 | 410585-2 | BASE PROTECTOR | 1 | €0.83 | 1-4 weeks to ship | |
| 031 | 251308-7 | + PAN HEAD SCREW M4X10 | 4 | €0.56 | 1-4 weeks to ship | |
| 034 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 039 | 252632-1 | WING NUT M5 | 1 | €5.29 | 1-4 weeks to ship | |
| 040 | 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 341136-9 | HOOK | 1 | €2.78 | 1-4 weeks to ship | |
| 045 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
