9566PCV
9566PCV

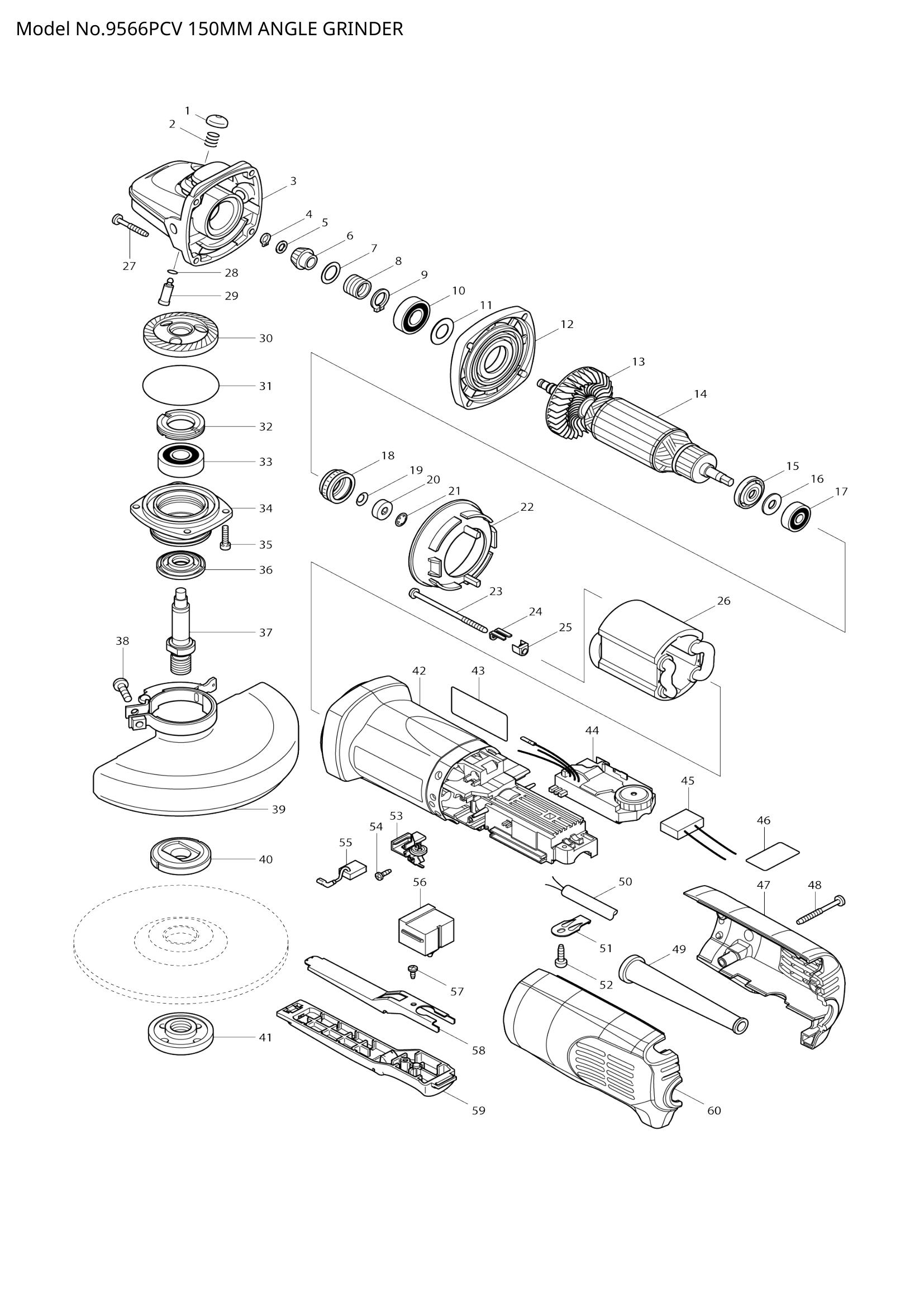

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 418067-8 | PIN CAP | 1 | €0.83 | 1-4 weeks to ship | |
| 003 | 153488-4 | GEAR HOUSING COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 004 | 961002-0 | RETAINING RING S-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 253077-6 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 233901-9 | LOCK SPRING 12 | 1 | €2.78 | 1-4 weeks to ship | |
| 009 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 210105-0 | BALL BEARING 6001LLU | 1 | €4.17 | 1-4 weeks to ship | |
| 011 | 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 317359-1 | GEAR HOUSING COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 013 | 240033-5 | FAN 57 | 1 | €4.17 | 1-4 weeks to ship | |
| 014 | 515208-8 | ARMATURE ASS'Y 220-240V | 1 | €66.79 | 1-4 weeks to ship | |
| 016 | 253823-7 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 210027-4 | BALL BEARING 627DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 019 | 267756-0 | WAVE WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 688117-5 | MAGNET SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 021 | 259039-2 | SELF LOCK 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 413076-2 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 023 | 266258-3 | TAPPING SCREW 4X70 | 2 | €0.83 | 1-4 weeks to ship | |
| 024 | 344871-8 | RETAINER | 2 | €0.56 | 1-4 weeks to ship | |
| 027 | 266257-5 | TAPPING SCREW 4X28 | 4 | €0.56 | 1-4 weeks to ship | |
| 028 | 213048-5 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 256459-1 | PIN | 1 | €1.11 | 1-4 weeks to ship | |
| 031 | 213673-2 | O RING 52 | 1 | €0.83 | 1-4 weeks to ship | |
| 032 | 285841-7 | BEARING RETAINER | 1 | €1.67 | 1-4 weeks to ship | |
| 033 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 035 | 265490-6 | HEX. SOCKET HEAD BOLT M4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 036 | 415300-9 | LABYRINTH RING | 1 | €1.39 | 1-4 weeks to ship | |
| 037 | 324035-0 | SPINDLE | 1 | €11.13 | 1-4 weeks to ship | |
| 040 | INNER FLANGE 42 | 1 | Not available in store | |||
| 041 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 043 | 9566PCV NAME PLATE | 1 | Not available in store | |||
| 044 | 631791-8 | CONTROLLER | 1 | €49.68 | 1-4 weeks to ship | |
| 045 | 645238-6 | NOISE SUPPRESSOR | 1 | €1.39 | 1-4 weeks to ship | |
| 046 | INDICATION LABEL | 1 | Not available in store | |||
| 048 | 266048-4 | TAPPING SCREW 4X40 | 3 | €0.56 | 1-4 weeks to ship | |
| 049 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 050 | 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | |
| 051 | 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 266192-7 | TAPPING SCREW 4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 643760-7 | BRUSH HOLDER | 2 | €4.17 | 1-4 weeks to ship | |
| 054 | 266256-7 | TAPPING SCREW PT3X10 | 4 | €0.56 | 1-4 weeks to ship | |
| 055 | 191978-9 | A.C. CARBON BRUSH CB-318 | 1 | €11.13 | 1-4 weeks to ship | |
| 057 | 265954-0 | TAPPING SCREW BIND PT3X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | 345504-8 | PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 154584-1 | SWITCH LEVER B COMPLETE | 1 | €1.67 | 1-4 weeks to ship | |
