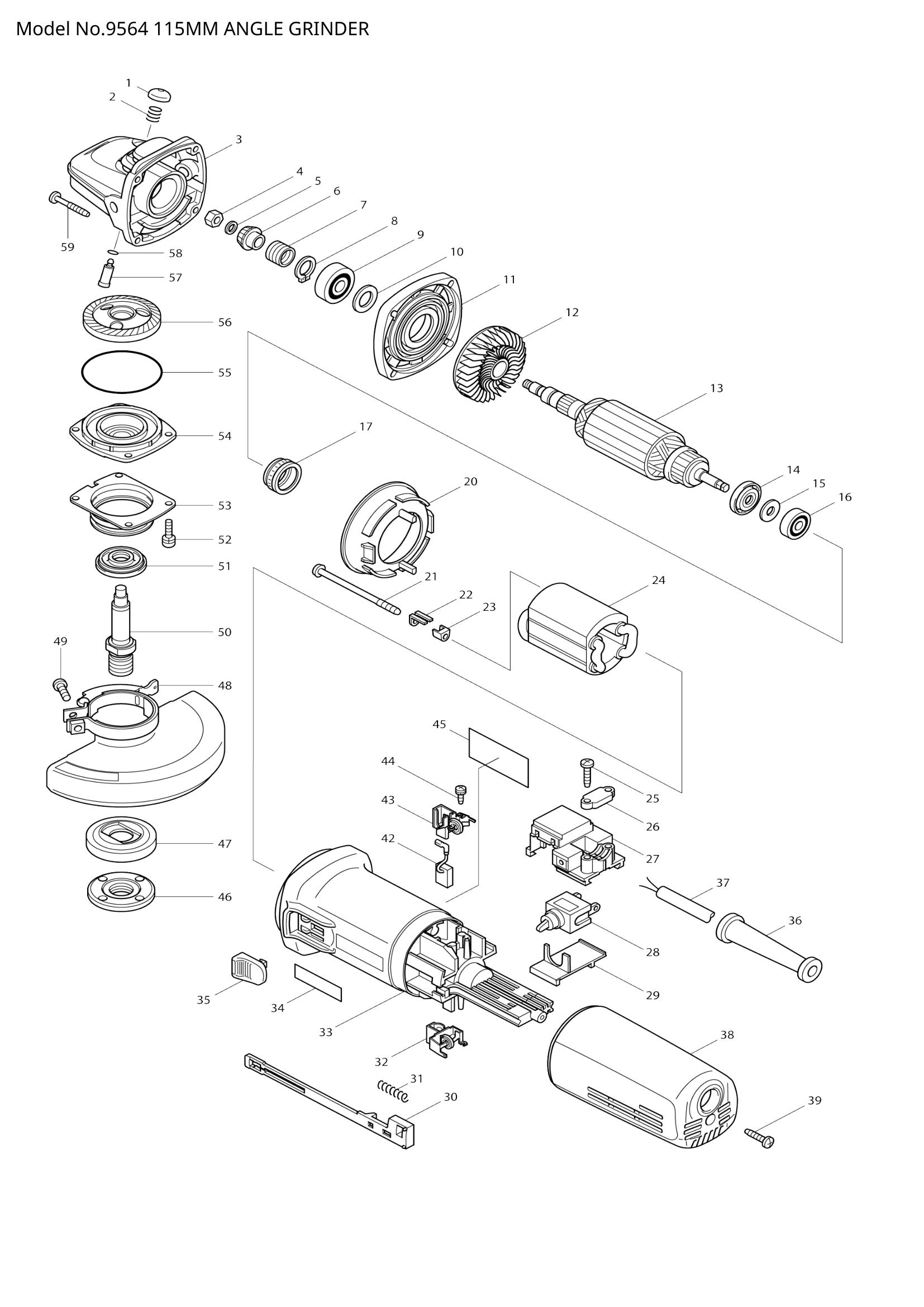

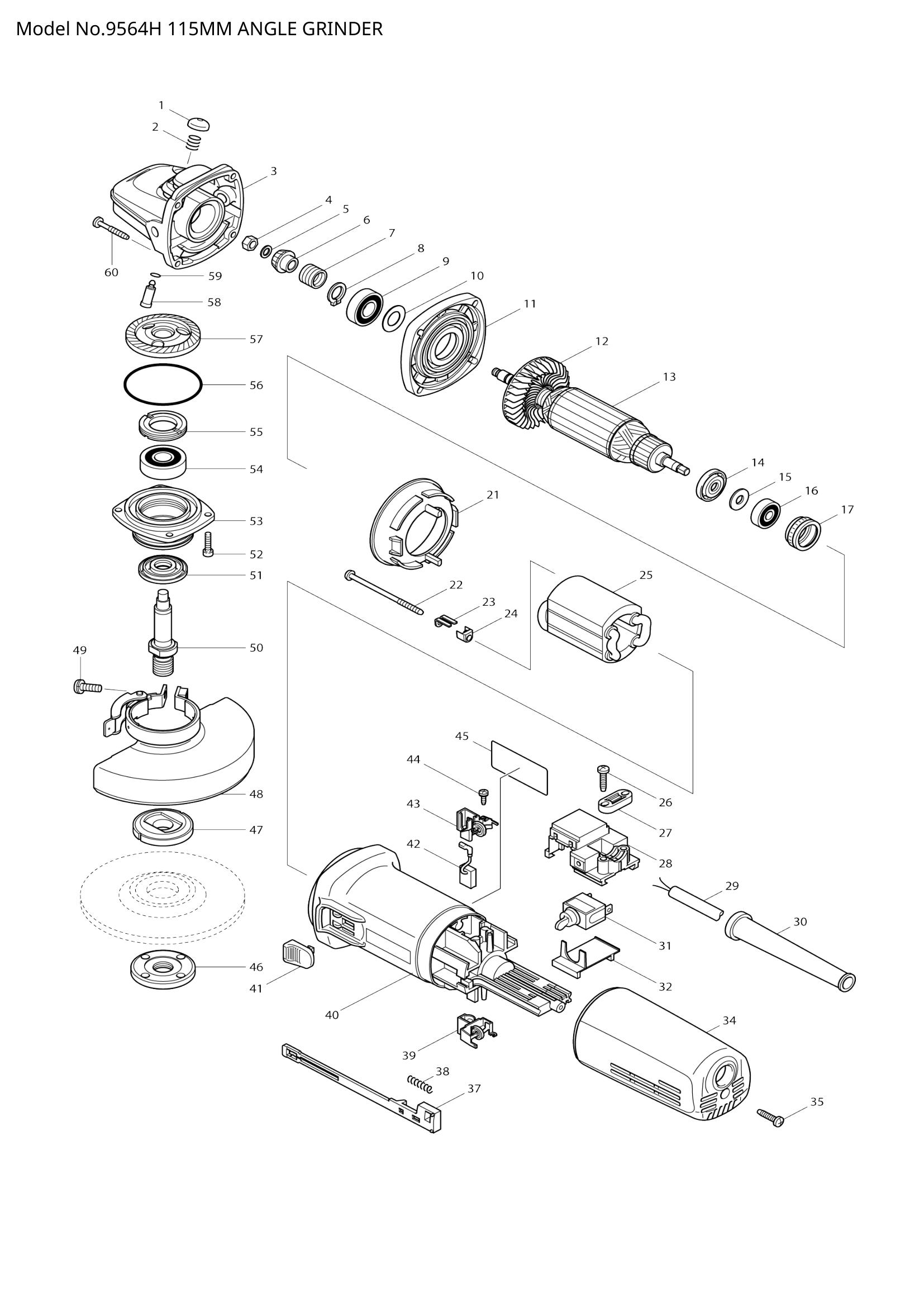

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 004 | 931303-0 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 931303-0 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 931303-0 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 005 | 253077-6 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 253077-6 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 253077-6 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | 226794-1 | SPIRAL BEVEL GEAR 11 | 1 | €13.92 | 1-4 weeks to ship | |
| 226794-1 | SPIRAL BEVEL GEAR 11 | 1 | €13.92 | 1-4 weeks to ship | ||
| 226794-1 | SPIRAL BEVEL GEAR 11 | 1 | €13.92 | 1-4 weeks to ship | ||
| 007 | 233901-9 | LOCK SPRING 12 | 1 | €2.78 | 1-4 weeks to ship | |
| 233901-9 | LOCK SPRING 12 | 1 | €2.78 | 1-4 weeks to ship | ||
| 233901-9 | LOCK SPRING 12 | 1 | €2.78 | 1-4 weeks to ship | ||
| 008 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 009 | 211142-7 | BALL BEARING 6001LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 211142-7 | BALL BEARING 6001LLB | 1 | €8.35 | 1-4 weeks to ship | ||
| 211142-7 | BALL BEARING 6001LLB | 1 | €8.35 | 1-4 weeks to ship | ||
| 010 | 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 011 | 317359-1 | GEAR HOUSING COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 317359-1 | GEAR HOUSING COVER | 1 | €8.35 | 1-4 weeks to ship | ||
| 317359-1 | GEAR HOUSING COVER | 1 | €8.35 | 1-4 weeks to ship | ||
| 012 | 240033-5 | FAN 57 | 1 | €4.17 | 1-4 weeks to ship | |
| 240033-5 | FAN 57 | 1 | €4.17 | 1-4 weeks to ship | ||
| 240033-5 | FAN 57 | 1 | €4.17 | 1-4 weeks to ship | ||
| 014 | 681656-4 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681656-4 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681656-4 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 015 | 253823-7 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 253823-7 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 253823-7 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | 210027-4 | BALL BEARING 627DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 210027-4 | BALL BEARING 627DDW | 1 | €4.17 | 1-4 weeks to ship | ||
| 210027-4 | BALL BEARING 627DDW | 1 | €4.17 | 1-4 weeks to ship | ||
| 020 | 413076-2 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 413076-2 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 413076-2 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 021 | 266258-3 | TAPPING SCREW 4X70 | 2 | €0.83 | 1-4 weeks to ship | |
| 266258-3 | TAPPING SCREW 4X70 | 2 | €0.83 | 1-4 weeks to ship | ||
| 266258-3 | TAPPING SCREW 4X70 | 2 | €0.83 | 1-4 weeks to ship | ||
| 022 | 344871-8 | RETAINER | 2 | €0.56 | 1-4 weeks to ship | |
| 344871-8 | RETAINER | 2 | €0.56 | 1-4 weeks to ship | ||
| 344871-8 | RETAINER | 2 | €0.56 | 1-4 weeks to ship | ||
| 025 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 027 | 632945-0 | SWITCH BLOCK | 1 | €13.92 | 1-4 weeks to ship | |
| 632945-0 | SWITCH BLOCK | 1 | €13.92 | 1-4 weeks to ship | ||
| 632945-0 | SWITCH BLOCK | 1 | €13.92 | 1-4 weeks to ship | ||
| 029 | 687113-0 | COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 687113-0 | COVER | 1 | €1.11 | 1-4 weeks to ship | ||
| 687113-0 | COVER | 1 | €1.11 | 1-4 weeks to ship | ||
| 030 | 417186-7 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 417186-7 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 417186-7 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 031 | 233071-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 233071-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 233071-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 036 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 038 | 417183-3 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 417183-3 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | ||
| 417183-3 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | ||
| 039 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 044 | 266256-7 | TAPPING SCREW PT3X10 | 4 | €0.56 | 1-4 weeks to ship | |
| 266256-7 | TAPPING SCREW PT3X10 | 4 | €0.56 | 1-4 weeks to ship | ||
| 266256-7 | TAPPING SCREW PT3X10 | 4 | €0.56 | 1-4 weeks to ship | ||
| 045 | NAME PLATE 9564 | 1 | Not available in store | |||
| NAME PLATE 9564 | 1 | Not available in store | ||||
| NAME PLATE 9564 | 1 | Not available in store | ||||
| 046 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | ||
| 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | ||
| 049 | 251391-4 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 251391-4 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 251391-4 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 051 | 415300-9 | LABYRINTH RING | 1 | €1.39 | 1-4 weeks to ship | |
| 415300-9 | LABYRINTH RING | 1 | €1.39 | 1-4 weeks to ship | ||
| 415300-9 | LABYRINTH RING | 1 | €1.39 | 1-4 weeks to ship | ||
| 055 | 213673-2 | O RING 52 | 1 | €0.83 | 1-4 weeks to ship | |
| 213673-2 | O RING 52 | 1 | €0.83 | 1-4 weeks to ship | ||
| 213673-2 | O RING 52 | 1 | €0.83 | 1-4 weeks to ship | ||
| 057 | 256459-1 | PIN | 1 | €1.11 | 1-4 weeks to ship | |
| 256459-1 | PIN | 1 | €1.11 | 1-4 weeks to ship | ||
| 256459-1 | PIN | 1 | €1.11 | 1-4 weeks to ship | ||
| 058 | 213048-5 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 213048-5 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 213048-5 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 059 | 266257-5 | TAPPING SCREW 4X28 | 4 | €0.56 | 1-4 weeks to ship | |
| 266257-5 | TAPPING SCREW 4X28 | 4 | €0.56 | 1-4 weeks to ship | ||
| 266257-5 | TAPPING SCREW 4X28 | 4 | €0.56 | 1-4 weeks to ship | ||
| 063 | 285841-7 | BEARING RETAINER | 1 | €1.67 | 1-4 weeks to ship | |
| 285841-7 | BEARING RETAINER | 1 | €1.67 | 1-4 weeks to ship | ||
| 285841-7 | BEARING RETAINER | 1 | €1.67 | 1-4 weeks to ship | ||
| 064 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | ||
