3620
3620

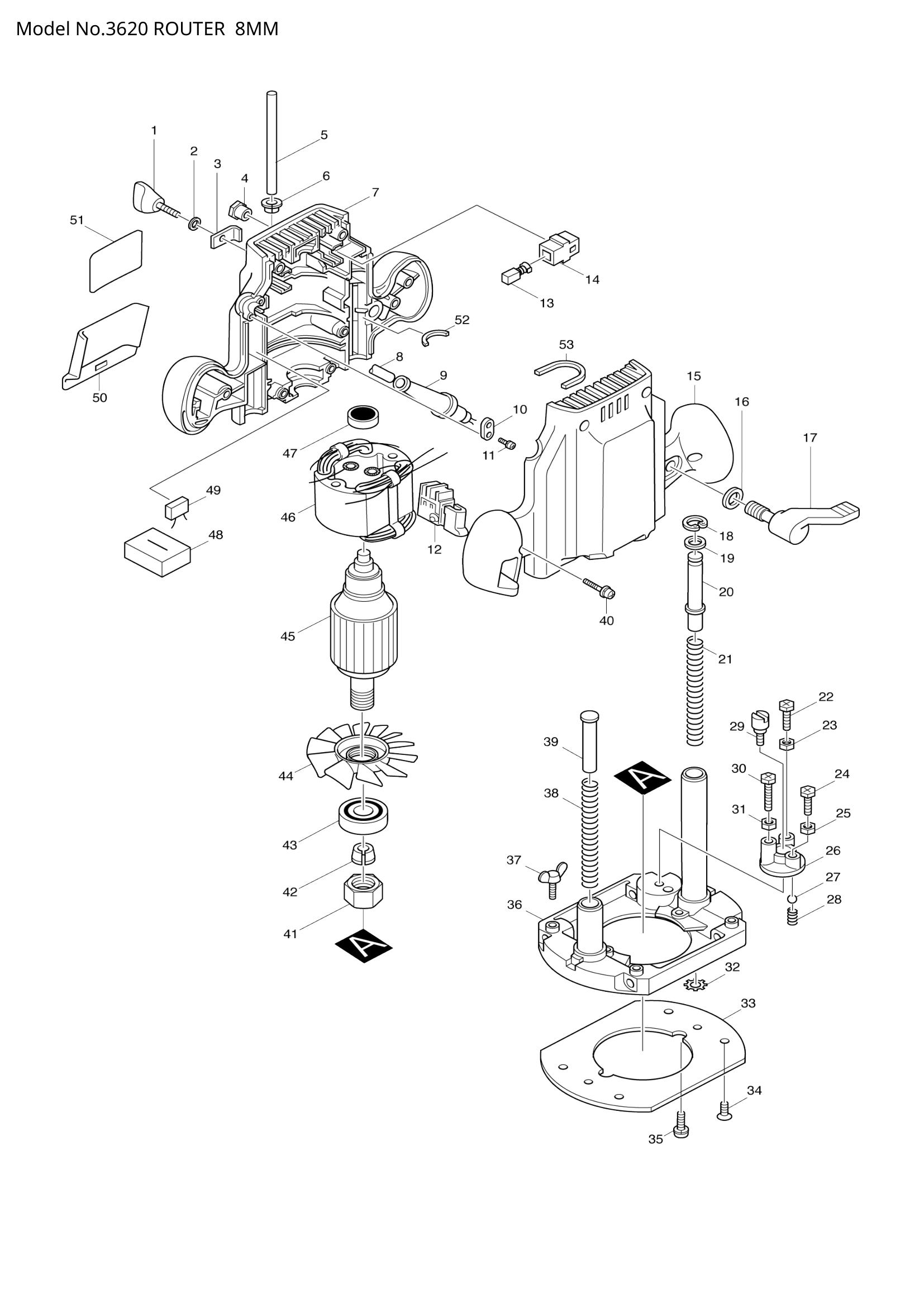

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 251878-6 | SCREW M5X20 | 1 | €1.39 | 1-4 weeks to ship | |
| 002 | 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 343352-9 | PRESSURE PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 004 | 252094-3 | HEX. NUT M8 | 1 | €2.78 | 1-4 weeks to ship | |
| 005 | 321948-6 | STOPPER POLE | 1 | €1.39 | 1-4 weeks to ship | |
| 006 | 410960-2 | DEPTH POINTER | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 682502-4 | CORD GUARD 8-85 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 014 | 643605-9 | BRUSH HOLDER | 2 | €1.11 | 1-4 weeks to ship | |
| 016 | 941202-8 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 272221-6 | LEVER 45 | 1 | €5.57 | 1-4 weeks to ship | |
| 018 | 962065-9 | RETAINING RING R-15 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 231416-0 | COMPRESSION SPRING 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 023 | 931202-6 | HEX. NUT M5 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 931202-6 | HEX. NUT M5 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 134437-0 | STOPPER ASS'Y | 1 | €22.26 | 1-4 weeks to ship | |
| 027 | 216009-4 | STEEL BALL 7.1 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 231419-4 | COMPRESSION SPRING 5 | 1 | €1.11 | 1-4 weeks to ship | |
| 029 | 251447-3 | - FLAT HEAD SCREW M6 | 1 | €1.39 | 1-4 weeks to ship | |
| 031 | 931202-6 | HEX. NUT M5 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 259019-8 | SELF LOCK 15 | 2 | €0.56 | 1-4 weeks to ship | |
| 033 | 410834-7 | BASE PLATE | 1 | €13.92 | 1-4 weeks to ship | |
| 035 | 911206-4 | PAN HEAD SCREW M5X10 | 2 | €0.56 | 1-4 weeks to ship | |
| 036 | 154346-7 | BASE COMPLETE | 1 | €72.36 | 1-4 weeks to ship | |
| 037 | 924216-2 | WING BOLT M5X15 | 2 | €0.56 | 1-4 weeks to ship | |
| 038 | 231417-8 | COMPRESSION SPRING 10 | 1 | €1.25 | 1-4 weeks to ship | |
| 039 | 256651-9 | PIN 10 | 1 | €5.57 | 1-4 weeks to ship | |
| 040 | 911243-8 | PAN HEAD SCREW M5X25 | 7 | €0.56 | 1-4 weeks to ship | |
| 041 | 763615-1 | COLLET NUT | 1 | €4.17 | 1-4 weeks to ship | |
| 042 | 763618-5 | COLLET CONE 8MM | 1 | €3.31 | 1-4 weeks to ship | |
| 043 | 211275-8 | BALL BEARING 6003DDW | 1 | €11.13 | 1-4 weeks to ship | |
| 044 | 241835-2 | FAN 72 | 1 | €8.35 | 1-4 weeks to ship | |
| 047 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 050 | 410896-5 | CHIP DEFLECTOR | 1 | €2.78 | 1-4 weeks to ship | |
| 051 | NAME PLATE 3620 | 1 | Not available in store | |||
| 052 | 443073-4 | FELT | 1 | €0.83 | 1-4 weeks to ship | |
| 053 | 443074-2 | FELT | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 231240-1 | COMPRESSION SPRING 7 | 2 | €0.56 | 1-4 weeks to ship | |
| 401 | WRENCH 13 | 1 | Not available in store | |||
| 402 | WRENCH 22 | 1 | Not available in store | |||
| 403 | 781213-9 | WRENCH 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 406 | STRAIGHT GUIDE | 1 | Not available in store | |||
