9562CVH
9562CVH

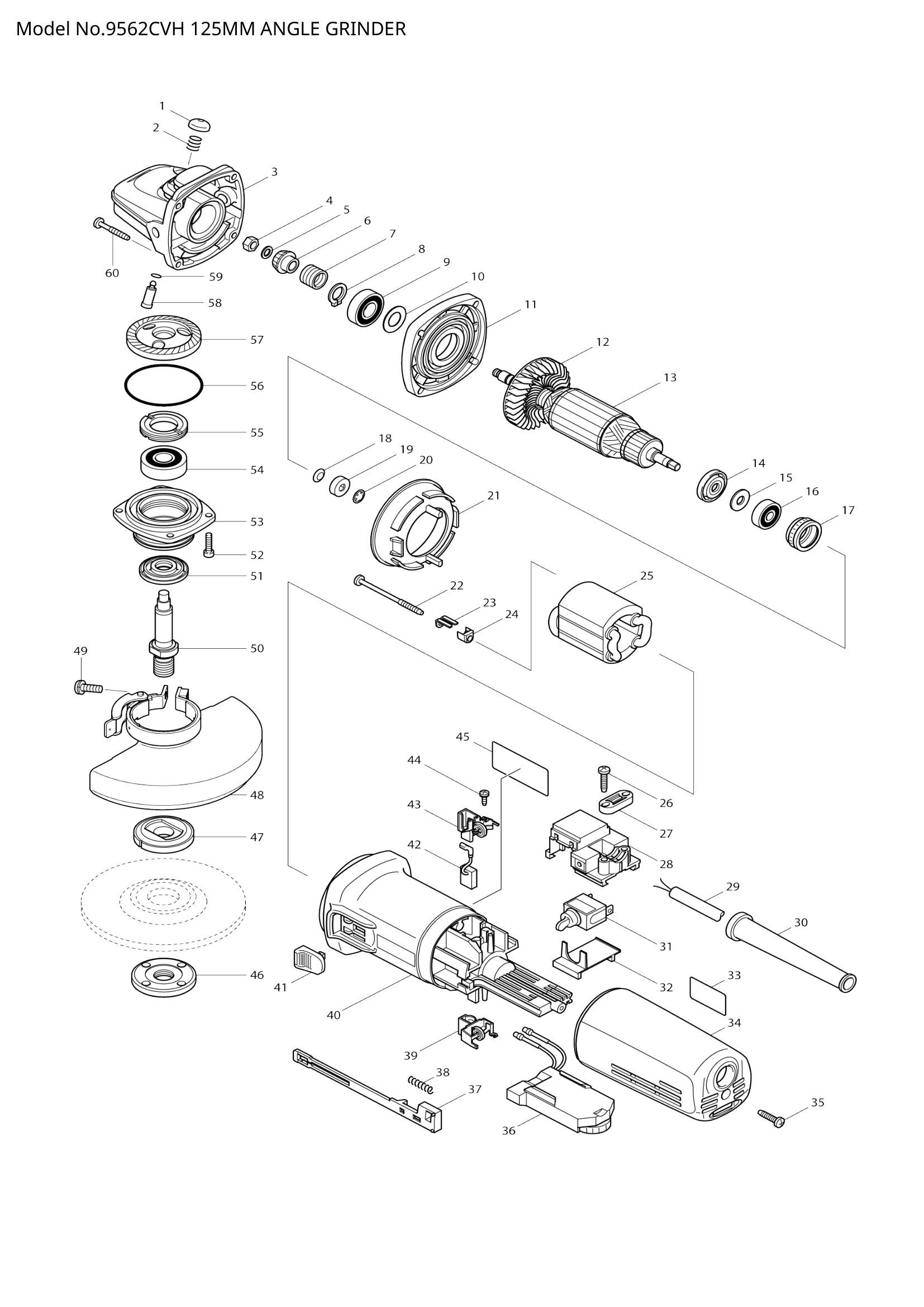

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 418067-8 | PIN CAP | 1 | €0.83 | 1-4 weeks to ship | |
| 418067-8 | PIN CAP | 1 | €0.83 | 1-4 weeks to ship | ||
| 003 | 153488-4 | GEAR HOUSING COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 153488-4 | GEAR HOUSING COMPLETE | 1 | €19.48 | 1-4 weeks to ship | ||
| 004 | 931303-0 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 931303-0 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 005 | 253077-6 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 253077-6 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 007 | 233901-9 | LOCK SPRING 12 | 1 | €2.78 | 1-4 weeks to ship | |
| 233901-9 | LOCK SPRING 12 | 1 | €2.78 | 1-4 weeks to ship | ||
| 008 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 009 | 211142-7 | BALL BEARING 6001LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 211142-7 | BALL BEARING 6001LLB | 1 | €8.35 | 1-4 weeks to ship | ||
| 010 | 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 011 | 317359-1 | GEAR HOUSING COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 317359-1 | GEAR HOUSING COVER | 1 | €8.35 | 1-4 weeks to ship | ||
| 012 | 240033-5 | FAN 57 | 1 | €4.17 | 1-4 weeks to ship | |
| 240033-5 | FAN 57 | 1 | €4.17 | 1-4 weeks to ship | ||
| 013 | 515243-6 | ARMATURE ASS'Y 220-240V | 1 | €55.66 | 1-4 weeks to ship | |
| 515243-6 | ARMATURE ASS'Y 220-240V | 1 | €55.66 | 1-4 weeks to ship | ||
| 015 | 253823-7 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 253823-7 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | 210027-4 | BALL BEARING 627DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 210027-4 | BALL BEARING 627DDW | 1 | €4.17 | 1-4 weeks to ship | ||
| 018 | 267756-0 | WAVE WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 267756-0 | WAVE WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 019 | 688117-5 | MAGNET SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 688117-5 | MAGNET SLEEVE | 1 | €2.78 | 1-4 weeks to ship | ||
| 020 | 259039-2 | SELF LOCK 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 259039-2 | SELF LOCK 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 021 | 413076-2 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 413076-2 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 022 | 266259-1 | TAPPING SCREW 4X60 | 2 | €0.56 | 1-4 weeks to ship | |
| 266259-1 | TAPPING SCREW 4X60 | 2 | €0.56 | 1-4 weeks to ship | ||
| 023 | 344871-8 | RETAINER | 2 | €0.56 | 1-4 weeks to ship | |
| 344871-8 | RETAINER | 2 | €0.56 | 1-4 weeks to ship | ||
| 026 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 029 | 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | |
| 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | ||
| 030 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 032 | 687113-0 | COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 687113-0 | COVER | 1 | €1.11 | 1-4 weeks to ship | ||
| 034 | 417185-9 | REAR COVER | 1 | €13.92 | 1-4 weeks to ship | |
| 417185-9 | REAR COVER | 1 | €13.92 | 1-4 weeks to ship | ||
| 035 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 036 | 631389-1 | CONTROLLER | 1 | €77.92 | 1-4 weeks to ship | |
| 631389-1 | CONTROLLER | 1 | €77.92 | 1-4 weeks to ship | ||
| 037 | 417187-5 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 417187-5 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 038 | 233071-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 233071-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 039 | 643760-7 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 643760-7 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | ||
| 041 | 417813-6 | SWITCH KNOB | 1 | €1.11 | 1-4 weeks to ship | |
| 417813-6 | SWITCH KNOB | 1 | €1.11 | 1-4 weeks to ship | ||
| 042 | 191978-9 | A.C. CARBON BRUSH CB-318 | 1 | €11.13 | 1-4 weeks to ship | |
| 191978-9 | A.C. CARBON BRUSH CB-318 | 1 | €11.13 | 1-4 weeks to ship | ||
| 043 | 643760-7 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 643760-7 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | ||
| 044 | 266256-7 | TAPPING SCREW PT3X10 | 4 | €0.56 | 1-4 weeks to ship | |
| 266256-7 | TAPPING SCREW PT3X10 | 4 | €0.56 | 1-4 weeks to ship | ||
| 046 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | ||
| 050 | 324035-0 | SPINDLE | 1 | €11.13 | 1-4 weeks to ship | |
| 324035-0 | SPINDLE | 1 | €11.13 | 1-4 weeks to ship | ||
| 051 | 415300-9 | LABYRINTH RING | 1 | €1.39 | 1-4 weeks to ship | |
| 415300-9 | LABYRINTH RING | 1 | €1.39 | 1-4 weeks to ship | ||
| 052 | 265490-6 | HEX. SOCKET HEAD BOLT M4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 265490-6 | HEX. SOCKET HEAD BOLT M4X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 054 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 055 | 285841-7 | BEARING RETAINER | 1 | €1.67 | 1-4 weeks to ship | |
| 285841-7 | BEARING RETAINER | 1 | €1.67 | 1-4 weeks to ship | ||
| 056 | 213673-2 | O RING 52 | 1 | €0.83 | 1-4 weeks to ship | |
| 213673-2 | O RING 52 | 1 | €0.83 | 1-4 weeks to ship | ||
| 058 | 256459-1 | PIN | 1 | €1.11 | 1-4 weeks to ship | |
| 256459-1 | PIN | 1 | €1.11 | 1-4 weeks to ship | ||
| 059 | 213048-5 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 213048-5 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 060 | 266257-5 | TAPPING SCREW 4X28 | 4 | €0.56 | 1-4 weeks to ship | |
| 266257-5 | TAPPING SCREW 4X28 | 4 | €0.56 | 1-4 weeks to ship |
