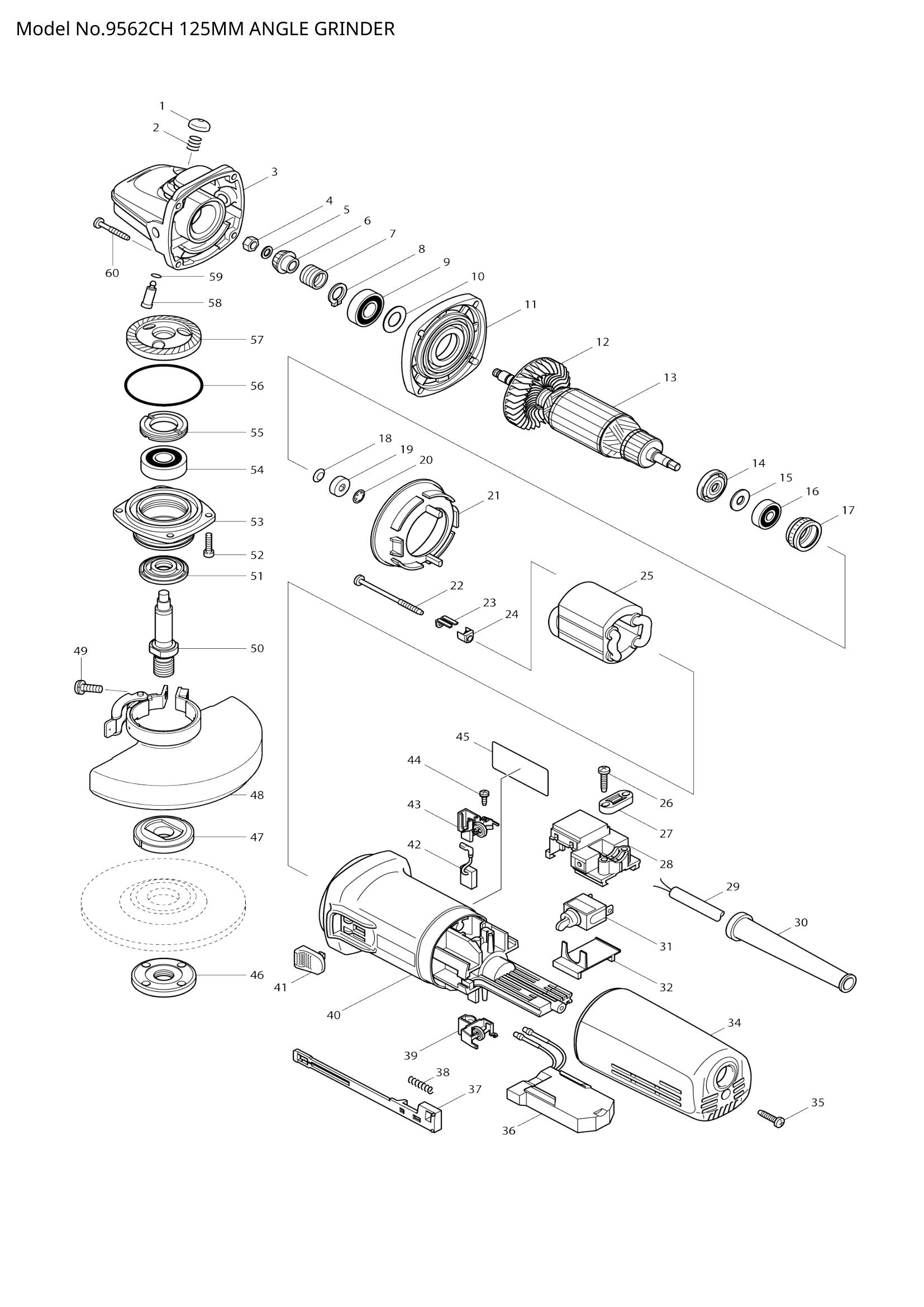

9562CH
9562CH
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 418067-8 | PIN CAP | 1 | €0.83 | 1-4 weeks to ship | |
| 003 | 153488-4 | GEAR HOUSING COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 004 | 931303-0 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 253077-6 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 233901-9 | LOCK SPRING 12 | 1 | €2.78 | 1-4 weeks to ship | |
| 008 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 211142-7 | BALL BEARING 6001LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 010 | 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 317359-1 | GEAR HOUSING COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 012 | 240033-5 | FAN 57 | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | 515243-6 | ARMATURE ASS'Y 220-240V | 1 | €55.66 | 1-4 weeks to ship | |
| 015 | 253823-7 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 210027-4 | BALL BEARING 627DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 018 | 267756-0 | WAVE WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 688117-5 | MAGNET SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 020 | 259039-2 | SELF LOCK 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 413076-2 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 022 | 266259-1 | TAPPING SCREW 4X60 | 2 | €0.56 | 1-4 weeks to ship | |
| 023 | 344871-8 | RETAINER | 2 | €0.56 | 1-4 weeks to ship | |
| 026 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 029 | 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | |
| 030 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 032 | 687113-0 | COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 034 | 417183-3 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 035 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 631386-7 | CONTROLLER | 1 | €69.58 | 1-4 weeks to ship | |
| 037 | 417187-5 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 038 | 233071-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 643760-7 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 041 | 417813-6 | SWITCH KNOB | 1 | €1.11 | 1-4 weeks to ship | |
| 042 | 191978-9 | A.C. CARBON BRUSH CB-318 | 1 | €11.13 | 1-4 weeks to ship | |
| 043 | 643760-7 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 044 | 266256-7 | TAPPING SCREW PT3X10 | 4 | €0.56 | 1-4 weeks to ship | |
| 046 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 047 | INNER FLANGE 47 ASS'Y | 1 | Not available in store | |||
| 050 | 324035-0 | SPINDLE | 1 | €11.13 | 1-4 weeks to ship | |
| 051 | 415300-9 | LABYRINTH RING | 1 | €1.39 | 1-4 weeks to ship | |
| 052 | 265490-6 | HEX. SOCKET HEAD BOLT M4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 054 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 055 | 285841-7 | BEARING RETAINER | 1 | €1.67 | 1-4 weeks to ship | |
| 056 | 213673-2 | O RING 52 | 1 | €0.83 | 1-4 weeks to ship | |
| 058 | 256459-1 | PIN | 1 | €1.11 | 1-4 weeks to ship | |
| 059 | 213048-5 | O RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 266257-5 | TAPPING SCREW 4X28 | 4 | €0.56 | 1-4 weeks to ship | |
