9558PB
9558PB

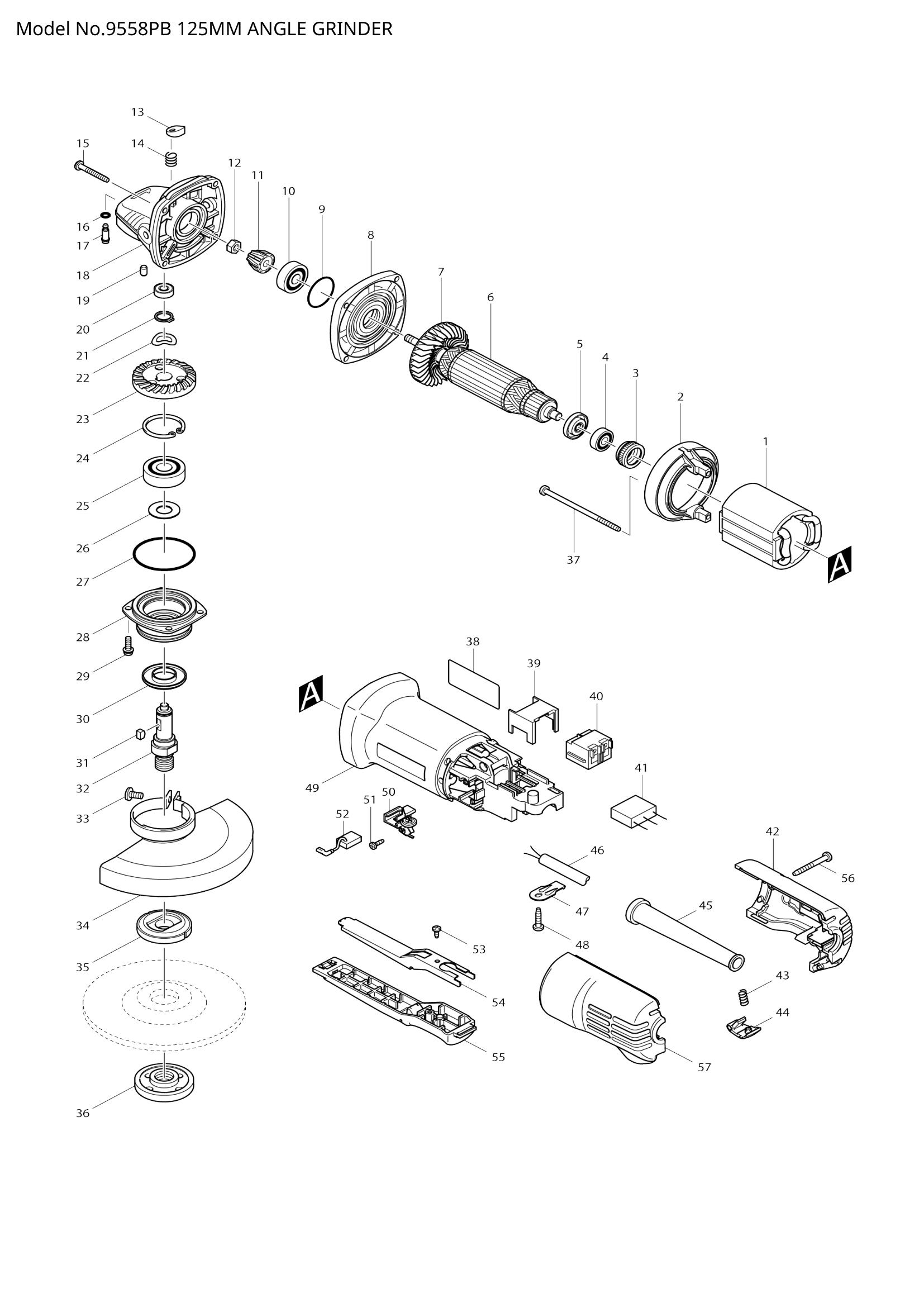

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 621708-9 | FIELD 220-240V | 1 | €22.26 | 1-4 weeks to ship | |
| 621708-9 | FIELD 220-240V | 1 | €22.26 | 1-4 weeks to ship | ||
| 004 | 210034-7 | BALL BEARING 607LLB | 1 | €1.39 | 1-4 weeks to ship | |
| 210034-7 | BALL BEARING 607LLB | 1 | €1.39 | 1-4 weeks to ship | ||
| 006 | 515613-9 | ARMATURE ASS'Y 220-240V | 1 | €25.05 | 1-4 weeks to ship | |
| 515613-9 | ARMATURE ASS'Y 220-240V | 1 | €25.05 | 1-4 weeks to ship | ||
| 007 | 240076-7 | FAN 56 | 1 | €0.83 | 1-4 weeks to ship | |
| 240076-7 | FAN 56 | 1 | €0.83 | 1-4 weeks to ship | ||
| 008 | 317821-6 | GEAR HOUSING COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 317821-6 | GEAR HOUSING COVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 012 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 013 | 417771-6 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 417771-6 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 014 | 233376-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 233376-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | 213960-9 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 213960-9 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 017 | 256486-8 | SHOULDER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 256486-8 | SHOULDER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 019 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 020 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | ||
| 021 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 267794-2 | WAVE WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 267794-2 | WAVE WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 024 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | ||
| 025 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 026 | 267238-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 267238-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 027 | 213622-9 | O RING 45 | 1 | €0.56 | 1-4 weeks to ship | |
| 213622-9 | O RING 45 | 1 | €0.56 | 1-4 weeks to ship | ||
| 029 | 265099-4 | PAN HEAD SCREW M4X14 | 4 | €0.56 | 1-4 weeks to ship | |
| 265099-4 | PAN HEAD SCREW M4X14 | 4 | €0.56 | 1-4 weeks to ship | ||
| 030 | 345464-4 | LABYRINTH RING | 1 | €0.56 | 1-4 weeks to ship | |
| 345464-4 | LABYRINTH RING | 1 | €0.56 | 1-4 weeks to ship | ||
| 031 | 254011-9 | WOODRUFF KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 254011-9 | WOODRUFF KEY 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 036 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | ||
| 038 | 861318-2 | 9558PB NAME PLATE | 1 | €2.09 | 1-4 weeks to ship | |
| 861318-2 | 9558PB NAME PLATE | 1 | €2.09 | 1-4 weeks to ship | ||
| 861318-2 | 9558PB NAME PLATE | 1 | €2.09 | 1-4 weeks to ship | ||
| 861318-2 | 9558PB NAME PLATE | 1 | €2.09 | 1-4 weeks to ship | ||
| 039 | 418729-8 | SPACER | 1 | €0.56 | 1-4 weeks to ship | |
| 418729-8 | SPACER | 1 | €0.56 | 1-4 weeks to ship | ||
| 040 | 650560-8 | SWITCH DPX-2110-R | 1 | €2.78 | 1-4 weeks to ship | |
| 650560-8 | SWITCH DPX-2110-R | 1 | €2.78 | 1-4 weeks to ship | ||
| 650560-8 | SWITCH DPX-2110-R | 1 | €2.78 | 1-4 weeks to ship | ||
| 650560-8 | SWITCH DPX-2110-R | 1 | €2.78 | 1-4 weeks to ship | ||
| 043 | COMPRESSION SPRING 6 | 1 | Not available in store | |||
| COMPRESSION SPRING 6 | 1 | Not available in store | ||||
| 044 | 418842-2 | LOCK ON BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 418842-2 | LOCK ON BUTTON | 1 | €0.56 | 1-4 weeks to ship | ||
| 045 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 046 | 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | |
| 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | ||
| 047 | 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 049 | 418838-3 | MOTOR HOUSING | 1 | €11.13 | 1-4 weeks to ship | |
| 418838-3 | MOTOR HOUSING | 1 | €11.13 | 1-4 weeks to ship | ||
| 050 | 643760-7 | BRUSH HOLDER | 2 | €4.17 | 1-4 weeks to ship | |
| 643760-7 | BRUSH HOLDER | 2 | €4.17 | 1-4 weeks to ship | ||
| 051 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 4 | €0.56 | 1-4 weeks to ship | |
| 266007-8 | TAPPING SCREW BIND PT 3X10 | 4 | €0.56 | 1-4 weeks to ship | ||
| 052 | 194074-2 | CARBON BRUSH CB-325 | 1 | €1.39 | 1-4 weeks to ship | |
| 194074-2 | CARBON BRUSH CB-325 | 1 | €1.39 | 1-4 weeks to ship | ||
| 053 | 265954-0 | TAPPING SCREW BIND PT3X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 265954-0 | TAPPING SCREW BIND PT3X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 054 | 345504-8 | PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 345504-8 | PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 055 | 154584-1 | SWITCH LEVER B COMPLETE | 1 | €1.67 | 1-4 weeks to ship | |
| 154584-1 | SWITCH LEVER B COMPLETE | 1 | €1.67 | 1-4 weeks to ship | ||
