9558HNR
9558HNR

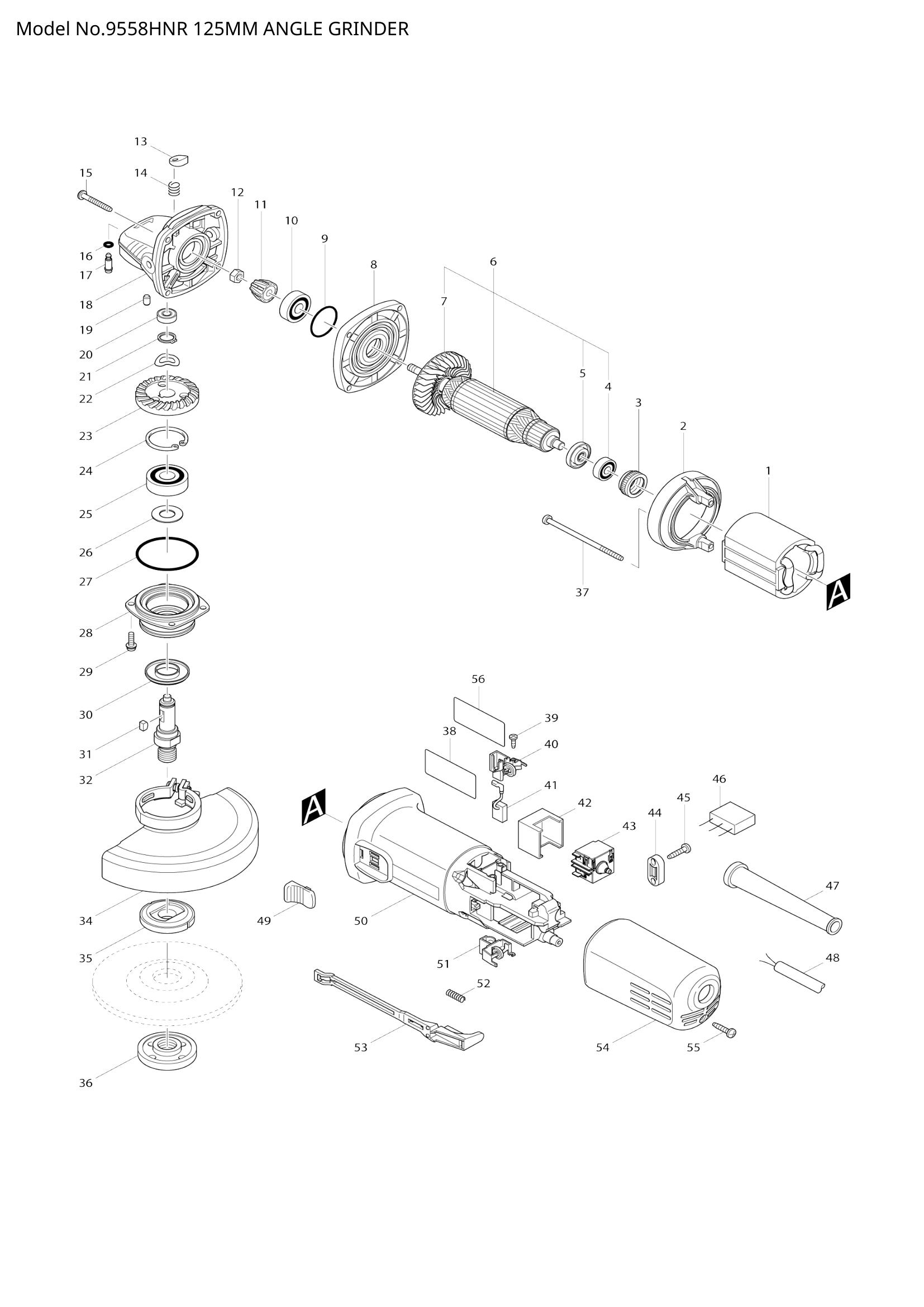

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 004 | 210034-7 | BALL BEARING 607LLB | 1 | €1.39 | 1-4 weeks to ship | |
| 005 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | 515613-9 | ARMATURE ASS'Y 220-240V | 1 | €25.05 | 1-4 weeks to ship | |
| 007 | 240076-7 | FAN 56 | 1 | €0.83 | 1-4 weeks to ship | |
| 008 | 317821-6 | GEAR HOUSING COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 010 | 210042-8 | BALL BEARING 629LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 011 | 227541-3 | SPIRAL BEVEL GEAR 10 | 1 | €4.17 | 1-4 weeks to ship | |
| 012 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 417771-6 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 233376-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 213960-9 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 256486-8 | SHOULDER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 256546-6 | SHOULDER PIN 4 | 1 | €0.42 | 1-4 weeks to ship | ||
| 018 | 318941-9 | GEAR HOUSING | 1 | €7.51 | 1-4 weeks to ship | |
| 019 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 024 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 026 | 267238-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 213622-9 | O RING 45 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 318331-6 | BEARING BOX | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | 265099-4 | PAN HEAD SCREW M4X14 | 4 | €0.56 | 1-4 weeks to ship | |
| 030 | 345464-4 | LABYRINTH RING | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | INNER FLANGE 42 | 1 | Not available in store | |||
| 036 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 038 | 9558HNR NAME PLATE | 1 | Not available in store | |||
| 039 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 4 | €0.56 | 1-4 weeks to ship | |
| 040 | 643760-7 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 041 | 194074-2 | CARBON BRUSH CB-325 | 1 | €1.39 | 1-4 weeks to ship | |
| 042 | 418729-8 | SPACER | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 650769-2 | SWITCH | 1 | €15.58 | 1-4 weeks to ship | |
| 044 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 048 | 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | |
| 049 | 419566-3 | SWITCH KNOB | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 451125-7 | MOTOR HOUSING | 1 | €11.13 | 1-4 weeks to ship | |
| 051 | 643760-7 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 052 | 233121-5 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 418728-0 | SWITCH LEVER B | 1 | €0.56 | 1-4 weeks to ship | |
