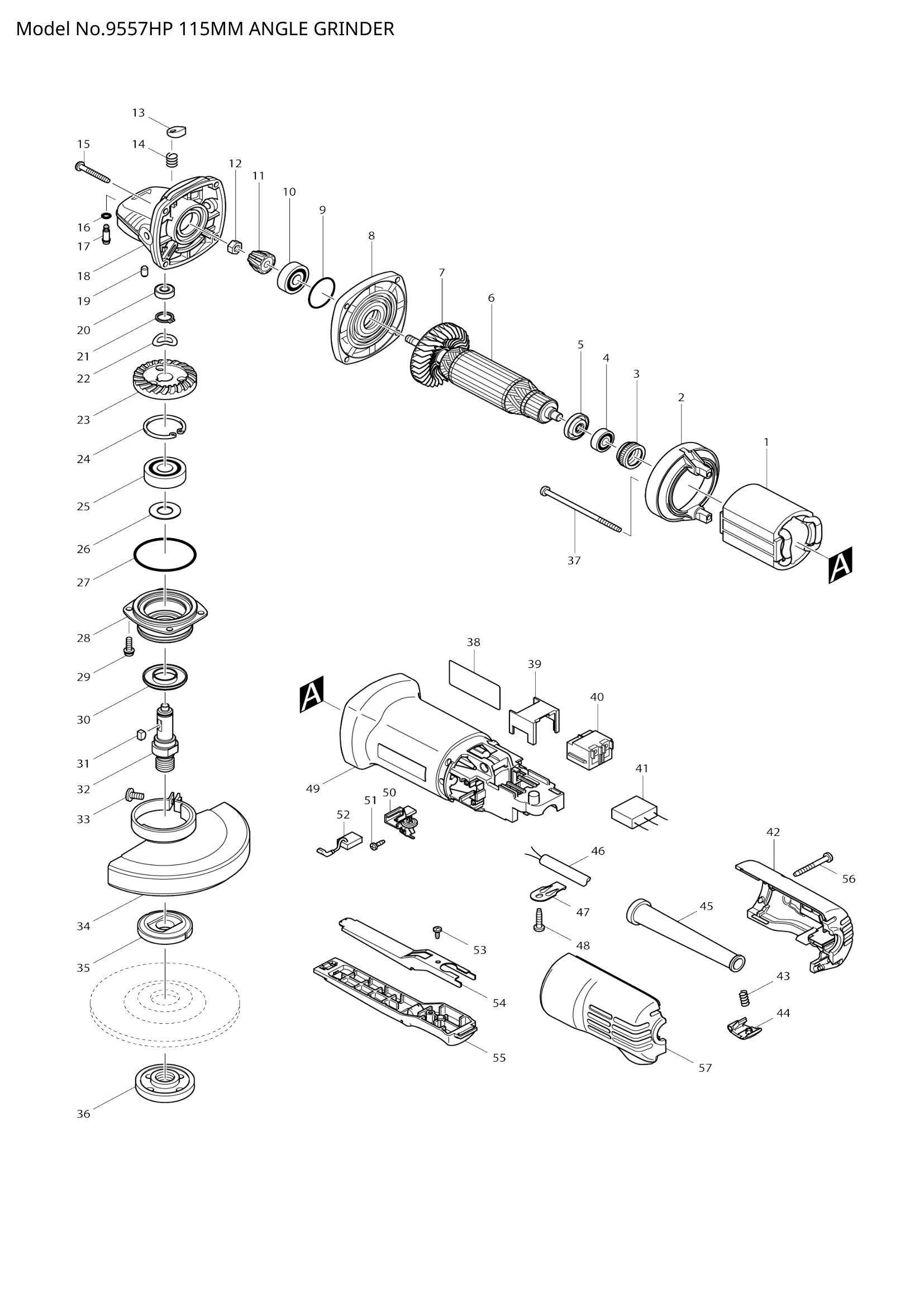

9557HP
9557HP
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 621708-9 | FIELD 220-240V | 1 | €22.26 | 1-4 weeks to ship | |
| 004 | 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 005 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | ARMATURE ASS'Y 220-240V | 1 | Not available in store | |||
| 007 | 240076-7 | FAN 56 | 1 | €0.83 | 1-4 weeks to ship | |
| 008 | 317821-6 | GEAR HOUSING COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 009 | 213445-5 | O-RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 210042-8 | BALL BEARING 629LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 011 | 227541-3 | SPIRAL BEVEL GEAR 10 | 1 | €4.17 | 1-4 weeks to ship | |
| 012 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 417771-6 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 233376-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 266361-0 | TAPPING SCREW 4X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 016 | 213960-9 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 256546-6 | SHOULDER PIN 4 | 1 | €0.42 | 1-4 weeks to ship | |
| 018 | 318941-9 | GEAR HOUSING | 1 | €7.51 | 1-4 weeks to ship | |
| 019 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 210006-2 | BALL BEARING 696ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 024 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 026 | 267238-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 213622-9 | O RING 45 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 318331-6 | BEARING BOX | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | 265099-4 | PAN HEAD SCREW M4X14 | 4 | €0.56 | 1-4 weeks to ship | |
| 030 | 345464-4 | LABYRINTH RING | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 265180-1 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | INNER FLANGE 42 | 1 | Not available in store | |||
| 036 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 037 | 266345-8 | TAPPING SCREW 4X80 | 2 | €0.56 | 1-4 weeks to ship | |
| 038 | 9557HP NAME PLATE | 1 | Not available in store | |||
| 039 | 418729-8 | SPACER | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 047 | 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 418838-3 | MOTOR HOUSING | 1 | €11.13 | 1-4 weeks to ship | |
| 050 | 643760-7 | BRUSH HOLDER | 2 | €4.17 | 1-4 weeks to ship | |
| 051 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 4 | €0.56 | 1-4 weeks to ship | |
| 054 | 345504-8 | PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 154584-1 | SWITCH LEVER B COMPLETE | 1 | €1.67 | 1-4 weeks to ship | |
| 056 | 266351-3 | TAPPING SCREW 4X35 | 2 | €0.56 | 1-4 weeks to ship | |
