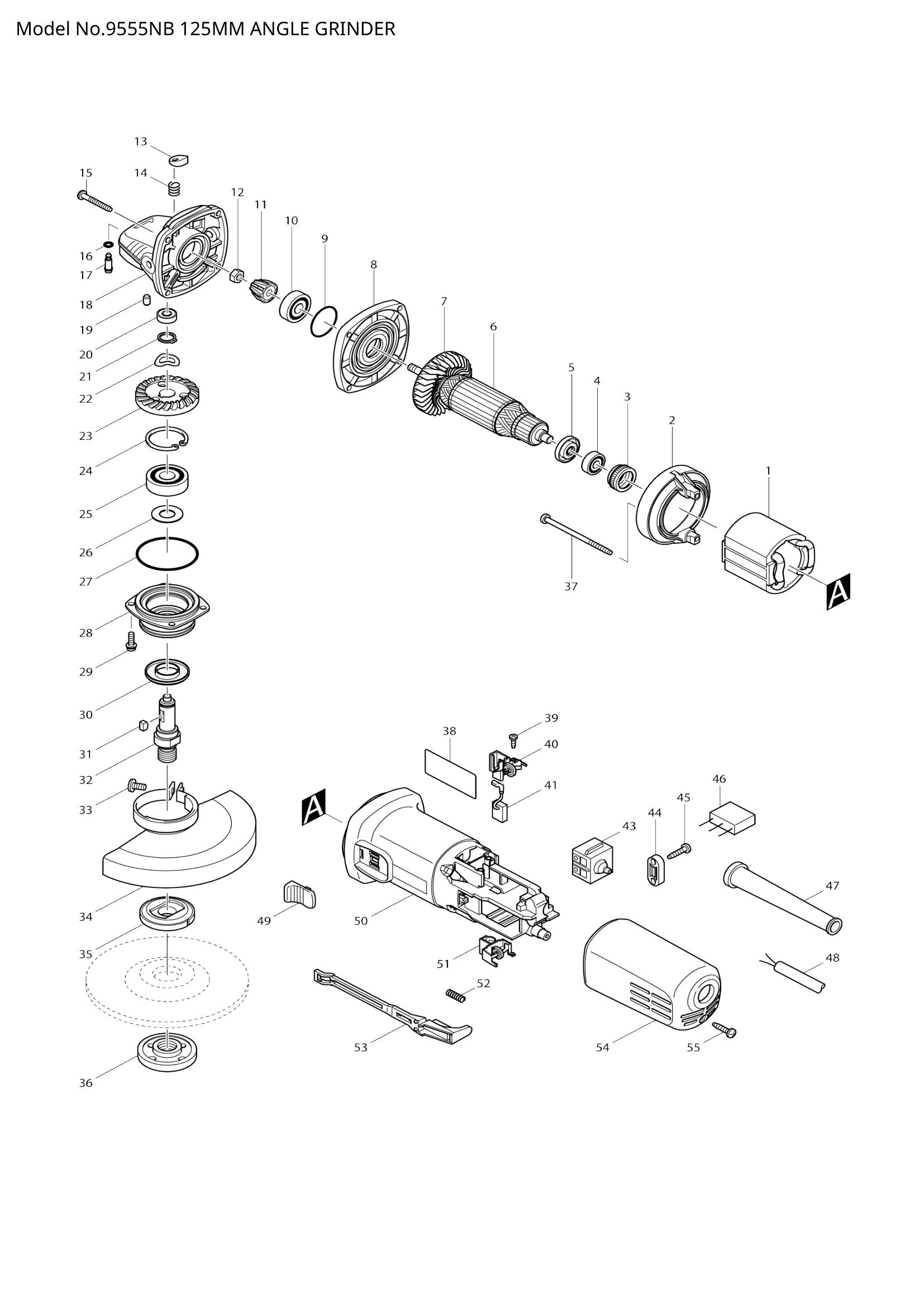

9555NB
9555NB
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 621713-6 | FIELD 220-240V | 1 | €19.48 | 1-4 weeks to ship | |
| 621713-6 | FIELD 220-240V | 1 | €19.48 | 1-4 weeks to ship | ||
| 004 | 210034-7 | BALL BEARING 607LLB | 1 | €1.39 | 1-4 weeks to ship | |
| 210034-7 | BALL BEARING 607LLB | 1 | €1.39 | 1-4 weeks to ship | ||
| 006 | 515619-7 | ARMATURE ASS'Y 220-240V | 1 | €22.26 | 1-4 weeks to ship | |
| 515619-7 | ARMATURE ASS'Y 220-240V | 1 | €22.26 | 1-4 weeks to ship | ||
| 007 | 240076-7 | FAN 56 | 1 | €0.83 | 1-4 weeks to ship | |
| 240076-7 | FAN 56 | 1 | €0.83 | 1-4 weeks to ship | ||
| 008 | 317821-6 | GEAR HOUSING COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 317821-6 | GEAR HOUSING COVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 012 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 013 | 417771-6 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 417771-6 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 014 | 233376-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 233376-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | 213960-9 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 213960-9 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 017 | 256486-8 | SHOULDER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 256486-8 | SHOULDER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 019 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 020 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | ||
| 021 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 267794-2 | WAVE WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 267794-2 | WAVE WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 024 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | ||
| 025 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 026 | 267238-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 267238-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 027 | 213622-9 | O RING 45 | 1 | €0.56 | 1-4 weeks to ship | |
| 213622-9 | O RING 45 | 1 | €0.56 | 1-4 weeks to ship | ||
| 029 | 265099-4 | PAN HEAD SCREW M4X14 | 4 | €0.56 | 1-4 weeks to ship | |
| 265099-4 | PAN HEAD SCREW M4X14 | 4 | €0.56 | 1-4 weeks to ship | ||
| 030 | 345464-4 | LABYRINTH RING | 1 | €0.56 | 1-4 weeks to ship | |
| 345464-4 | LABYRINTH RING | 1 | €0.56 | 1-4 weeks to ship | ||
| 031 | 254011-9 | WOODRUFF KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 254011-9 | WOODRUFF KEY 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 036 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | ||
| 038 | 861248-7 | 9555NB NAME PLATE | 1 | €2.09 | 1-4 weeks to ship | |
| 861248-7 | 9555NB NAME PLATE | 1 | €2.09 | 1-4 weeks to ship | ||
| 039 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 4 | €0.56 | 1-4 weeks to ship | |
| 266007-8 | TAPPING SCREW BIND PT 3X10 | 4 | €0.56 | 1-4 weeks to ship | ||
| 040 | 643760-7 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 643760-7 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | ||
| 041 | 194074-2 | CARBON BRUSH CB-325 | 1 | €1.39 | 1-4 weeks to ship | |
| 194074-2 | CARBON BRUSH CB-325 | 1 | €1.39 | 1-4 weeks to ship | ||
| 043 | 650560-8 | SWITCH DPX-2110-R | 1 | €2.78 | 1-4 weeks to ship | |
| 650560-8 | SWITCH DPX-2110-R | 1 | €2.78 | 1-4 weeks to ship | ||
| 650560-8 | SWITCH DPX-2110-R | 1 | €2.78 | 1-4 weeks to ship | ||
| 650560-8 | SWITCH DPX-2110-R | 1 | €2.78 | 1-4 weeks to ship | ||
| 044 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 047 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 048 | 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | |
| 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | ||
| 051 | 643760-7 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 643760-7 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | ||
| 052 | 233121-5 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 233121-5 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 053 | 418796-3 | SWITCH LEVER C | 1 | €0.56 | 1-4 weeks to ship | |
| 418796-3 | SWITCH LEVER C | 1 | €0.56 | 1-4 weeks to ship |
