9542
9542

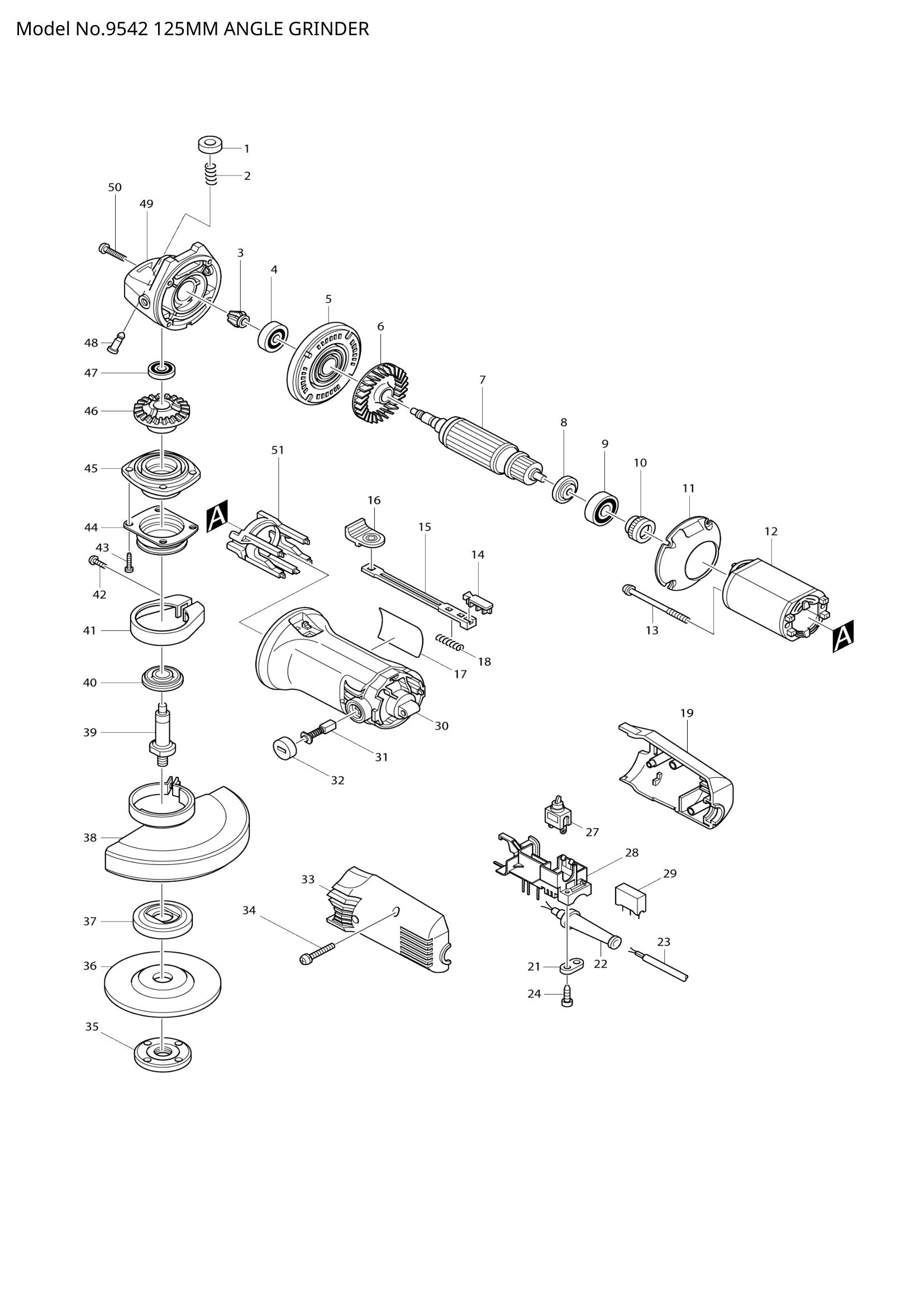

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 415301-7 | PIN CAP | 1 | €0.83 | 1-4 weeks to ship | |
| 002 | 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 226712-9 | SPIRAL BEVEL GEAR 10 | 1 | €22.26 | 1-4 weeks to ship | |
| 005 | 415302-5 | GEAR HOUSING COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 006 | 241867-9 | FAN 57 | 1 | €8.35 | 1-4 weeks to ship | |
| 008 | 681632-8 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 010 | 421479-6 | RUBBER RING 19 | 1 | €5.57 | 1-4 weeks to ship | |
| 011 | 415296-4 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 013 | 266004-4 | TAPPING SCREW 4X70 | 2 | €1.11 | 1-4 weeks to ship | |
| 014 | 415305-9 | SWITCH LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 015 | 415304-1 | SWITCH ROD | 1 | €1.11 | 1-4 weeks to ship | |
| 016 | 415303-3 | SWITCH KNOB | 1 | €1.39 | 1-4 weeks to ship | |
| 017 | NAME PLATE 9542 | 1 | Not available in store | |||
| 018 | 233071-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 265941-9 | TAPPING SCREW BT 4X18 | 2 | €0.83 | 1-4 weeks to ship | |
| 031 | 191959-3 | A.C. CARBON BRUSH CB-302 | 1 | €5.57 | 1-4 weeks to ship | |
| 032 | 643753-4 | BRUSH HOLDER CAP | 1 | €1.39 | 1-4 weeks to ship | |
| 034 | 265999-8 | TAPPING SCREW 4X25 | 3 | €0.56 | 1-4 weeks to ship | |
| 035 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 039 | 322606-7 | SPINDLE | 1 | €11.13 | 1-4 weeks to ship | |
| 040 | 415300-9 | LABYRINTH RING | 1 | €1.39 | 1-4 weeks to ship | |
| 042 | 251391-4 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 344053-2 | WHEEL COVER BASE | 1 | €4.17 | 1-4 weeks to ship | |
| 045 | 161120-6 | BEARING BOX COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 046 | 226713-7 | SPIRAL BEVEL GEAR 38 | 1 | €44.53 | 1-4 weeks to ship | |
| 047 | 211023-5 | BALL BEARING 607LB | 1 | €5.57 | 1-4 weeks to ship | |
| 048 | 256435-5 | PIN 5 | 1 | €1.39 | 1-4 weeks to ship | |
| 049 | 316500-3 | GEAR HOUSING | 1 | €22.26 | 1-4 weeks to ship | |
| 051 | 632454-9 | CONNECTING BLOCK | 1 | €11.13 | 1-4 weeks to ship | |
