9404
9404

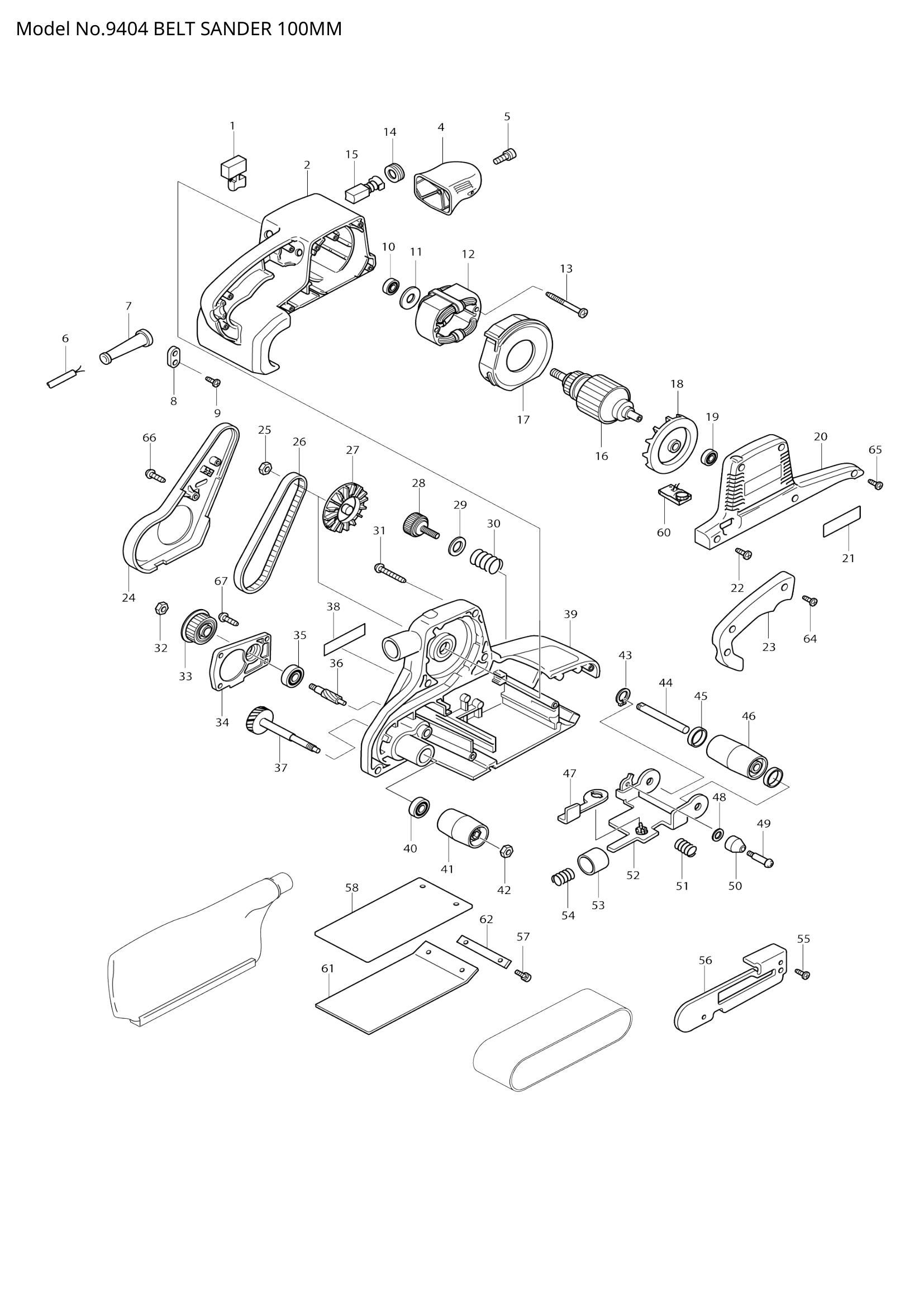

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 651284-9 | SWITCH SGEL115CDY-6 | 1 | €11.13 | 1-4 weeks to ship | |
| 651284-9 | SWITCH SGEL115CDY-6 | 1 | €11.13 | 1-4 weeks to ship | ||
| 002 | 151743-8 | MOTOR HOUSING COMPLETE | 1 | €52.88 | 1-4 weeks to ship | |
| 151743-8 | MOTOR HOUSING COMPLETE | 1 | €52.88 | 1-4 weeks to ship | ||
| 004 | 417049-7 | FRONT GRIP | 1 | €5.57 | 1-4 weeks to ship | |
| 417049-7 | FRONT GRIP | 1 | €5.57 | 1-4 weeks to ship | ||
| 005 | 266173-1 | TAPPING SCREW 5X30 | 1 | €0.56 | 1-4 weeks to ship | |
| 266173-1 | TAPPING SCREW 5X30 | 1 | €0.56 | 1-4 weeks to ship | ||
| 009 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 010 | 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 011 | 681649-1 | INSULATION WASHER | 1 | €0.83 | 1-4 weeks to ship | |
| 681649-1 | INSULATION WASHER | 1 | €0.83 | 1-4 weeks to ship | ||
| 013 | 266056-5 | TAPPING SCREW 5X45 | 2 | €0.83 | 1-4 weeks to ship | |
| 266056-5 | TAPPING SCREW 5X45 | 2 | €0.83 | 1-4 weeks to ship | ||
| 017 | 417050-2 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 417050-2 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 018 | 240026-2 | FAN 75 | 1 | €4.17 | 1-4 weeks to ship | |
| 240026-2 | FAN 75 | 1 | €4.17 | 1-4 weeks to ship | ||
| 019 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | ||
| 020 | 417048-9 | MOTOR COVER | 1 | €16.70 | 1-4 weeks to ship | |
| 417048-9 | MOTOR COVER | 1 | €16.70 | 1-4 weeks to ship | ||
| 021 | MAKITA LABEL | 1 | Not available in store | |||
| MAKITA LABEL | 1 | Not available in store | ||||
| 022 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 023 | 417051-0 | HANDLE COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 417051-0 | HANDLE COVER | 1 | €8.35 | 1-4 weeks to ship | ||
| 024 | 417052-8 | BELT COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 417052-8 | BELT COVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 025 | 252153-3 | HEX. NUT M6-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 252153-3 | HEX. NUT M6-10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 026 | 225084-9 | SYNCHRO BELT 6-330 | 1 | €5.57 | 1-4 weeks to ship | |
| 225084-9 | SYNCHRO BELT 6-330 | 1 | €5.57 | 1-4 weeks to ship | ||
| 027 | 241663-5 | FAN 76 | 1 | €19.48 | 1-4 weeks to ship | |
| 241663-5 | FAN 76 | 1 | €19.48 | 1-4 weeks to ship | ||
| 028 | 251815-0 | SCREW M6X25 | 1 | €1.11 | 1-4 weeks to ship | |
| 251815-0 | SCREW M6X25 | 1 | €1.11 | 1-4 weeks to ship | ||
| 031 | 266050-7 | TAPPING SCREW 4X30 | 5 | €0.56 | 1-4 weeks to ship | |
| 266050-7 | TAPPING SCREW 4X30 | 5 | €0.56 | 1-4 weeks to ship | ||
| 032 | 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 033 | 222156-1 | PULLEY 9.5-46.0 | 1 | €13.92 | 1-4 weeks to ship | |
| 222156-1 | PULLEY 9.5-46.0 | 1 | €13.92 | 1-4 weeks to ship | ||
| 034 | GEAR COVER | 1 | Not available in store | |||
| GEAR COVER | 1 | Not available in store | ||||
| 036 | 226520-8 | HELICAL GEAR 10 | 1 | €13.92 | 1-4 weeks to ship | |
| 226520-8 | HELICAL GEAR 10 | 1 | €13.92 | 1-4 weeks to ship | ||
| 037 | 151755-1 | HELICAL GEAR 39 COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 151755-1 | HELICAL GEAR 39 COMPLETE | 1 | €19.48 | 1-4 weeks to ship | ||
| 038 | NAME PLATE 9404 | 1 | Not available in store | |||
| NAME PLATE 9404 | 1 | Not available in store | ||||
| 039 | 151748-8 | FRAME COMPLETE | 1 | €128.02 | 1-4 weeks to ship | |
| 151748-8 | FRAME COMPLETE | 1 | €128.02 | 1-4 weeks to ship | ||
| 040 | 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 041 | 162217-4 | DRIVING ROLLER | 1 | €25.05 | 1-4 weeks to ship | |
| 162217-4 | DRIVING ROLLER | 1 | €25.05 | 1-4 weeks to ship | ||
| 042 | 252154-1 | HEX. NUT M8-13 | 1 | €0.56 | 1-4 weeks to ship | |
| 252154-1 | HEX. NUT M8-13 | 1 | €0.56 | 1-4 weeks to ship | ||
| 043 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 044 | 323932-7 | TENSION ROLLER SHAFT | 1 | €5.57 | 1-4 weeks to ship | |
| 323932-7 | TENSION ROLLER SHAFT | 1 | €5.57 | 1-4 weeks to ship | ||
| 045 | 253922-5 | CUP WASHER 12 | 2 | €0.56 | 1-4 weeks to ship | |
| 253922-5 | CUP WASHER 12 | 2 | €0.56 | 1-4 weeks to ship | ||
| 046 | 151754-3 | TENSION ROLLER COMPLETE | 1 | €30.61 | 1-4 weeks to ship | |
| 151754-3 | TENSION ROLLER COMPLETE | 1 | €30.61 | 1-4 weeks to ship | ||
| 047 | 344823-9 | LEVER | 1 | €4.17 | 1-4 weeks to ship | |
| 344823-9 | LEVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 048 | 267731-6 | CUP WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 267731-6 | CUP WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 049 | 265059-6 | SHOULDER SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 265059-6 | SHOULDER SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 050 | 416417-1 | ROLLER | 1 | €1.11 | 1-4 weeks to ship | |
| 416417-1 | ROLLER | 1 | €1.11 | 1-4 weeks to ship | ||
| 051 | 233249-9 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 233249-9 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 052 | 151745-4 | TENSION ROLLER ARM COMPLET | 1 | €19.48 | 1-4 weeks to ship | |
| 151745-4 | TENSION ROLLER ARM COMPLET | 1 | €19.48 | 1-4 weeks to ship | ||
| 053 | 267746-3 | CUP WASHER 17 | 1 | €1.67 | 1-4 weeks to ship | |
| 267746-3 | CUP WASHER 17 | 1 | €1.67 | 1-4 weeks to ship | ||
| 054 | 233250-4 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 233250-4 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 055 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 056 | 344822-1 | SAFETY COVER | 1 | €10.99 | 1-4 weeks to ship | |
| 344822-1 | SAFETY COVER | 1 | €10.99 | 1-4 weeks to ship | ||
| 062 | 344849-1 | STRAP WASHER | 1 | €0.97 | 1-4 weeks to ship | |
| 344849-1 | STRAP WASHER | 1 | €0.97 | 1-4 weeks to ship | ||
| 064 | 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | ||
| 065 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 066 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 067 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 4 | €0.56 | 1-4 weeks to ship | ||
