9403
9403

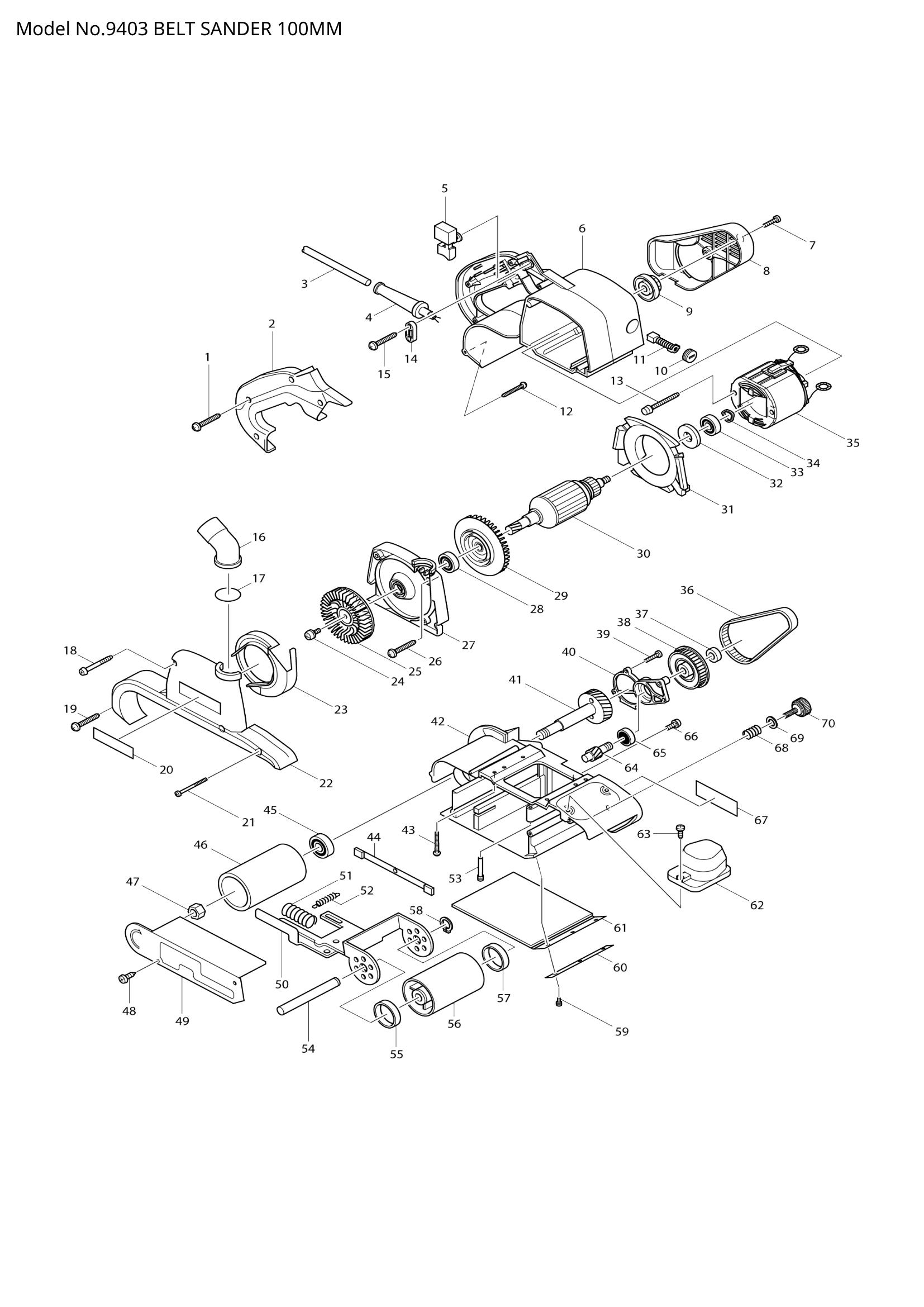

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 007 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | 416495-1 | BELT COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 416495-1 | BELT COVER | 1 | €8.35 | 1-4 weeks to ship | ||
| 009 | 222147-2 | PULLEY 10-24.1 | 1 | €11.13 | 1-4 weeks to ship | |
| 222147-2 | PULLEY 10-24.1 | 1 | €11.13 | 1-4 weeks to ship | ||
| 010 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | €0.56 | 1-4 weeks to ship | |
| 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | €0.56 | 1-4 weeks to ship | ||
| 012 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 013 | 266056-5 | TAPPING SCREW 5X45 | 2 | €0.83 | 1-4 weeks to ship | |
| 266056-5 | TAPPING SCREW 5X45 | 2 | €0.83 | 1-4 weeks to ship | ||
| 015 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 016 | 416497-7 | DUST NOZZLE | 1 | €2.78 | 1-4 weeks to ship | |
| 416497-7 | DUST NOZZLE | 1 | €2.78 | 1-4 weeks to ship | ||
| 017 | 213415-4 | O RING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 213415-4 | O RING 28 | 1 | €0.56 | 1-4 weeks to ship | ||
| 018 | 266069-6 | TAPPING SCREW 4X45 | 2 | €0.56 | 1-4 weeks to ship | |
| 266069-6 | TAPPING SCREW 4X45 | 2 | €0.56 | 1-4 weeks to ship | ||
| 019 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 020 | 819064-1 | MAKITA MARK | 1 | €0.56 | 1-4 weeks to ship | |
| 819064-1 | MAKITA MARK | 1 | €0.56 | 1-4 weeks to ship | ||
| 021 | 266203-8 | TAPPING SCREW BIND CT 4X40 | 1 | €0.56 | 1-4 weeks to ship | |
| 266203-8 | TAPPING SCREW BIND CT 4X40 | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 317018-7 | DUST COLLECTOR COVER | 1 | €25.05 | 1-4 weeks to ship | |
| 317018-7 | DUST COLLECTOR COVER | 1 | €25.05 | 1-4 weeks to ship | ||
| 023 | 416494-3 | SEPARATOR | 1 | €1.67 | 1-4 weeks to ship | |
| 416494-3 | SEPARATOR | 1 | €1.67 | 1-4 weeks to ship | ||
| 024 | 911213-7 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 911213-7 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 911213-7 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 911213-7 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 025 | 241662-7 | FAN 80 | 1 | €4.17 | 1-4 weeks to ship | |
| 241662-7 | FAN 80 | 1 | €4.17 | 1-4 weeks to ship | ||
| 026 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 027 | 317021-8 | DUST COLLECTOR BRACKET | 1 | €25.05 | 1-4 weeks to ship | |
| 317021-8 | DUST COLLECTOR BRACKET | 1 | €25.05 | 1-4 weeks to ship | ||
| 028 | 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 029 | 240013-1 | FAN 84 | 1 | €4.87 | 1-4 weeks to ship | |
| 240013-1 | FAN 84 | 1 | €4.87 | 1-4 weeks to ship | ||
| 031 | 416498-5 | BAFFLE PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 416498-5 | BAFFLE PLATE | 1 | €1.67 | 1-4 weeks to ship | ||
| 032 | 681649-1 | INSULATION WASHER | 1 | €0.83 | 1-4 weeks to ship | |
| 681649-1 | INSULATION WASHER | 1 | €0.83 | 1-4 weeks to ship | ||
| 033 | 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 036 | 225081-5 | SYNCHRO BELT | 1 | €8.35 | 1-4 weeks to ship | |
| 225081-5 | SYNCHRO BELT | 1 | €8.35 | 1-4 weeks to ship | ||
| 037 | 931503-2 | HEX. NUT M10 | 1 | €0.56 | 1-4 weeks to ship | |
| 931503-2 | HEX. NUT M10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 038 | 222148-0 | PULLEY 11-55.6 | 1 | €13.92 | 1-4 weeks to ship | |
| 222148-0 | PULLEY 11-55.6 | 1 | €13.92 | 1-4 weeks to ship | ||
| 039 | 266034-5 | TAPPING SCREW CT 4X16 | 3 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 3 | €0.56 | 1-4 weeks to ship | ||
| 040 | 317020-0 | GEAR COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 317020-0 | GEAR COVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 042 | 150979-6 | FRAME COMPLETE | 1 | €89.06 | 1-4 weeks to ship | |
| 150979-6 | FRAME COMPLETE | 1 | €89.06 | 1-4 weeks to ship | ||
| 043 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 044 | 150846-5 | EDGE SLIDER COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 150846-5 | EDGE SLIDER COMPLETE | 1 | €4.17 | 1-4 weeks to ship | ||
| 045 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | ||
| 046 | 162199-0 | DRIVING ROLLER | 1 | €19.48 | 1-4 weeks to ship | |
| 162199-0 | DRIVING ROLLER | 1 | €19.48 | 1-4 weeks to ship | ||
| 047 | 252087-0 | HEX. NUT M12-19 | 1 | €1.11 | 1-4 weeks to ship | |
| 252087-0 | HEX. NUT M12-19 | 1 | €1.11 | 1-4 weeks to ship | ||
| 048 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | ||
| 049 | 344622-9 | SAFETY COVER | 1 | €4.45 | 1-4 weeks to ship | |
| 344622-9 | SAFETY COVER | 1 | €4.45 | 1-4 weeks to ship | ||
| 050 | 163398-7 | TENSION ROLLER ARM | 1 | €25.05 | 1-4 weeks to ship | |
| 163398-7 | TENSION ROLLER ARM | 1 | €25.05 | 1-4 weeks to ship | ||
| 051 | 233235-0 | COMPRESSION SPRING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 233235-0 | COMPRESSION SPRING 12 | 1 | €0.83 | 1-4 weeks to ship | ||
| 052 | 231819-8 | TENSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 231819-8 | TENSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 053 | 321980-0 | SUPPORT PIN | 1 | €4.45 | 1-4 weeks to ship | |
| 321980-0 | SUPPORT PIN | 1 | €4.45 | 1-4 weeks to ship | ||
| 054 | 323829-0 | TENSION ROLLER SHAFT | 1 | €8.35 | 1-4 weeks to ship | |
| 323829-0 | TENSION ROLLER SHAFT | 1 | €8.35 | 1-4 weeks to ship | ||
| 055 | 253922-5 | CUP WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253922-5 | CUP WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 056 | 150978-8 | TENSION ROLLER COMPLETE | 1 | €25.05 | 1-4 weeks to ship | |
| 150978-8 | TENSION ROLLER COMPLETE | 1 | €25.05 | 1-4 weeks to ship | ||
| 057 | 253922-5 | CUP WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253922-5 | CUP WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 058 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 059 | 911118-1 | PAN HEAD SCREW M4X12 | 3 | €0.56 | 1-4 weeks to ship | |
| 911118-1 | PAN HEAD SCREW M4X12 | 3 | €0.56 | 1-4 weeks to ship | ||
| 060 | 344623-7 | STRAP WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 344623-7 | STRAP WASHER | 1 | €1.11 | 1-4 weeks to ship | ||
| 062 | 416499-3 | FRONT GRIP | 1 | €8.35 | 1-4 weeks to ship | |
| 416499-3 | FRONT GRIP | 1 | €8.35 | 1-4 weeks to ship | ||
| 063 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 065 | 211066-7 | BALL BEARING 6200LLB | 1 | €6.12 | 1-4 weeks to ship | |
| 211066-7 | BALL BEARING 6200LLB | 1 | €6.12 | 1-4 weeks to ship | ||
| 066 | 911213-7 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 911213-7 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 911213-7 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 911213-7 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 068 | 231225-7 | COMPRESSION SPRING 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 231225-7 | COMPRESSION SPRING 16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 069 | 253707-9 | FLAT WASHER 16 | 1 | €2.09 | 1-4 weeks to ship | |
| 253707-9 | FLAT WASHER 16 | 1 | €2.09 | 1-4 weeks to ship | ||
| 070 | 251815-0 | SCREW M6X25 | 1 | €1.11 | 1-4 weeks to ship | |
| 251815-0 | SCREW M6X25 | 1 | €1.11 | 1-4 weeks to ship |
