9402
9402

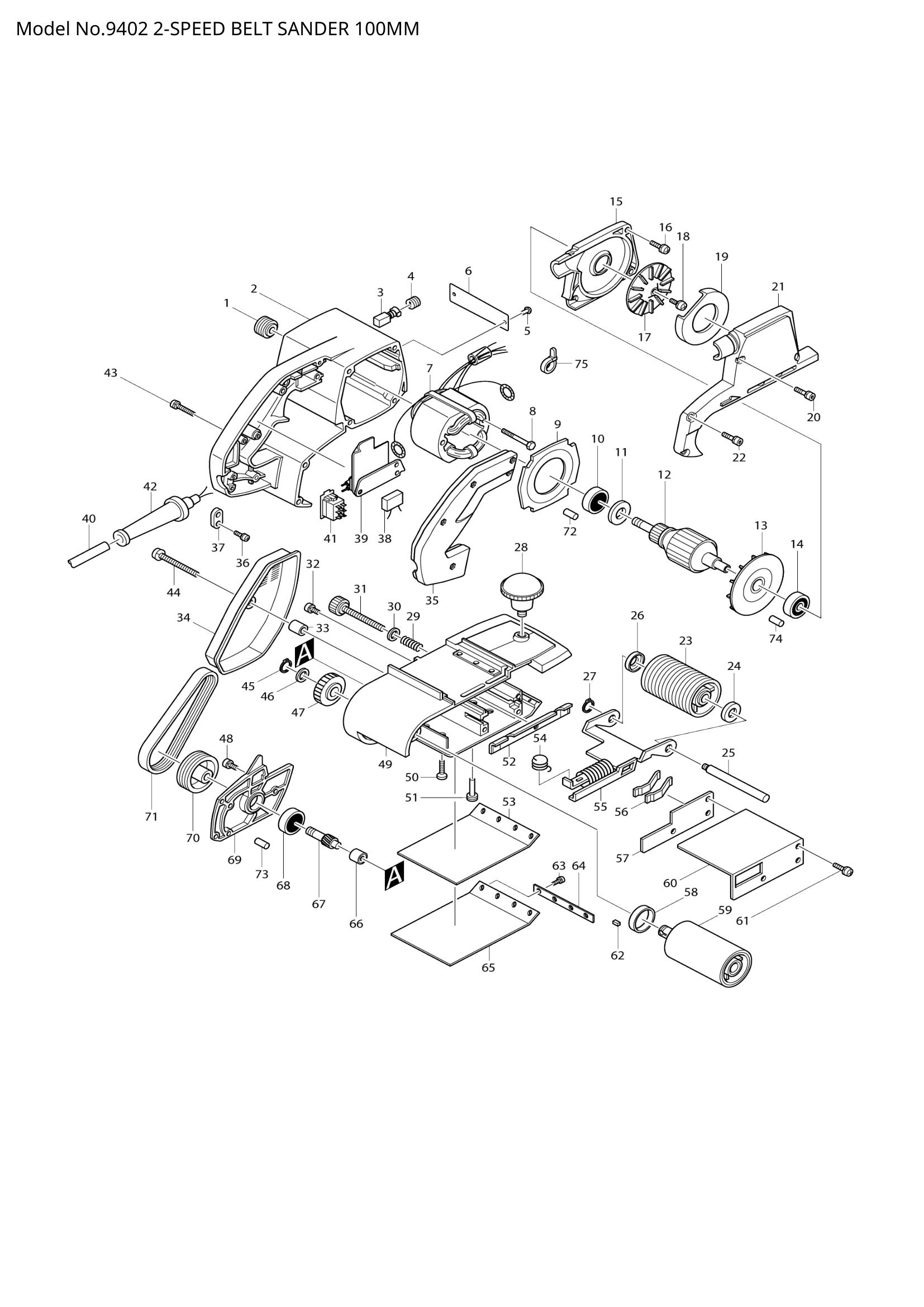

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 009 | 411143-7 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 010 | 211066-7 | BALL BEARING 6200LLB | 1 | €6.12 | 1-4 weeks to ship | |
| 013 | FAN 90 | 1 | Not available in store | |||
| 016 | 911226-8 | PAN HEAD SCREW M5X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 017 | 241611-4 | FAN 74 | 1 | €8.35 | 1-4 weeks to ship | |
| 018 | 911211-1 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 343166-6 | SEPARATOR | 1 | €4.45 | 1-4 weeks to ship | |
| 020 | 911241-2 | PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 023 | 152103-7 | TENSION ROLLER COMPLETE | 1 | €52.88 | 1-4 weeks to ship | |
| 024 | 253922-5 | CUP WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 325108-2 | TENSION ROLLER SHAFT | 1 | €11.13 | 1-4 weeks to ship | |
| 026 | 253922-5 | CUP WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 271207-7 | KNOB 55 | 1 | €6.12 | 1-4 weeks to ship | |
| 029 | 231110-4 | COMPRESSION SPRING 9 | 1 | €2.09 | 1-4 weeks to ship | |
| 030 | 941202-8 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 251821-5 | SCREW M8X72 | 1 | €4.45 | 1-4 weeks to ship | |
| 032 | 911221-8 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 257504-5 | SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 411142-9 | HANDLE COVER | 1 | €10.44 | 1-4 weeks to ship | |
| 043 | 911158-9 | PAN HEAD SCREW M4X30 | 5 | €0.56 | 1-4 weeks to ship | |
| 044 | 911261-6 | PAN HEAD SCREW M5X40 | 1 | €2.09 | 1-4 weeks to ship | |
| 045 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 221194-0 | HELICAL GEAR 42 | 1 | €19.48 | 1-4 weeks to ship | |
| 050 | COUNTERSUNK HEAD SCREW M5 | 6 | Not available in store | |||
| 051 | 325109-0 | SUPPORT PIN | 1 | €2.78 | 1-4 weeks to ship | |
| 053 | CORK RUBBER PLATE | 1 | Not available in store | |||
| 054 | TORSION SPRING 18 | 1 | Not available in store | |||
| 055 | 163039-5 | TENSION ROLLER ARM | 1 | €30.47 | 1-4 weeks to ship | |
| 056 | 232029-0 | LEAF SPRING | 2 | €2.78 | 1-4 weeks to ship | |
| 057 | 341195-3 | BALANCE PLATE | 1 | €5.43 | 1-4 weeks to ship | |
| 058 | 253922-5 | CUP WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | BASE COVER | 1 | Not available in store | |||
| 061 | 911226-8 | PAN HEAD SCREW M5X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 062 | 254202-2 | KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | 911111-5 | PAN HEAD SCREW M4X10 WITH | 4 | €0.56 | 1-4 weeks to ship | |
| 064 | 341079-5 | STRAP WASHER | 1 | €2.09 | 1-4 weeks to ship | |
| 065 | CARBON PLATE 100MM | 1 | Not available in store | |||
| 066 | 212003-4 | NEEDLE BEARING 810 | 1 | €5.57 | 1-4 weeks to ship | |
| 067 | 221193-2 | HELICAL GEAR 10 | 1 | €19.48 | 1-4 weeks to ship | |
| 068 | 211066-7 | BALL BEARING 6200LLB | 1 | €6.12 | 1-4 weeks to ship | |
| 070 | 222038-7 | V-PULLEY 6-55.7 | 1 | €51.21 | 1-4 weeks to ship | |
| 074 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 075 | 687010-0 | BAND | 1 | €0.56 | 1-4 weeks to ship | |
| 402 | STEP | 1 | Not available in store | |||
| 403 | CARBON PLATE 100MM | 1 | Not available in store | |||
