9237CB
9237CB

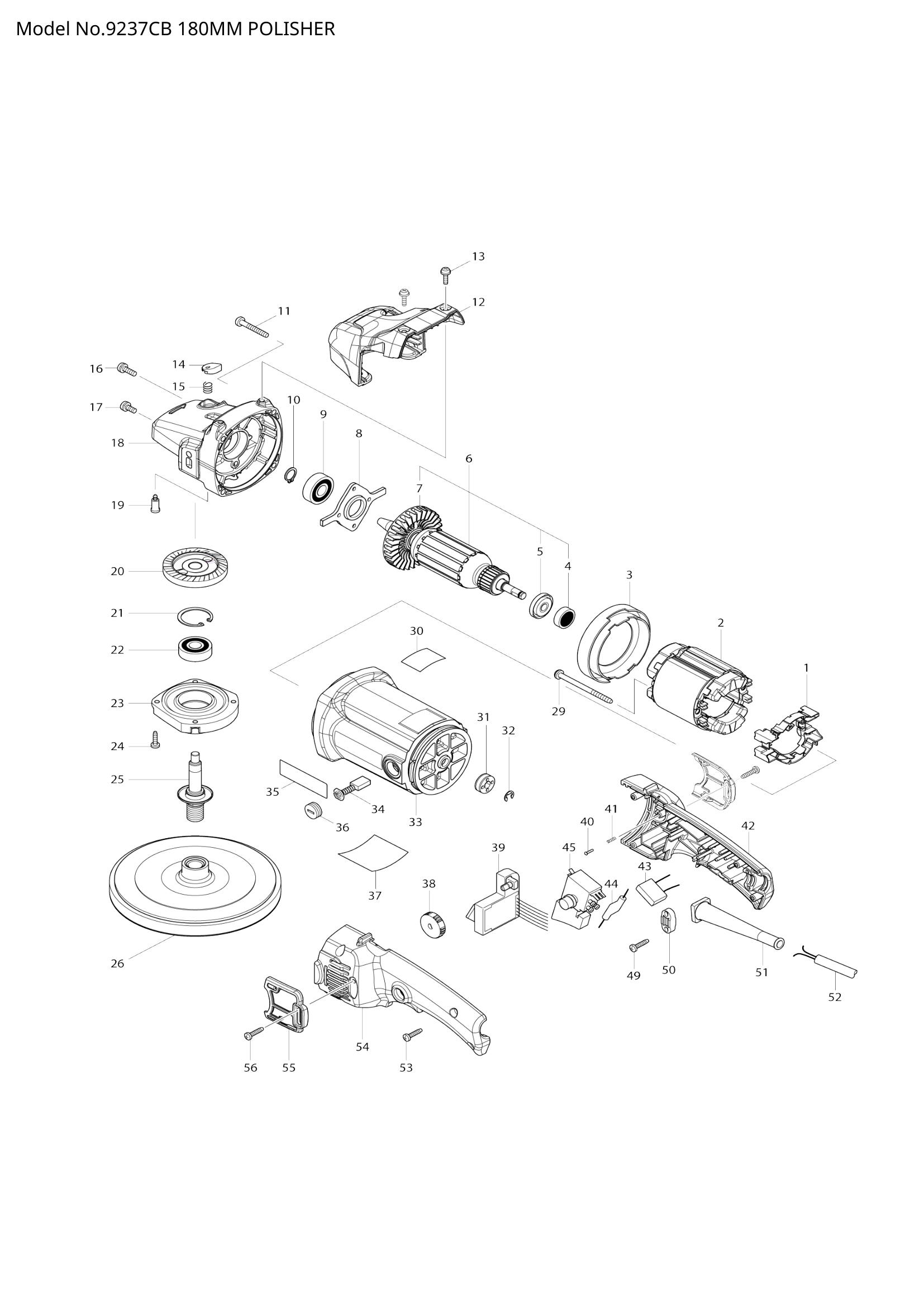

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 539168-0 | SUPPORT ASS'Y | 1 | €8.35 | 1-4 weeks to ship | |
| 002 | 634293-3 | FIELD 220/240V | 1 | €30.61 | 1-4 weeks to ship | |
| 003 | 416253-5 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 004 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 005 | 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | 516308-7 | ARMATURE ASS'Y 220/240V | 1 | €77.92 | 1-4 weeks to ship | |
| 007 | 240002-6 | FAN 70 | 1 | €2.78 | 1-4 weeks to ship | |
| 008 | 285687-1 | BEARING RETAINER 48 | 1 | €2.78 | 1-4 weeks to ship | |
| 009 | 211106-1 | BALL BEARING 6201LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 010 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 266012-5 | TAPPING SCREW 5X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 012 | 455291-2 | HEAD COVER | 1 | €7.51 | 1-4 weeks to ship | |
| 455291-2 | HEAD COVER | 1 | €7.51 | 1-4 weeks to ship | ||
| 013 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 014 | 415491-6 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 911221-8 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 911211-1 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 142747-1 | GEAR HOUSING COMPLETE | 1 | €35.90 | 1-4 weeks to ship | |
| 019 | 256504-2 | SHOULDER PIN 9 | 1 | €1.67 | 1-4 weeks to ship | |
| 020 | 227512-0 | SPIRAL BEVEL GEAR 52 | 1 | €36.18 | 1-4 weeks to ship | |
| 021 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 211106-1 | BALL BEARING 6201LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 023 | 316896-2 | BEARING BOX | 1 | €11.13 | 1-4 weeks to ship | |
| 024 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 025 | 152551-0 | SPINDLE COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
| 026 | PAD 165 | 1 | Not available in store | |||
| 029 | 266038-7 | TAPPING SCREW 5X70 | 2 | €2.09 | 1-4 weeks to ship | |
| 030 | INDICATION LABEL | 1 | Not available in store | |||
| 031 | 688110-9 | MAGNET SLEEVE | 1 | €5.57 | 1-4 weeks to ship | |
| 032 | 961012-7 | STOP RING E-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 187958-1 | MOTOR HOUSING SET | 1 | €24.21 | 1-4 weeks to ship | |
| 035 | MAKITA LOGO LABEL | 2 | Not available in store | |||
| 037 | 9237CB NAME PLATE | 1 | Not available in store | |||
| 038 | 271417-6 | DIAL 28 | 1 | €2.78 | 1-4 weeks to ship | |
| 039 | 631227-7 | CONTROLLER 200-250V | 1 | €52.88 | 1-4 weeks to ship | |
| 040 | 255058-6 | RIVET 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 233002-3 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 187917-5 | HANDLE SET | 1 | €13.64 | 1-4 weeks to ship | |
| 043 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 044 | 646077-7 | CHOKE COIL | 1 | €1.39 | 1-4 weeks to ship | |
| 045 | 651282-3 | SWITCH | 1 | €27.83 | 1-4 weeks to ship | |
| 049 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 050 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 052 | 665890-4 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €25.05 | 1-4 weeks to ship | |
| 053 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 054 | 187917-5 | HANDLE SET | 1 | €13.64 | 1-4 weeks to ship | |
| 055 | 455288-1 | DUST COVER | 2 | €2.50 | 1-4 weeks to ship | |
| 455288-1 | DUST COVER | 2 | €2.50 | 1-4 weeks to ship | ||
| 056 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
