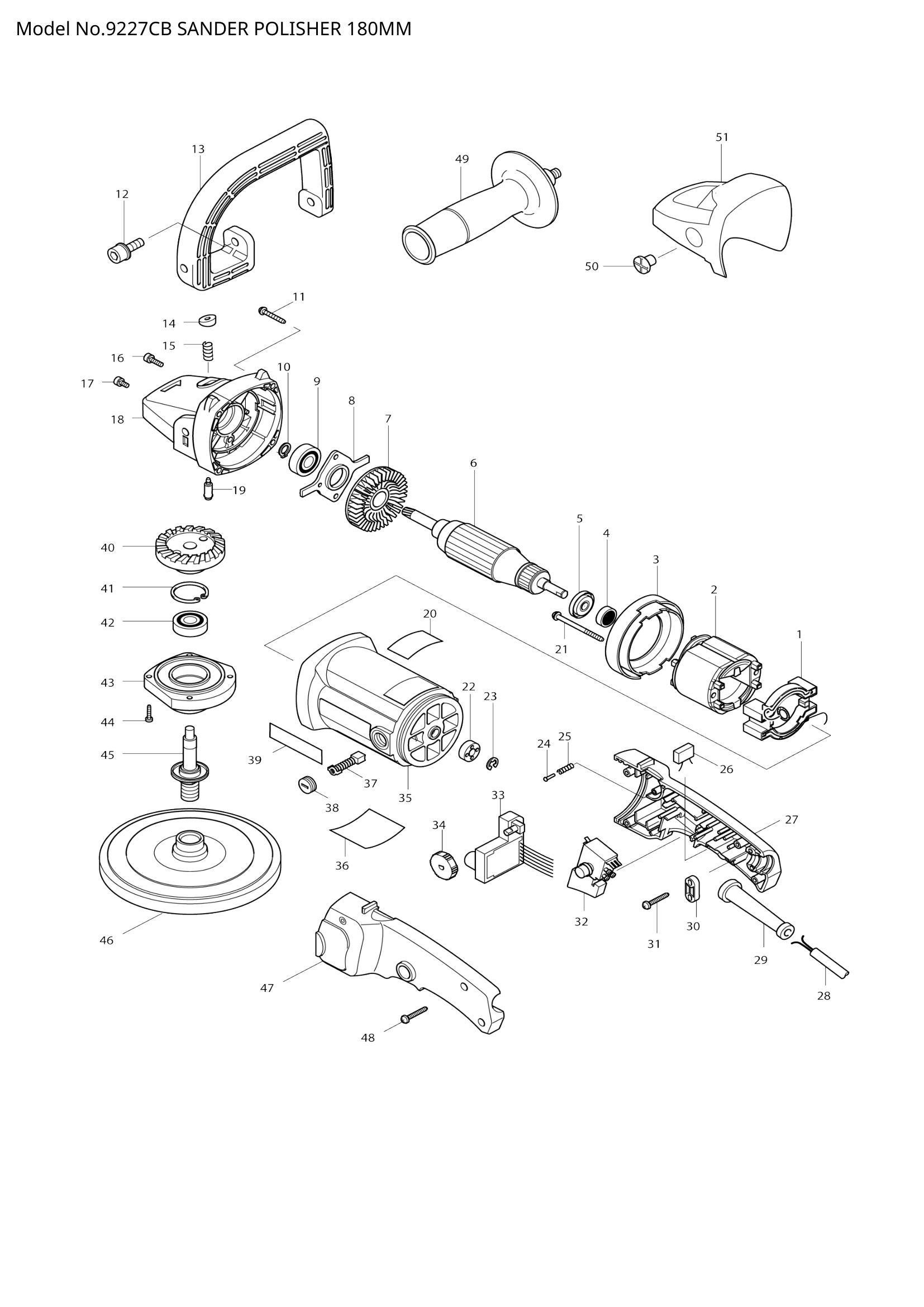

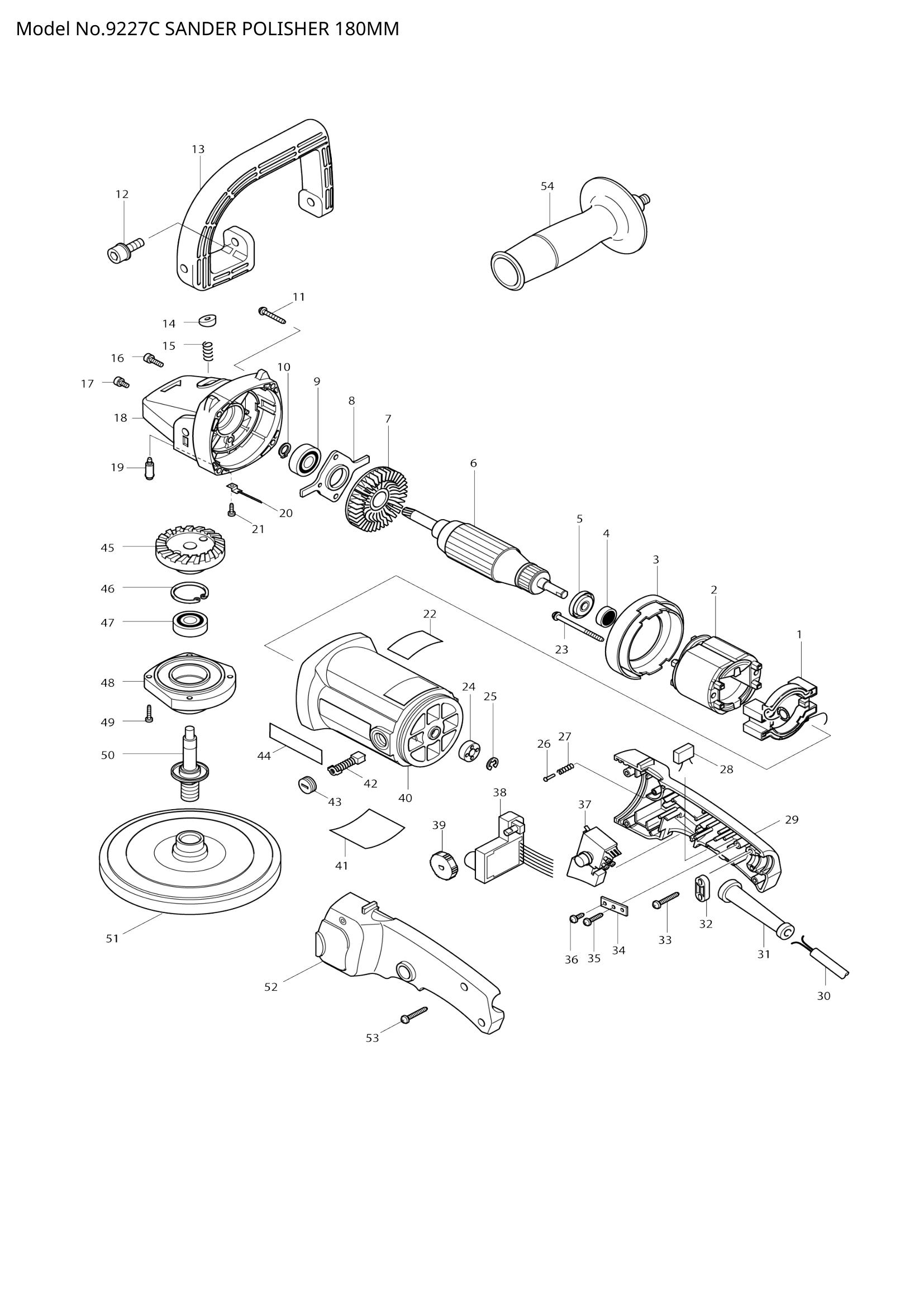

9227C
9227C
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 003 | 416253-5 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 416253-5 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 004 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | ||
| 005 | 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 007 | 240002-6 | FAN 70 | 1 | €2.78 | 1-4 weeks to ship | |
| 240002-6 | FAN 70 | 1 | €2.78 | 1-4 weeks to ship | ||
| 008 | 285687-1 | BEARING RETAINER 48 | 1 | €2.78 | 1-4 weeks to ship | |
| 285687-1 | BEARING RETAINER 48 | 1 | €2.78 | 1-4 weeks to ship | ||
| 009 | 211106-1 | BALL BEARING 6201LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 211106-1 | BALL BEARING 6201LLB | 1 | €5.57 | 1-4 weeks to ship | ||
| 010 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 011 | 266012-5 | TAPPING SCREW 5X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 266012-5 | TAPPING SCREW 5X35 | 4 | €0.56 | 1-4 weeks to ship | ||
| 012 | 266171-5 | HEX. SOCKET HEAD BOLT M8X25 | 2 | €0.83 | 1-4 weeks to ship | |
| 266171-5 | HEX. SOCKET HEAD BOLT M8X25 | 2 | €0.83 | 1-4 weeks to ship | ||
| 013 | 416256-9 | LOOP HANDLE | 1 | €13.92 | 1-4 weeks to ship | |
| 416256-9 | LOOP HANDLE | 1 | €13.92 | 1-4 weeks to ship | ||
| 014 | 415491-6 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 415491-6 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 015 | 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 018 | 159951-5 | GEAR HOUSING COMPLETE | 1 | €30.61 | 1-4 weeks to ship | |
| 159951-5 | GEAR HOUSING COMPLETE | 1 | €30.61 | 1-4 weeks to ship | ||
| 020 | 632783-0 | LEAD UNIT | 1 | €2.78 | 1-4 weeks to ship | |
| 632783-0 | LEAD UNIT | 1 | €2.78 | 1-4 weeks to ship | ||
| 021 | 652014-1 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 652014-1 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 023 | 266038-7 | TAPPING SCREW 5X70 | 2 | €2.09 | 1-4 weeks to ship | |
| 266038-7 | TAPPING SCREW 5X70 | 2 | €2.09 | 1-4 weeks to ship | ||
| 024 | 688110-9 | MAGNET SLEEVE | 1 | €5.57 | 1-4 weeks to ship | |
| 688110-9 | MAGNET SLEEVE | 1 | €5.57 | 1-4 weeks to ship | ||
| 025 | 961012-7 | STOP RING E-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 961012-7 | STOP RING E-6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 026 | 255058-6 | RIVET 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 255058-6 | RIVET 2 | 1 | €0.56 | 1-4 weeks to ship | ||
| 027 | 233002-3 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 233002-3 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | ||
| 029 | 182917-0 | HANDLE SET | 1 | €16.70 | 1-4 weeks to ship | |
| 182917-0 | HANDLE SET | 1 | €16.70 | 1-4 weeks to ship | ||
| 032 | 687053-2 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687053-2 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 033 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 034 | 654571-5 | TERMINAL BLOCK | 1 | €2.92 | 1-4 weeks to ship | |
| 654571-5 | TERMINAL BLOCK | 1 | €2.92 | 1-4 weeks to ship | ||
| 035 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 036 | 652014-1 | PAN HEAD SCREW M4X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 652014-1 | PAN HEAD SCREW M4X8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 037 | 651282-3 | SWITCH | 1 | €27.83 | 1-4 weeks to ship | |
| 651282-3 | SWITCH | 1 | €27.83 | 1-4 weeks to ship | ||
| 039 | 271417-6 | DIAL 28 | 1 | €2.78 | 1-4 weeks to ship | |
| 271417-6 | DIAL 28 | 1 | €2.78 | 1-4 weeks to ship | ||
| 040 | 182918-8 | MOTOR HOUSING SET | 1 | €27.83 | 1-4 weeks to ship | |
| 182918-8 | MOTOR HOUSING SET | 1 | €27.83 | 1-4 weeks to ship | ||
| 044 | MAKITA LABEL | 2 | Not available in store | |||
| MAKITA LABEL | 2 | Not available in store | ||||
| 046 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | ||
| 047 | 211106-1 | BALL BEARING 6201LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 211106-1 | BALL BEARING 6201LLB | 1 | €5.57 | 1-4 weeks to ship | ||
| 048 | 316896-2 | BEARING BOX | 1 | €11.13 | 1-4 weeks to ship | |
| 316896-2 | BEARING BOX | 1 | €11.13 | 1-4 weeks to ship | ||
| 049 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 052 | 182917-0 | HANDLE SET | 1 | €16.70 | 1-4 weeks to ship | |
| 182917-0 | HANDLE SET | 1 | €16.70 | 1-4 weeks to ship | ||
| 053 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
