9046
9046

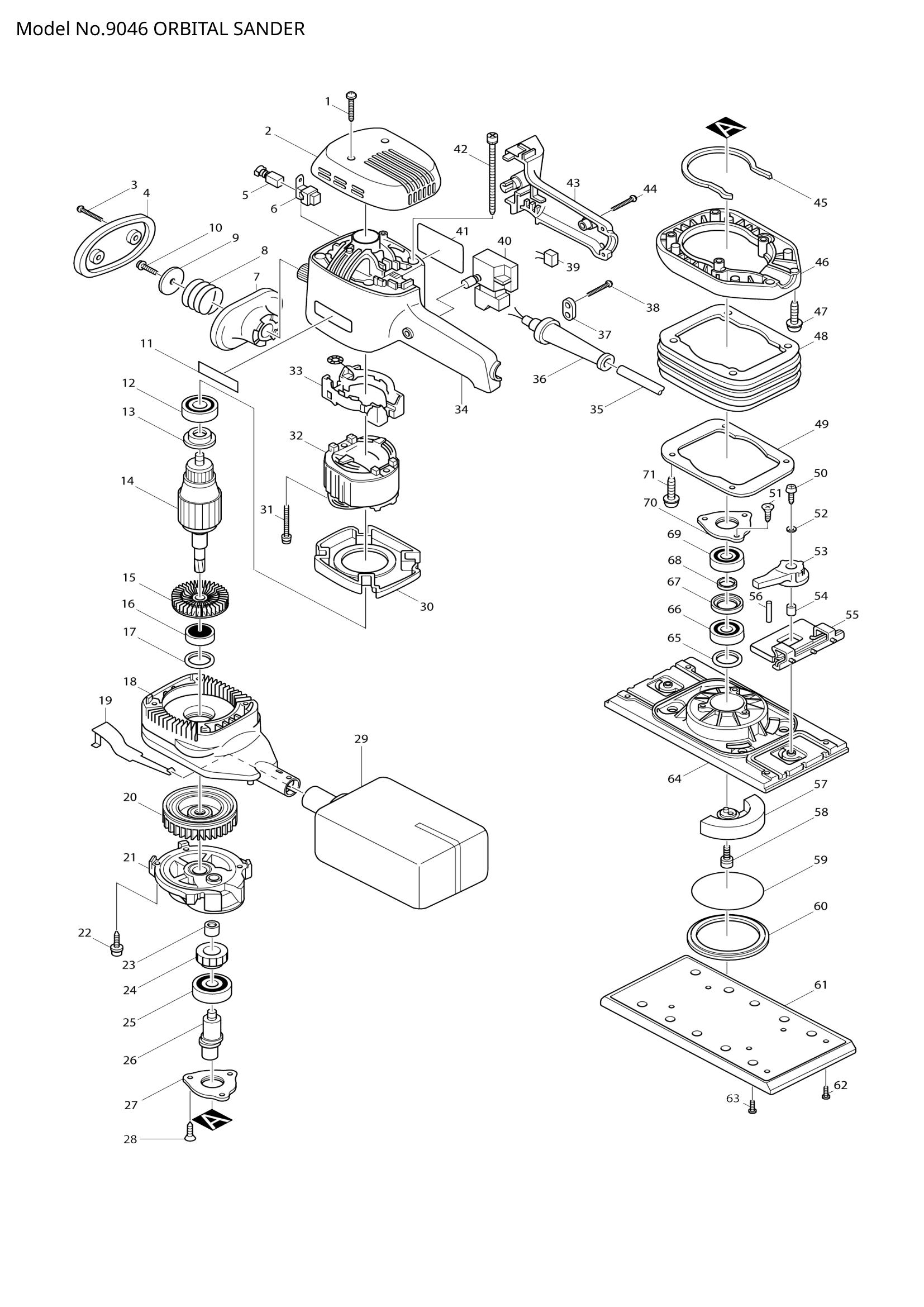

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 002 | 415709-5 | TOP COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 003 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 004 | 415723-1 | GRIP COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 006 | 643923-5 | BRUSH HOLDER | 2 | €1.11 | 1-4 weeks to ship | |
| 007 | 415717-6 | GRIP BASE | 1 | €4.17 | 1-4 weeks to ship | |
| 008 | 231463-1 | COMPRESSION SPRING 24 | 1 | €2.92 | 1-4 weeks to ship | |
| 009 | 267136-0 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 266021-4 | TAPPING SCREW 5X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 211033-2 | BALL BEARING 608LB | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | 681625-5 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 241879-2 | FAN 60 | 1 | €4.17 | 1-4 weeks to ship | |
| 016 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 017 | 267127-1 | FLAT WASHER 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 415567-9 | SCROLL HOUSING | 1 | €19.48 | 1-4 weeks to ship | |
| 019 | 344230-6 | EARTH PLATE | 1 | €5.01 | 1-4 weeks to ship | |
| 020 | 241880-7 | FAN 68 | 1 | €16.70 | 1-4 weeks to ship | |
| 022 | 266045-0 | TAPPING SCREW 4X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 023 | 212004-2 | NEEDLE BEARING 810 | 1 | €5.57 | 1-4 weeks to ship | |
| 024 | 226430-9 | HELICAL GEAR 39 | 1 | €16.70 | 1-4 weeks to ship | |
| 025 | 211278-2 | BALL BEARING 6203DDW | 1 | €11.13 | 1-4 weeks to ship | |
| 026 | 322708-9 | CRANK SHAFT | 1 | €22.26 | 1-4 weeks to ship | |
| 027 | 162171-2 | BEARING RETAINER 24 | 1 | €5.57 | 1-4 weeks to ship | |
| 028 | 266058-1 | TAPPING SCREW CT 4X12 | 3 | €0.56 | 1-4 weeks to ship | |
| 030 | 415561-1 | BAFFLE PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 031 | 266056-5 | TAPPING SCREW 5X45 | 2 | €0.83 | 1-4 weeks to ship | |
| 033 | 632514-7 | SUPPORT COMPLETE | 1 | €7.24 | 1-4 weeks to ship | |
| 034 | 415566-1 | MOTOR HOUSING | 1 | €25.05 | 1-4 weeks to ship | |
| 038 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 041 | 857628-3 | NAME PLATE 9046 | 1 | €2.78 | 1-4 weeks to ship | |
| 042 | 266057-3 | TAPPING SCREW BIND BT 5X90 | 4 | €0.83 | 1-4 weeks to ship | |
| 043 | 415565-3 | HANDLE COVER | 1 | €10.44 | 1-4 weeks to ship | |
| 044 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 045 | 421496-6 | PACKING | 1 | €2.09 | 1-4 weeks to ship | |
| 046 | 415563-7 | SCROLL COVER | 1 | €13.92 | 1-4 weeks to ship | |
| 047 | 266020-6 | TAPPING SCREW 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 048 | 165096-9 | RUBBER SLEEVE | 1 | €22.26 | 1-4 weeks to ship | |
| 049 | 344143-1 | PLATE | 1 | €4.87 | 1-4 weeks to ship | |
| 050 | 266042-6 | TAPPING SCREW BIND CT 4X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 051 | 266058-1 | TAPPING SCREW CT 4X12 | 3 | €0.56 | 1-4 weeks to ship | |
| 052 | 253874-0 | FLAT WASHER 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 053 | 415559-8 | CLAMP LEVER | 2 | €1.39 | 1-4 weeks to ship | |
| 054 | 257659-6 | SLEEVE 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 055 | 152457-2 | PAPER CLAMP COMPLETE | 2 | €16.70 | 1-4 weeks to ship | |
| 056 | 256104-8 | PIN 3 | 4 | €0.56 | 1-4 weeks to ship | |
| 057 | 316619-8 | BALANCER | 1 | €11.13 | 1-4 weeks to ship | |
| 058 | 266071-9 | HEX. SOCKET HEAD BOLT M5X16 | 1 | €0.83 | 1-4 weeks to ship | |
| 059 | 213755-0 | O RING 75 | 1 | €1.11 | 1-4 weeks to ship | |
| 060 | 344142-3 | UNDER COVER | 1 | €1.67 | 1-4 weeks to ship | |
| 061 | 162172-0 | PAD | 1 | €36.18 | 1-4 weeks to ship | |
| 062 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 4 | €0.56 | 1-4 weeks to ship | |
| 063 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 4 | €0.56 | 1-4 weeks to ship | |
| 064 | 316620-3 | BASE | 1 | €44.53 | 1-4 weeks to ship | |
| 065 | 267127-1 | FLAT WASHER 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 257189-7 | RING 19 | 1 | €4.17 | 1-4 weeks to ship | |
| 068 | 257188-9 | RING 15 | 1 | €2.78 | 1-4 weeks to ship | |
| 070 | 162171-2 | BEARING RETAINER 24 | 1 | €5.57 | 1-4 weeks to ship | |
| 072 | 262547-4 | FELT RING 20 | 1 | €0.56 | 1-4 weeks to ship |
