9036
9036

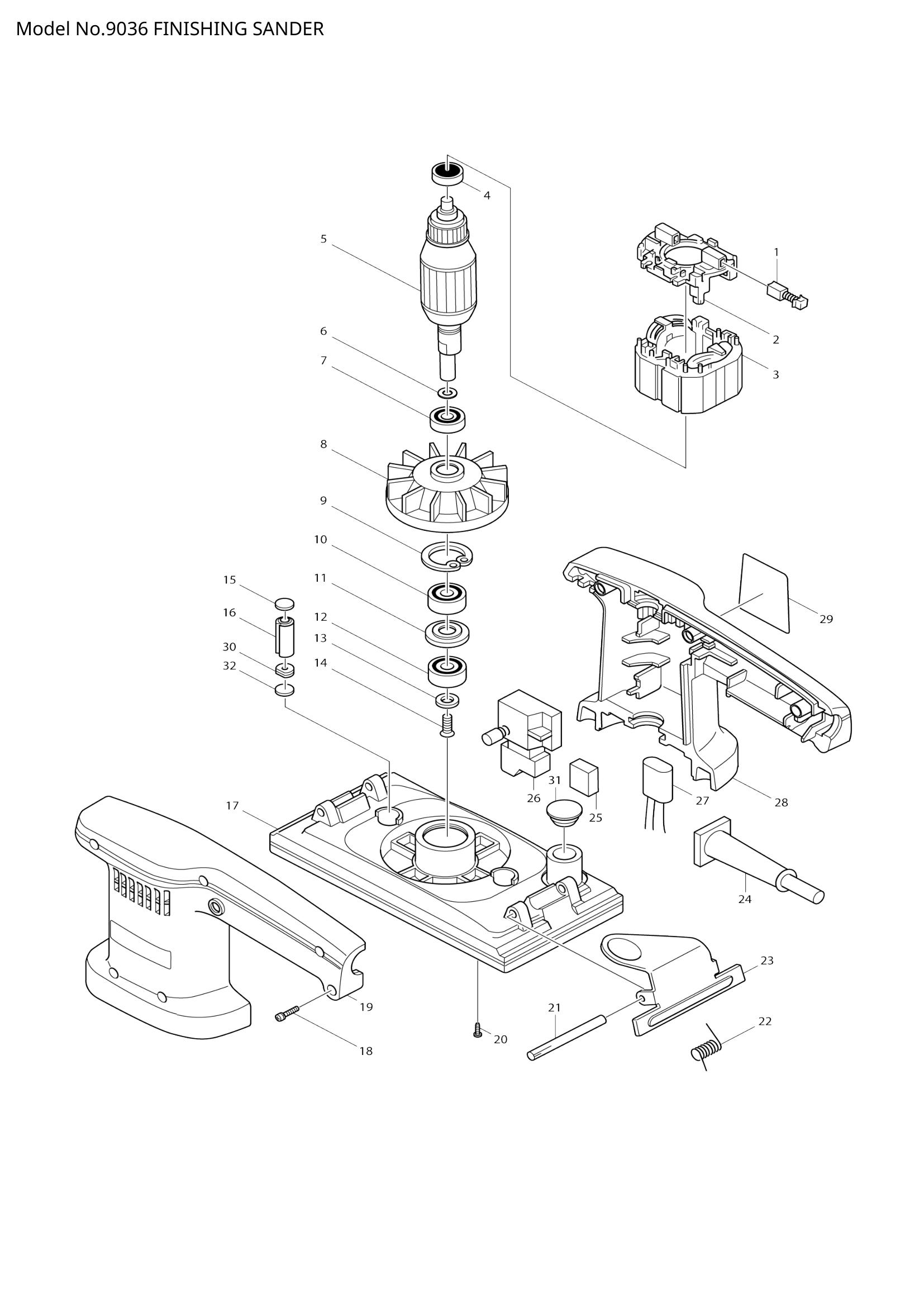

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 006 | 961016-9 | STOP RING E-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 211101-1 | BALL BEARING 6001LLB | 1 | €11.13 | 1-4 weeks to ship | |
| 008 | 241654-6 | Fan 68 | 1 | €10.58 | 1-4 weeks to ship | |
| 009 | 962115-0 | RETAINING RING R-26 | 1 | €2.78 | 1-4 weeks to ship | |
| 011 | 257154-6 | Ring 9 | 1 | €4.45 | 1-4 weeks to ship | |
| 013 | 253825-3 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | |
| 014 | + COUNTERSUNK HEAD SCREW | 1 | Not available in store | |||
| 015 | 343650-1 | Plate | 2 | €0.56 | 1-4 weeks to ship | |
| 018 | 911158-9 | PAN HEAD SCREW M4X30 | 6 | €0.56 | 1-4 weeks to ship | |
| 019 | 182232-2 | Housing set (blue) | 1 | €41.75 | 1-4 weeks to ship | |
| 021 | 256739-5 | PIN 4-55 | 2 | €0.56 | 1-4 weeks to ship | |
| 022 | 231586-5 | Torsion spring 4 | 2 | €2.09 | 1-4 weeks to ship | |
| 023 | 343539-3 | PAPER CLAMP | 2 | €2.78 | 1-4 weeks to ship | |
| 025 | 685725-3 | SPONGE SHEET | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 182232-2 | Housing set (blue) | 1 | €41.75 | 1-4 weeks to ship | |
| 029 | 856322-4 | Name plate 9036 | 1 | €2.09 | 1-4 weeks to ship | |
| 031 | 286233-3 | CAP 19 | 1 | €0.83 | 1-4 weeks to ship | |
| 032 | 343650-1 | Plate | 2 | €0.56 | 1-4 weeks to ship | |
