9032
9032

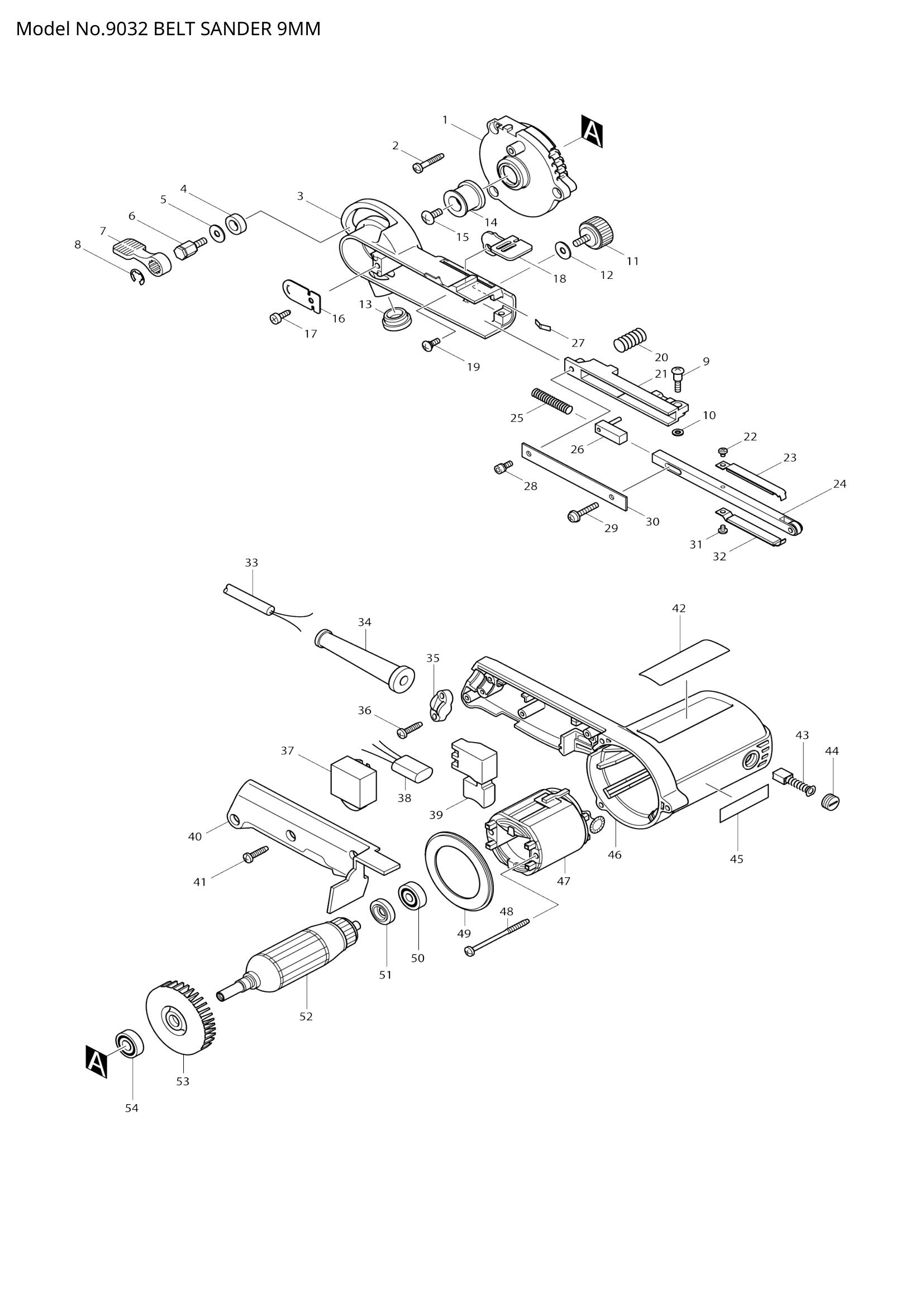

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 317523-4 | BRACKET | 1 | €25.05 | 1-4 weeks to ship | |
| 002 | 265999-8 | TAPPING SCREW 4X25 | 3 | €0.56 | 1-4 weeks to ship | |
| 003 | 153308-2 | PULLEY COVER COMPLETE | 1 | €36.18 | 1-4 weeks to ship | |
| 004 | 257249-5 | RING 9 | 1 | €2.78 | 1-4 weeks to ship | |
| 005 | 253807-5 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 265494-8 | HEX. BOLT M5X13 | 1 | €4.17 | 1-4 weeks to ship | |
| 007 | 272229-0 | LEVER 40 | 1 | €2.78 | 1-4 weeks to ship | |
| 008 | 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 265090-2 | + PAN HEAD SCREW M4X20 | 1 | €1.11 | 1-4 weeks to ship | |
| 010 | 941052-1 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 265751-4 | THUMB SCREW M5X13 | 1 | €1.11 | 1-4 weeks to ship | |
| 012 | 253807-5 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 421198-4 | CAP | 1 | €1.67 | 1-4 weeks to ship | |
| 014 | 317522-6 | DRIVING ROLLER | 1 | €11.13 | 1-4 weeks to ship | |
| 015 | 265092-8 | TRUSS HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 345196-3 | SAFETY COVER | 1 | €1.67 | 1-4 weeks to ship | |
| 017 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 345197-1 | CAM LEVER | 1 | €5.57 | 1-4 weeks to ship | |
| 019 | 265028-7 | + PAN HEAD SCREW M4X11 | 1 | €0.83 | 1-4 weeks to ship | |
| 020 | 233333-0 | COMPRESSION SPRING 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 021 | 317525-0 | ARM HOLDER | 1 | €33.40 | 1-4 weeks to ship | |
| 022 | 265040-7 | + PAN HEAD SCREW M3X4 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 153314-7 | SHOE 9 COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 024 | ARM 9 COMPLETE | 1 | Not available in store | |||
| 025 | 233332-2 | COMPRESSION SPRING 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 026 | 153312-1 | ARM TENSIONER COMPLETE | 1 | €8.35 | 1-4 weeks to ship | |
| 027 | 232185-6 | LEAF SPRING | 1 | €2.78 | 1-4 weeks to ship | |
| 028 | 922111-0 | HEX. SOCKET HEAD BOLT M4X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 345195-5 | ARM COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 031 | 265040-7 | + PAN HEAD SCREW M3X4 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 153314-7 | SHOE 9 COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 033 | 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | |
| 034 | 682502-4 | CORD GUARD 8-85 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 040 | 415635-8 | HANDLE COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 041 | 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 042 | 853483-1 | NAME PLATE 9032 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | €0.83 | 1-4 weeks to ship | |
| 045 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 159747-4 | MOTOR HOUSING COMPLETE | 1 | €30.61 | 1-4 weeks to ship | |
| 048 | 266052-3 | TAPPING SCREW 4X60 | 2 | €1.11 | 1-4 weeks to ship | |
| 049 | 415634-0 | BAFFLE PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 050 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 051 | 681614-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 517389-4 | ARMATURE ASS'Y 230-240V | 1 | €64.01 | 1-4 weeks to ship | |
| 053 | 241884-9 | FAN 60 | 1 | €4.17 | 1-4 weeks to ship | |
| 054 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
