9031
9031

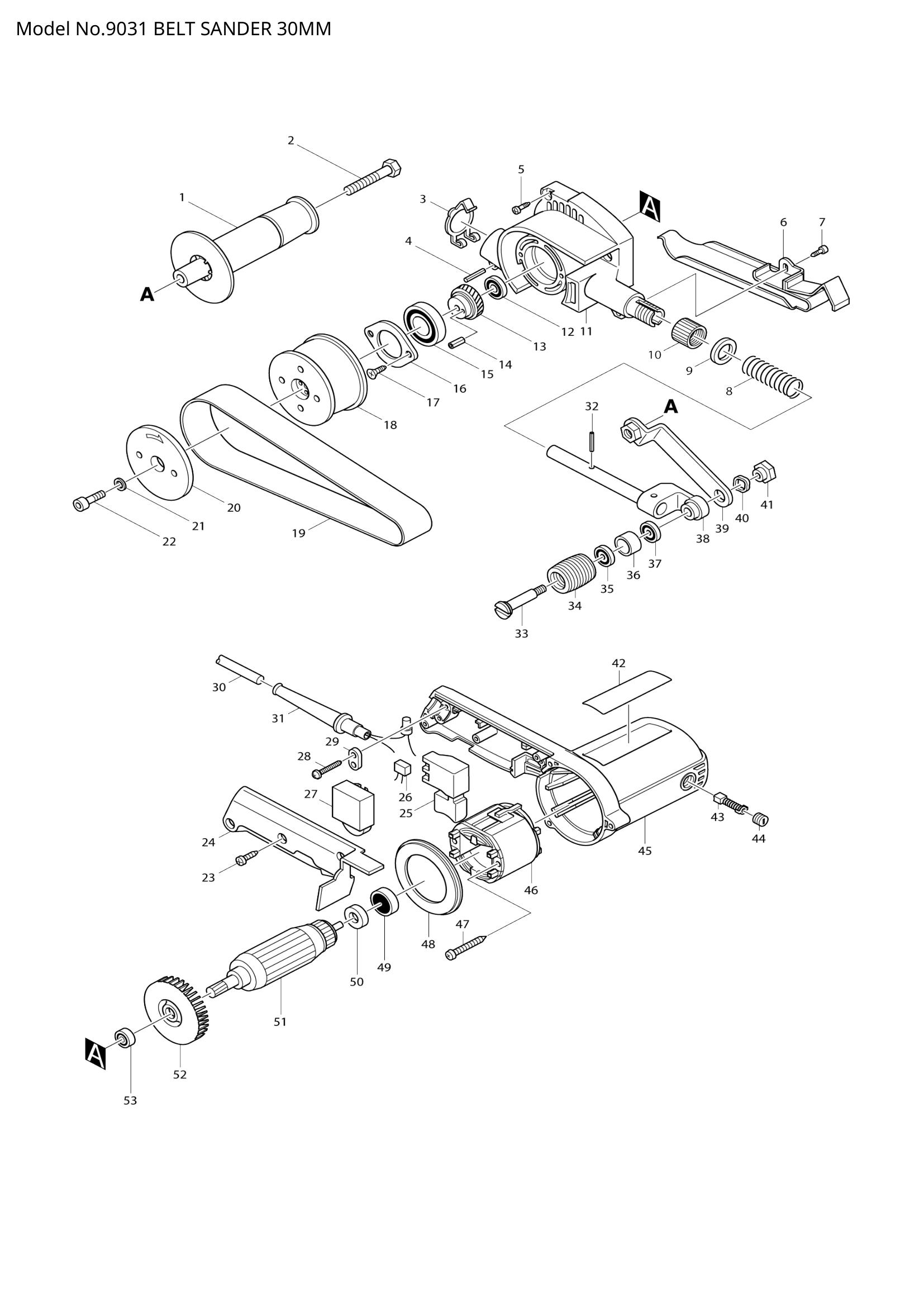

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 003 | 286241-4 | CAP 30 | 1 | €2.78 | 1-4 weeks to ship | |
| 004 | 951116-3 | SPRING PIN 4-20 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 342152-4 | FLAT SHOE | 1 | €11.13 | 1-4 weeks to ship | |
| 007 | 266035-3 | TAPPING SCREW BIND CT 5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 231056-4 | COMPRESSION SPRING 13 | 1 | €0.83 | 1-4 weeks to ship | |
| 009 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 252605-4 | WING NUT M16 | 1 | €4.17 | 1-4 weeks to ship | |
| 012 | 211023-5 | BALL BEARING 607LB | 1 | €5.57 | 1-4 weeks to ship | |
| 013 | 226435-9 | HELICAL GEAR 35 | 1 | €22.26 | 1-4 weeks to ship | |
| 014 | 258009-8 | SPRING PIN 3.5-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 211331-4 | BALL BEARING 6904DDW | 1 | €16.70 | 1-4 weeks to ship | |
| 016 | 285830-2 | BEARING RETAINER 44 | 1 | €1.67 | 1-4 weeks to ship | |
| 017 | 266058-1 | TAPPING SCREW CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 018 | 222129-4 | PULLEY 33-64 | 1 | €22.26 | 1-4 weeks to ship | |
| 020 | 415624-3 | PULLEY LINER | 1 | €4.17 | 1-4 weeks to ship | |
| 021 | 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 266067-0 | HEX. SOCKET HEAD BOLT M5X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 415635-8 | HANDLE COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 028 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 032 | 951116-3 | SPRING PIN 4-20 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 322746-1 | TOP PULLEY SHAFT | 1 | €5.57 | 1-4 weeks to ship | |
| 034 | 222130-9 | PULLEY 30-25 | 1 | €27.83 | 1-4 weeks to ship | |
| 036 | 331450-1 | SLEEVE 12 | 1 | €1.67 | 1-4 weeks to ship | |
| 038 | 154417-0 | ANGLE STAY COMPLETE | 1 | €89.06 | 1-4 weeks to ship | |
| 039 | 165110-1 | ARM COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 040 | 253904-7 | WAVE WASHER 12 | 2 | €0.56 | 1-4 weeks to ship | |
| 041 | 252138-9 | HEX. NUT M6-17 | 1 | €2.78 | 1-4 weeks to ship | |
| 042 | 857678-8 | NAME PLATE 9031 | 1 | €0.83 | 1-4 weeks to ship | |
| 044 | 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | €0.83 | 1-4 weeks to ship | |
| 045 | 159747-4 | MOTOR HOUSING COMPLETE | 1 | €30.61 | 1-4 weeks to ship | |
| 048 | 415634-0 | BAFFLE PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 049 | 211028-5 | BALL BEARING 627LB | 1 | €4.17 | 1-4 weeks to ship | |
| 050 | 681614-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 241884-9 | FAN 60 | 1 | €4.17 | 1-4 weeks to ship | |
| 053 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship |
