9030
9030

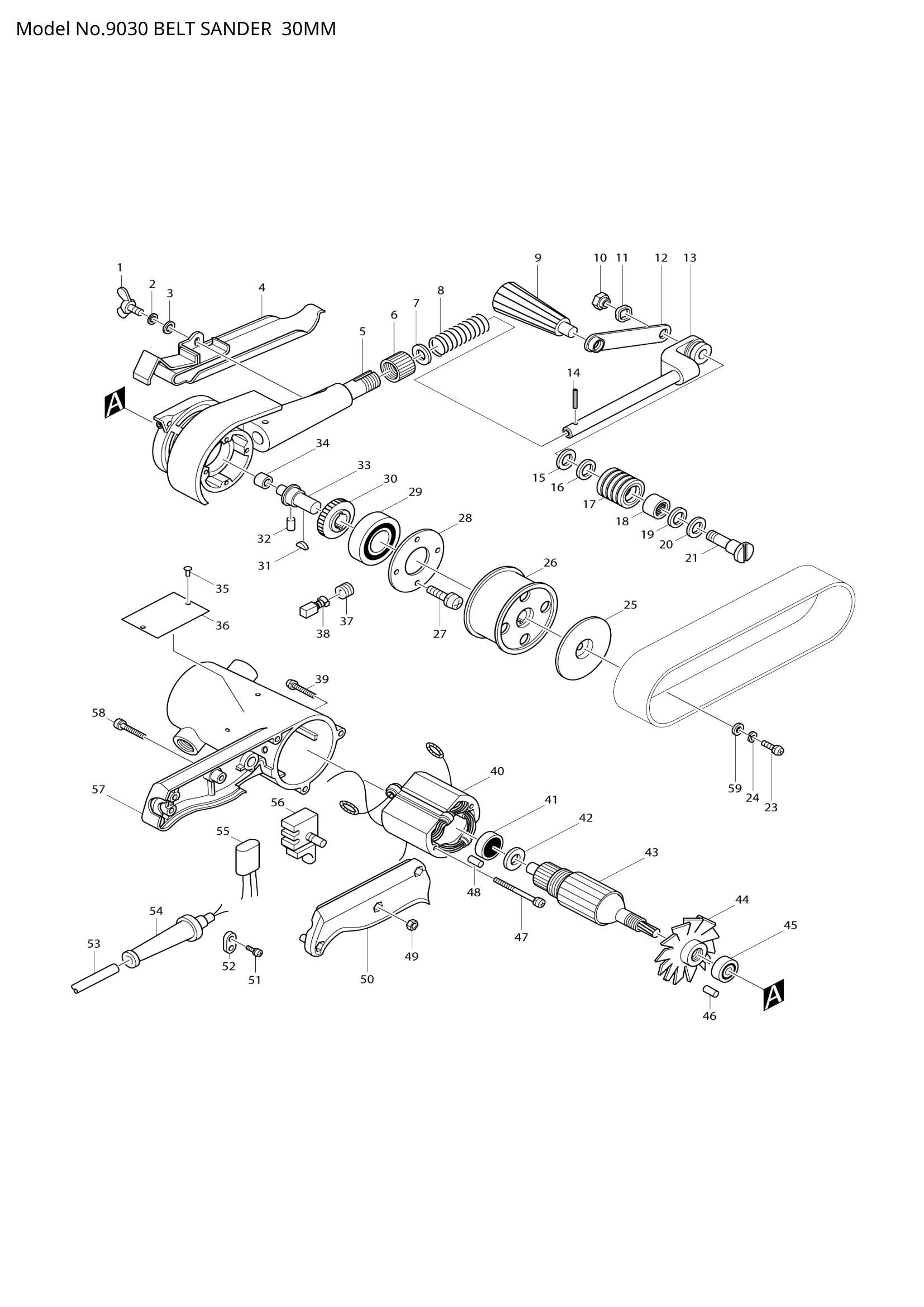

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 924216-2 | WING BOLT M5X15 | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | 942101-7 | SPRING WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 942101-7 | SPRING WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 003 | 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 252605-4 | WING NUT M16 | 1 | €4.17 | 1-4 weeks to ship | |
| 007 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 231056-4 | COMPRESSION SPRING 13 | 1 | €0.83 | 1-4 weeks to ship | |
| 010 | 252026-0 | HEX. NUT M8-17 | 1 | €2.78 | 1-4 weeks to ship | |
| 011 | 253904-7 | WAVE WASHER 12 | 2 | €0.56 | 1-4 weeks to ship | |
| 012 | 164298-4 | ARM | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | ANGLE STAY | 1 | Not available in store | |||
| 014 | 951116-3 | SPRING PIN 4-20 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 261015-4 | WASHER 12 | 1 | €1.67 | 1-4 weeks to ship | |
| 016 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 222019-1 | PULLEY 30-25 | 1 | €27.83 | 1-4 weeks to ship | |
| 018 | 212104-8 | NEEDLE BEARING 1212 | 1 | €5.57 | 1-4 weeks to ship | |
| 019 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 261015-4 | WASHER 12 | 1 | €1.67 | 1-4 weeks to ship | |
| 021 | 325078-5 | TOP PULLEY SHAFT | 1 | €11.13 | 1-4 weeks to ship | |
| 023 | 251287-9 | + PAN HEAD SCREW M4X10 | 1 | €0.83 | 1-4 weeks to ship | |
| 024 | 942051-6 | SPRING WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 343065-2 | SIDE COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 026 | 222018-3 | PULLEY 33-64 | 1 | €33.40 | 1-4 weeks to ship | |
| 027 | 911116-5 | PAN HEAD SCREW M4X12 | 4 | €0.56 | 1-4 weeks to ship | |
| 028 | 285623-7 | BEARING RETAINER 48 | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | 211303-9 | BALL BEARING 6004LB | 1 | €11.13 | 1-4 weeks to ship | |
| 030 | 221095-2 | HELICAL GEAR 45 | 1 | €19.48 | 1-4 weeks to ship | |
| 031 | 254002-0 | WOODRUFF KEY 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | PIN 4.5 | 1 | Not available in store | |||
| 033 | 323224-4 | DRIVING SHAFT | 1 | €19.48 | 1-4 weeks to ship | |
| 034 | 212004-2 | NEEDLE BEARING 810 | 1 | €5.57 | 1-4 weeks to ship | |
| 035 | 953106-2 | RIVET 0-5 | 2 | €0.56 | 1-4 weeks to ship | |
| 036 | 811647-3 | NAME PLATE 9030 | 1 | €4.45 | 1-4 weeks to ship | |
| 037 | 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | €0.83 | 1-4 weeks to ship | |
| 039 | 911159-7 | PAN HEAD SCREW M4X30 | 3 | €0.83 | 1-4 weeks to ship | |
| 041 | 211028-5 | BALL BEARING 627LB | 1 | €4.17 | 1-4 weeks to ship | |
| 042 | 253058-0 | FLAT WASHER 7 | 1 | €0.28 | 1-4 weeks to ship | |
| 044 | 241031-2 | FAN 62 | 1 | €5.29 | 1-4 weeks to ship | |
| 046 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 931102-0 | HEX. NUT M4 | 3 | €0.56 | 1-4 weeks to ship | |
| 050 | 411003-3 | GRIP COVER | 1 | €7.10 | 1-4 weeks to ship | |
| 058 | 911148-2 | PAN HEAD SCREW M4X25 | 3 | €0.56 | 1-4 weeks to ship | |
| 059 | 941052-1 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 400 | 794013-8 | ABRASIVE BELT SET 30X533 | 1 | €48.42 | 1-4 weeks to ship | |
