8015D
8015D

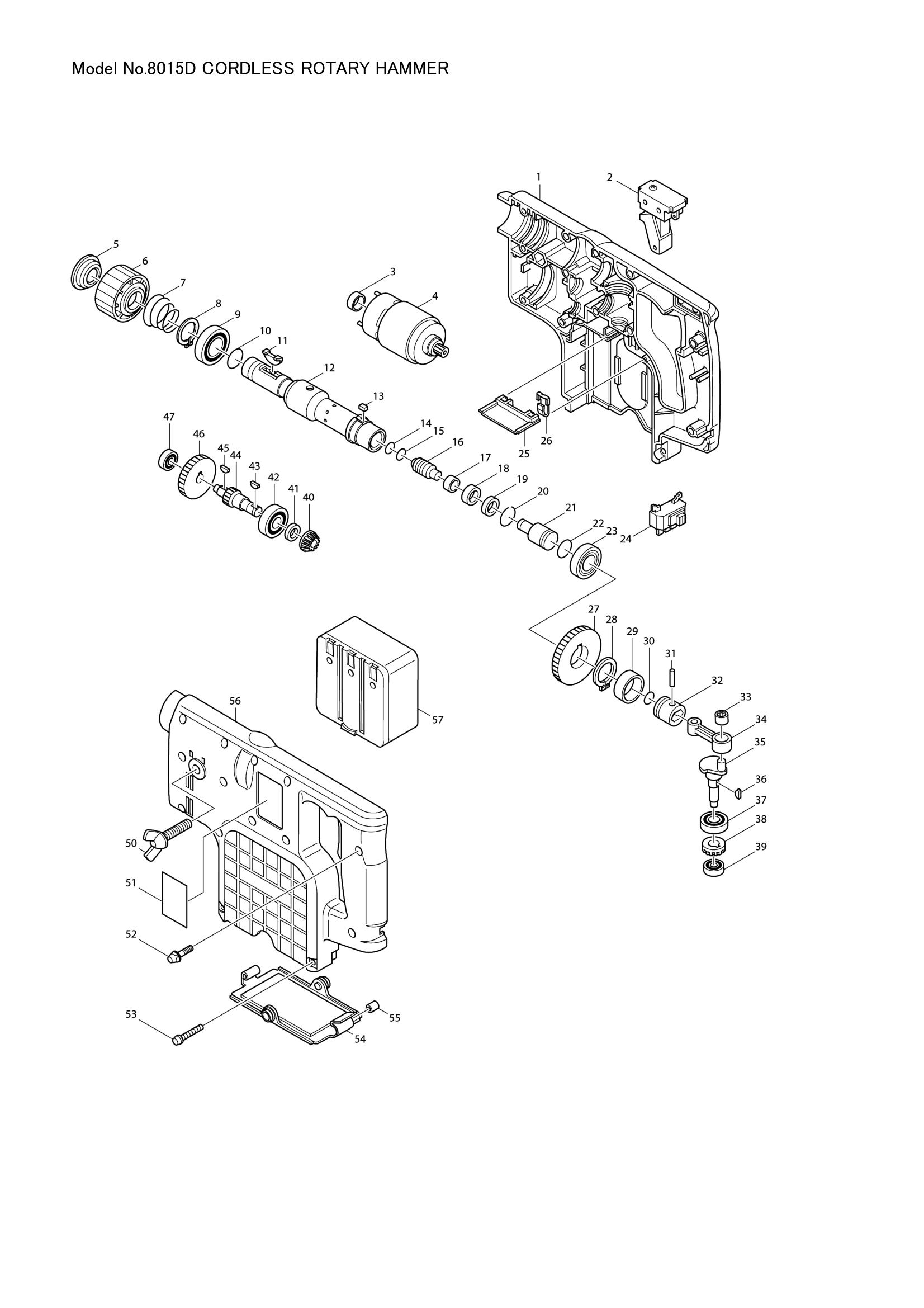

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 531052-5 | SWITCH ASS'Y C3BE-AJ-1 | 1 | €86.27 | 1-4 weeks to ship | |
| 003 | CAP 17 | 1 | Not available in store | |||
| 004 | DC MOTOR 10.8V | 1 | Not available in store | |||
| 005 | 286220-2 | CAP 34 | 1 | €4.17 | 1-4 weeks to ship | |
| 008 | 961060-6 | RETAINING RING S-20 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 211323-3 | BALL BEARING 6904LLU | 1 | €13.92 | 1-4 weeks to ship | |
| 010 | 213064-7 | O RING 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 012 | 322184-7 | CYLINDER LINER 20 | 1 | €303.49 | 1-4 weeks to ship | |
| 013 | 254201-4 | KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 213063-9 | O RING 10 | 1 | €0.83 | 1-4 weeks to ship | |
| 015 | 213063-9 | O RING 10 | 1 | €0.83 | 1-4 weeks to ship | |
| 016 | 321913-5 | IMPACT BOLT | 1 | €8.77 | 1-4 weeks to ship | |
| 017 | 262038-5 | RUBBER RING 17 | 1 | €1.11 | 1-4 weeks to ship | |
| 018 | IDLER | 1 | Not available in store | |||
| 019 | RING 13.5 | 1 | Not available in store | |||
| 020 | RING SPRING 18 | 1 | Not available in store | |||
| 021 | 321911-9 | STRIKER | 1 | €16.70 | 1-4 weeks to ship | |
| 022 | 213214-4 | O RING 16 | 1 | €1.11 | 1-4 weeks to ship | |
| 023 | 213418-8 | OIL SEAL 28 | 1 | €5.57 | 1-4 weeks to ship | |
| 024 | 531054-1 | SWITCH ASS'Y C3BC | 1 | €23.93 | 1-4 weeks to ship | |
| 025 | 414164-8 | PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 026 | 654083-8 | SPRING TERMINAL | 2 | €6.40 | 1-4 weeks to ship | |
| 027 | 221976-0 | SPUR GEAR 53 | 1 | €30.47 | 1-4 weeks to ship | |
| 028 | 961105-0 | RETAINING RING S-25 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 214355-9 | PLANE BEARING 25 | 1 | €4.45 | 1-4 weeks to ship | |
| 030 | 213214-4 | O RING 16 | 1 | €1.11 | 1-4 weeks to ship | |
| 031 | 256123-4 | PIN 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 321483-4 | PISTON | 1 | €11.13 | 1-4 weeks to ship | |
| 033 | 212005-0 | NEEDLE BEARING 810 | 1 | €4.17 | 1-4 weeks to ship | |
| 034 | 321489-2 | ROD | 1 | €22.54 | 1-4 weeks to ship | |
| 035 | 322183-9 | CRANK SHAFT | 1 | €33.26 | 1-4 weeks to ship | |
| 036 | 254031-3 | WOODRUFF KEY 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | BALL BEARING 6002 | 1 | Not available in store | |||
| 038 | STRAIGHT BEVEL GEAR 21 | 1 | Not available in store | |||
| 039 | 211019-6 | BALL BEARING 626 | 1 | €4.17 | 1-4 weeks to ship | |
| 040 | STRAIGHT BEVEL GEAR 21 | 1 | Not available in store | |||
| 041 | 257151-2 | RING 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 042 | 211064-1 | BALL BEARING 6000 | 1 | €7.65 | 1-4 weeks to ship | |
| 043 | 254031-3 | WOODRUFF KEY 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 221977-8 | SPUR GEAR 12 | 1 | €41.19 | 1-4 weeks to ship | |
| 045 | 254031-3 | WOODRUFF KEY 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 221978-6 | SPUR GEAR 54 | 1 | €23.93 | 1-4 weeks to ship | |
| 047 | 211019-6 | BALL BEARING 626 | 1 | €4.17 | 1-4 weeks to ship | |
| 051 | 856167-0 | NAME PLATE 8015D | 1 | €2.78 | 1-4 weeks to ship | |
| 053 | 911278-9 | PAN HEAD SCREW M5X55 | 2 | €0.56 | 1-4 weeks to ship | |
| 054 | 168202-5 | SET PLATE | 1 | €15.31 | 1-4 weeks to ship | |
| 055 | 257622-9 | SLEEVE 5 | 1 | €2.78 | 1-4 weeks to ship | |
| 057 | BATTERY 1000 SET | 1 | Not available in store | |||
| 401 | 158031-4 | DEPTH GAUGE COMPLETE | 1 | €5.84 | 1-4 weeks to ship | |
| 402 | DUST CUP 5 | 1 | Not available in store | |||
| 403 | 182037-0 | STEEL CARRYING CASE | 1 | €233.08 | 1-4 weeks to ship | |
