VR002C
VR002C

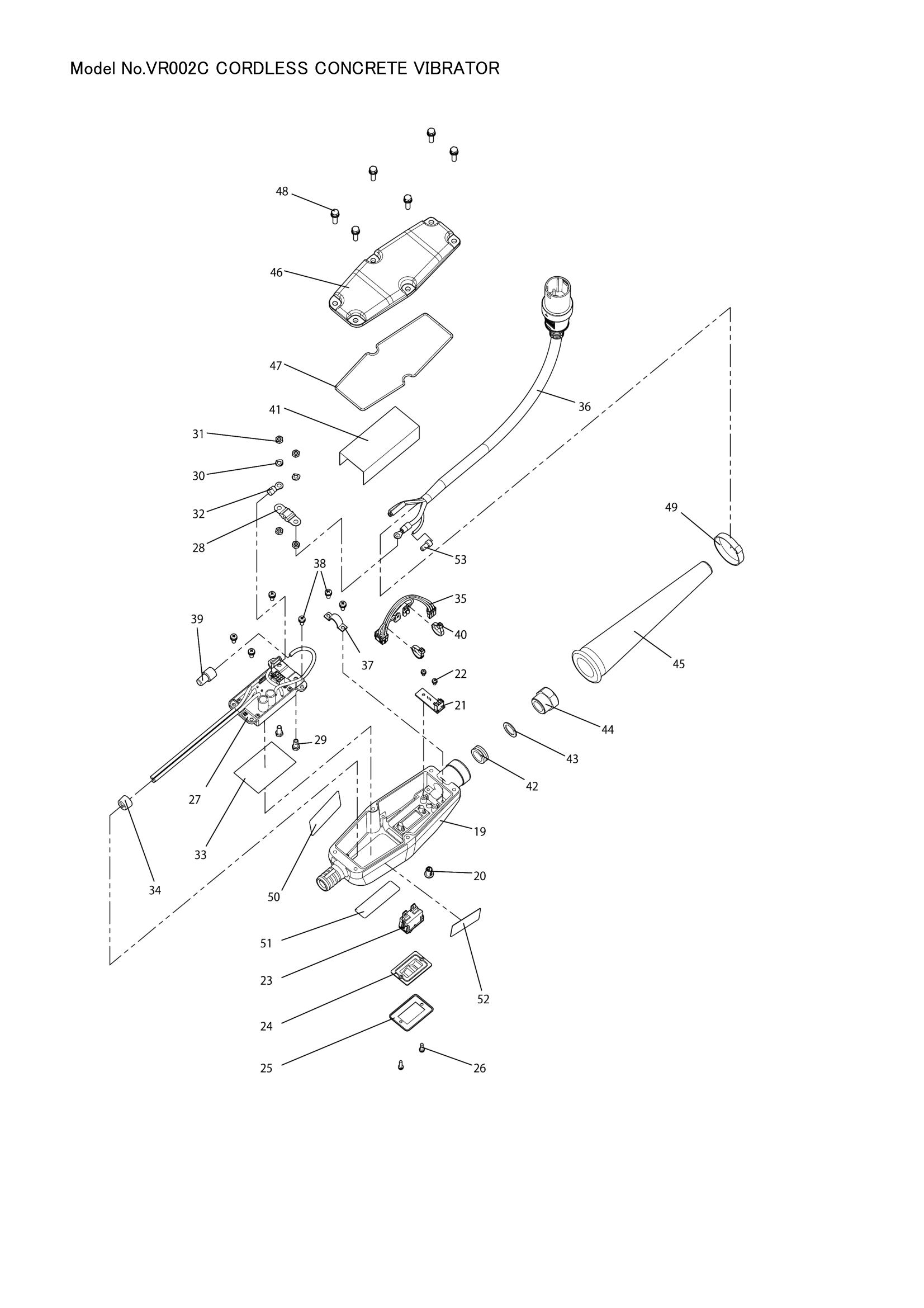

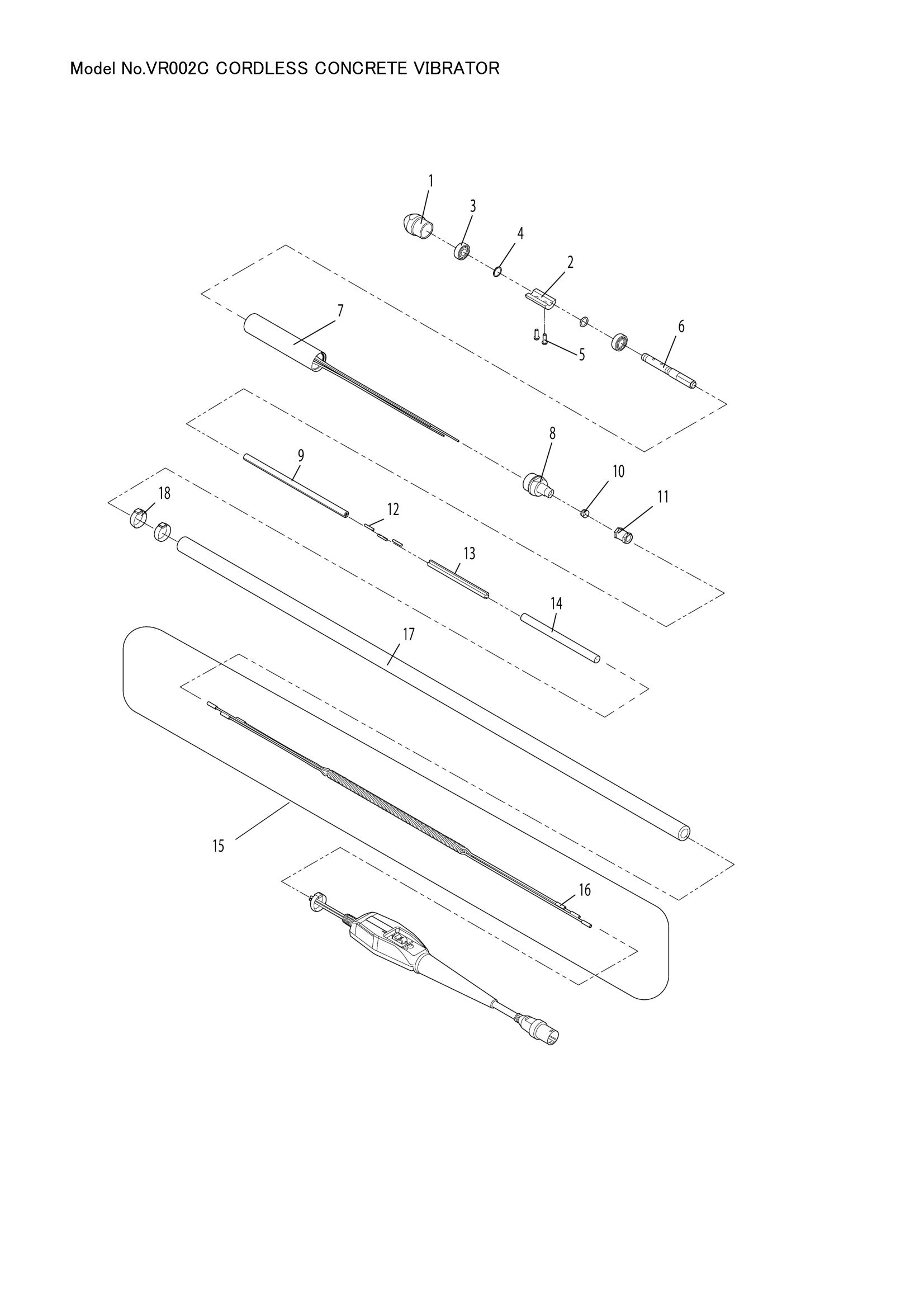

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | VIBRATOR CAP | 1 | Not available in store | |||
| VIBRATOR CAP | 1 | Not available in store | ||||
| 002 | ECCENTRIC WEIGHT | 1 | Not available in store | |||
| ECCENTRIC WEIGHT | 1 | Not available in store | ||||
| 003 | BEARING 6202JR2LLHC3 | 2 | Not available in store | |||
| BEARING 6202JR2LLHC3 | 2 | Not available in store | ||||
| 004 | WASHER M15.5X22 | 2 | Not available in store | |||
| WASHER M15.5X22 | 2 | Not available in store | ||||
| 005 | H.S.H. BUTTON BOLT M6X20 | 2 | Not available in store | |||
| H.S.H. BUTTON BOLT M6X20 | 2 | Not available in store | ||||
| 006 | ROTOR | 1 | Not available in store | |||
| ROTOR | 1 | Not available in store | ||||
| 007 | MOTOR ASSEMBLY | 1 | Not available in store | |||
| MOTOR ASSEMBLY | 1 | Not available in store | ||||
| 008 | HOSE JOINT | 1 | Not available in store | |||
| HOSE JOINT | 1 | Not available in store | ||||
| 009 | TUBE R6.5X3.5-300 | 3 | Not available in store | |||
| TUBE R6.5X3.5-300 | 3 | Not available in store | ||||
| 010 | RUBBER RING M13X17 | 1 | Not available in store | |||
| RUBBER RING M13X17 | 1 | Not available in store | ||||
| 011 | HOSE ADAPTER | 1 | Not available in store | |||
| HOSE ADAPTER | 1 | Not available in store | ||||
| 013 | INTERNAL CABLE GUIDE | 1 | Not available in store | |||
| INTERNAL CABLE GUIDE | 1 | Not available in store | ||||
| 016 | BUTT CRIMP CONNECTOR | 6 | Not available in store | |||
| BUTT CRIMP CONNECTOR | 6 | Not available in store | ||||
| 017 | HOSE M20X33X3M | 1 | Not available in store | |||
| HOSE M20X33X3M | 1 | Not available in store | ||||
| 018 | HOSE CLAMP M38 W10 | 3 | Not available in store | |||
| HOSE CLAMP M38 W10 | 3 | Not available in store | ||||
| 019 | INVERTER CASE | 1 | Not available in store | |||
| INVERTER CASE | 1 | Not available in store | ||||
| 021 | CIRCUIT BOARD LED | 1 | Not available in store | |||
| CIRCUIT BOARD LED | 1 | Not available in store | ||||
| 022 | PAN HEAD SCREW M3X6 | 2 | Not available in store | |||
| PAN HEAD SCREW M3X6 | 2 | Not available in store | ||||
| 023 | SWITCH | 1 | Not available in store | |||
| SWITCH | 1 | Not available in store | ||||
| 024 | SWITCH COVER | 1 | Not available in store | |||
| SWITCH COVER | 1 | Not available in store | ||||
| 025 | SWITCH PLATE | 1 | Not available in store | |||
| SWITCH PLATE | 1 | Not available in store | ||||
| 026 | PAN HEAD SCREW M3X12 | 2 | Not available in store | |||
| PAN HEAD SCREW M3X12 | 2 | Not available in store | ||||
| 027 | CIRCUIT BOARD ASSEMBLY | 1 | Not available in store | |||
| CIRCUIT BOARD ASSEMBLY | 1 | Not available in store | ||||
| 028 | FUSE | 1 | Not available in store | |||
| FUSE | 1 | Not available in store | ||||
| 029 | HEX BOLT M5X12 | 2 | Not available in store | |||
| HEX BOLT M5X12 | 2 | Not available in store | ||||
| 030 | SPRING WASHER 5 | 2 | Not available in store | |||
| SPRING WASHER 5 | 2 | Not available in store | ||||
| 031 | LOCK NUT M5 | 4 | Not available in store | |||
| LOCK NUT M5 | 4 | Not available in store | ||||
| 032 | RING TERMINAL | 1 | Not available in store | |||
| RING TERMINAL | 1 | Not available in store | ||||
| 033 | INSULATION SHEET B | 1 | Not available in store | |||
| INSULATION SHEET B | 1 | Not available in store | ||||
| 034 | CABLE STOPPER | 1 | Not available in store | |||
| CABLE STOPPER | 1 | Not available in store | ||||
| 035 | HARNESS BOARD | 1 | Not available in store | |||
| HARNESS BOARD | 1 | Not available in store | ||||
| 036 | CABLE ASS'Y | 1 | Not available in store | |||
| CABLE ASS'Y | 1 | Not available in store | ||||
| 037 | CORD CLAMP | 1 | Not available in store | |||
| CORD CLAMP | 1 | Not available in store | ||||
| 038 | PAN HEAD SCREW M4X10 | 6 | Not available in store | |||
| PAN HEAD SCREW M4X10 | 6 | Not available in store | ||||
| 040 | CABLE TIES | 2 | Not available in store | |||
| CABLE TIES | 2 | Not available in store | ||||
| 041 | INSULATION SHEET | 1 | Not available in store | |||
| INSULATION SHEET | 1 | Not available in store | ||||
| 042 | RUBBER RING M15X22X16 | 1 | Not available in store | |||
| RUBBER RING M15X22X16 | 1 | Not available in store | ||||
| 043 | WASHER M15.5X22 | 1 | Not available in store | |||
| WASHER M15.5X22 | 1 | Not available in store | ||||
| 044 | COMPRESSION NUT M15.5 | 1 | Not available in store | |||
| COMPRESSION NUT M15.5 | 1 | Not available in store | ||||
| 045 | CORD GUARD | 1 | Not available in store | |||
| CORD GUARD | 1 | Not available in store | ||||
| 046 | INVERTER COVER | 1 | Not available in store | |||
| INVERTER COVER | 1 | Not available in store | ||||
| 048 | HEX BOLT M5X20 | 6 | Not available in store | |||
| HEX BOLT M5X20 | 6 | Not available in store | ||||
| 049 | CLAMPING RING | 1 | Not available in store | |||
| CLAMPING RING | 1 | Not available in store | ||||
| 050 | LABEL WARNING MANUAL | 1 | Not available in store | |||
| LABEL WARNING MANUAL | 1 | Not available in store | ||||
| 051 | LABEL MAKITA | 1 | Not available in store | |||
| LABEL MAKITA | 1 | Not available in store | ||||
| 054 | LED LENS COVER SEAL | 1 | Not available in store | |||
| LED LENS COVER SEAL | 1 | Not available in store | ||||
| 055 | SEAL WASHER M3 | 2 | Not available in store | |||
| SEAL WASHER M3 | 2 | Not available in store | ||||
