VC010G
VC010G

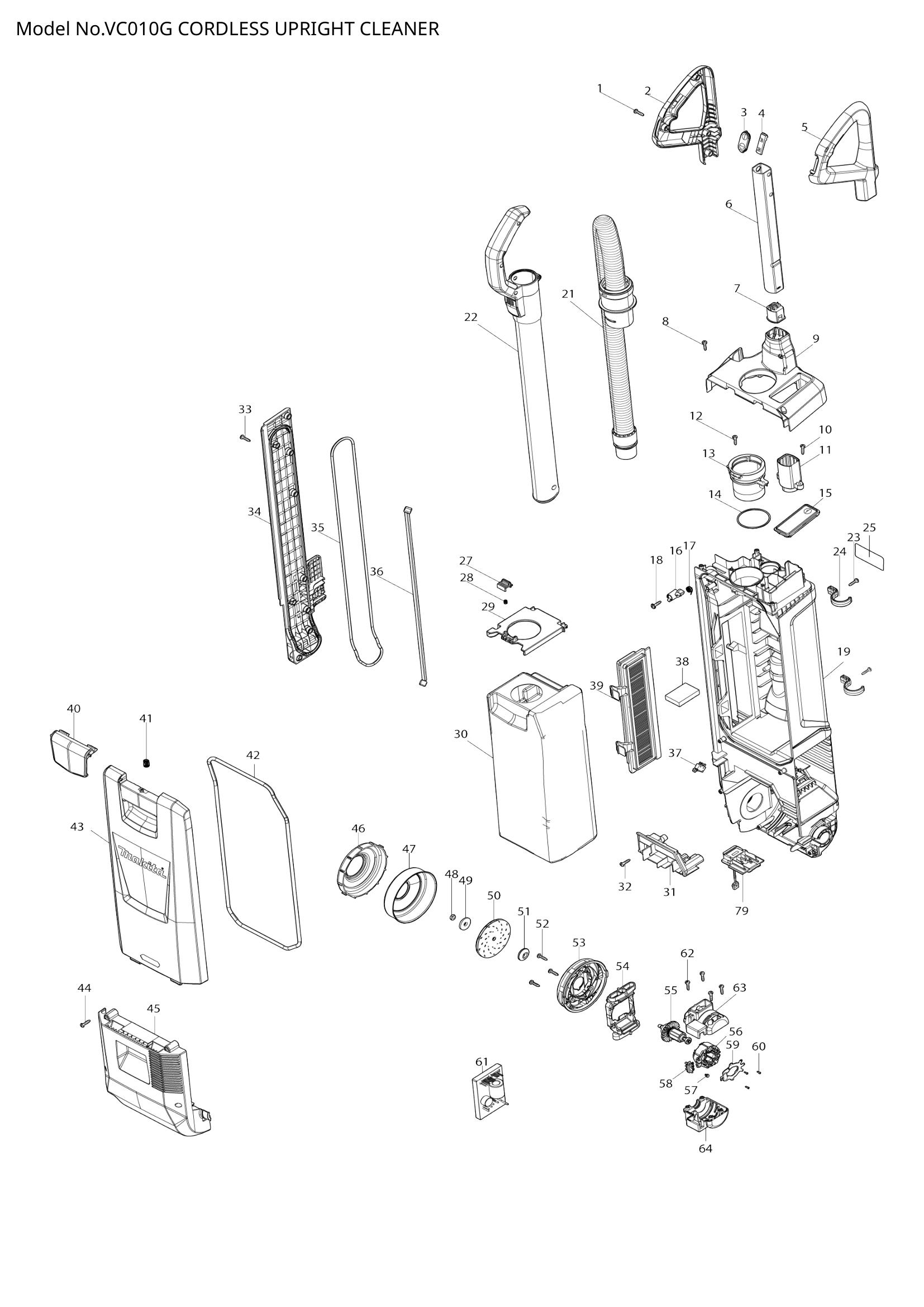

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 002 | HANDLE SET | 1 | Not available in store | |||
| HANDLE SET | 1 | Not available in store | ||||
| 003 | SWITCH PLATE COMPLETE | 1 | Not available in store | |||
| SWITCH PLATE COMPLETE | 1 | Not available in store | ||||
| 004 | 631973-2 | SWITCH UNIT | 1 | €11.13 | 1-4 weeks to ship | |
| 631973-2 | SWITCH UNIT | 1 | €11.13 | 1-4 weeks to ship | ||
| 005 | HANDLE SET | 1 | Not available in store | |||
| HANDLE SET | 1 | Not available in store | ||||
| 006 | PIPE A | 1 | Not available in store | |||
| PIPE A | 1 | Not available in store | ||||
| 007 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| 008 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 009 | TOP COVER COMPLETE | 1 | Not available in store | |||
| TOP COVER COMPLETE | 1 | Not available in store | ||||
| 010 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 011 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| 012 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 013 | INLET | 1 | Not available in store | |||
| INLET | 1 | Not available in store | ||||
| 015 | INDICATION CIRCUIT COMPLETE | 1 | Not available in store | |||
| INDICATION CIRCUIT COMPLETE | 1 | Not available in store | ||||
| 016 | STOPPER PLATE | 1 | Not available in store | |||
| STOPPER PLATE | 1 | Not available in store | ||||
| 017 | TORSION SPRING 9 | 1 | Not available in store | |||
| TORSION SPRING 9 | 1 | Not available in store | ||||
| 018 | TAPPING SCREW 4X18 | 1 | Not available in store | |||
| TAPPING SCREW 4X18 | 1 | Not available in store | ||||
| 019 | DUST BOX ASSEMBLY | 1 | Not available in store | |||
| DUST BOX ASSEMBLY | 1 | Not available in store | ||||
| 021 | HOSE COMPLETE 28-0.7 | 1 | Not available in store | |||
| HOSE COMPLETE 28-0.7 | 1 | Not available in store | ||||
| 022 | PIPE ASSEMBLY | 1 | Not available in store | |||
| PIPE ASSEMBLY | 1 | Not available in store | ||||
| 023 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 024 | NOZZLE HOLDER | 2 | Not available in store | |||
| NOZZLE HOLDER | 2 | Not available in store | ||||
| 025 | VC010G NAME PLATE | 1 | Not available in store | |||
| VC010G NAME PLATE | 1 | Not available in store | ||||
| 027 | LOCK LEVER A | 1 | Not available in store | |||
| LOCK LEVER A | 1 | Not available in store | ||||
| 028 | 231309-1 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 231309-1 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 029 | STAY | 1 | Not available in store | |||
| STAY | 1 | Not available in store | ||||
| 031 | TERMINAL CASE ASSEMBLY | 1 | Not available in store | |||
| TERMINAL CASE ASSEMBLY | 1 | Not available in store | ||||
| 032 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 033 | 266326-2 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | ||
| 034 | SIDE DUST BOX COVER | 1 | Not available in store | |||
| SIDE DUST BOX COVER | 1 | Not available in store | ||||
| 035 | SEAL RING B | 1 | Not available in store | |||
| SEAL RING B | 1 | Not available in store | ||||
| 036 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| 037 | SWITCH UNIT | 1 | Not available in store | |||
| SWITCH UNIT | 1 | Not available in store | ||||
| 038 | SPONGE SHEET | 1 | Not available in store | |||
| SPONGE SHEET | 1 | Not available in store | ||||
| 040 | LATCH | 1 | Not available in store | |||
| LATCH | 1 | Not available in store | ||||
| 041 | 234391-9 | COMPRESSION SPRING 8 | 1 | €0.14 | 1-4 weeks to ship | |
| 234391-9 | COMPRESSION SPRING 8 | 1 | €0.14 | 1-4 weeks to ship | ||
| 042 | SEAL RING A | 1 | Not available in store | |||
| SEAL RING A | 1 | Not available in store | ||||
| 043 | DUST BOX COVER | 1 | Not available in store | |||
| DUST BOX COVER | 1 | Not available in store | ||||
| 044 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 045 | MOTOR COVER COMPLETE | 1 | Not available in store | |||
| MOTOR COVER COMPLETE | 1 | Not available in store | ||||
| 046 | SUPPORT RING | 1 | Not available in store | |||
| SUPPORT RING | 1 | Not available in store | ||||
| 047 | FAN COVER | 1 | Not available in store | |||
| FAN COVER | 1 | Not available in store | ||||
| 048 | HEX. NUT M6 | 1 | Not available in store | |||
| HEX. NUT M6 | 1 | Not available in store | ||||
| 049 | 253752-4 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 253752-4 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 050 | FAN 80 | 1 | Not available in store | |||
| FAN 80 | 1 | Not available in store | ||||
| 051 | 313062-2 | FLANGE | 1 | €3.20 | 1-4 weeks to ship | |
| 313062-2 | FLANGE | 1 | €3.20 | 1-4 weeks to ship | ||
| 052 | 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | ||
| 053 | FAN BASE | 1 | Not available in store | |||
| FAN BASE | 1 | Not available in store | ||||
| 054 | SUPPORT | 1 | Not available in store | |||
| SUPPORT | 1 | Not available in store | ||||
| 055 | ROTOR | 1 | Not available in store | |||
| ROTOR | 1 | Not available in store | ||||
| 056 | STATOR | 1 | Not available in store | |||
| STATOR | 1 | Not available in store | ||||
| 057 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 058 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| 059 | CONTROLLER B | 1 | Not available in store | |||
| CONTROLLER B | 1 | Not available in store | ||||
| 060 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 061 | CONTROLLER | 1 | Not available in store | |||
| CONTROLLER | 1 | Not available in store | ||||
| 062 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 063 | MOTOR HOUSING SET | 1 | Not available in store | |||
| MOTOR HOUSING SET | 1 | Not available in store | ||||
| 064 | MOTOR HOUSING SET | 1 | Not available in store | |||
| MOTOR HOUSING SET | 1 | Not available in store | ||||
| 065 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 066 | HOSE COMPLETE 28-0.1 | 1 | Not available in store | |||
| HOSE COMPLETE 28-0.1 | 1 | Not available in store | ||||
| 067 | FRONT ROLLER | 2 | Not available in store | |||
| FRONT ROLLER | 2 | Not available in store | ||||
| 068 | FRONT ROLLER HOLDER | 1 | Not available in store | |||
| FRONT ROLLER HOLDER | 1 | Not available in store | ||||
| 069 | FRONT ROLLER SHAFT | 1 | Not available in store | |||
| FRONT ROLLER SHAFT | 1 | Not available in store | ||||
| 070 | TUBE | 1 | Not available in store | |||
| TUBE | 1 | Not available in store | ||||
| 071 | DC MOTOR | 1 | Not available in store | |||
| DC MOTOR | 1 | Not available in store | ||||
| 072 | TUBE JOINT | 1 | Not available in store | |||
| TUBE JOINT | 1 | Not available in store | ||||
| 073 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 074 | 265199-0 | + PAN HEAD SCREW M3X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 265199-0 | + PAN HEAD SCREW M3X8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 075 | BRUSH GEAR ASSEMBLY | 1 | Not available in store | |||
| BRUSH GEAR ASSEMBLY | 1 | Not available in store | ||||
| 076 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 077 | HINGE HOLDER | 2 | Not available in store | |||
| HINGE HOLDER | 2 | Not available in store | ||||
| 078 | FOOT LEVER | 1 | Not available in store | |||
| FOOT LEVER | 1 | Not available in store | ||||
| 079 | 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | |
| 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | ||
| 080 | 234339-1 | COMPRESSION SPRING 6 | 1 | €0.08 | 1-4 weeks to ship | |
| 234339-1 | COMPRESSION SPRING 6 | 1 | €0.08 | 1-4 weeks to ship | ||
| 081 | PIN 4 | 1 | Not available in store | |||
| PIN 4 | 1 | Not available in store | ||||
| 082 | LOWER HOUSING COMPLETE | 1 | Not available in store | |||
| LOWER HOUSING COMPLETE | 1 | Not available in store | ||||
| 083 | CASTER 75 COMPLETE | 2 | Not available in store | |||
| CASTER 75 COMPLETE | 2 | Not available in store | ||||
| 084 | HEIGHT CHANGE LEVER | 1 | Not available in store | |||
| HEIGHT CHANGE LEVER | 1 | Not available in store | ||||
| 085 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | ||
| 086 | UPPER HOUSING | 1 | Not available in store | |||
| UPPER HOUSING | 1 | Not available in store | ||||
| 087 | CAM | 1 | Not available in store | |||
| CAM | 1 | Not available in store | ||||
| 088 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 089 | LED CIRCUIT | 1 | Not available in store | |||
| LED CIRCUIT | 1 | Not available in store | ||||
| 090 | BUMPER | 1 | Not available in store | |||
| BUMPER | 1 | Not available in store | ||||
| 091 | BRUSH COMPLETE SET | 1 | Not available in store | |||
| BRUSH COMPLETE SET | 1 | Not available in store | ||||
| 092 | SIDE BRUSH | 1 | Not available in store | |||
| SIDE BRUSH | 1 | Not available in store | ||||
| 093 | BOTTOM PLATE ASSEMBLY | 1 | Not available in store | |||
| BOTTOM PLATE ASSEMBLY | 1 | Not available in store | ||||
| 094 | BRUSH | 1 | Not available in store | |||
| BRUSH | 1 | Not available in store | ||||
