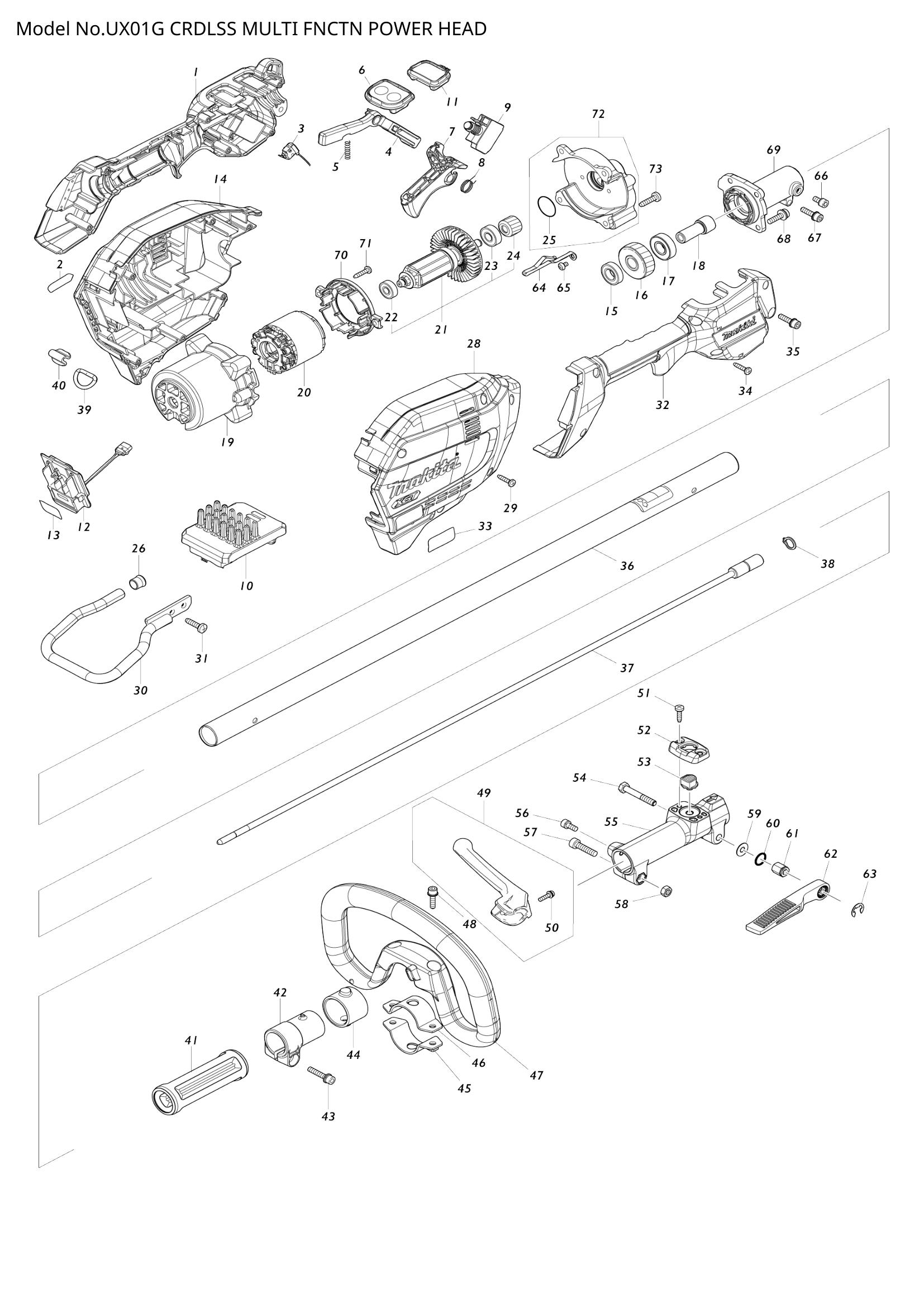

UX01G
UX01G
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | GRIP SET | 1 | Not available in store | |||
| 002 | XGT LOGO LABEL | 1 | Not available in store | |||
| 003 | 632G61-0 | SWITCH UNIT | 1 | €10.30 | 1-4 weeks to ship | |
| 004 | LOCK OFF LEVER | 1 | Not available in store | |||
| 005 | 233101-1 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | SWITCH CIRCUIT COMPLETE G | 1 | Not available in store | |||
| 007 | SWITCH LEVER | 1 | Not available in store | |||
| 008 | TORSION SPRING 12 | 1 | Not available in store | |||
| 009 | SWITCH C3JW-1A-P-2 | 1 | Not available in store | |||
| 011 | INDICATION CIRCUIT COMPLETE | 1 | Not available in store | |||
| 012 | 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | |
| 013 | UX01G SERIAL NO. LABEL | 1 | Not available in store | |||
| 014 | HOUSING SET | 1 | Not available in store | |||
| 015 | 211150-8 | BALL BEARING 6901ZZ | 1 | €5.57 | 1-4 weeks to ship | |
| 016 | HELICAL GEAR 33 | 1 | Not available in store | |||
| 017 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 018 | 325811-5 | SPINDLE HUB | 1 | €16.70 | 1-4 weeks to ship | |
| 019 | MOTOR HOUSING | 1 | Not available in store | |||
| 020 | STATOR | 1 | Not available in store | |||
| 021 | ROTOR ASS'Y | 1 | Not available in store | |||
| 022 | 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 023 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 024 | HELICAL GEAR 16 | 1 | Not available in store | |||
| 025 | 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | CAP | 1 | Not available in store | |||
| 028 | HOUSING SET | 1 | Not available in store | |||
| 029 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 030 | BATTERY GUARD | 1 | Not available in store | |||
| 031 | 266420-0 | TAPPING SCREW 5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 032 | GRIP SET | 1 | Not available in store | |||
| 033 | UX01G NAME PLATE | 1 | Not available in store | |||
| 034 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 035 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | SHAFT PIPE B COMPLETE | 1 | Not available in store | |||
| 037 | 141238-9 | SHAFT B COMPLETE | 1 | €23.79 | 1-4 weeks to ship | |
| 038 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | D RING 20 | 1 | Not available in store | |||
| 040 | RING SUPPORT | 1 | Not available in store | |||
| 041 | 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | |
| 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | ||
| 042 | 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | |
| 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | ||
| 043 | 922244-1 | H.S.H.BOLT M5X25 WITH WG | 1 | €1.39 | 1-4 weeks to ship | |
| 044 | 424942-8 | DAMPER | 1 | €1.31 | 1-4 weeks to ship | |
| 045 | 347114-7 | LOWER CLAMP 35 | 1 | €1.35 | 1-4 weeks to ship | |
| 046 | 347113-9 | UPPER CLAMP 35 | 1 | €0.81 | 1-4 weeks to ship | |
| 047 | 457772-2 | LOOP HANDLE | 1 | €12.48 | 1-4 weeks to ship | |
| 457772-2 | LOOP HANDLE | 1 | €12.48 | 1-4 weeks to ship | ||
| 048 | H.S.H.BOLT M5X20 WITH WG | 2 | Not available in store | |||
| 049 | 144315-6 | BARRIER COMPLETE | 1 | €3.92 | 1-4 weeks to ship | |
| 050 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 051 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 052 | 452840-6 | RELEASE BUTTON COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 053 | 452839-1 | RELEASE BUTTON | 1 | €0.97 | 1-4 weeks to ship | |
| 054 | 265596-0 | HEX.BOLT M6X40 | 1 | €0.42 | 1-4 weeks to ship | |
| 056 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | 922342-1 | HEX. SOCKET HEAD BOLT M6X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 253332-6 | THIN WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 213105-9 | O RING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 252159-1 | HEX. NUT M6 | 1 | €2.78 | 1-4 weeks to ship | |
| 062 | 272268-0 | LEVER 94 | 1 | €2.78 | 1-4 weeks to ship | |
| 063 | 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 065 | 911102-6 | PAN HEAD SCREW M4X6 | 1 | €0.14 | 1-4 weeks to ship | |
| 066 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 069 | PIPE BRACKET COMPLETE | 1 | Not available in store | |||
| 070 | BAFFLE PLATE | 1 | Not available in store | |||
| 071 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 072 | GEAR BOX ASSY | 1 | Not available in store | |||
| 073 | 266420-0 | TAPPING SCREW 5X20 | 4 | €0.56 | 1-4 weeks to ship | |
