UT1401
UT1401

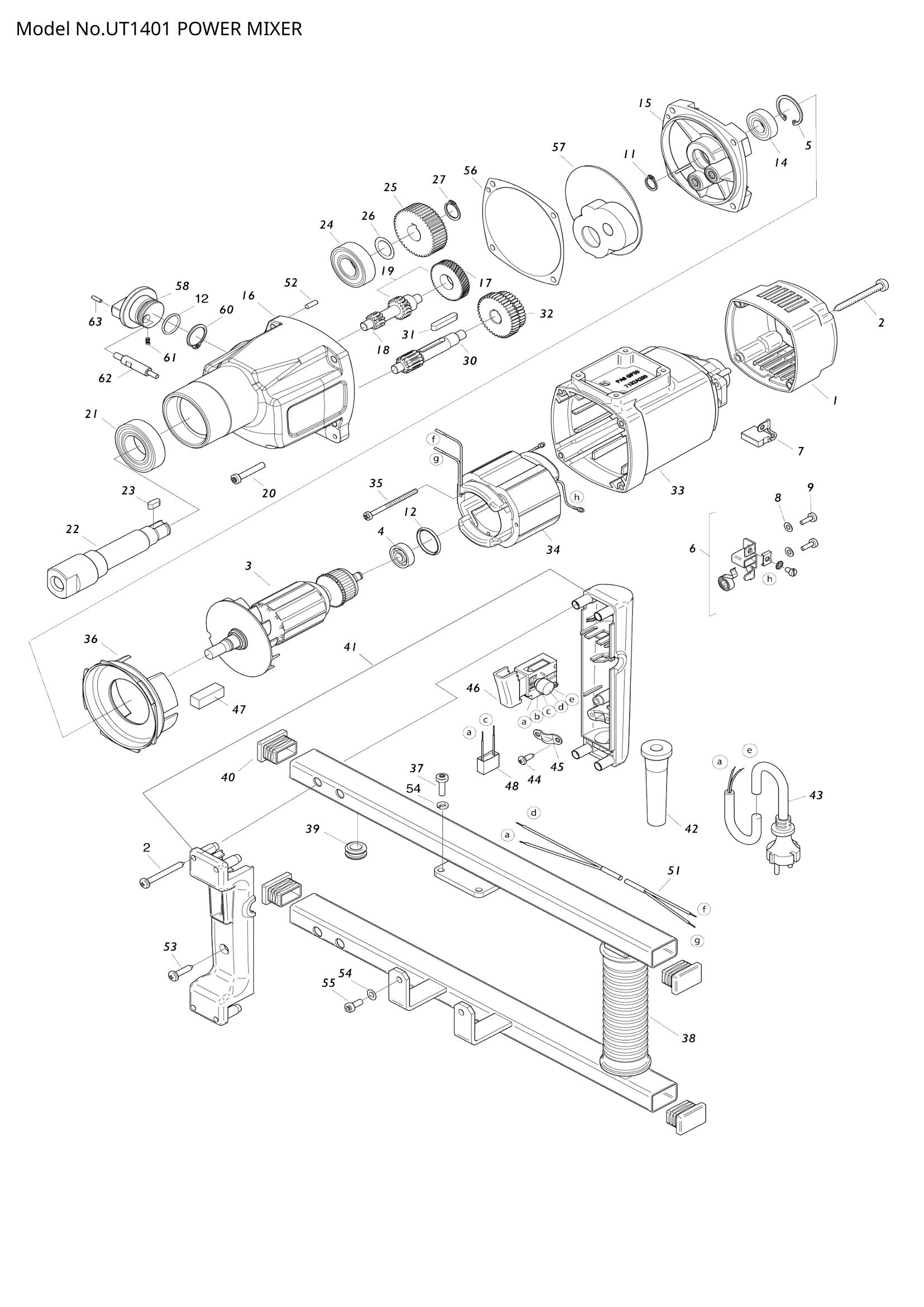

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | EE80900093 | CAP | 1 | €13.64 | 1-4 weeks to ship | |
| 003 | ROTOR COMPLETE | 1 | Not available in store | |||
| 004 | GROOVED BALL BEARING | 1 | Not available in store | |||
| 005 | EE80201333 | LOCKING RING | 1 | €1.11 | 1-4 weeks to ship | |
| 006 | EE80201196 | BRUSH HOLDER | 2 | €13.92 | 1-4 weeks to ship | |
| 008 | LOCK WASHER | 4 | Not available in store | |||
| 009 | SELF TAPPING SCREW | 4 | Not available in store | |||
| 011 | LOCKING RING | 1 | Not available in store | |||
| 012 | EE83000036 | O RING | 2 | €0.83 | 1-4 weeks to ship | |
| 014 | GROOVED BALL BEARING | 1 | Not available in store | |||
| 015 | END SHIELD OF GEARING | 1 | Not available in store | |||
| 016 | GEARBOX HOUSING / CASING | 1 | Not available in store | |||
| 017 | INTERMEDIATE WHEEL | 1 | Not available in store | |||
| 018 | SHAFT | 1 | Not available in store | |||
| 019 | PINION SHAFT COMPLETE0 | 1 | Not available in store | |||
| 020 | PT-SCREW | 4 | Not available in store | |||
| 021 | GROOVED BALL BEARING | 1 | Not available in store | |||
| 022 | WORK SPINDLE | 1 | Not available in store | |||
| 023 | FITTING KEY | 1 | Not available in store | |||
| 024 | GROOVED BALL BEARING | 1 | Not available in store | |||
| 025 | SPINDLE WHEEL | 1 | Not available in store | |||
| 026 | EE80200504 | FITTING WASHER | 1 | €0.83 | 1-4 weeks to ship | |
| 027 | LOCKING RING | 1 | Not available in store | |||
| 030 | SHAFT | 1 | Not available in store | |||
| 031 | FITTING KEY | 1 | Not available in store | |||
| 032 | GEAR BLOCK/ CLUSTER GEAR | 1 | Not available in store | |||
| 034 | STATOR COMPLETE | 1 | Not available in store | |||
| 035 | EE80201266 | SELF TAPPING SCREW | 2 | €1.67 | 1-4 weeks to ship | |
| 036 | EE80900286 | AIR GUIDING RING | 1 | €5.43 | 1-4 weeks to ship | |
| 037 | PLASTIC SCREW | 4 | Not available in store | |||
| 042 | EE83000004 | CABLE GROMMET | 1 | €4.17 | 1-4 weeks to ship | |
| 043 | CONNECTING CABLE | 1 | Not available in store | |||
| 044 | EE80201270 | SELF TAPPING SCREW | 2 | €2.09 | 1-4 weeks to ship | |
| 045 | EE85000020 | WIRE LOCKING FLANGE | 1 | €2.78 | 1-4 weeks to ship | |
| 048 | EE80500010 | ANTI PARASITE CONDENSER | 1 | €11.13 | 1-4 weeks to ship | |
| 049 | SIDE PLATE 2 S | 1 | Not available in store | |||
| 051 | INTERCONNECTING WIRE | 1 | Not available in store | |||
| 052 | EE80200582 | NOTCHED PIN PLUG | 1 | €2.09 | 1-4 weeks to ship | |
| 054 | LOCK WASHER | 6 | Not available in store | |||
| 055 | SCREW | 2 | Not available in store | |||
| 056 | GEARBOX SEAL | 1 | Not available in store | |||
| 057 | GREASE COMPARTMENT BARRIE | 1 | Not available in store | |||
| 058 | SWITCH BUTTON | 1 | Not available in store | |||
| 060 | LOCKING RING | 1 | Not available in store | |||
| 061 | SNAP BOLT | 1 | Not available in store | |||
| 062 | SHIFT PIN | 1 | Not available in store | |||
| 063 | CYLINDER PIN | 1 | Not available in store | |||
