UT1305
UT1305

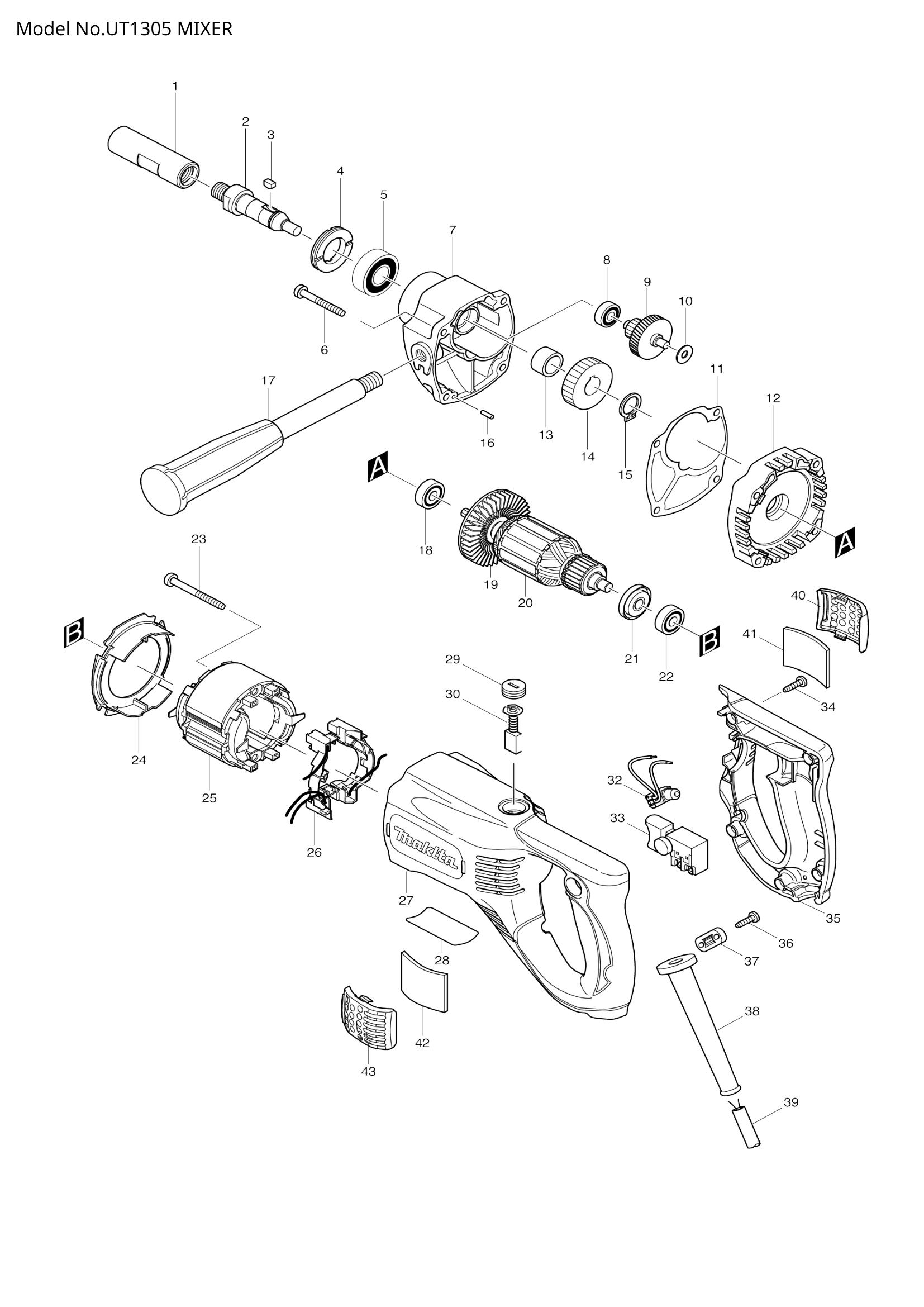

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | SPINDLE | 1 | Not available in store | |||
| 003 | 254011-9 | WOODRUFF KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 285807-7 | BEARING RETAINER 22-36 | 1 | €2.78 | 1-4 weeks to ship | |
| 005 | 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 006 | 266211-9 | TAPPING SCREW 5X40 | 4 | €0.56 | 1-4 weeks to ship | |
| 007 | GEAR HOUSING | 1 | Not available in store | |||
| 008 | 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 009 | GEAR COMPLETE 12-41 | 1 | Not available in store | |||
| 010 | 253804-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | GEAR HOUSING COVER COMPLE | 1 | Not available in store | |||
| 013 | SLEEVE 15 | 1 | Not available in store | |||
| 014 | HELICAL GEAR 34 | 1 | Not available in store | |||
| 015 | 961055-9 | RETAINING RING S-15 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 256180-2 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 152892-4 | GRIP COMPLETE | 1 | €10.44 | 1-4 weeks to ship | |
| 018 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 019 | 241850-6 | FAN 60 | 1 | €4.45 | 1-4 weeks to ship | |
| 020 | ARMATURE ASS'Y 240V | 1 | Not available in store | |||
| 021 | 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 023 | 266046-8 | TAPPING SCREW 5X50 | 2 | €1.11 | 1-4 weeks to ship | |
| 024 | BAFFLE PLATE | 1 | Not available in store | |||
| 025 | FIELD 230-240V | 1 | Not available in store | |||
| 026 | SUPPORT COMPLETE | 1 | Not available in store | |||
| 027 | MOTOR HOUSING COMPLETE | 1 | Not available in store | |||
| 028 | UT1305 NAME PLATE | 1 | Not available in store | |||
| 032 | PILOT LAMP | 1 | Not available in store | |||
| 033 | SWITCH SGEL115CD-1 | 1 | Not available in store | |||
| 034 | 265995-6 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 035 | HANDLE COVER | 1 | Not available in store | |||
| 036 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 037 | 687063-9 | CORD CLAMP | 1 | €1.11 | 1-4 weeks to ship | |
| 038 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 039 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | Not available in store | |||
| 040 | COVER | 1 | Not available in store | |||
| 041 | FILTER | 1 | Not available in store | |||
| 042 | FILTER | 1 | Not available in store | |||
| 043 | COVER | 1 | Not available in store | |||
