UT001G
UT001G

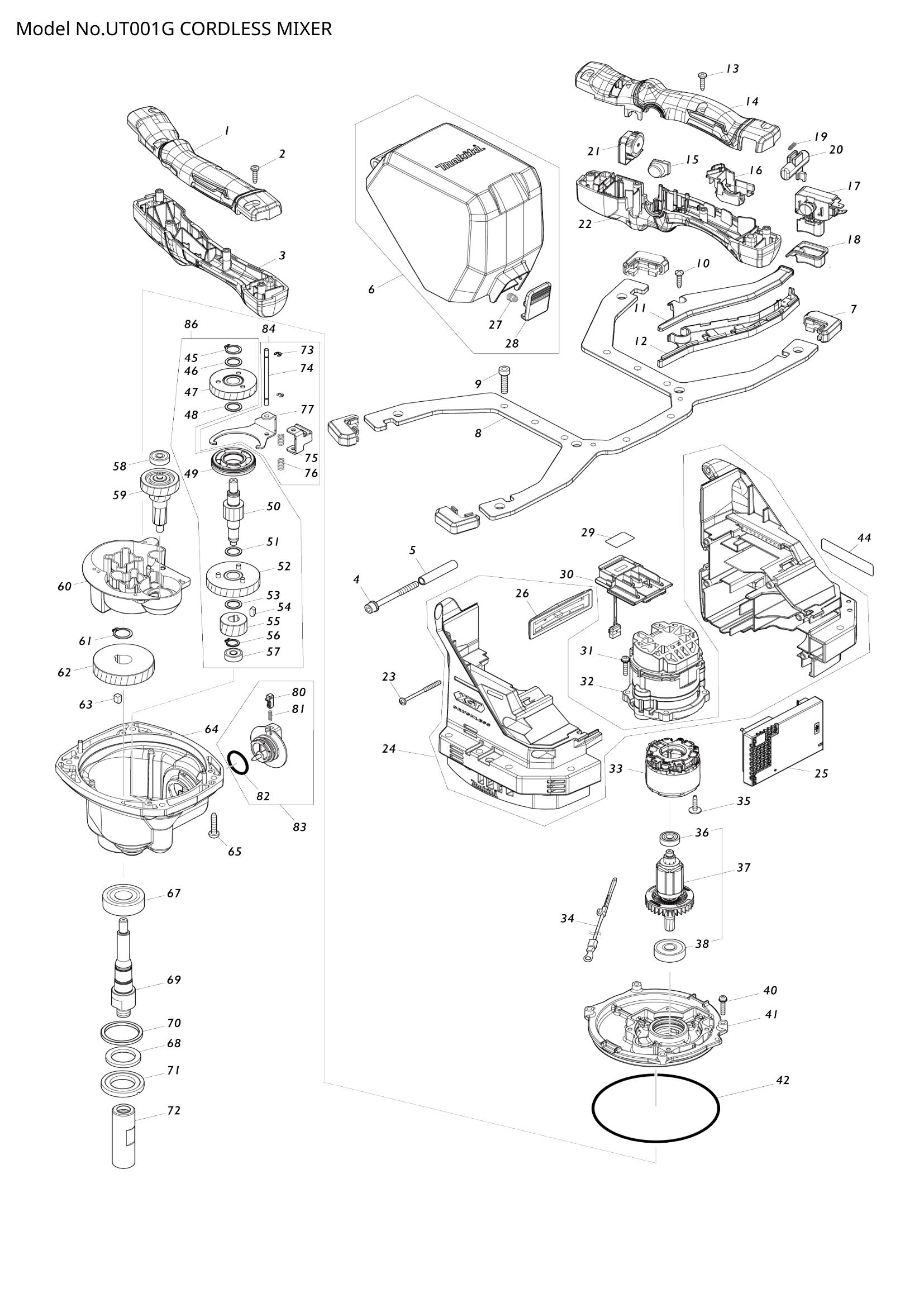

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | LEFT GRIP SET | 1 | Not available in store | |||
| 002 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 003 | LEFT GRIP SET | 1 | Not available in store | |||
| 004 | H.S.H.BOLT M6X60 WITH WR | 1 | Not available in store | |||
| 005 | SLEEVE 6 | 1 | Not available in store | |||
| 006 | 122D95-8 | COVER L ASSEMBLY | 1 | €31.46 | 1-4 weeks to ship | |
| 007 | HANDLE GUARD | 4 | Not available in store | |||
| 008 | HANDLE | 1 | Not available in store | |||
| 009 | 922342-1 | HEX. SOCKET HEAD BOLT M6X25 | 8 | €0.56 | 1-4 weeks to ship | |
| 010 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | HANDLE COVER | 1 | Not available in store | |||
| 012 | LEAD HOLDER | 1 | Not available in store | |||
| 013 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 014 | RIGHT GRIP SET | 1 | Not available in store | |||
| 015 | 458819-5 | LOCK ON BUTTON COVER | 1 | €1.39 | 1-4 weeks to ship | |
| 016 | SWITCH SUPPORT | 1 | Not available in store | |||
| 017 | SWITCH C3JW-4BM-1L-R | 1 | Not available in store | |||
| 018 | 458816-1 | SWITCH COVER | 1 | €2.56 | 1-4 weeks to ship | |
| 019 | 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | LOCK OFF BUTTON | 1 | Not available in store | |||
| 021 | DIAL CIRCUIT | 1 | Not available in store | |||
| 022 | RIGHT GRIP SET | 1 | Not available in store | |||
| 023 | 266467-4 | TAPPING SCREW 4X50 | 6 | €0.56 | 1-4 weeks to ship | |
| 024 | HOUSING SET | 1 | Not available in store | |||
| 025 | CONTROLLER | 1 | Not available in store | |||
| 026 | LOGO PLATE | 1 | Not available in store | |||
| 027 | COMPRESSION SPRING 7 | 1 | Not available in store | |||
| 028 | HOOK | 1 | Not available in store | |||
| 029 | UT001G SERIAL NO. LABEL | 1 | Not available in store | |||
| 030 | 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | |
| 031 | 911138-5 | P.H.SCREW M4X20 WITH WR | 4 | €0.56 | 1-4 weeks to ship | |
| 032 | MOTOR HOUSING | 1 | Not available in store | |||
| 033 | STATOR | 1 | Not available in store | |||
| 034 | LEAD UNIT | 1 | Not available in store | |||
| 035 | TAPPING SCREW FLANGE 4X18 | 2 | Not available in store | |||
| 036 | 211022-7 | BALL BEARING 607ZZ | 1 | €5.57 | 1-4 weeks to ship | |
| 037 | ROTOR ASSEMBLY | 1 | Not available in store | |||
| 038 | 211087-9 | BALL BEARING 6200DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 040 | 911138-5 | P.H.SCREW M4X20 WITH WR | 4 | €0.56 | 1-4 weeks to ship | |
| 041 | MOTOR BRACKET ASSY | 1 | Not available in store | |||
| 042 | O-RING 115 | 1 | Not available in store | |||
| 044 | UT001G NAME PLATE | 1 | Not available in store | |||
| 045 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 267104-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | SPUR GEAR 42 COMPLETE | 1 | Not available in store | |||
| 048 | 267104-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | SPEED CHANGE RING | 1 | Not available in store | |||
| 050 | SHAFT | 1 | Not available in store | |||
| 051 | 267104-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | SPUR GEAR 49 COMPLETE | 1 | Not available in store | |||
| 053 | 267104-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 254239-9 | KEY 4 | 1 | €1.11 | 1-4 weeks to ship | |
| 055 | HELICAL GEAR 13 | 1 | Not available in store | |||
| 056 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | 211012-0 | BALL BEARING 606ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 058 | 211016-2 | BALL BEARING 626LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 059 | SPUR GEAR 10-16 COMPLETE | 1 | Not available in store | |||
| 060 | GEAR COVER | 1 | Not available in store | |||
| 061 | 961056-7 | RETAINING RING S-16 | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | HELICAL GEAR 34 | 1 | Not available in store | |||
| 063 | 254211-1 | KEY 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 064 | GEAR CASE ASSEMBLY | 1 | Not available in store | |||
| 065 | 266459-3 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 067 | 211278-2 | BALL BEARING 6203DDW | 1 | €11.13 | 1-4 weeks to ship | |
| 068 | FELT RING 24 | 1 | Not available in store | |||
| 069 | SPINDLE | 1 | Not available in store | |||
| 070 | RING 33 | 1 | Not available in store | |||
| 071 | BEARING RETAINER 22-41 | 1 | Not available in store | |||
| 072 | SHAFT HOLDER 1/2-M12 | 1 | Not available in store | |||
| 073 | 961017-7 | STOP RING E-3 | 2 | €0.56 | 1-4 weeks to ship | |
| 074 | PIN 4 | 1 | Not available in store | |||
| 075 | CHANGE PLATE A | 1 | Not available in store | |||
| 076 | COMPRESSION SPRING 5 | 2 | Not available in store | |||
| 077 | CHANGE PLATE B | 1 | Not available in store | |||
| 080 | 161568-2 | LOCK BUTTON COMPLETE | 1 | €0.97 | 1-4 weeks to ship | |
| 081 | 232344-2 | COMPRESSION SPRING 3 | 1 | €0.14 | 1-4 weeks to ship | |
| 082 | 213370-0 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 083 | CHANGE LEVER ASSEMBLY | 1 | Not available in store | |||
| 084 | CHANGE PLATE ASSEMBLY | 1 | Not available in store | |||
| 086 | GEAR ASSEMBLY | 1 | Not available in store | |||
