US053D
US053D

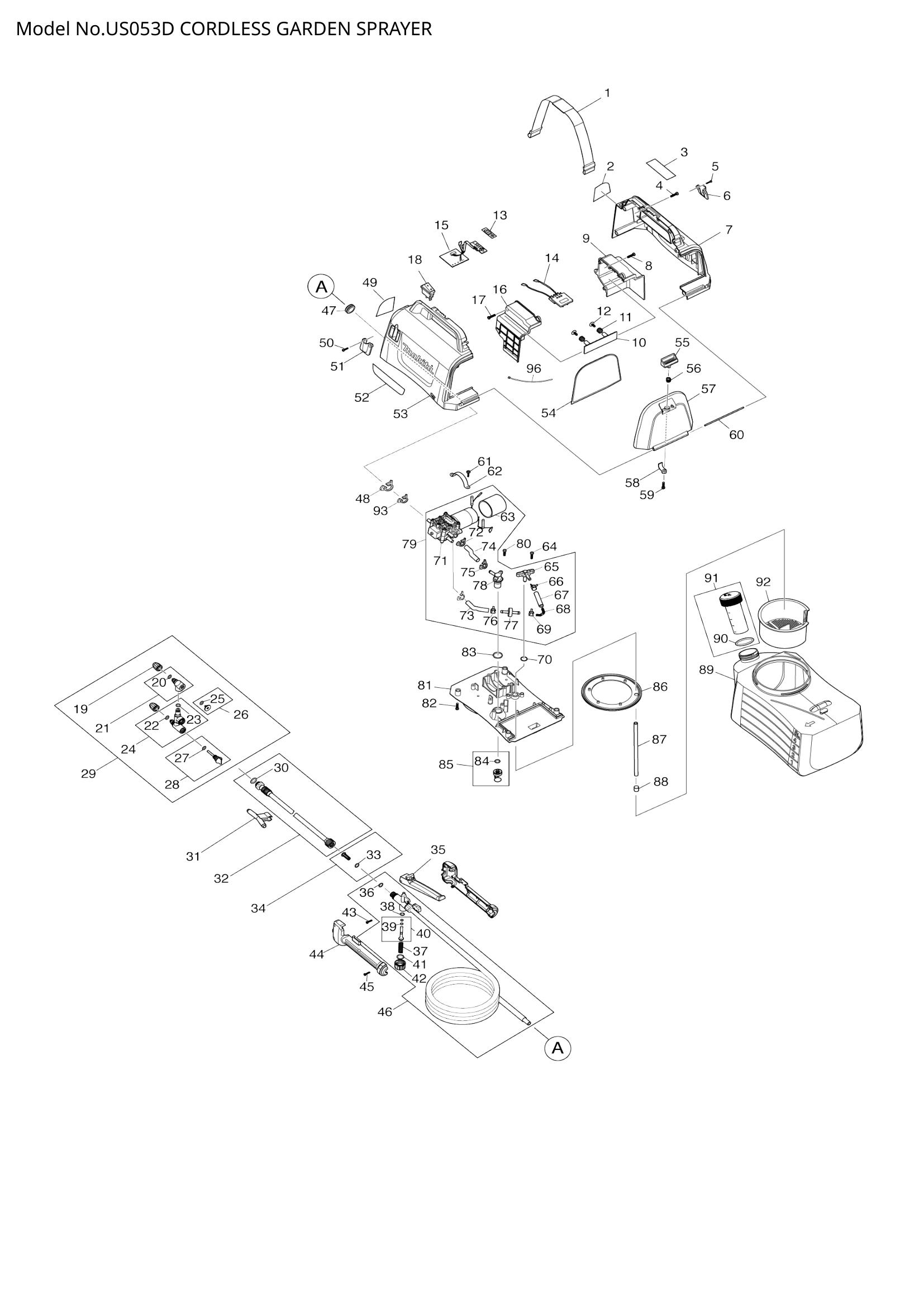

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | SHOULDER STRAP | 1 | Not available in store | |||
| 002 | WARNING TEXT LABEL-EN | 1 | Not available in store | |||
| 003 | RATING LABEL-0002 | 1 | Not available in store | |||
| 004 | TAPPINNG SCREW ST4.0X16 | 6 | Not available in store | |||
| 005 | TAPPINNG SCREW ST2.9X12 | 2 | Not available in store | |||
| 007 | HOUSING SET | 1 | Not available in store | |||
| 008 | TAPPINNG SCREW ST4.0X16 | 1 | Not available in store | |||
| 009 | BATTERY HOUSING | 1 | Not available in store | |||
| 010 | DAM-BOARD | 1 | Not available in store | |||
| 011 | DAM-BOARD SPRING | 2 | Not available in store | |||
| 012 | TAPPING SCREW ST4.0X12 | 2 | Not available in store | |||
| 013 | INDICATION LABEL | 1 | Not available in store | |||
| 015 | PCB | 1 | Not available in store | |||
| 016 | BATTERY HOUSING | 1 | Not available in store | |||
| 017 | TAPPINNG SCREW ST4.0X16 | 2 | Not available in store | |||
| 018 | SWITCH | 1 | Not available in store | |||
| 019 | SPRAY HEAD | 2 | Not available in store | |||
| 020 | O RING 6X2 | 1 | Not available in store | |||
| 021 | NOZZLE HOLDER | 1 | Not available in store | |||
| 022 | O RING 6X2 | 1 | Not available in store | |||
| 023 | O RING 6X2 | 1 | Not available in store | |||
| 024 | ROD JOINT | 1 | Not available in store | |||
| 025 | O RING 6X2 | 1 | Not available in store | |||
| 026 | END CAP | 1 | Not available in store | |||
| 027 | O RING 6X2 | 1 | Not available in store | |||
| 028 | ADJUSTING KNOB | 1 | Not available in store | |||
| 029 | TWO HEAD NOZZLE | 1 | Not available in store | |||
| 030 | SEAL PAD 9X17X2 | 1 | Not available in store | |||
| 031 | HOOK | 1 | Not available in store | |||
| 033 | O SEAL RING 4.5X1.5 | 1 | Not available in store | |||
| 034 | FILTER ASSEMBLY | 1 | Not available in store | |||
| 035 | HANDLE TRIGGER ASSEMBLY | 1 | Not available in store | |||
| 036 | O RING 8X1.8 | 1 | Not available in store | |||
| 037 | SPRING | 1 | Not available in store | |||
| 039 | PR00000205 | O RING 3X1.5 | 2 | €2.02 | 1-4 weeks to ship | |
| 040 | PR00000151 | VALVE ROD | 1 | €0.97 | 1-4 weeks to ship | |
| 041 | O RING 12X2 | 1 | Not available in store | |||
| 042 | LOCK COVER | 1 | Not available in store | |||
| 043 | TAPPINNG SCREW ST2.9X12 | 1 | Not available in store | |||
| 045 | TAPPINNG SCREW ST2.9X12 | 5 | Not available in store | |||
| 047 | GROMMET | 1 | Not available in store | |||
| 048 | SNAPPER HOSE CLAMP (L) | 1 | Not available in store | |||
| 049 | WARNING LOGO LABEL | 1 | Not available in store | |||
| 050 | TAPPINNG SCREW ST2.9X12 | 2 | Not available in store | |||
| 052 | DECORATION LABEL 12V MAX | 1 | Not available in store | |||
| 053 | HOUSING SET | 1 | Not available in store | |||
| 054 | BATTERY COVER SEAL PAD | 1 | Not available in store | |||
| 055 | BATTERY COVER BUTTON | 1 | Not available in store | |||
| 056 | SPRING | 1 | Not available in store | |||
| 057 | BATTERY COVER | 1 | Not available in store | |||
| 058 | PRESS-BUTTON | 1 | Not available in store | |||
| 059 | TAPPING SCREW ST2.9X15 | 1 | Not available in store | |||
| 060 | SHAFT | 1 | Not available in store | |||
| 061 | TAPPINNG SCREW ST4.0X16 | 2 | Not available in store | |||
| 062 | MOTOR FIXED BLOCK | 1 | Not available in store | |||
| 063 | SHOCK ABSORBER RING | 1 | Not available in store | |||
| 064 | TAPPINNG SCREW ST4.0X16 | 2 | Not available in store | |||
| 065 | INLET CONNECTION | 1 | Not available in store | |||
| 066 | HOSE CLIP | 1 | Not available in store | |||
| 067 | DELIVERY TUBE (55MM) | 1 | Not available in store | |||
| 068 | SPRING | 1 | Not available in store | |||
| 069 | HOSE CLIP | 1 | Not available in store | |||
| 070 | O RING 12X2 | 1 | Not available in store | |||
| 076 | HOSE CLIP | 1 | Not available in store | |||
| 077 | CHECK VALVE ASSEMBLY | 1 | Not available in store | |||
| 078 | WATER INLET | 1 | Not available in store | |||
| 080 | TAPPINNG SCREW ST4.0X16 | 2 | Not available in store | |||
| 081 | BASE BOARD | 1 | Not available in store | |||
| 082 | TAPPINNG SCREW ST4.0X16 | 4 | Not available in store | |||
| 083 | O RING 17X2 | 1 | Not available in store | |||
| 084 | O RING 6X2 | 1 | Not available in store | |||
| 085 | KNOB LOCK CAP ASSEMBLY | 1 | Not available in store | |||
| 086 | SEAL PAD FOR TANK | 1 | Not available in store | |||
| 087 | SUCTION TUBE 190MM | 1 | Not available in store | |||
| 088 | FILTER | 1 | Not available in store | |||
| 089 | TANK (LITRE) | 1 | Not available in store | |||
| 090 | O RING 34X3.5 | 1 | Not available in store | |||
| 091 | TANK CAP WITH MEASURING CU | 1 | Not available in store | |||
| 092 | FILTER CARTRIDGE | 1 | Not available in store | |||
| 096 | 687010-0 | BAND | 1 | €0.56 | 1-4 weeks to ship | |
