UR3500
UR3500

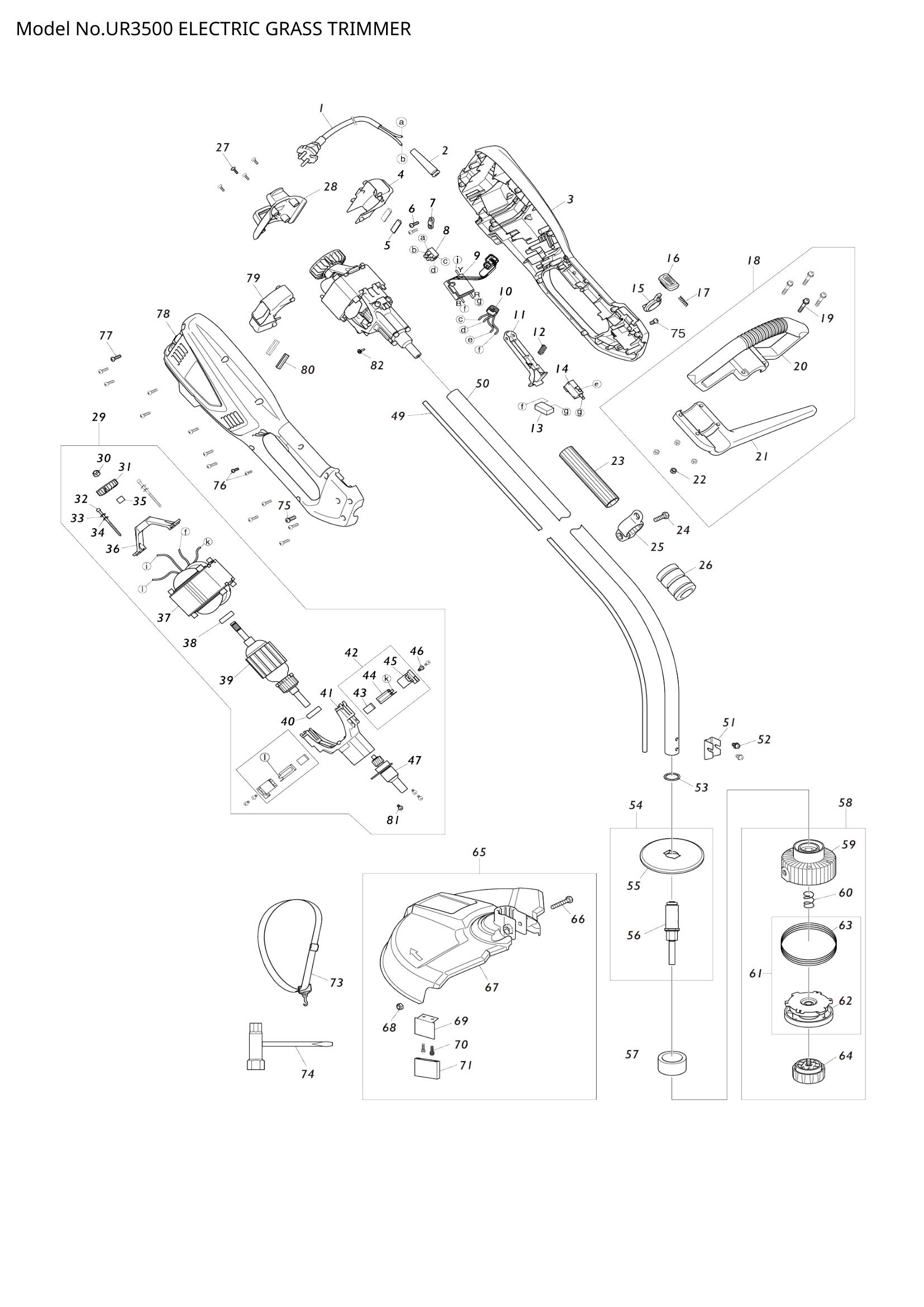

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | POWER CORD & PLUG | 1 | Not available in store | |||
| 002 | CORD PROTECTOR | 1 | Not available in store | |||
| 003 | YA00000660 | HOUSING ASSEMBLY BLUE | 1 | €32.98 | 1-4 weeks to ship | |
| 004 | YA00000562 | FAN HOUSING L | 1 | €0.97 | 1-4 weeks to ship | |
| 005 | YA00000514 | RUBBER PAD | 2 | €0.28 | 1-4 weeks to ship | |
| 006 | TAPPING SCREW ST4X14 | 2 | Not available in store | |||
| 007 | CABLE PRESS BOARD | 1 | Not available in store | |||
| 009 | YA00000643 | PCB CONTROL BOARD | 1 | €24.91 | 1-4 weeks to ship | |
| 011 | YA00000554 | SWITCH TRIGGER | 1 | €0.70 | 1-4 weeks to ship | |
| 012 | SPRING | 1 | Not available in store | |||
| 015 | YA00000539 | SPACING COLLAR | 1 | €0.28 | 1-4 weeks to ship | |
| 016 | YA00000525 | PUSH BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | COMPRESSION SPRING | 1 | Not available in store | |||
| 018 | YA00000620 | AUXILIARY HANDLE ASSEMBLY | 1 | €16.00 | 1-4 weeks to ship | |
| 019 | NYLOC SCREW | 4 | Not available in store | |||
| 020 | YA00000564 | AUX.HANDLE COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 021 | YA00000563 | AUX.HANDLE SUPPORT | 1 | €2.78 | 1-4 weeks to ship | |
| 022 | HEX LOCK NUT M5 | 4 | Not available in store | |||
| 023 | THE INSULATING SHEATH | 1 | Not available in store | |||
| 024 | PAN HEAD SCREWS M6X20 | 1 | Not available in store | |||
| 025 | SHOULD BELT RING | 1 | Not available in store | |||
| 026 | RUBBER COVER | 1 | Not available in store | |||
| 028 | YA00000560 | REAR COVER | 1 | €2.50 | 1-4 weeks to ship | |
| 029 | YA00000645 | MOTOR ASSEMBLY 230V/700W | 1 | €149.59 | 1-4 weeks to ship | |
| 030 | HEX LOCK NUT M6 | 1 | Not available in store | |||
| 031 | YA00000507 | IMPELLER | 1 | €1.39 | 1-4 weeks to ship | |
| 032 | PAN HEAD SCREW M4X55 WITH | 2 | Not available in store | |||
| 035 | YA00000531 | AXLE SLEEVE | 1 | €0.70 | 1-4 weeks to ship | |
| 036 | YA00000526 | REAR BRACKET | 1 | €3.20 | 1-4 weeks to ship | |
| 039 | YA00000646 | ROTOR ASSEMBLY | 1 | €52.46 | 1-4 weeks to ship | |
| 041 | YA00000629 | FRONT BRACKET ASSEMBLY | 1 | €14.75 | 1-4 weeks to ship | |
| 046 | PAN HEAD SCREW M4X12 WITH | 4 | Not available in store | |||
| 047 | YA00000483 | SHAFT ASS'Y | 1 | €20.87 | 1-4 weeks to ship | |
| 049 | YA00000551 | FLEXIBLE SHAFT | 1 | €9.04 | 1-4 weeks to ship | |
| 050 | YA00000495 | TUBE ASS'Y | 1 | €30.61 | 1-4 weeks to ship | |
| 051 | FIXING FRAME | 1 | Not available in store | |||
| 053 | YA00000534 | SEALING RING | 1 | €0.14 | 1-4 weeks to ship | |
| 054 | YA00000485 | OUTPUT SHAFT ASS'Y | 1 | €29.08 | 1-4 weeks to ship | |
| 055 | YA00000432 | SAFETY GUARD | 1 | €5.43 | 1-4 weeks to ship | |
| 056 | YA00000648 | THE SHAFT JOINT ASSEMBLY | 1 | €21.29 | 1-4 weeks to ship | |
| 057 | YA00000568 | DUST PROOF RING | 1 | €0.70 | 1-4 weeks to ship | |
| 060 | YA00000512 | COMPRESSION SPRING | 1 | €0.14 | 1-4 weeks to ship | |
| 064 | YA00000652 | KNOB ASSEMBLY | 1 | €3.06 | 1-4 weeks to ship | |
| 065 | YA00000653 | SHIELD ASSEMBLY | 1 | €10.02 | 1-4 weeks to ship | |
| 067 | SAFETY GUARD | 1 | Not available in store | |||
| 068 | HEX LOCK NUT M6 | 1 | Not available in store | |||
| 069 | YA00000529 | BLADE | 1 | €1.25 | 1-4 weeks to ship | |
| 070 | YA00000655 | TRUSS HEAD TAPPING SCREW 4X | 2 | €0.14 | 1-4 weeks to ship | |
| 071 | YA00000518 | BLADE COVER | 1 | €0.42 | 1-4 weeks to ship | |
| 073 | STRAP | 1 | Not available in store | |||
| 078 | YA00000660 | HOUSING ASSEMBLY BLUE | 1 | €32.98 | 1-4 weeks to ship | |
| 079 | YA00000561 | FAN HOUSING R | 1 | €0.97 | 1-4 weeks to ship | |
| 080 | YA00000514 | RUBBER PAD | 2 | €0.28 | 1-4 weeks to ship | |
| 081 | PAN HEAD SCREW M4X12 WITH | 3 | Not available in store | |||
