UR008G
UR008G

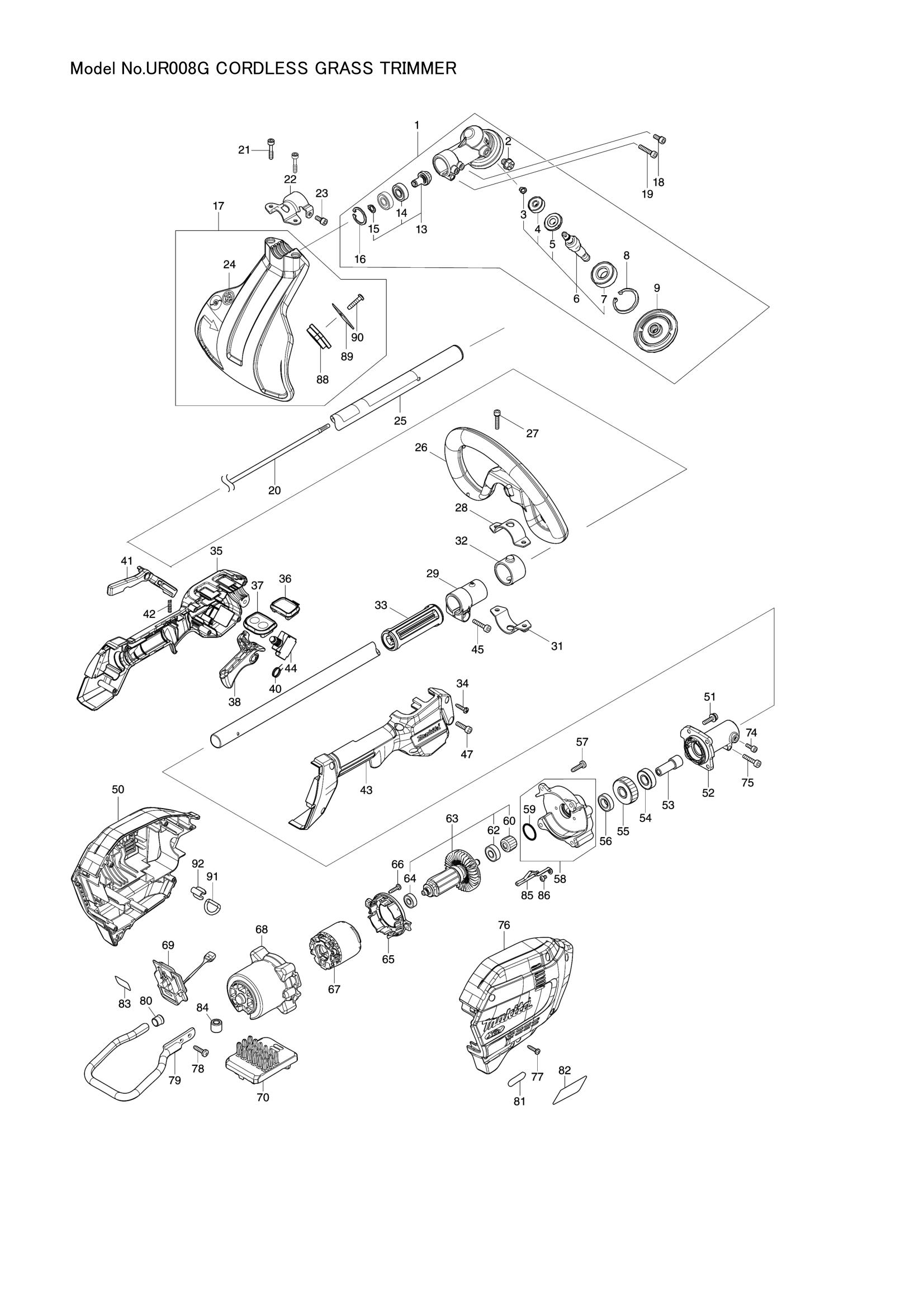

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | GEAR CASE ASSEMBLY US | 1 | Not available in store | |||
| 002 | 265590-2 | +HEX.BOLT M8X10 WITH R | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | RETAINING RING (EXT) S-7 | 1 | Not available in store | |||
| 004 | 210030-5 | BALL BEARING 627ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 005 | SPIRAL BEVEL GEAR 21 | 1 | Not available in store | |||
| 006 | CUTTER SHAFT ASS'Y | 1 | Not available in store | |||
| 007 | 211228-7 | BALL BEARING 6202DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 008 | RETAINING RING (INT) R-35 | 1 | Not available in store | |||
| 009 | RECEIVE WASHER COMPLETE | 1 | Not available in store | |||
| 013 | SPIRAL BEVEL GEAR ASS'Y | 1 | Not available in store | |||
| 014 | 210049-4 | BALL BEARING 609ZZ | 2 | €4.17 | 1-4 weeks to ship | |
| 015 | RETAINING RING (EXT) S-9 | 1 | Not available in store | |||
| 016 | RETAINING RING (INT)R-24 | 1 | Not available in store | |||
| 017 | PROTECTOR N 430 SET MG | 1 | Not available in store | |||
| 018 | 922216-6 | H.S.H.BOLT M5X14 WITH W | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 327056-1 | SHAFT | 1 | €5.57 | 1-4 weeks to ship | |
| 021 | 251513-6 | H.S.H.BOLT M5X25 | 2 | €0.28 | 1-4 weeks to ship | |
| 022 | 347107-4 | PROTECTOR CLAMP 24 | 1 | €2.09 | 1-4 weeks to ship | |
| 023 | 922216-6 | H.S.H.BOLT M5X14 WITH W | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 457273-0 | PROTECTOR N 420-450 | 1 | €19.06 | 1-4 weeks to ship | |
| 457273-0 | PROTECTOR N 420-450 | 1 | €19.06 | 1-4 weeks to ship | ||
| 025 | SHAFT PIPE COMPLETE J | 1 | Not available in store | |||
| 026 | LOOP HANDLE | 1 | Not available in store | |||
| 027 | H.S.H.BOLT M5X20 WITH WG | 2 | Not available in store | |||
| 028 | 347113-9 | UPPER CLAMP 35 | 1 | €0.81 | 1-4 weeks to ship | |
| 029 | 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | |
| 457269-1 | PIPE HOLDER 24 | 1 | €1.64 | 1-4 weeks to ship | ||
| 031 | 347114-7 | LOWER CLAMP 35 | 1 | €1.35 | 1-4 weeks to ship | |
| 032 | 424942-8 | DAMPER | 1 | €1.31 | 1-4 weeks to ship | |
| 033 | 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | |
| 451601-1 | SPACER 24 | 1 | €2.09 | 1-4 weeks to ship | ||
| 034 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 035 | GRIP SET | 1 | Not available in store | |||
| 038 | SWITCH LEVER | 1 | Not available in store | |||
| 040 | TORSION SPRING 12 | 1 | Not available in store | |||
| 041 | LOCK OFF LEVER | 1 | Not available in store | |||
| 042 | 233101-1 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | GRIP SET | 1 | Not available in store | |||
| 044 | SWITCH C3JR-1A-PAXD3 | 1 | Not available in store | |||
| 045 | 922244-1 | H.S.H.BOLT M5X25 WITH WG | 1 | €1.39 | 1-4 weeks to ship | |
| 047 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 052 | PIPE BRACKET COMPLETE | 1 | Not available in store | |||
| 053 | 325811-5 | SPINDLE HUB | 1 | €16.70 | 1-4 weeks to ship | |
| 054 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 055 | HELICAL GEAR 33 | 1 | Not available in store | |||
| 056 | 211150-8 | BALL BEARING 6901ZZ | 1 | €5.57 | 1-4 weeks to ship | |
| 057 | 266420-0 | TAPPING SCREW 5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 058 | GEAR BOX ASSY | 1 | Not available in store | |||
| 059 | 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | HELICAL GEAR 16 | 1 | Not available in store | |||
| 062 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 063 | ROTOR ASS'Y | 1 | Not available in store | |||
| 064 | 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 065 | BAFFLE PLATE | 1 | Not available in store | |||
| 066 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 067 | STATOR | 1 | Not available in store | |||
| 068 | MOTOR HOUSING | 1 | Not available in store | |||
| 069 | 632P49-4 | TERMINAL UNIT | 1 | €9.46 | 1-4 weeks to ship | |
| 070 | CONTROLLER | 1 | Not available in store | |||
| 075 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 078 | 266420-0 | TAPPING SCREW 5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 079 | BATTERY GUARD | 1 | Not available in store | |||
| 080 | CAP | 1 | Not available in store | |||
| 081 | XGT LOGO LABEL | 1 | Not available in store | |||
| 082 | UR008G NAME PLATE | 1 | Not available in store | |||
| 083 | UR008G SERIAL NO. LABEL | 1 | Not available in store | |||
| 084 | 688163-8 | LINE FILTER | 1 | €0.83 | 1-4 weeks to ship | |
| 086 | 911102-6 | PAN HEAD SCREW M4X6 | 1 | €0.14 | 1-4 weeks to ship | |
| 088 | CUTTER EXTENSION | 1 | Not available in store | |||
| 089 | 347115-5 | CUTTER | 1 | €1.81 | 1-4 weeks to ship | |
| 090 | 266459-3 | TAPPING SCREW 5X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 091 | D RING 20 | 1 | Not available in store | |||
| 092 | RING SUPPORT | 1 | Not available in store | |||
